Remove/Install Rear Differential Lock Control Unit - AR35.40-P-7501MEA
Model 167.3
With Code 467 (Electronic locking differential)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove right side load compartment trim. | AR68.30-P-1185MEC | |

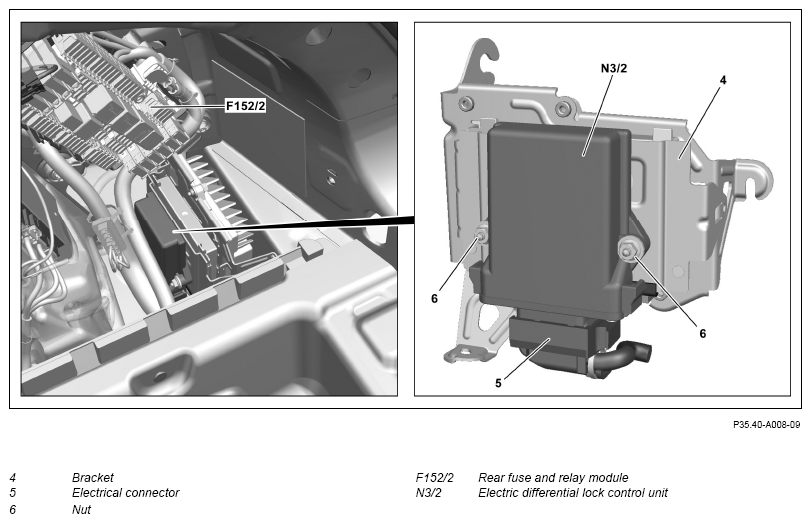

| 2 | Remove rear fuse and relay module (F152/2) and place to one side with lines attached. | AR54.15-P-0001ME | |
| 3 | Release and disconnect electrical connector (5). | ||
| 4 | Remove nuts (6) and remove electric differential lock control unit (N3/2) from holder (4). | ||
| 5 | Install in the reverse order. | ||
| 6 | Commission electric differential lock control unit (N3/2). | ||
| AD00.00-P-2000-06ME |
