Remove/Install ME-SFI Control Unit - AR07.08-P-1000MRK
Engine 264, 274 In Model 167

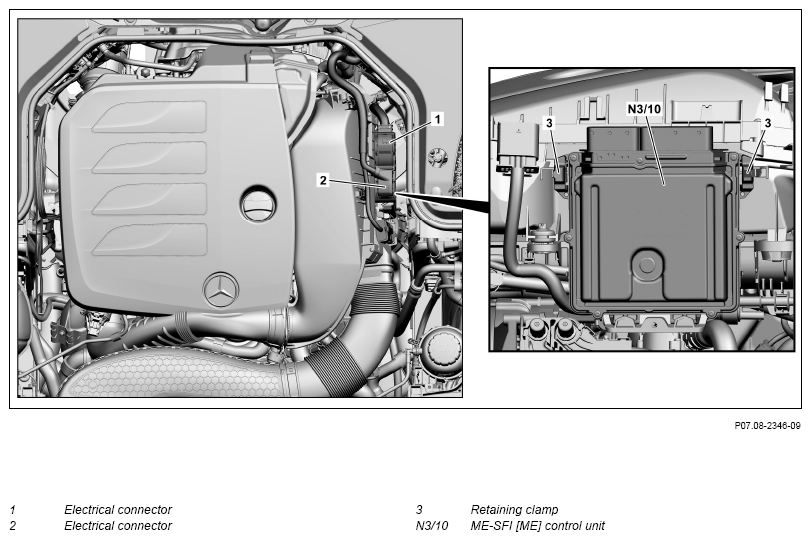

Shown on engine 264
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage to ignition system | AH15.10-P-0002-01V | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Start control unit replacement with vehicle diagnosis system. | When replacing the ME-SFI [ME] control unit (N3/10). | |
| AD00.00-P-2000-06ME | |||
| 2 | Disconnect ground line from on-board electrical system battery. | AR54.10-P-0003ME | |
| 3 | Release and disconnect electrical connectors (1, 2). | ||
| 4 | Release retaining clamps (3) and take out ME-SFI [ME] control unit (N3/10) | ||
| 5 | Install in the reverse order. | ||
| 6 | Connect vehicle diagnosis system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06ME | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Conduct engine test run while checking for proper operation of the engine. |
