Remove/Install Transfer Case Absolute Sensor - AR28.19-P-1009MSC
Transmission 725.0 In Model 167 with engine 256.9
with code 430 (Offroad package)

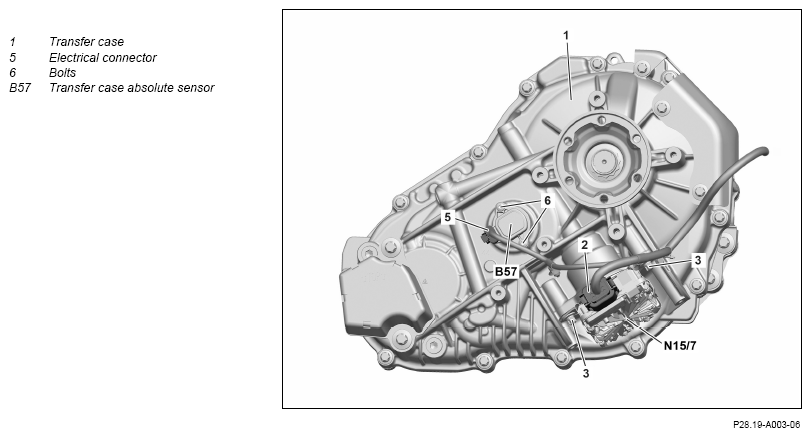

Fig 1: Transfer Case Absolute Sensor Components Location - Transmission 725.0 In Model 167 With Engine 256.9 With Code 430
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Lift vehicle with vehicle lift. | AR00.60-P-1006A | |
| 2 | Remove cover under transfer case (1). | AR61.30-P-1001ME | |
| 3 | Remove shield plate at transfer case (1). | *BA28.10-P-1008-01I | |
| 4 | Release and disconnect electrical connector (5). | ||
| 5 | Remove screws (6). | *BA28.19-P-1003-01B | |
| 6 | Remove transfer case absolute sensor (B57). | The lugs of the transfer case absolute sensor (B57) must latch into the grooves in the transfer case (1). Damage will otherwise occur. |
|
| 7 | Install in the reverse order. | ||
| 8 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run; while doing so, check transfer case (1) for proper operation and leak tightness. | ||
| 10 | Install cover under transfer case (1). | AR61.30-P-1001ME |
COMPLETE TRANSFER CASE
| Number | Designation | Model 167 with code 430 | ||
|---|---|---|---|---|
| BA28.10-P-1008-01I | Screw, shield to off-road bracket | M5 | Nm | 5 |
TRANSFER CASE ELECTRICAL SYSTEM
| Number | Designation | Model 167 | ||
|---|---|---|---|---|
| BA28.19-P-1003-01B | Screw/bolt, absolute sensor to transfer case | M5 | Nm | 5 |
