Cruise Control (CC), Function - GF30.30-P-0001RDM
Model 172.4
as of model year 2017
Shown on model 172.4
Cruise control function requirements
- Engine running or drivetrain operational
- Gear range "D" engaged (for transmission 725.0)
- Vehicle speed v > 30 km/h
- Vehicle speed for active distance control v > 30 to 200 km/h
Cruise control - general
The CC function automatically regulates the vehicle speed as constant at the speed specified by the driver.
To do this the CC function evaluates the operator requests of the driver and the current driving condition.
The CC function is implemented by the Electronic Stability Program control unit.
Operation of the CC function

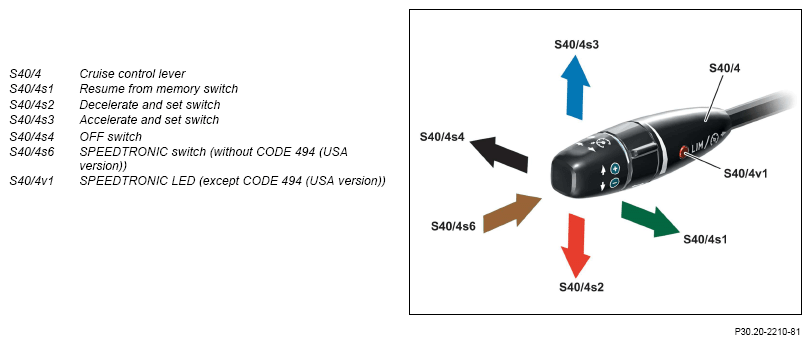

The CC function can be activated over the following controls:
- Resume from memory switch
- Decelerate and set switch
- Accelerate and set switch
This sets the current vehicle speed as the target speed.
If a target speed was already set since the last engine start this can be called up by actuating the switch Resume from memory. The vehicle accelerates or decelerates to the last selected target speed.
Using the switches "decelerate" and "set" and the switches "accelerate" and "set", the target speed can be altered in steps of v = 1 km/h or v = 10 km/h.
Actuation up to the actuation point increases the set speed by v = 1 km/h.
If the switch is pressed beyond the actuation point then the set speed increases each time by v = 10 km/h.
If the switch is held at or beyond the over-center preload the set speed is altered every t = 0.6 s.
The following input factors are evaluated to implement the CC function:
- Operating condition of engine/drivetrain (function requirements)
- Vehicle speed
- Engaged gear range (transmission 725.0) (function requirements)
- Driver request via the cruise control lever
- Accelerator pedal position
Operating condition for engine/drivetrain:

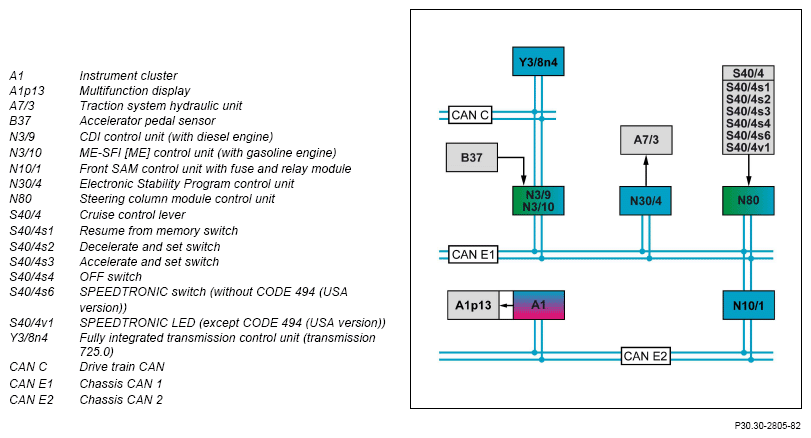

The CDI control unit or the ME-SFI [ME] control unit transmits the signal "electric motor runs" or "drivetrain operational" via the chassis CAN 1 to the Electronic Stability Program control unit. Vehicle speed:
The vehicle speed is calculated on the basis of the wheel speeds. The RPM sensors detect the wheel speeds. The Electronic Stability Program control unit directly reads in the signals from the RPM sensors.
Engaged gear range (transmission 725.0):
The fully integrated transmission control unit sends the information about the gear range via drive train CAN, CDI control unit or ME-SFI [ME] control unit and chassis CAN 1 to the Electronic Stability Program control unit.
Driver request via the cruise control lever:
The driver request over the CC lever are directly read in by the steering column tube module control unit. The steering column tube module control unit transmits the control signals from the CC lever via chassis CAN 1 to the Electronic Stability Program control unit.
Accelerator pedal position:
Operation of the accelerator pedal is registered by the accelerator pedal sensor.
The CDI control unit or the ME-SFI [ME] control unit directly reads in the signals from the accelerator pedal sensor and transmits these via chassis CAN 1 to the Electronic Stability Program control unit.
The following initial parameters (request) are issued to implement the CC function:
- Increase/reduce engine torque
- Engage targeted gear (downshift or upshift) (transmission 725.0)
- Increase/reduce the braking torque
Raise/reduce engine torque:
The Electronic Stability Program control unit evaluates the input factors as well as further driving dynamics requests and transmits the request "increase/reduce engine torque" via the chassis CAN 1 to the CDI control unit or the ME-SFI [ME] control unit. The CDI control unit or the ME-SFI [ME] control unit implements this request.
Engage targeted gear (transmission 725.0):
The Electronic Stability Program control unit internally evaluates the input factors as well as further driving dynamics requests and transmits the request "Engage targeted gear" via chassis CAN 1, the CDI control unit or the ME-SFI [ME] control unit and drive train CAN to the fully integrated transmission control unit.
This request is however to be understood as a switching recommendation. Downshifting or upshifting of the A/T takes place autonomously itself by the fully integrated transmission control unit, dependent on the current operating condition.
Raise/reduce braking torque:
The Electronic Stability Program control unit evaluates the input factors and actuates the traction system hydraulic unit appropriately. The traction system hydraulic unit reacts by increasing or reducing the braking torque.
The cruise control function includes the following subfunctions:
- Function sequence for automatic speed control
- Function sequence for SPEEDTRONIC
Additional automatic speed control function requirements
- Cruise control selected using SPEEDTRONIC switch (without code 494 (USA version)) (SPEEDTRONIC LED off)
- Electronic Stability Program (ESP®) not passively switched (except model 172.466)
- ESP® not switched into "SPORT HANDLING MODE" (for model 172.466)
Function sequence for automatic speed control
Through actuation of the "Resume from memory" switch the last set speed stored is applied, provided a set speed was stored since the last engine start. If no set speed was stored, the current vehicle speed is set as the set speed. The set speed is displayed in the speedometer.
To do this, the Electronic Stability Program control unit sends corresponding information via chassis CAN 1, front SAM control unit with fuse and relay module and chassis CAN 2 to the instrument cluster.
The following events deactivate the automatic speed control:
- Operation of the OFF switch
- Depressing the brake pedal
- Active regulation of the ESP®
- Speed v < 25 km/h
- Electric parking brake activated
- Gear range is not "D" (transmission 725.0)
- Actuate the clutch pedal (transmission 711, 716)
The following activities are started in order to reach or maintain the set speed:
- Increase/reduce engine torque
- Engage targeted gear (downshift or upshift) (transmission 725.0)
- Increase/reduce the braking torque
The driver also has the option to accelerate beyond the set target speed through actuation of the accelerator pedal (for example when overtaking).
The set target speed is regulated again after removal of the acceleration request (releasing the accelerator pedal).
Function sequence for SPEEDTRONIC
The SPEEDTRONIC encompasses the following subfunctions:
- Function sequence for variable SPEEDTRONIC (except code 494 (USA version))
- Function sequence for permanent limiter
Additional function requirements for variable SPEEDTRONIC (without code 494 (USA version))
- Variable SPEEDTRONIC selected with SPEEDTRONIC switch (SPEEDTRONIC LED lights up)
- ESP® not passively engaged (except model 172.466)
- ESP® not switched into "SPORT HANDLING MODE" (for model 172.466)
- No "kickdown" recognized (transmission 725.0)
Kickdown: accelerator pedal pressed by > 90% and vehicle speed v < 20 km/h less than the selected maximum permissible speed).
Function sequence for variable SPEEDTRONIC (except code 494 (USA version))
The maximum permissible speed of the vehicle can be limited at any time to a freely selectable value (e.g. 50 km/h in urban traffic) over the variable SPEEDTRONIC.
The driver can accelerate the vehicle up to the set limit.
If the set limit was reached, the following activities are started:
- Reduce engine torque
- Engage targeted gear (shift down) (transmission 725.0)
- Raise braking torque
If switching takes place on the variable SPEEDTRONIC on the CC lever, the automatic speed control is deactivated. The following events deactivate the variable SPEEDTRONIC:
- Operation of the OFF switch
- Kickdown (transmission 725.0)
Function sequence for permanent limiter
The maximum permission speed of the vehicle can be limited in steps of v = 10 km/h from v = 160 km/h to 240 km/h.
Adjustment of the permissible maximum speed takes place in the menu "Settings", "Vehicle" and "Limitation (winter tires)" in the instrument cluster.
The instrument cluster sends the set maximum permissible speed via chassis CAN 2, front SAM control unit and chassis CAN 1 to the Electronic Stability Program control unit.
Approximately v = 10 km/h before reaching the set maximum permissible speed, a message appears in the multifunction display that indicates a maximum permissible speed limitation. To do this, the Electronic Stability Program control unit sends corresponding information via chassis CAN 1, front SAM control unit and chassis CAN 2 to the instrument cluster.
The driver can accelerate the vehicle up to the set permissible maximum speed.
If the maximum permissible speed was reached the following activities are started:
- Reduce engine torque
- Engage targeted gear (shift down) (transmission 725.0)
- Reduce braking torque
