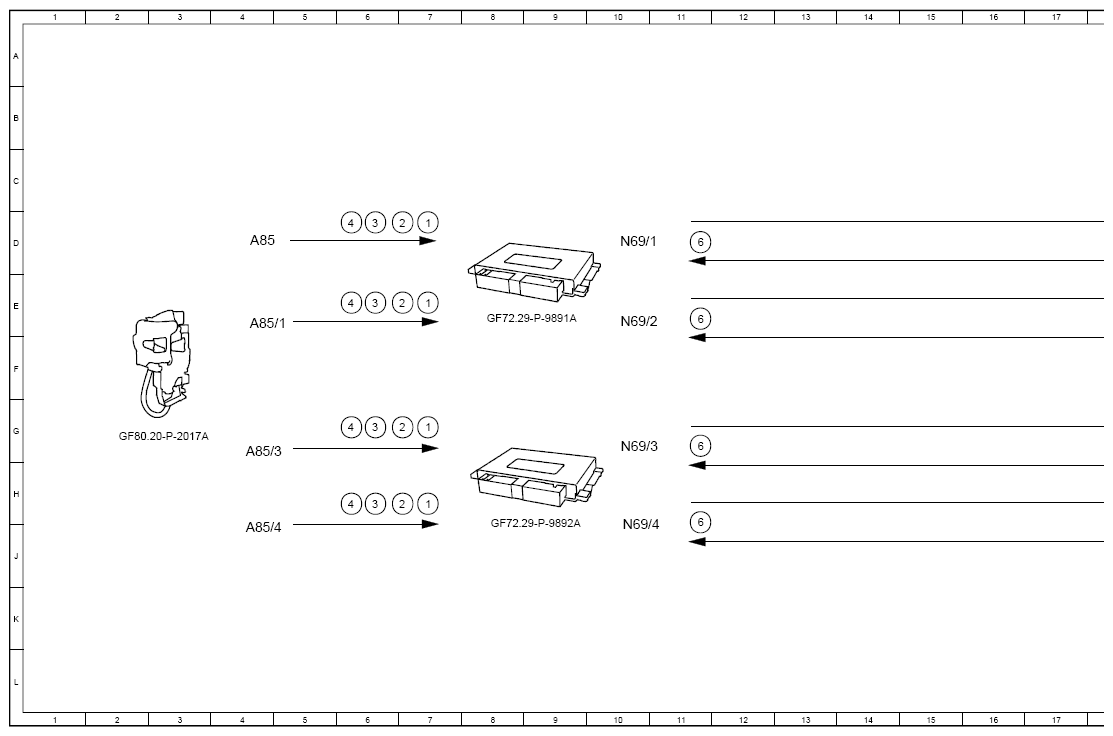

Function Schematic For Power Closing Function - PE80.40-P-2500-97A
Model 167 With Code 883 (Power locking)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Pre-locking position microswitch, status | 7D |
| 1 | Pre-locking position microswitch, status | 7E |
| 1 | Pre-locking position microswitch, status | 7G |
| 1 | Pre-locking position microswitch, status | 7H |
| 2 | Main locking position microswitch, status | 7D |
| 2 | Main locking position microswitch, status | 7E |
| 2 | Main locking position microswitch, status | 7G |
| 2 | Main locking position microswitch, status | 7H |
| 3 | Internal operation microswitch, status | 8D |
| 3 | Internal operation microswitch, status | 8E |
| 3 | Internal operation microswitch, status | 8G |
| 3 | Internal operation microswitch, status | 8H |
| 4 | External operation microswitch, status | 8D |
| 4 | External operation microswitch, status | 8E |
| 4 | External operation microswitch, status | 8G |
| 4 | External operation microswitch, status | 8H |
| 5 | Power closing actuator motor, actuation | 18C |
| 5 | Power closing actuator motor, actuation | 18D |
| 5 | Power closing actuator motor, actuation | 18E |
| 5 | Power closing actuator motor, actuation | 18H |
| 6 | Power closing actuator motor microswitch, status | 11D |
| 6 | Power closing actuator motor microswitch, status | 11E |
| 6 | Power closing actuator motor microswitch, status | 11G |
| 6 | Power closing actuator motor microswitch, status | 11H |
| A85 | Driver door lock | 4D |
| A85/1 | Front passenger door lock | 4E |
| A85/3 | Left rear door lock | 4G |
| A85/4 | Right rear door lock | 4J |
| M14/21 | Left front door power closing actuator motor | 19D |
| M14/22 | Right front door power closing actuator motor | 19E |
| M14/23 | Left rear door power closing actuator motor | 19G |
| M14/24 | Right rear door power closing actuator motor | 19J |
| N69/1 | Driver door control unit | 10D |
| N69/2 | Front passenger door control unit | 10E |
| N69/3 | Left rear door control unit | 10G |
| N69/4 | Right rear door control unit | 10J |
