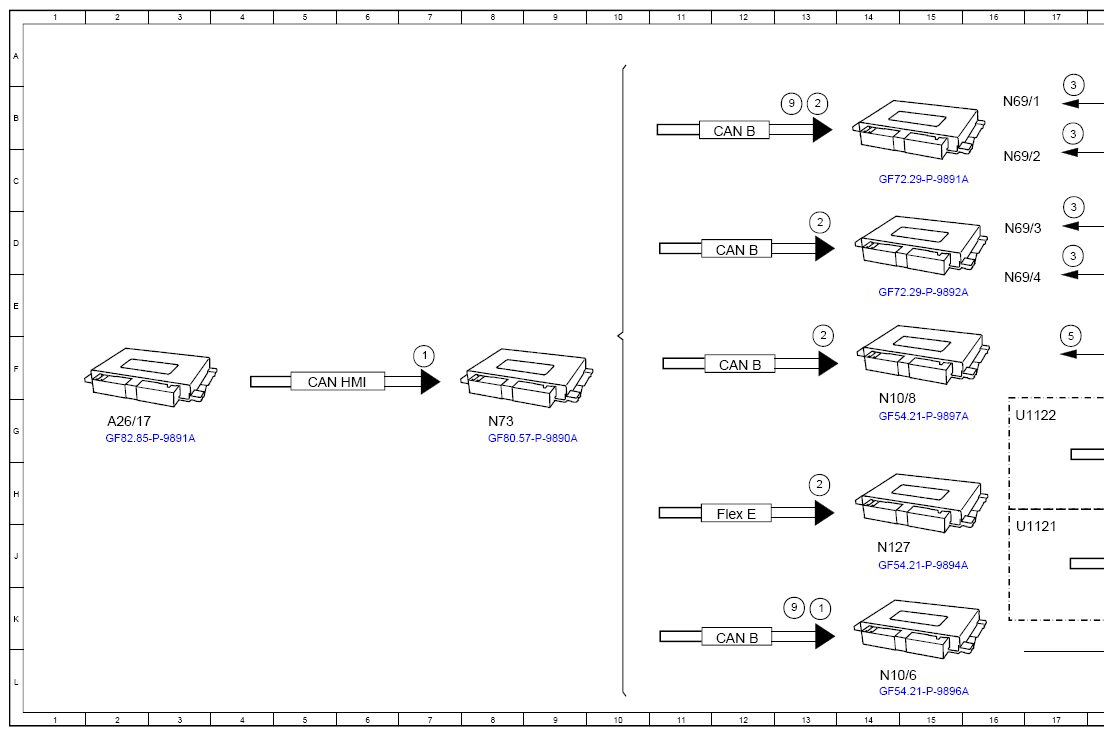

Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97D
Model 167
With Code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 293
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic locking feedback, status | 13K |
| 1 | Acoustic locking feedback, status | 7F |
| 10 | Fanfare horns, actuation | 26K |
| 2 | Lock/unlock central locking, request | 13B |
| 2 | Lock/unlock central locking, request | 13D |
| 2 | Lock/unlock central locking, request | 13E |
| 2 | Lock/unlock central locking, request | 13H |
| 2 | Lock/unlock central locking, request | 20J |
| 2 | Lock/unlock central locking, request | 20G |
| 3 | Main locking position microswitch, status | 17C |
| 3 | Main locking position microswitch, status | 17D |
| 4 | Central locking motor, actuation | 24B |
| 4 | Central locking motor, actuation | 24B |
| 5 | Trunk lid/liftgate lock main catch switch, status | 17 |
| 6 | Trunk lid/liftgate lock motor, actuation | 24E |
| 7 | Tank cap central locking actuator, status | 24H |
| 8 | Tank cap central locking actuator, actuation | 26H |
| 9 | Turn signal confirmation, request | 13B |
| 9 | Turn signal confirmation, request | 13K |
| A26/17 | Head unit | 2G |
| A85 | Driver door lock | 25B |
| A85/1 | Front passenger door lock | 25C |
| A85/3 | Left rear door lock | 25D |
| A85/4 | Right rear door lock | 25E |
| A85/5 | Trunk lid/1iftgate lock | 25F |
| CAN B | Interior CAN | 12F |
| CAN B | Interior CAN | 12D |
| CAN B | Interior CAN | 12B |
| CAN B | Interior CAN | 12K |
| CAN ED | Electric drive system CAN | 19G |
| CAN HMI | User interface CAN | 5F |
| CAN L | Hybrid CAN | 19J |
| Flex E | Chassis FlexRay | 12H |
| H2 | Left fanfare horn | 26L |
| H2/1 | Right fanfare horn | 26L |
| M14/10 | Tank cap central locking actuator | 27J |
| N10/6 | Front central control unit | 14L |
| N10/8 | Rear central control unit | 14G |
| N116/5 | DC/DC converter charger | 21K |
| N127 | Drivetrain control unit | 14J |
| N69/1 | Driver door control unit | 16B |
| N69/2 | Front passenger door control unit | 16C |
| N69/3 | Left rear door control unit | 16D |
| N69/4 | Right rear door control unit | 16E |
| N73 | Electronic ignition switch control unit | 8G |
| N83/11 | Alternating current charger for high-voltage battery | 21H |
| U1121 | Val id for model 167 | 16J |
| U1122 | Val id for model 293 | 16G |
