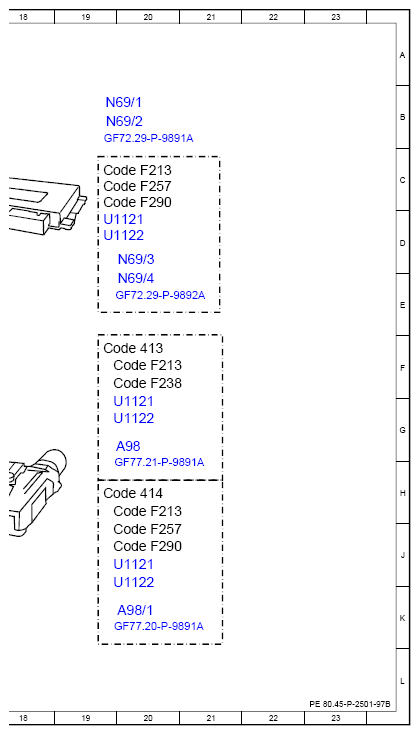

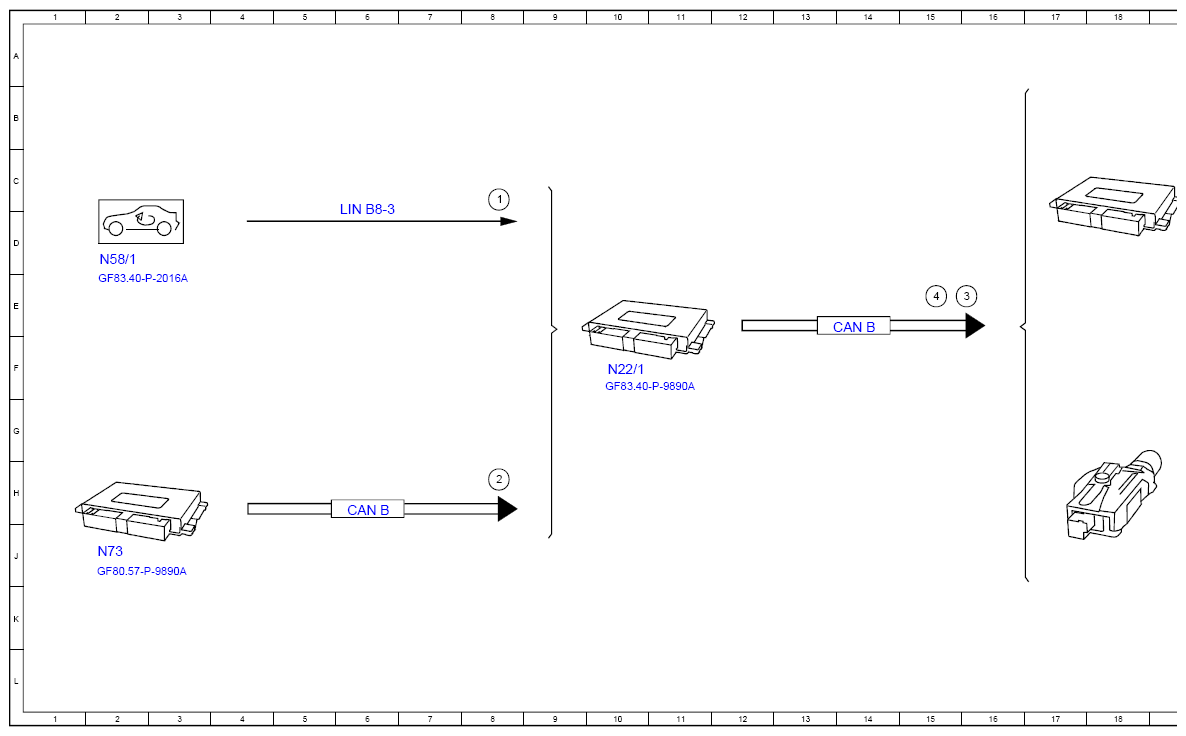

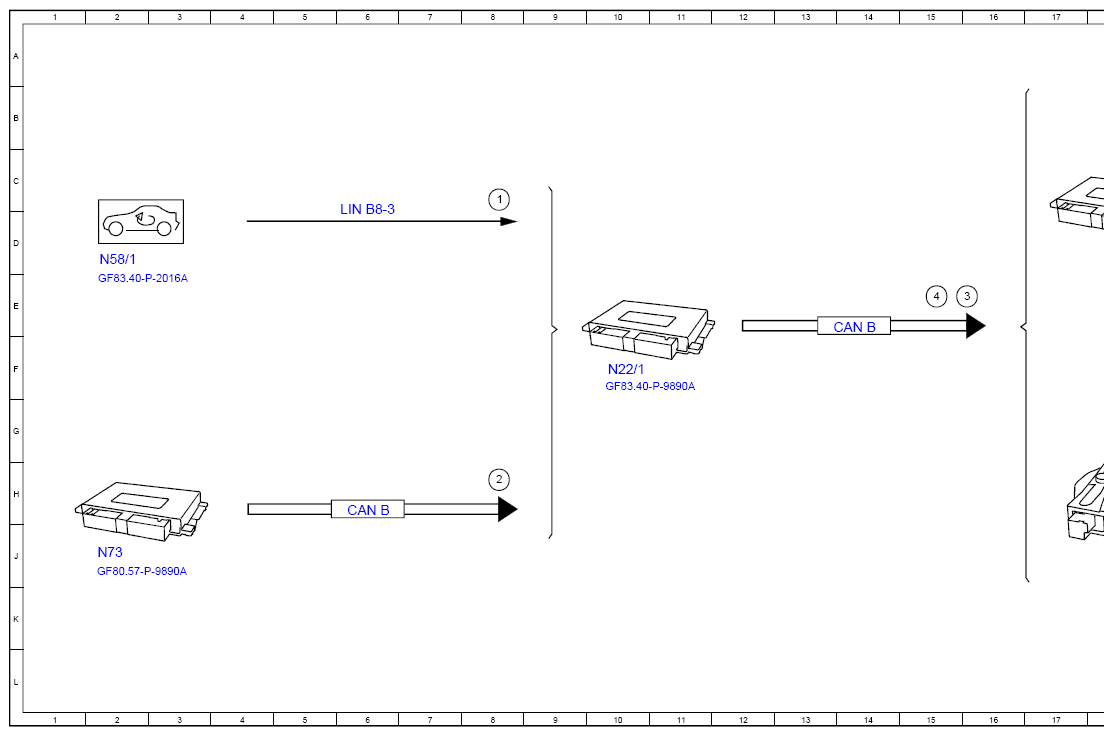

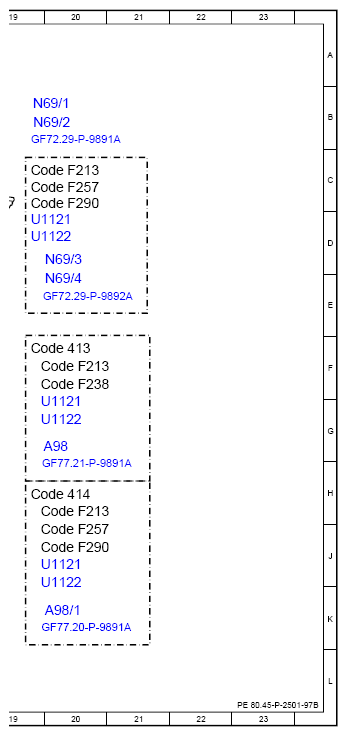

Trigger Convenience Feature Via Air-Recirculation Mode, Function Schematic - PE80.45-P-2501-97B
Model 167
except code 494 (US version)
Model 213, 238, 257, 290
as of model year 2021
except code 494 (US version)
Model 293
except code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Comfort closing/opening, request | 8C |
| 2 | Circuit 15, status | 8H |
| 3 | Convenience feature, status | 11G |
| 4 | Convenience feature direction, signal | 16E |
| A98 | Panoramic sliding roof control module | 20G |
| A98/1 | Sliding roof control module | 20K |
| CAN B | Interior CAN | 6H |
| CAN B | Interior CAN | 14E |
| Code 413 | Panoramic sliding sunroof | 19F |
| Code 414 | Sliding roof | 19H |
| LIN | Local Interconnect Network | 6C |
| N22/1 | Climate control control unit | 10F |
| N58/1 | Climate control operating unit | 2D |
| N69/1 | Driver door control unit | 19B |
| N69/2 | Front passenger door control unit | 19B |
| N69/3 | Left rear door control unit | 20D |
| N69/4 | Right rear door control unit | 20E |
| N73 | Electronic ignition switch control unit | 2J |
