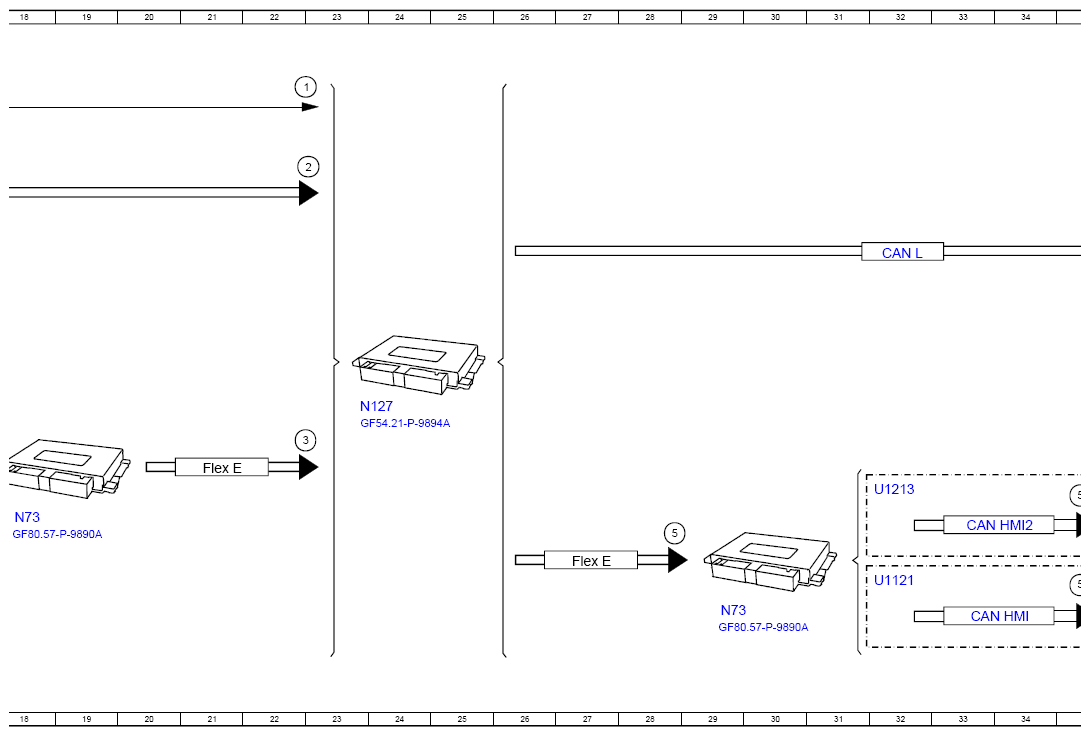

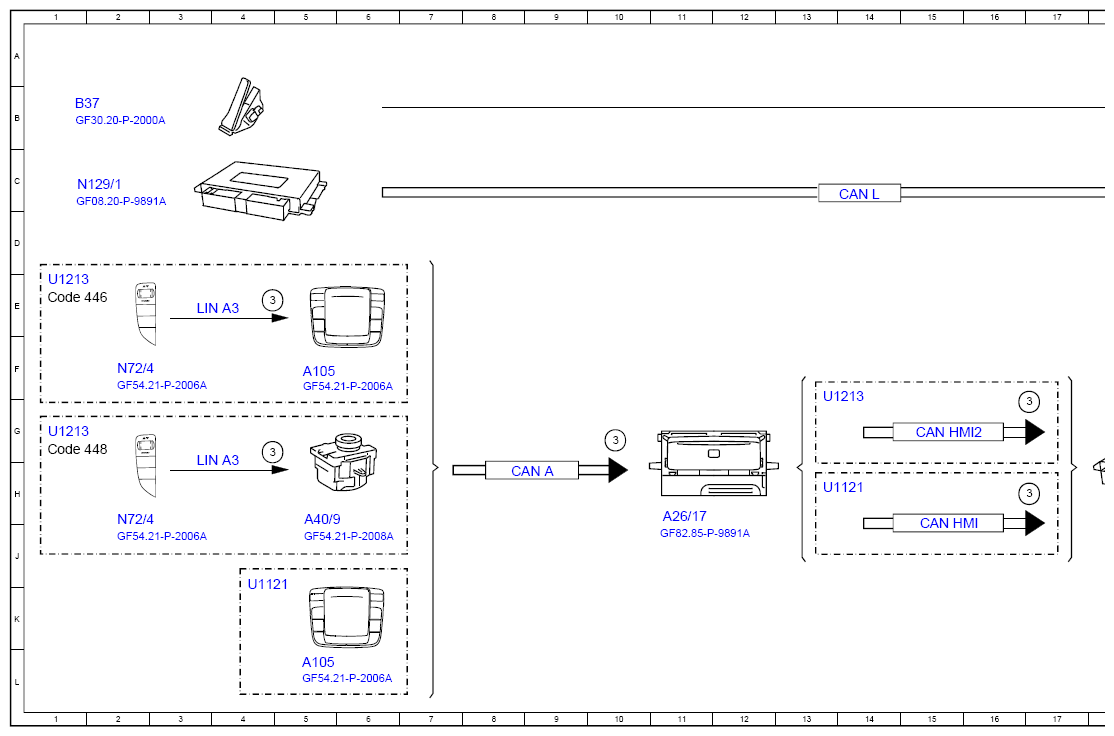

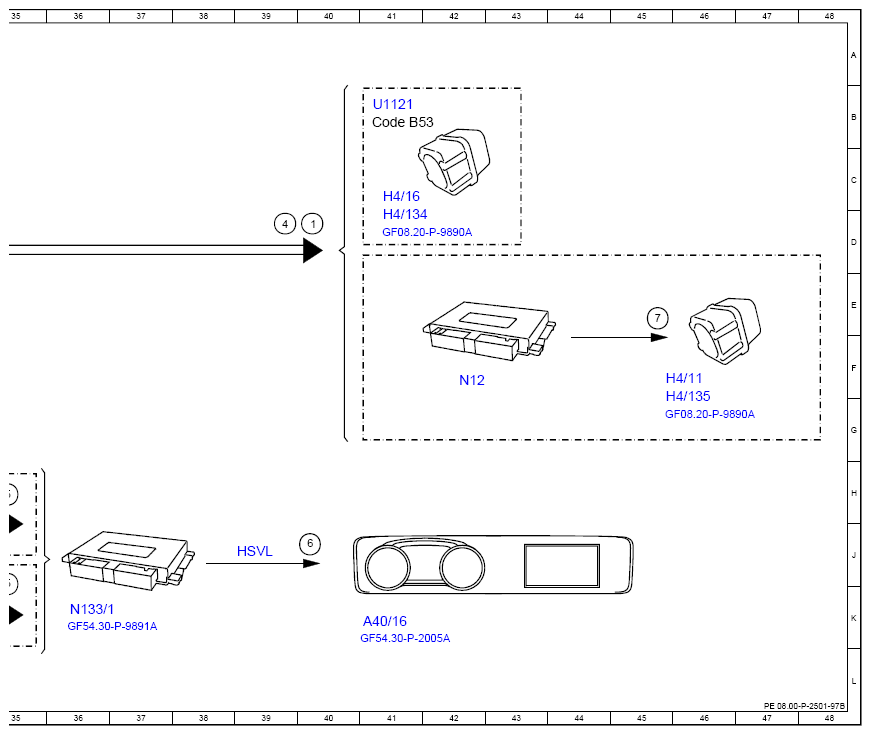

Function Schematic For Driving Mode - PE08.00-P-2501-97B
Model 167
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213
as of model year 2021
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213
as of model year 2021
with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 40D |
| 1 | Accelerator pedal sensor, signal | 22B |
| 2 | Electric machine rpm, signal | 23C |
| 3 | DYNAMIC SELECT switch, status | 4E |
| 3 | DYNAMIC SELECT switch, status | 4G |
| 3 | DYNAMIC SELECT switch, status | 10G |
| 3 | DYNAMIC SELECT switch, status | 17H |
| 3 | DYNAMIC SELECT switch, status | 17F |
| 3 | DYNAMIC SELECT switch, status | 22G |
| 4 | Wheel speed, signal | 39D |
| 5 | Operating mode, status | 28J |
| 5 | Operating mode, status | 35H |
| 5 | Operating mode, status | 35K |
| 6 | Image data, signal | 40J |
| 7 | Speaker, actuation | 45E |
| A105 | Touchpad | 5L |
| A105 | Touchpad | 5F |
| A26/17 | Head unit | 11H |
| A40/16 | Head unit/instrument cluster display cluster | 41K |
| A40/9 | Audio/COMAND control panel | 5H |
| B37 | Accelerator pedal sensor | 1B |
| CAN A | Telematics CAN | 8H |
| CAN HMI | User interface CAN | 15J |
| CAN HMI | User interface CAN | 33K |
| CAN HMI2 | User interface CAN 2 | 15G |
| CAN HMI2 | User interface CAN 2 | 33J |
| CAN L | Hybrid CAN | 14C |
| CAN L | Hybrid CAN | 32D |
| Code 446 | Touchpad only | 1E |
| Code 448 | Touchpad | 1G |
| Code B53 | Acoustic ambient protection | 41B |
| Flex E | Chassis FlexRay | 21H |
| Flex E | Chassis FlexRay | 27J |
| H4/11 | Front sound generator | 45F |
| H4/134 | Sound generator 2 | 41D |
| H4/135 | Rear end sound generator | 45G |
| H4/16 | Sound generator | 41C |
| HSVL | High-speed video link | 39J |
| LIN A3 | LCP LIN | 3H |
| LIN A3 | LCP LIN | 3E |
| N12 | Sound generator control unit | 42F |
| N127 | Drivetrain control unit | 24G |
| N129/1 | Power electronics control unit | 2C |
| N133/1 | Instrument cluster control unit | 36K |
| N72/4 | Left lower control panel | 2H |
| N72/4 | Left lower control panel | 2F |
| N73 | Electronic ignition switch control unit | 18H |
| N73 | Electronic ignition switch control unit | 29K |
| U1121 | Valid for model 167 | 13H |
| U1121 | Valid for model 167 | 41B |
| U1121 | Valid for model 167 | 32J |
| U1121 | Valid for model 167 | 4K |
| U1213 | Valid for model 213 | 13G |
| U1213 | Valid for model 213 | 32H |
| U1213 | Valid for model 213 | 1G |
| U1213 | Valid for model 213 | 1E |
