Remove/Install Intake Camshaft Sensor - AR15.12-P-2146MSC
Engine 256.9 In Model 167
| Risk of injury To skin and eyes due to handling of Engine oil. Risk of poisoning caused by swallowing Engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill Engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||

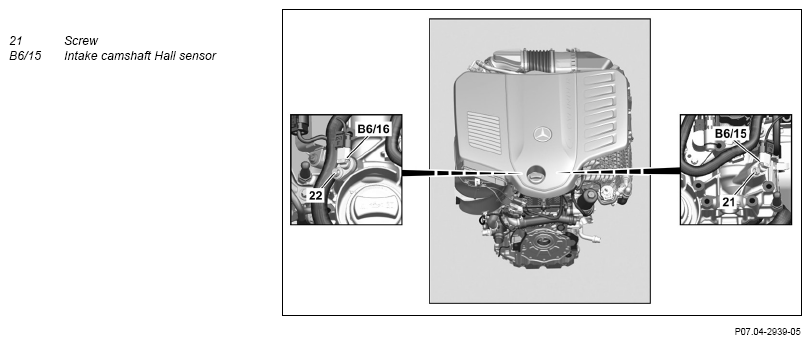

| 1 | Remove upper Engine cover. | AR01.10-P-2405MSC | |
| 2 | Release and disconnect electrical connector on intake camshaft Hall sensor (B6/15). | ||
| 3 | Unscrew screw (21). | *BA15.10-P-1002-03I | |
| 4 | Remove intake camshaft Hall sensor (B6/15). | ||
| 5 | Install in the reverse order. | ||
| 6 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME | |||
| Risk of accident from vehicle starting off by itself when Engine running. Risk of injury (bruises and burns) resulting from working on the Engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Carry out Engine test run and check engine for proper leaktightness and leaktightness. | ||
| 8 | Install upper Engine cover. | AR01.10-P-2405MSC |
POSITION SENSOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA15.10-P-1002-03I | Screw/bolt, camshaft position sensor to cylinder head cover | Nm | 8 |
