Remove/Install Coolant Temperature Sensor - AR15.60-P-2712MSC
Engine 256.9 In Model 167
| Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove upper Engine cover. | AR01.10-P-2405MSC | |
| 2 | Drain off coolant. | AR20.00-P-1142MSC | |

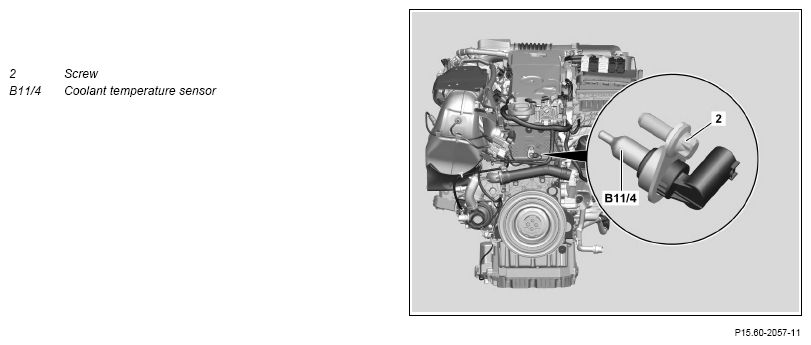

| 3 | Release and disconnect electrical connector o coolant temperature sensor (B11/4). | ||
| 4 | Remove screw (2). | *BA15.60-P-1001-02MRT | |
| 5 | Remove coolant temperature sensor (B11/4) with bracket. | ||
| 6 | Install in the reverse order. | ||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06ME |
TEMPERATURE SENSOR
| Number | Designation | Engine 256.9 | |
|---|---|---|---|
| BA15.60-P-1001-02MRT | Screw, temperature sensor bracket to cylinder head | Nm | 8 |
