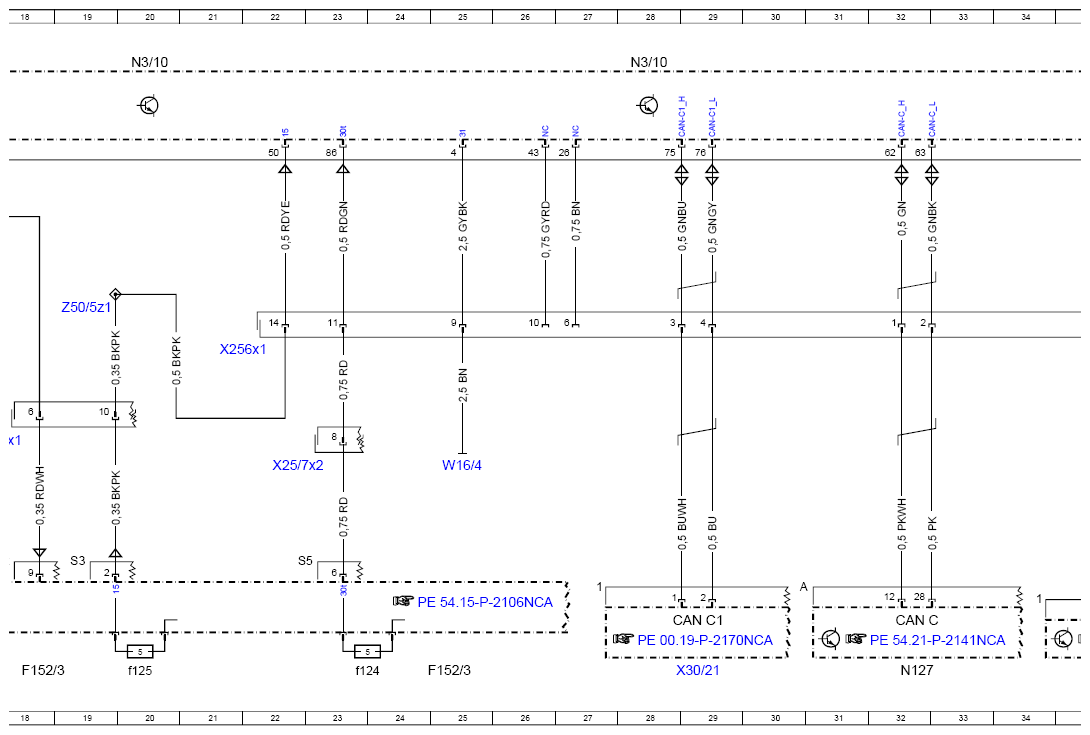

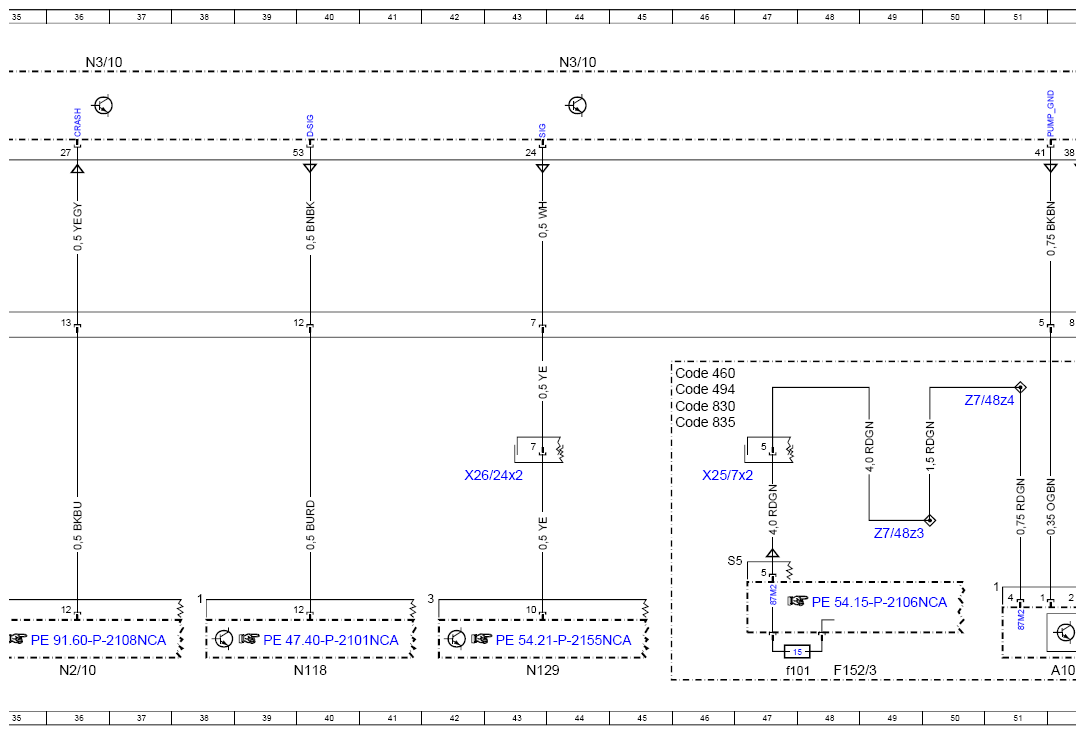

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCF
Engine 176 in model 167

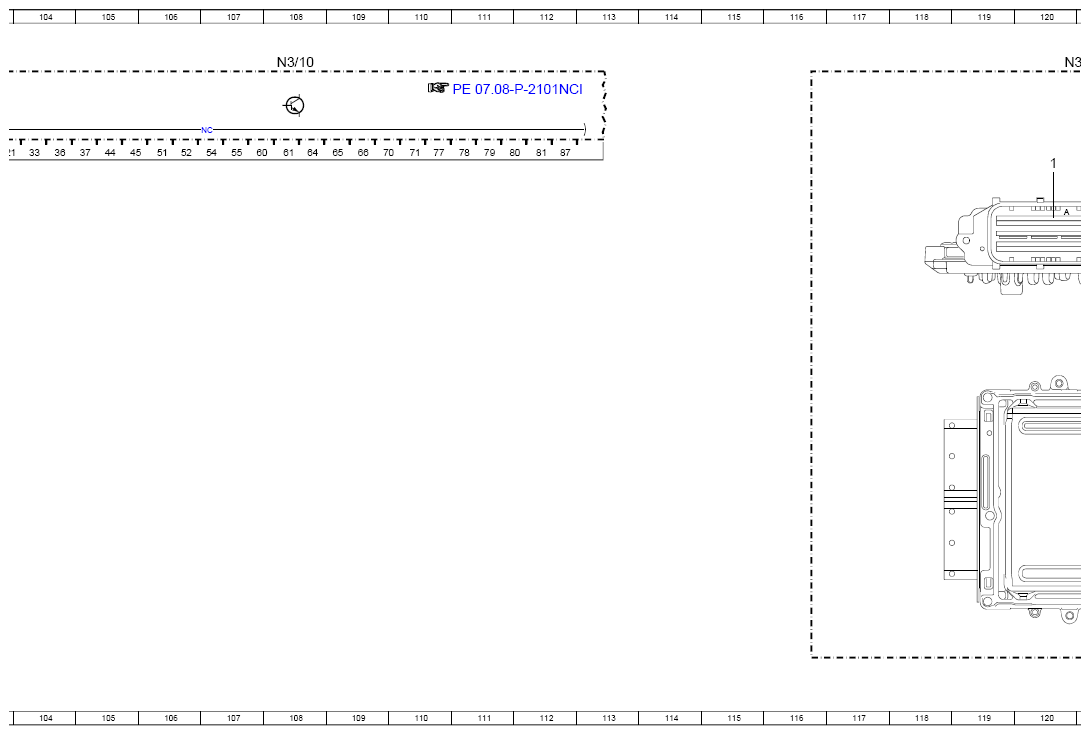

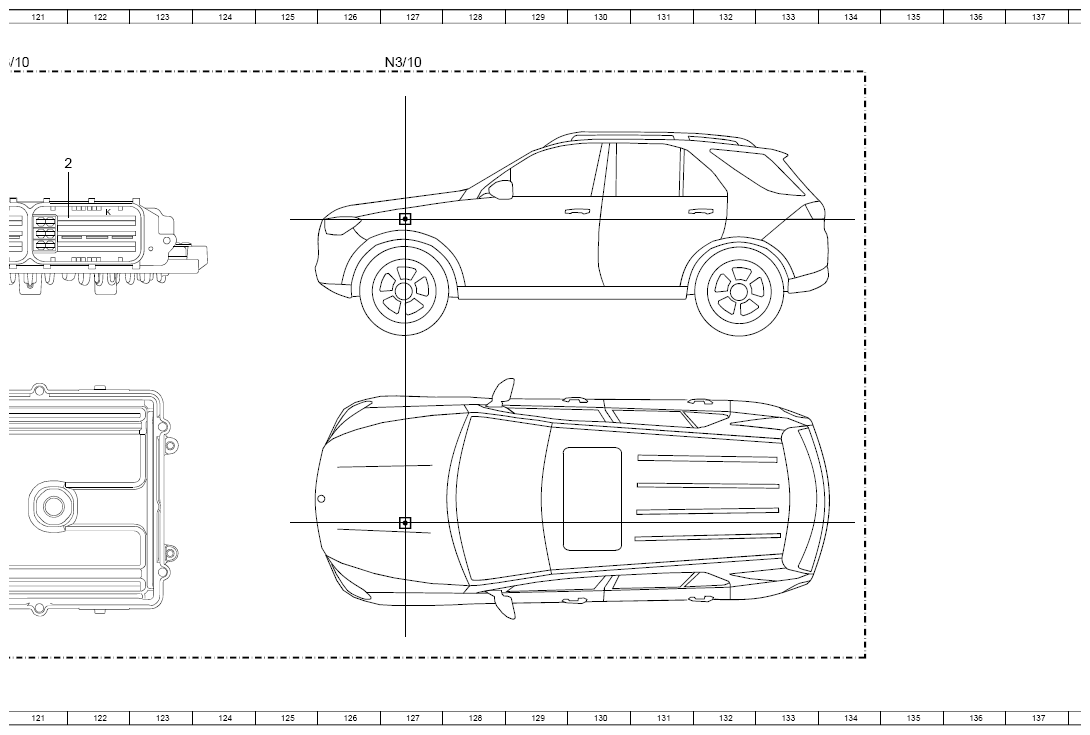

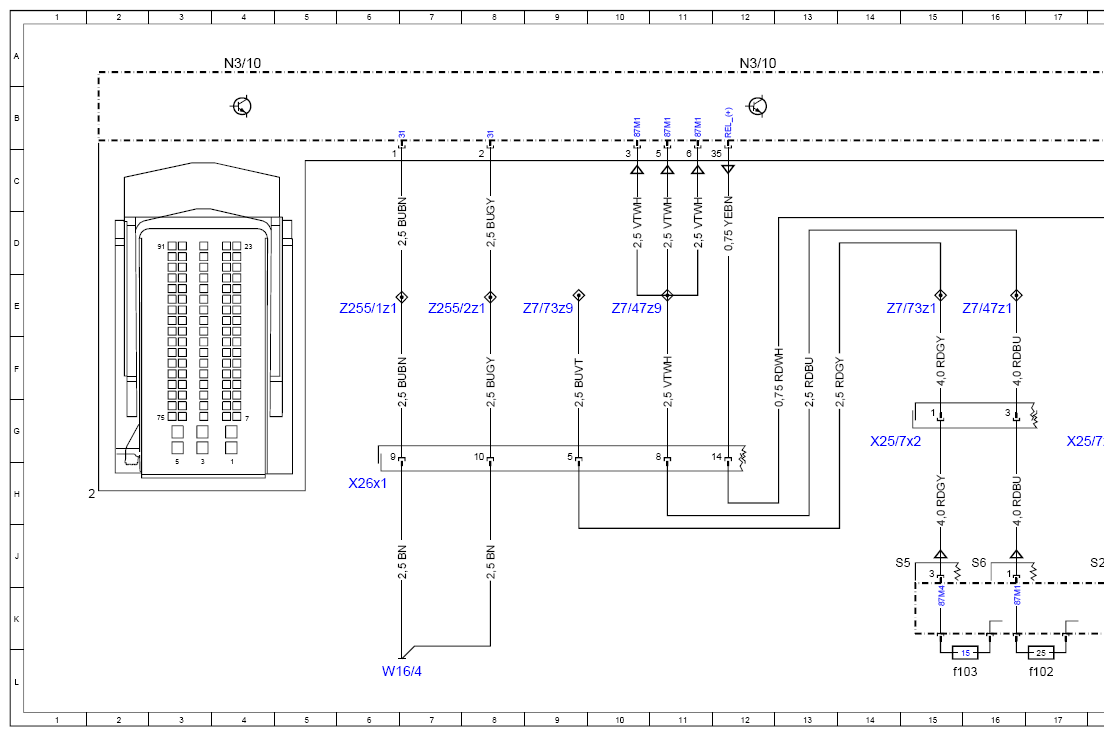

Control unit N3/10, vehicle connector
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 144L |
| A101 | Fuel tank diagnostic module | 52L |
| B40 | Oil sensor (oil level, temperature and quality) | 59L |
| CAN C | Engine CAN | 32K |
| CAN C1 | Drive train CAN | 29K |
| Code 460 | Canada version | 46F |
| Code 494 | USA version | 46F |
| Code 830 | Additional parts for China vehicles | 46G |
| Code 835 | Additional parts for South Korea vehicles | 46G |
| F152/3 | Engine compartment fuse and relay module | 18L |
| F152/3 | Engine compartment fuse and relay module | 48L |
| F152/3 | Engine compartment fuse and relay module | 25L |
| F152/3f101 | Fuse 101 | 47L |
| F152/3f102 | Fuse 102 | 17L |
| F152/3f103 | Fuse 103 | 15L |
| F152/3f124 | Fuse 124 | 23L |
| F152/3f125 | Fuse 125 | 20L |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 62L |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 65L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 68L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 70L |
| N118 | Fuel pump control unit | 40L |
| N127 | Drivetrain control unit | 32L |
| N129 | Starter generator control unit | 43L |
| N2/10 | Supplemental restraint system control unit | 36L |
| N3/10 | ME-SFI [ME] control unit | 120A |
| N3/10 | ME-SFI [ME] control unit | 127A |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 75A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 92A |
| N3/10 | ME-SFI [ME] control unit | 100A |
| N3/10 | ME-SFI [ME] control unit | 108A |
| N3/10 | ME-SFI [ME] control unit | 86L |
| W16/4 | Right major assembly compartment ground point | 6L |
| W16/4 | Right major assembly compartment ground point | 25H |
| X25/7x1 | Engine compartment/interior wiring harness electrical connector | 18G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 14G |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 46H |
| X25/7x2 | Engine compartment/interior wiring harness electrical connector | 22H |
| X256x1 | CAMTRONIC electrical connector | 22F |
| X26/24x2 | Vehicle interior and engine compartment electrical connector (48 V) | 43H |
| X26x1 | Interior and engine wiring harness electrical connector | 6H |
| X26x1 | Interior and engine wiring harness electrical connector | 54F |
| X30/21 | Drive train CAN (CAN C1) potential distributor electrical connector | 29L |

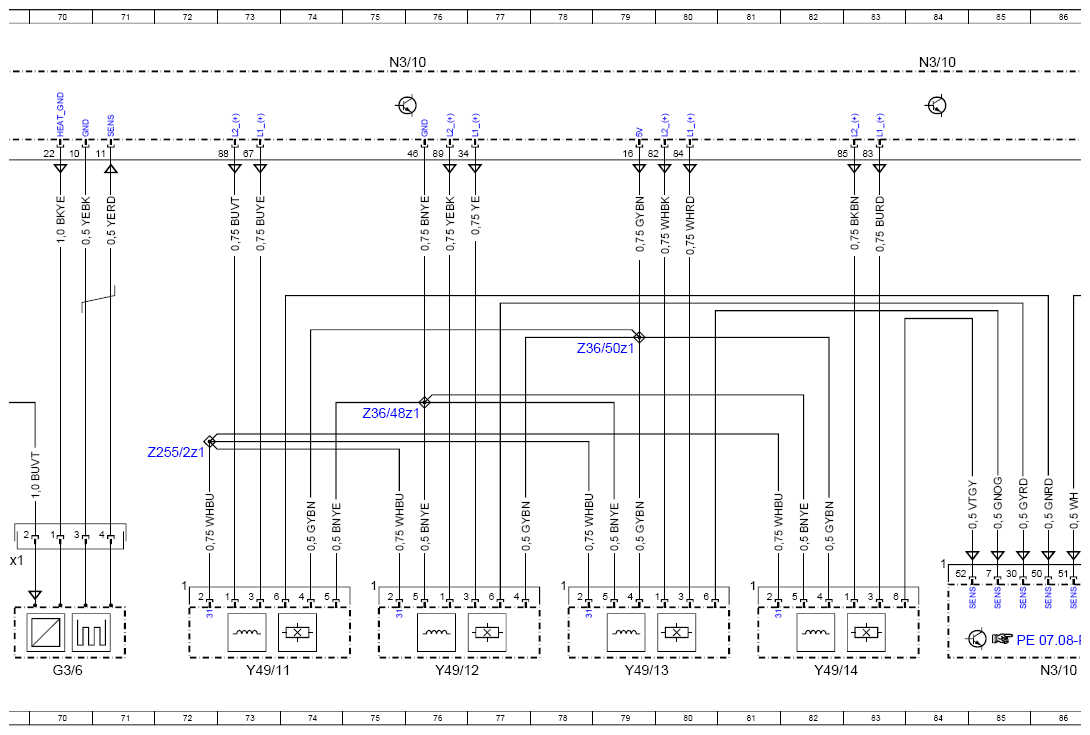

| Y49/11 | Cylinder 2 intake CAMTRONIC actuator | 73L |
| Y49/12 | Cylinder 2 exhaust CAMTRONIC actuator | 76L |
| Y49/13 | Cylinder 3 intake CAMTRONIC actuator | 79L |
| Y49/14 | Cylinder 3 exhaust CAMTRONIC actuator | 82L |

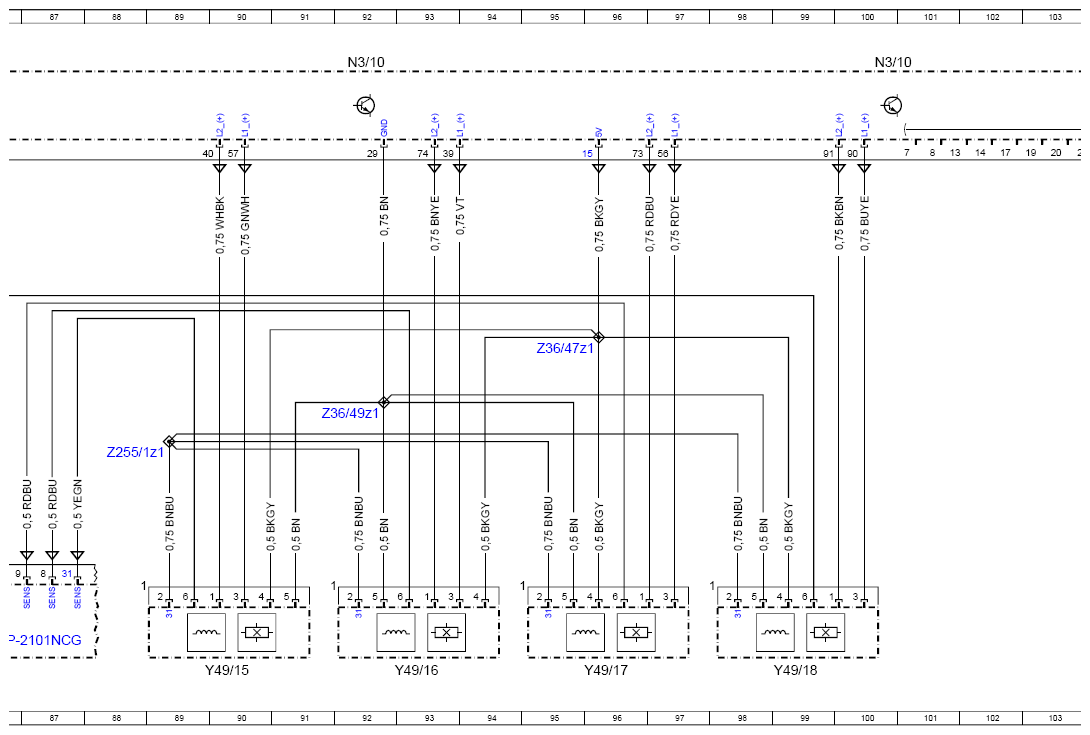

| Y49/15 | Cylinder 5 intake CAMTRONIC actuator | 90L |
| Y49/16 | Cylinder 5 exhaust CAMTRONIC actuator | 93L |
| Y49/17 | Cylinder 8 intake CAMTRONIC actuator | 96L |
| Y49/18 | Cylinder 8 exhaust CAMTRONIC actuator | 99L |

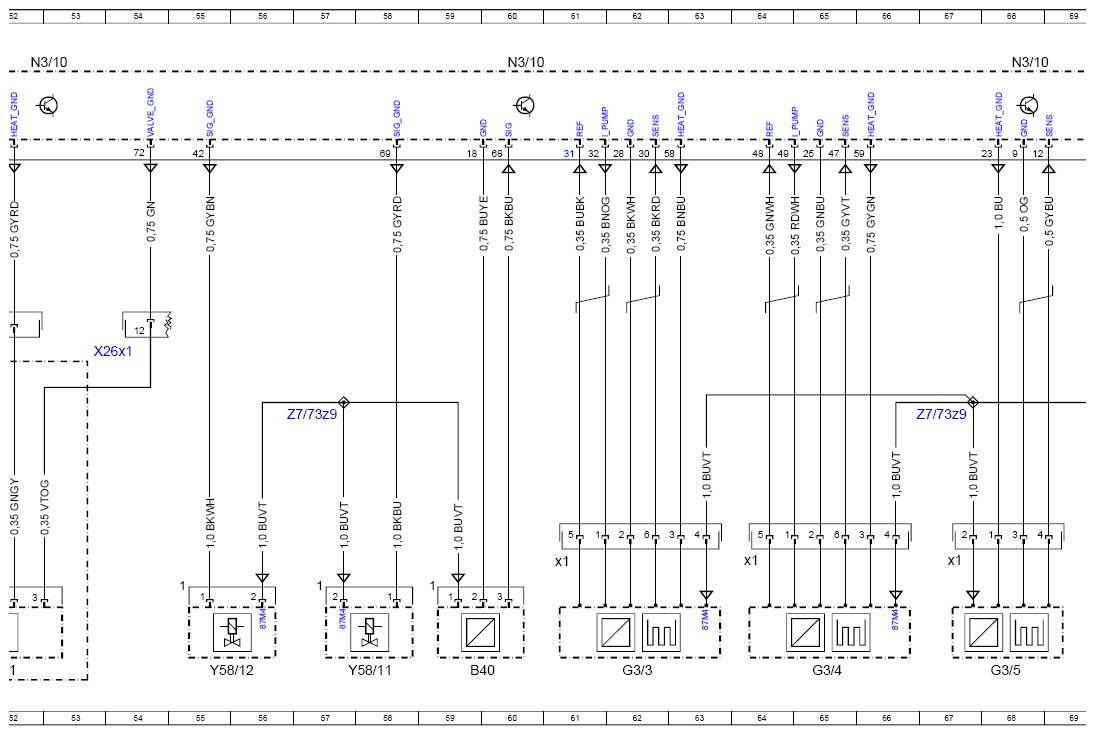

| Y58/11 | Left purge control valve | 58L |
| Y58/12 | Right purge control valve | 55L |
| Z255/1z1 | Ground connection connector sleeve | 88G |
| Z255/1z1 | Ground connection connector sleeve | 6E |
| Z255/2z1 | Ground connection connector sleeve | 72G |
| Z255/2z1 | Ground connection connector sleeve | 7E |
| Z36/47z1 | Voltage supply connector sleeve | 95F |
| Z36/48z1 | Ground connection connector sleeve | 75G |
| Z36/49z1 | Ground connection connector sleeve | 92G |
| Z36/50z1 | Voltage supply connector sleeve | 79F |
| Z50/5z1 | Tml. 15 connector sleeve | 19E |
| Z7/47z1 | Circuit 87M1 connector sleeve | 16E |
| Z7/47z9 | Circuit 87M1 connector sleeve | 10E |
| Z7/48z3 | Circuit 87M2 connector sleeve | 49J |
| Z7/48z4 | Circuit 87M2 connector sleeve | 51G |
| Z7/73z1 | Circuit 87M4 connector sleeve | 15E |
| Z7/73z9 | Circuit 87M4 connector sleeve | 67G |
| Z7/73z9 | Circuit 87M4 connector sleeve | 57G |
| Z7/73z9 | Circuit 87M4 connector sleeve | 9E |
