Climate Control Control Unit, Basic Function - GF83.40-P-9890A
Model 167, 293
Model 213, 238, 257, 290
as of model year 2021
Overview
This document contains information on:
- General
- Location
- Function requirement
General
The climate control control unit regulates the temperature and the air distribution in the vehicle interior depending on the settings made and the variables recorded by the various sensors. The tasks of the climate control control unit include:
- Adaptation of the air temperature (heating/cooling)
- Air dehumidification
- Blower control
- Improving the air quality (depending on the equipment)
Location

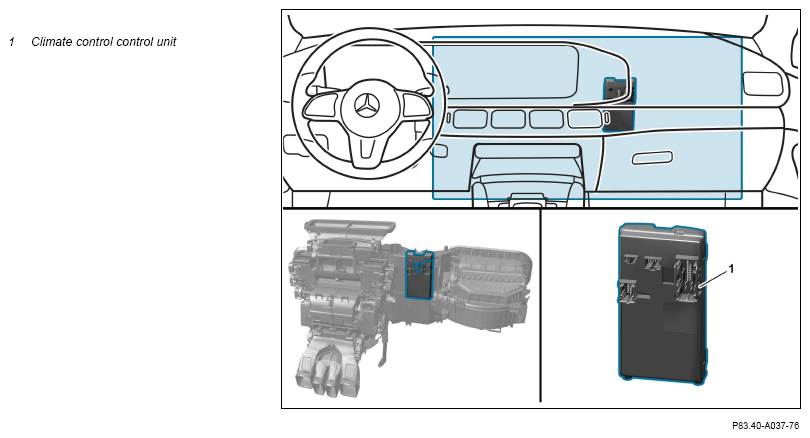

The climate control control unit (1) is located behind the glove compartment in the instrument panel.
Function requirement
- Circuit 30t ON
