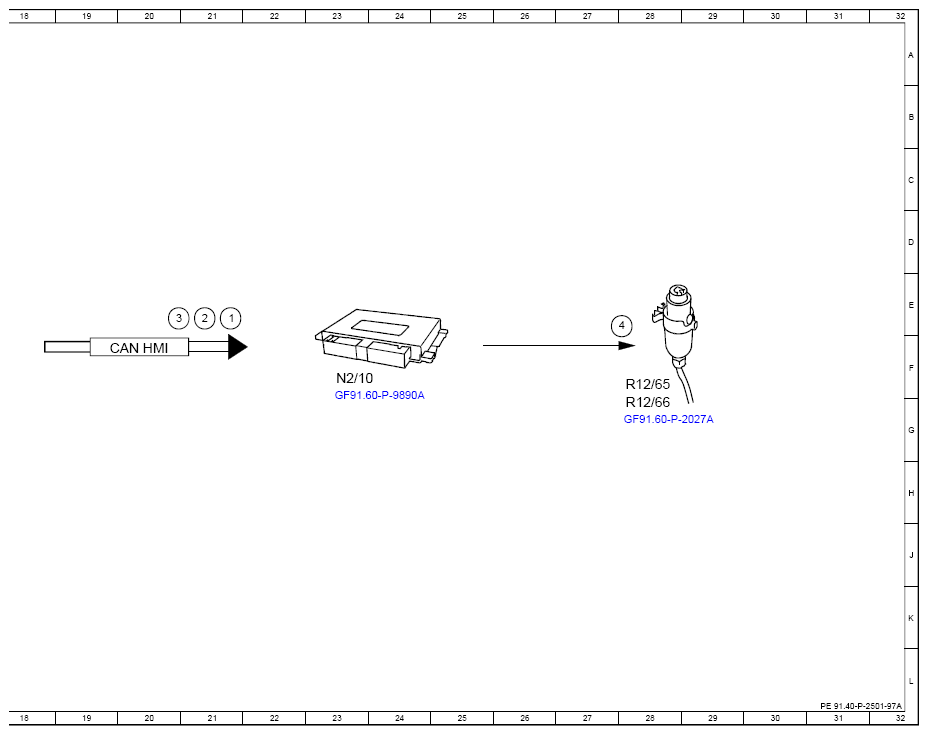

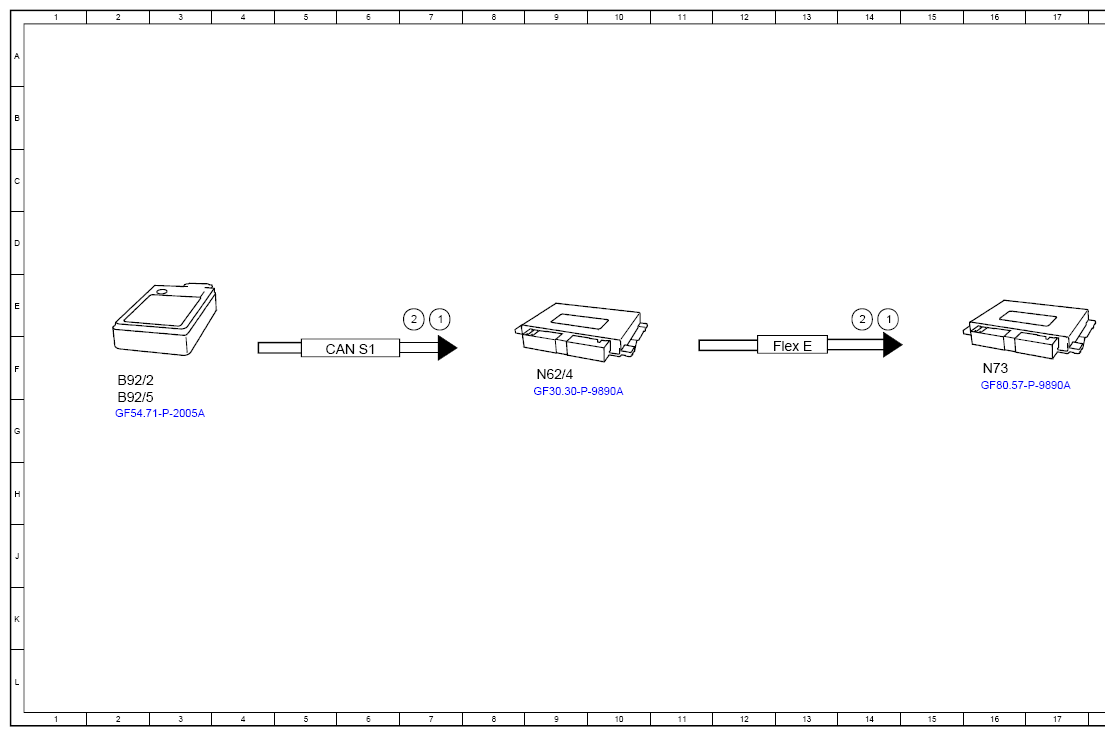

Trigger Preventive Occupant Protection System For Side Impact, Function Schematic - PE91.40-P-2501-97A
Model 167
with code 292 (PRE-SAFE® Impulse Side)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Relative speed to opposing object, signal | 7E |
| 1 | Relative speed to opposing object, signal | 14E |
| 1 | Relative speed to opposing object, signal | 21E |
| 2 | Time until side collision, signal | 7E |
| 2 | Time until side collision, signal | 14E |
| 2 | Time until side collision, signal | 21E |
| 3 | Circuit 15, status | 20E |
| 4 | Squib, actuation | 28E |
| B92/2 | Left outer front bumper radar sensor | 2F |
| B92/5 | Right outer front bumper radar sensor | 2G |
| CAN HMI | User interface CAN | 20F |
| CAN S1 | Radar CAN 1 | 6F |
| Flex E | Chassis FlexRay | 13F |
| N2/10 | Supplemental restraint system control unit | 23F |
| N62/4 | Mercedes-Benz Intelligent Drive control unit | 9F |
| N73 | Electronic ignition switch control unit | 16F |
| R12/65 | Driver seat side PRE-SAFE® Pulse squib | 28F |
| R12/66 | Front passenger seat side PRE-SAFE® Pulse squib | 28G |
