Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NCE
Engine 256 in model 167
Control unit N3/10, connectors 3, 4, 5
| Code: | Designation: | Position: |
|---|---|---|

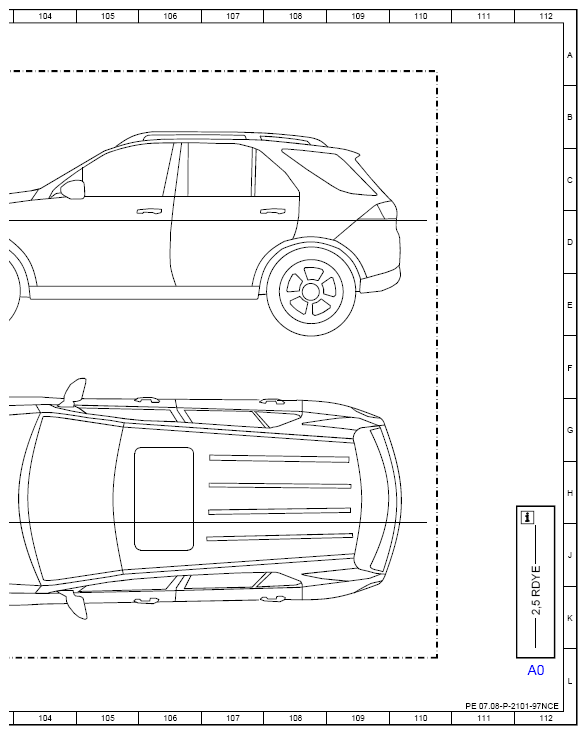

| A0 | Use of wiring diagrams | 112L |

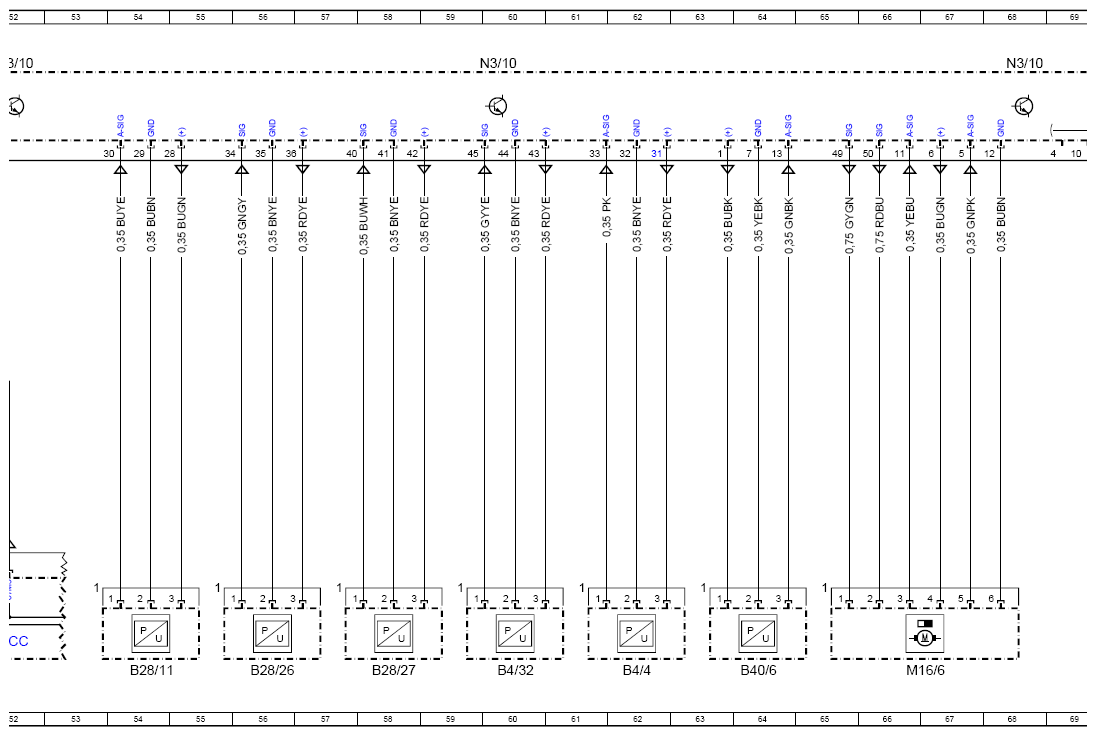

| B28/11 | Pressure sensor downstream of air filter | 54L |
| B28/26 | Pressure and temperature sensor upstream of throttle valve | 56L |
| B28/27 | Pressure and temperature sensor downstream of throttle valve | 58L |
| B4/25 | Fuel pressure and temperature sensor | 7L |
| B4/32 | Charge air pressure and temperature sensor | 60L |
| B4/4 | Purging pressure sensor | 62L |
| B40/6 | Engine oil fill level sensor | 64L |

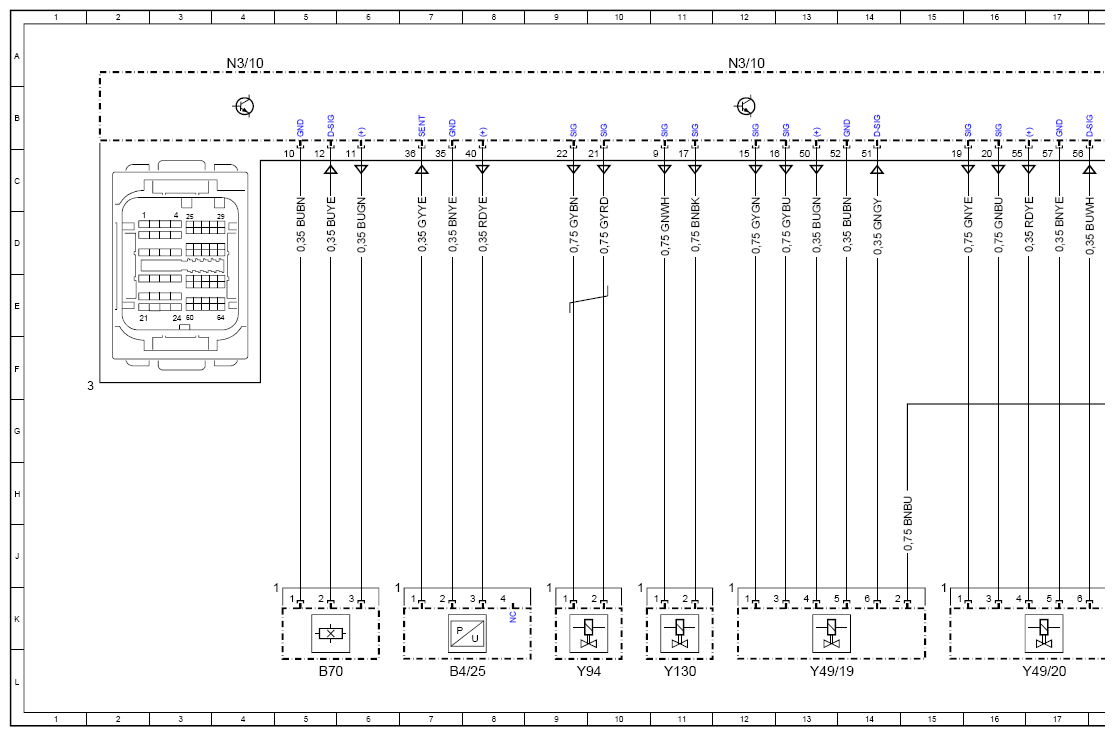

| B70 | Crankshaft Hall sensor | 5L |
| M16/6 | Throttle valve actuator | 66L |

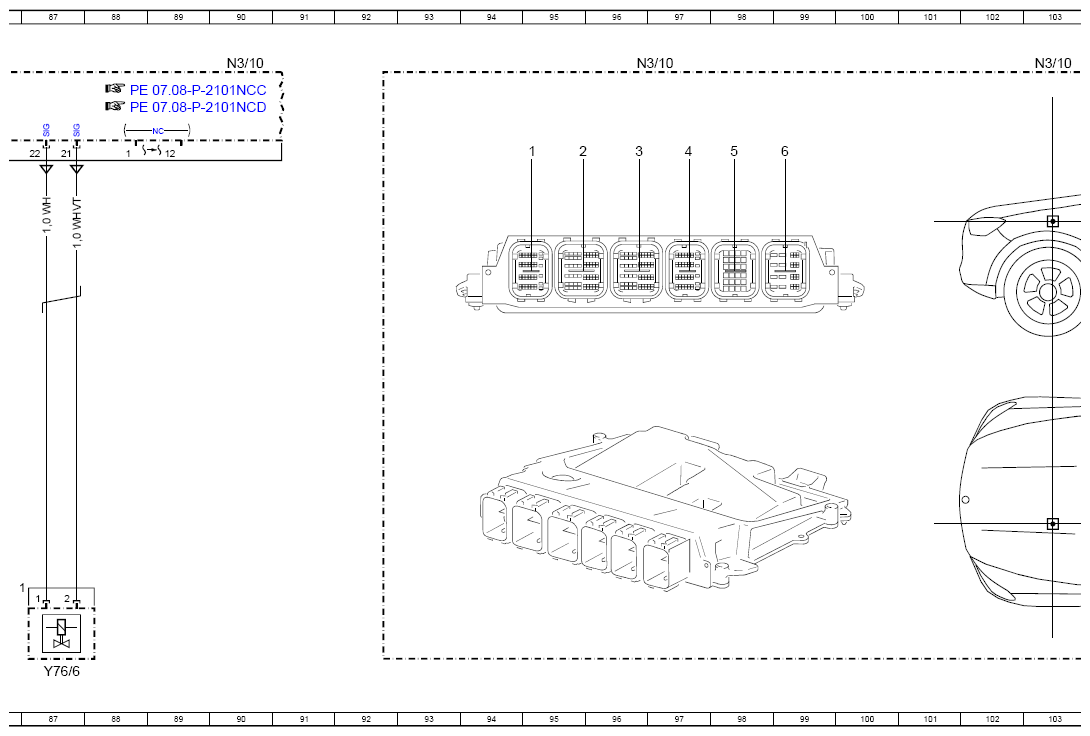

| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 96A |
| N3/10 | ME-SFI [ME] control unit | 103A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| N3/10 | ME-SFI [ME] control unit | 44A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 84A |
| N3/10 | ME-SFI [ME] control unit | 68A |
| N3/10 | ME-SFI [ME] control unit | 90A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 52A |

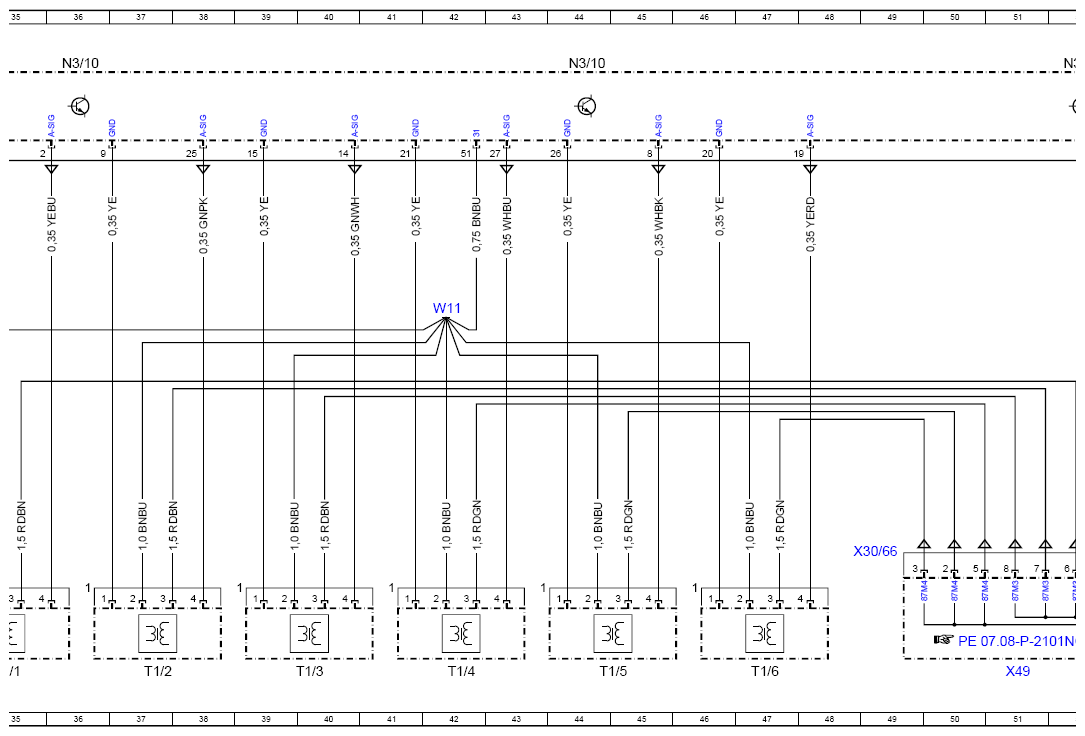

| T1/1 | Cylinder 1 ignition coil | 35L |
| T1/2 | Cylinder 2 ignition coil | 37L |
| T1/3 | Cylinder 3 ignition coil | 40L |
| T1/4 | Cylinder 4 ignition coil | 42L |
| T1/5 | Cylinder 5 ignition coil | 44L |
| T1/6 | Cylinder 6 ignition coil | 47L |
| W11 | Combustion engine ground point | 42E |
| X30/65 | Potential distributor electrical connector | 22J |
| X30/66 | Potential distributor electrical connector | 49J |
| X49 | Potential distributor | 25L |
| X49 | Potential distributor | 51L |
| Y130 | Engine oil pump valve | 11L |
| Y49/19 | Cylinder 1 and 2 intake CAMTRONIC actuator | 13L |
| Y49/20 | Cylinder 3 and 4 intake CAMTRONIC actuator | 17L |

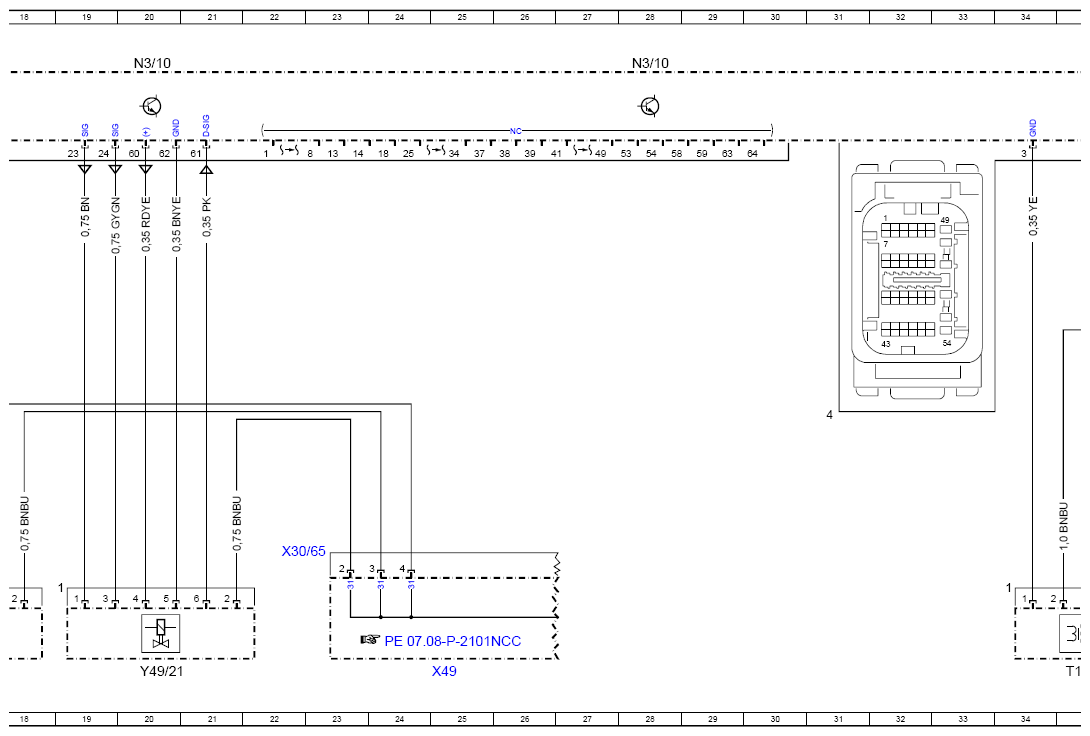

| Y49/21 | Cylinder 5 and 6 intake CAMTRONIC actuator | 20L |

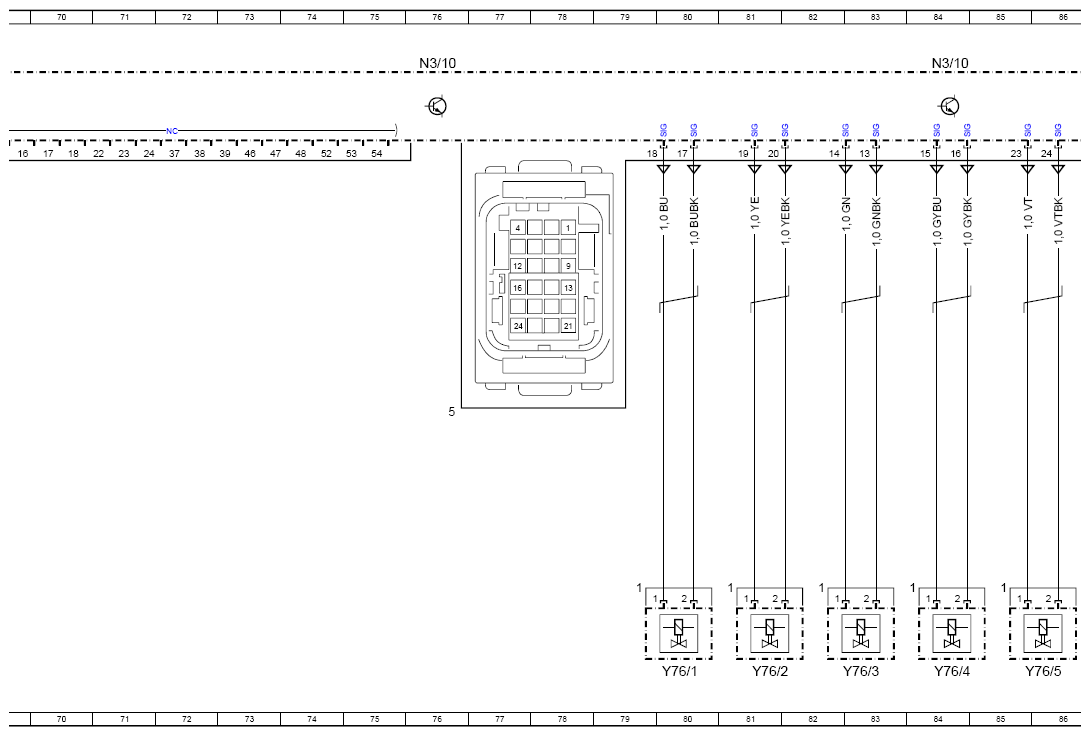

| Y76/1 | Cylinder 1 fuel injector | 80L |
| Y76/2 | Cylinder 2 fuel injector | 81L |
| Y76/3 | Cylinder 3 fuel injector | 83L |
| Y76/4 | Cylinder 4 fuel injector | 84L |
| Y76/5 | Cylinder 5 fuel injector | 86L |
| Y76/6 | Cylinder 6 fuel injector | 87L |
| Y94 | Quantity control valve | 9L |
