Recall Campaign 2024030007 - Update Transmission Control Unit Software (P-RC-2024030007)

Publication date: 2024-03-15
Reference number: P-RC-2024030007

RECALL CAMPAIGN 2024030007 - UPDATE TRANSMISSION CONTROL UNIT SOFTWARE

SERVICE CAMPAIGN BULLETIN

Reference Number(s): P-RC-2024030007, Date of Issue: April 09, 2024

MERCEDES-BENZ:

Model GLE/GLS (167 platform) Model Year 2020 - 2023

SERVICE INFORMATION

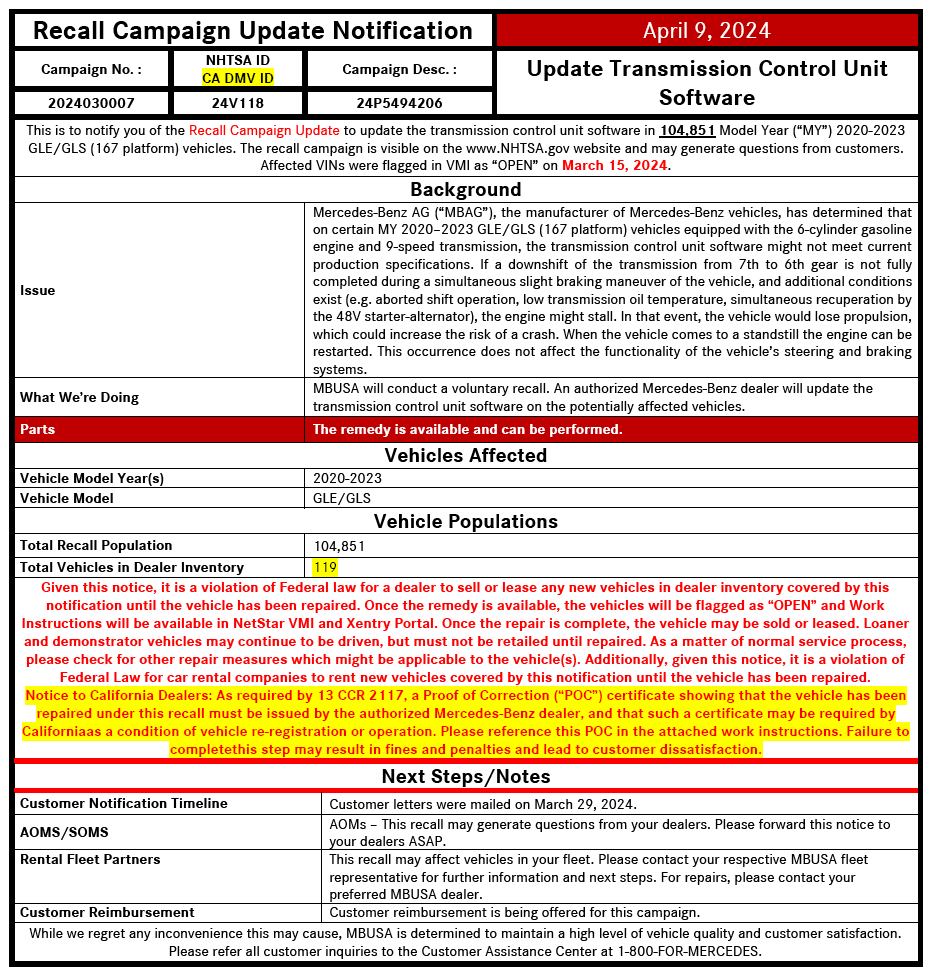

IMPORTANT RECALL CAMPAIGN UPDATE

Please see the attached documents related to the campaign listed above.

Please note that all customer inquiries should be directed to the Customer Assistance Center at 1-800-FORMERCEDES.

Sincerely,

Gregory Gunther

Senior Manager, Vehicle Compliance & Analysis

Campaign No. 2024030007, March 2024

Revision A 04/04/2024

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT

Model GLE/GLS (167 platform)

Model Year 2020 - 2023

Update Transmission Control Unit Software

Mercedes-Benz AG, the manufacturer of Mercedes-Benz vehicles, has determined that on certain MY 2020-2023 GLE/GLS (167 platform) vehicles equipped with the 6-cylinder gasoline engine and 9-speed transmission, the transmission control unit software might not meet current production specifications. If a downshift of the transmission from 7th to 6th gear is not fully completed during a simultaneous slight braking maneuver of the vehicle, and additional conditions exist (e.g. aborted shift operation, low transmission oil temperature, simultaneous recuperation by the 48V starter-alternator), the engine might stall. In that event, the vehicle would lose propulsion which could increase the risk of a crash. When the vehicle comes to a standstill the engine can be restarted. This occurrence does not affect the functionality of the vehicle's steering and braking systems. An authorized Mercedes-Benz dealer will update the transmission control unit software on the potentially affected vehicles.

Prior to performing this Campaign:

VMI must be checked before performing campaigns to verify that the campaign is required on a specific vehicle. Always check for any other open campaigns and perform accordingly.
Please review the entire Campaign bulletin and follow the repair procedure exactly as described.

Approximately 104,851 vehicles are affected.

Order No. P-RC-2024030007

Update Transmission Control Unit Software

Always use the latest XENTRY Diagnosis software release with all available add-ons.
Follow the operation steps exactly as described in XENTRY Diagnosis.
Use a charger to ensure sufficient power supply to the vehicle's on-board electrical battery system (greater than 12.5 V).
If XENTRY Diagnosis is already connected to the vehicle, start with Work Procedure Step 2 .

If two or more software updates or SCN codings are performed during a single workshop visit, operation items 02-4762 and 02-5058 may be invoiced only on one of the workshop orders.

WORK PROCEDURE

Connect XENTRY Diagnosis
Update Transmission control unit software for 9-speed transmission (fully integrated transmission control).

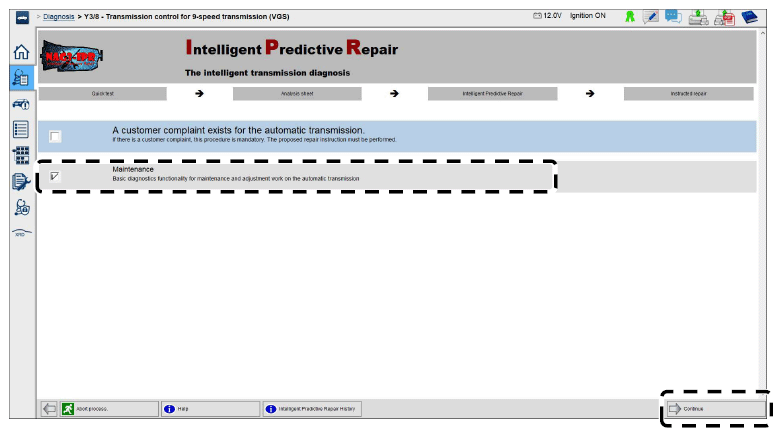

To do this, select menu item "Quick test view → Y3/8 - transmission control for 9-speed transmission (fully integrated transmission control) - Intelligent Predictive Repair - Maintenance → Adaptations → Control unit update → Update of control unit software".

Then follow the user guidance in XENTRY Diagnosis.

SOFTWARE UPDATE INFORMATION

Old Software	New Software
A000 902 3250	A000 902 5179
A000 902 2753	A000 902 5279
A000 902 6256	A000 902 5379
A000 902 8565	A000 902 5479
A000 902 8773	A000 902 5579
A000 902 0578	A000 902 5679

NOTE: Y3/8 Transmission control unit software for 9-speed transmission (fully integrated transmission control) will be updated to new software based on which old software is installed.

NOTE: The following allowable labor operation should be used when submitting a warranty claim for this repair:

WARRANTY INFORMATION

Damage Code

Operation Number

Description

Labor Time (hrs.)

54 942 06

02-9334

Perform: Update transmission control unit software for 9-speed transmission (fully integrated transmission control).
(with XENTRY Diagnosis connecter

0.1

02-4762 ⁽¹⁾

Connect/disconnect diagnostic system
(XENTRY Diagnosis)

0.1

02-5058 ⁽¹⁾

Connect/disconnect starter battery charger
(with XENTRY Diagnosis connected)

0.1

⁽¹⁾	Invoice operation item only once for each workshop order.

NOTE: Always check Xentry Operation Time (XOT) for the current OP-Code times. Labor times are subject to change and updates may not be reflected in this document.

The following step applies to California dealers only.

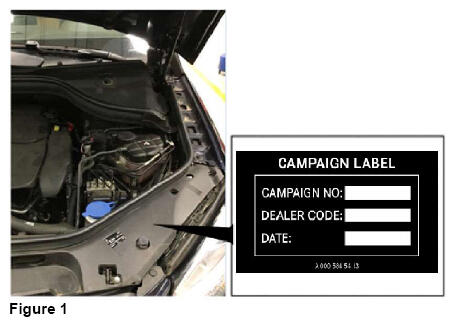

Apply Proof of Correction Label (A 000 584 54 13) to area identified in Figure 1. Fill in the blank areas of the label. The "Campaign No." for the California Proof of Correction is unique and must be entered as such (24V118) , your "Dealer Code" , and the "Date" of the repair, using a black permanent marker.

NOTE: Clean bonding surface prior to affixing label.

The following step applies to California dealers only.

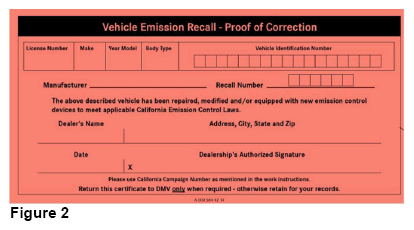

Provide the owner with the completed and signed Proof of Correction Certificate (A 000 584 42 14) (Figure 2) , after you scan a completed form and attach to the RO. The recall number for the California Proof of Correction Certificate is unique and must be entered as such (24V118) .

CALIFORNIA PROOF OF CORRECTION PARTS INFORMATION

Qty.	Part Name	Part Number
1	Proof of Correction Certificate (CA Dealers Only)	A 000 584 42 14
1	Proof of Correction Label (CA Dealers Only)	A 000 584 54 13

WARRANTY INFORMATION

(CALIFORNIA DEALERS PLEASE SUBMIT CLAIM ON A SEPARATE LINE OF THE SAME RO AS THE CAMPAIGN)

WARRANTY INFORMATION

Damage Code	Operation Number	Description	Labor Time (hrs.)
212CA 00	02-0001	Apply Proof of Correction Label and completed Proof of Correction Certificate	0.1
