(Remove/Install Sound Generator Control Unit - AR82.27-S-0005E)
Model 447.6
With Code J2A (Acoustic ambient protection)
With Code M8E (Electric motor 85 kW/battery 60 kWh (usable))
Except Code ME0 (Electric motor 85 kW)
Except Code XM7 (MOPF II)
Model 447.8
With Code J2A (Acoustic ambient protection)
With Code ME4 (Electric motor 145 kW)
Except Code XM7 (MOPF II)

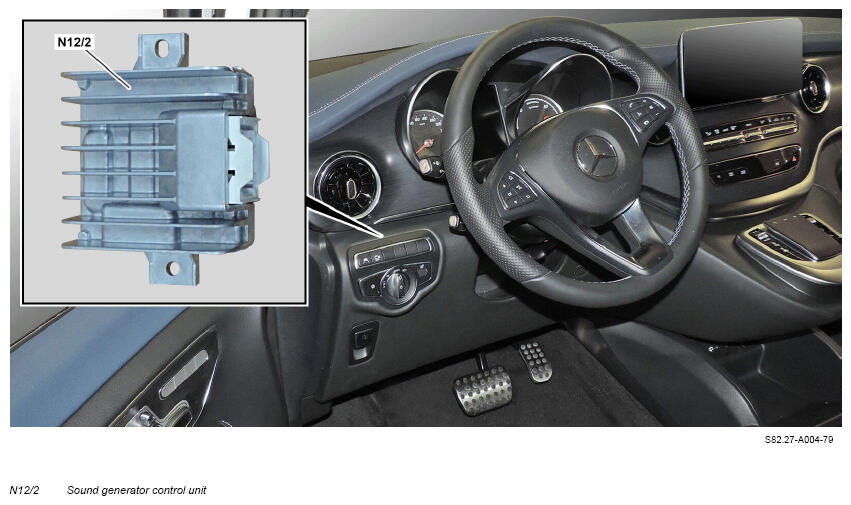

Shown On Model 447.8
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Remove/install | |||
| 1 | Switch off ignition, remove transmitter key and store it outside of the transmission range (min. 2 m). | ||
| 2 | Remove left cover under instrument panel. | Model 447.6 with code LC7 (Illumination for front footwell); model 447.8 | AR68.10-S-1500E |
| 3 | Remove 360° camera control unit from control units holder (1) and guide to one side with connected lines. | Model 447.8 with code JS1 (360° Camera) | AR54.30-S-3004E |

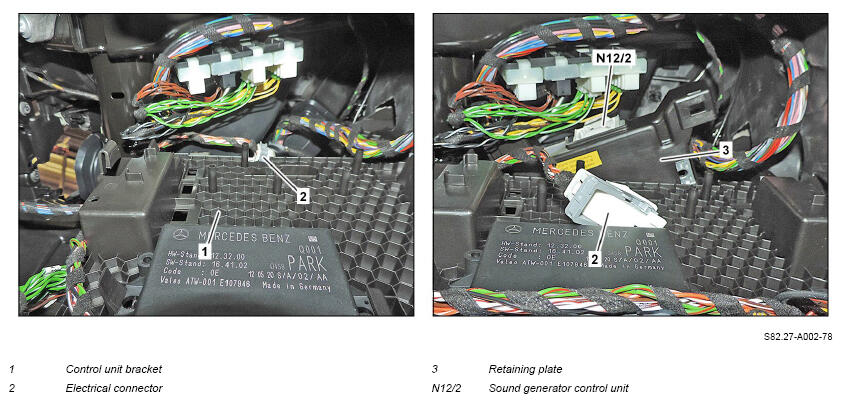

| 4 | Release and disconnect electrical connector (2) at sound generator control unit (N12/2). | ||
| 5 | Remove retaining plate (3) together with sound generator control unit (N12/2) from control units holder (1) and guide out. | Fig 1 | |

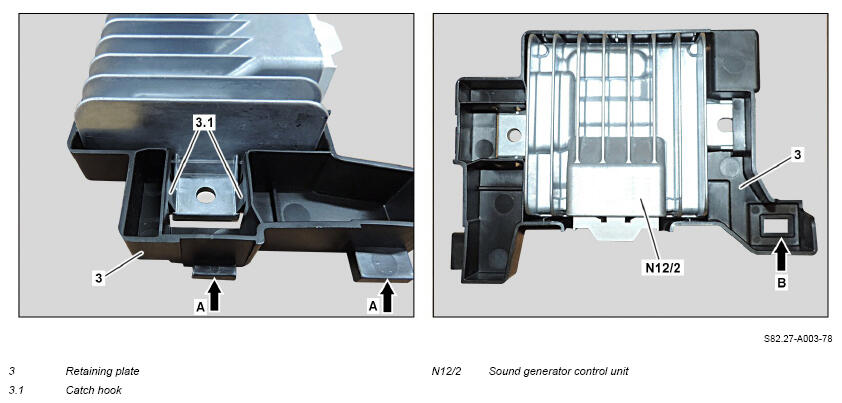

| 6 | Operate catch hooks (3.1) and remove sound generator control unit (N12/2) from retaining plate (3). | ||
| 7 | Install in the reverse order. | ||
| 8 | Commission sound generator control unit (N12/2). | If sound generator control unit (N12/2) was replaced. | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 9 | Perform function test of sound generator control unit (N12/2). |
