Recognize Driver Activity, Function Schematic - PE54.30-S-2500-97A
Model 447 with code XM7 (MOPF II)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 12C |
| 1 | Operation, signal | 30G |
| 2 | Multifunction steering wheel button group, signal | 7G |
| 2 | Multifunction steering wheel button group, signal | 12G |
| 2 | Multifunction steering wheel button group, signal | 28H |
| 3 | Brake pedal, status | 12K |
| 3 | Brake pedal, status | 27H |
| 4 | Steering wheel angle, signal | 28H |
| 5 | Accelerator pedal module, signal | 23K |
| 5 | Accelerator pedal module, signal | 29K |
| 6 | Warning message issue, request | 31H |
| 7 | Instrument cluster, message | 34H |

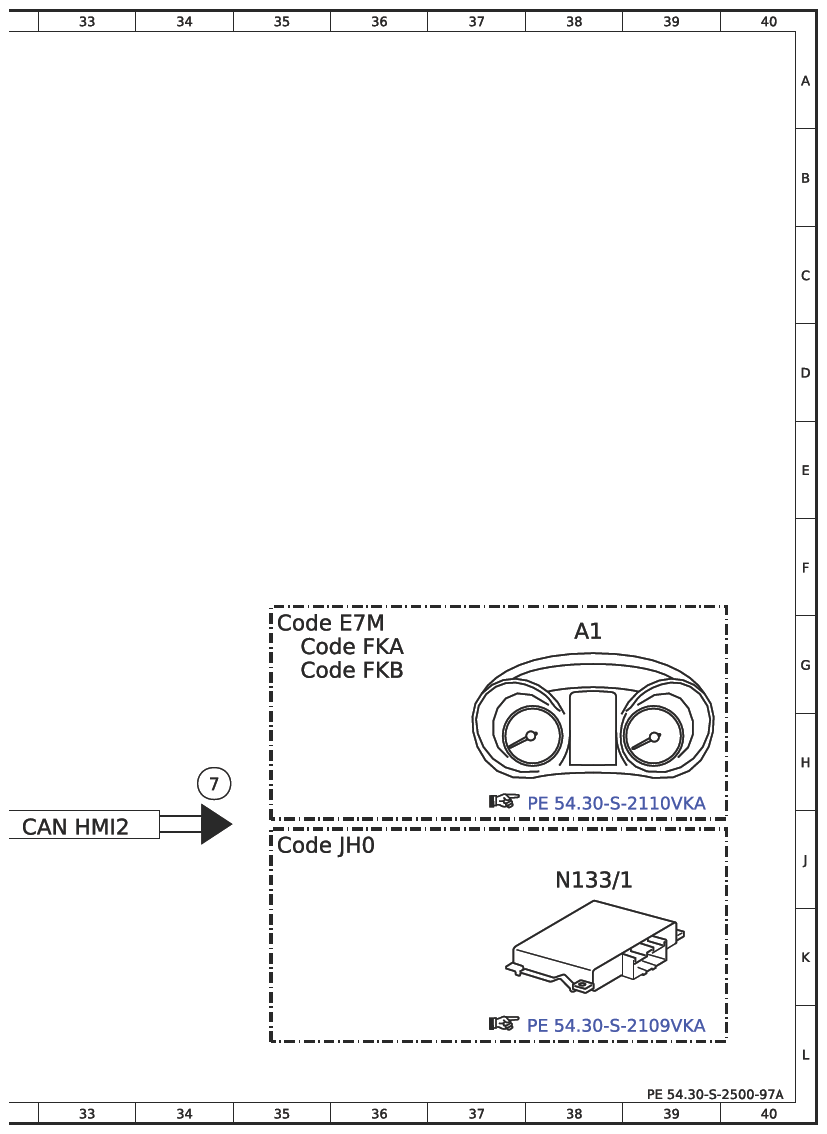

| A1 | Instrument cluster | 38G |
| A105 | Touchpad | 8E |

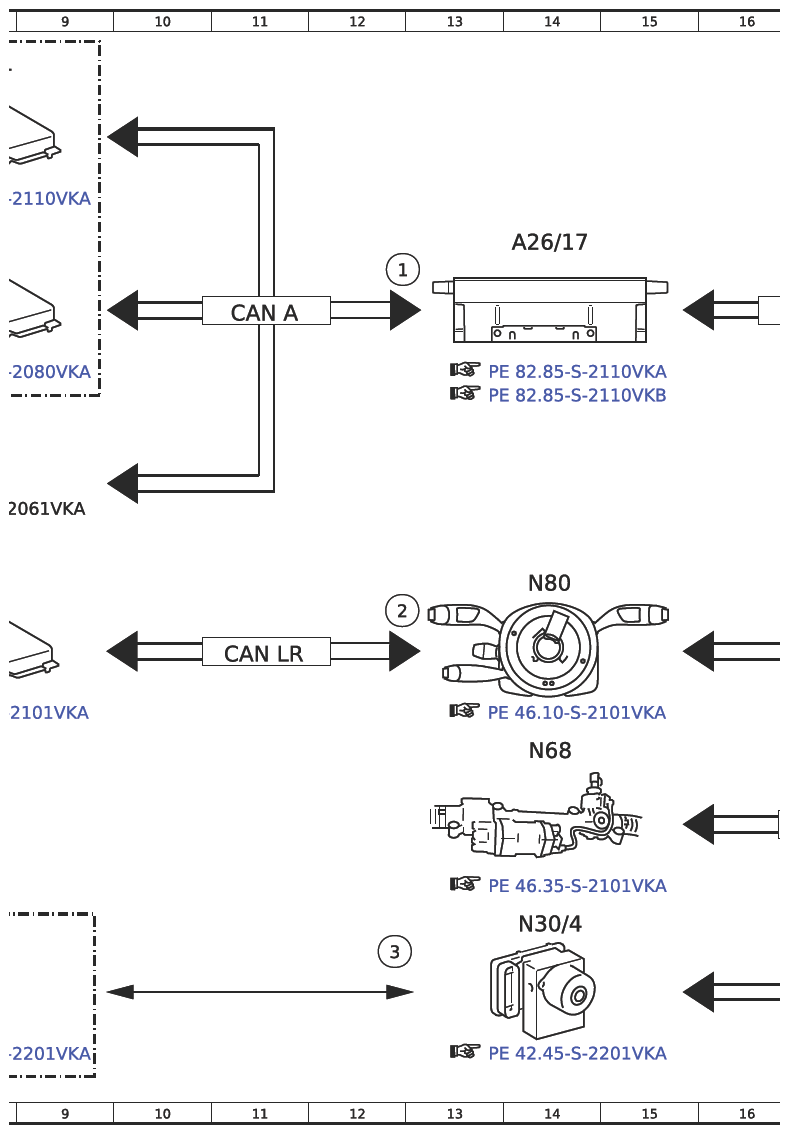

| A26/17 | Head unit | 14C |
| A40/8 | Audio/COMAND display control unit | 8C |

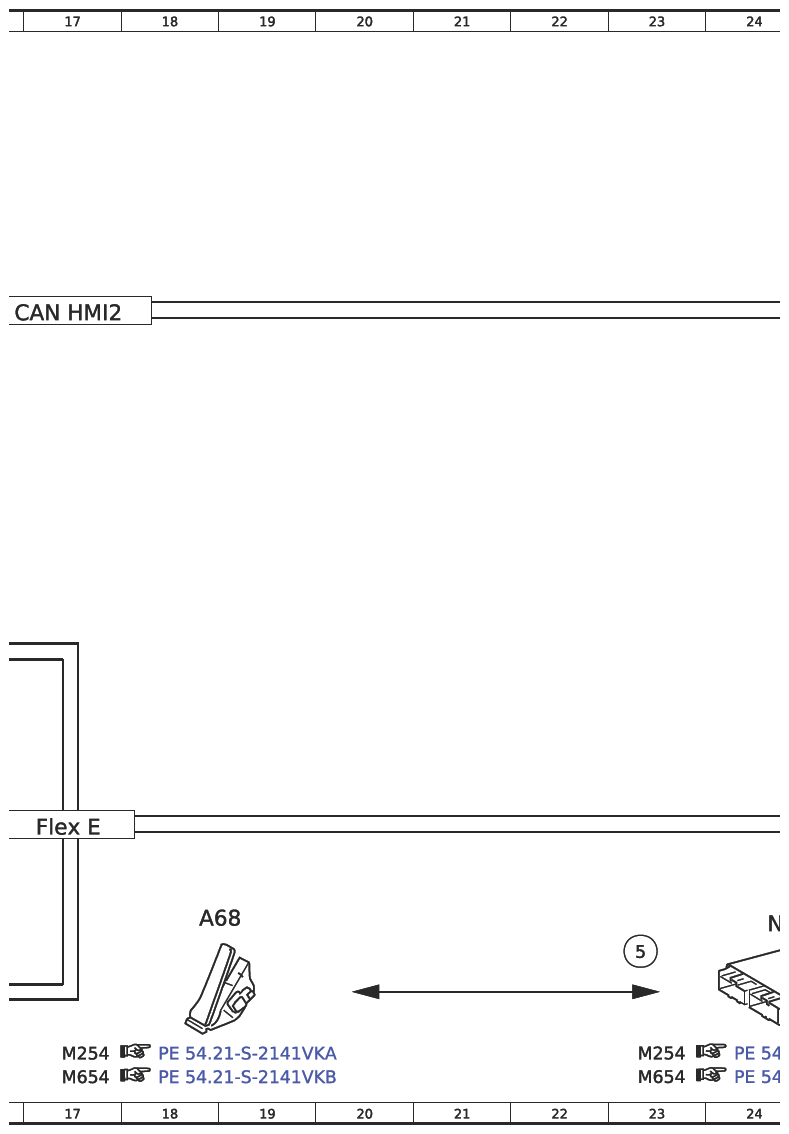

| A68 | Accelerator pedal module | 18K |
| B37/1 | Pedal angle sensor | 8K |
| CAN A | Telematics CAN | 11C |
| CAN HMI2 | User interface CAN 2 | 17C |
| CAN HMI2 | User interface CAN 2 | 33J |
| CAN LR | - | 5G |
| CAN LR | - | 11G |
| CAN PER | Peripherals CAN | 28K |
| Code E7M | MBUX multimedia system | 35G |
| Code E7M | MBUX multimedia system | 6A |
| Code FKA | Panel van | 35G |
| Code FKB | Vito Mixto and Tourer | 35G |
| Code JH0 | Display package | 35J |
| Flex E | Chassis FlexRay | 17J |
| N127 | Drivetrain control unit | 24K |
| N133/1 | Instrument cluster control unit | 38J |
| N135 | Steering wheel electronics | 8F |
| N30/4 | Electronic Stability Program (ESP) control unit | 14K |
| N68 | Electrical power steering (ES) control unit | 14H |
| N72/11 | Head unit control panel control unit | 8A |

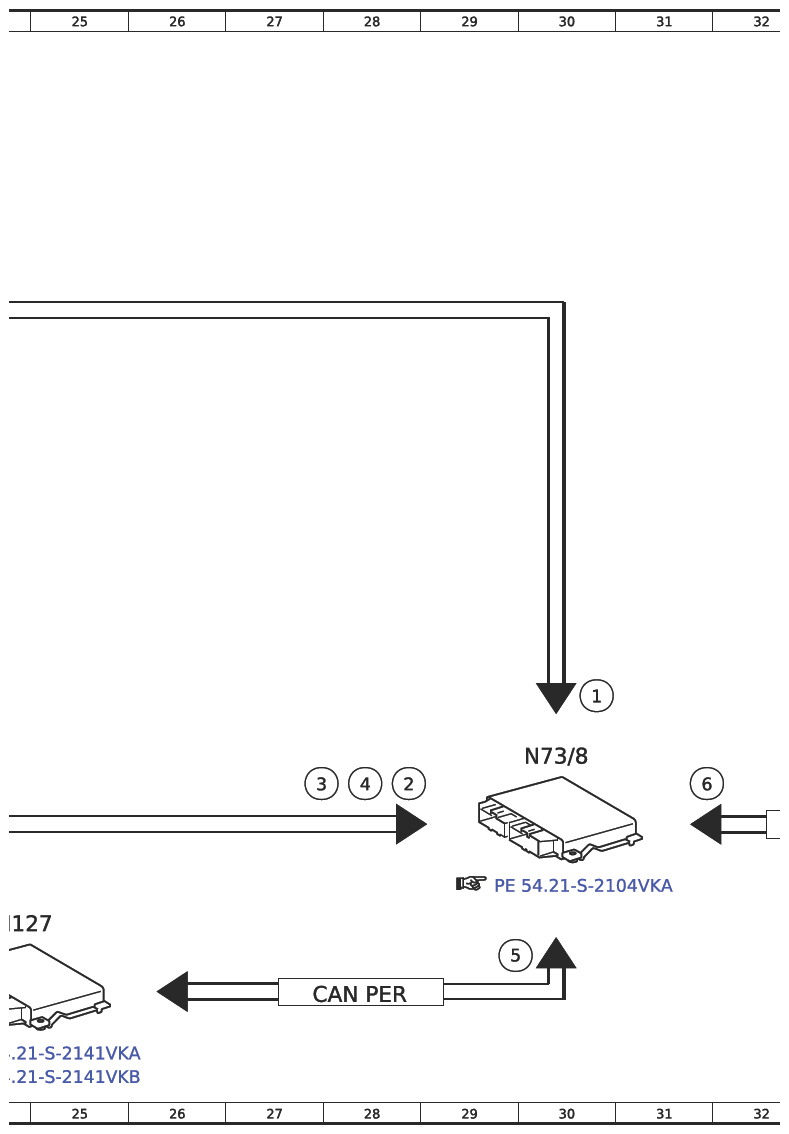

| N73/8 | Electronic ignition lock (EZS) control unit | 30H |
| N80 | Steering column tube module (MRM) control unit | 14F |

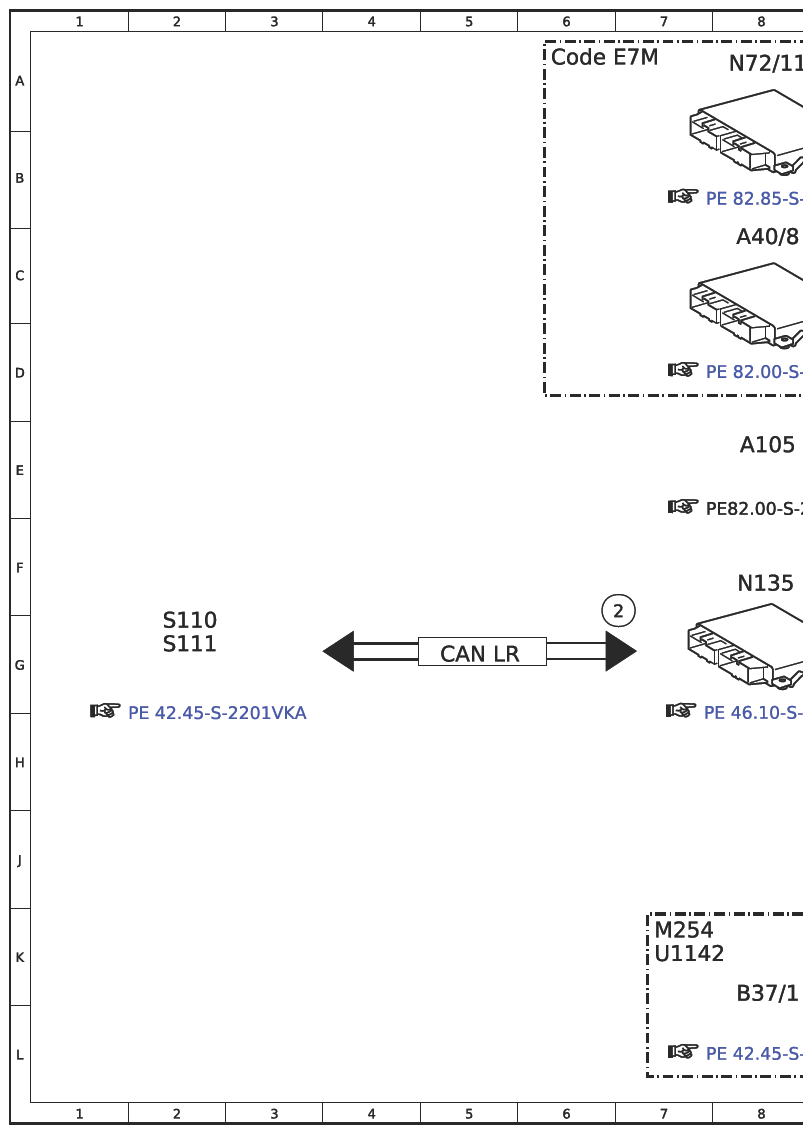

| S110 | Left multifunction steering wheel button group | 2G |
| S111 | Right multifunction steering wheel button group | 2G |
| U1142 | Valid for electric vehicle | 7K |
