Electronic Ignition Lock Control Unit, Component Description - GF80.57-S-6001A
Model 447
with code XM7 (MOPF II)

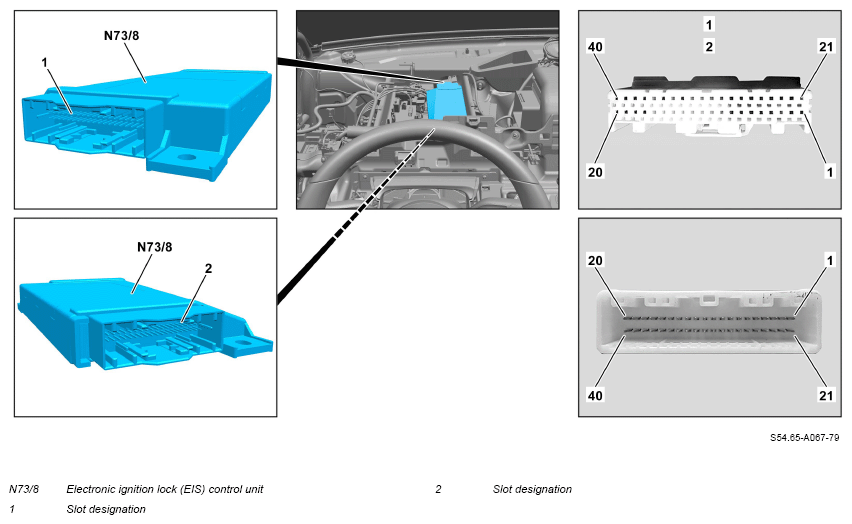

Electronic ignition lock control unit, shown on model 447.8
The numbers on the pins indicate the pin numbering of the slots.
Overview
This document contains information on:
- General
- Function
- Gateway
- Reading in of signals
- Direct line
- CAN connections
- Serial bus
- Power supply of transmitter key and data exchange with transmitter key.
General
The electronic ignition lock control unit (EIS) (N73/8) is located on the right, next to the steering column.
Function
The electronic ignition lock control unit (EIS) (N73/8) has the following tasks:
- Gateway (interface between CAN connections and serial bus)
- Reading in of signals
- Evaluation of input parameters
- Output of signals
- Power supply of transmitter key and data exchange with transmitter key
Gateway
The processor for controlling the gateway functions also acts as an interface between the following data bus systems:
- Interior CAN (CAN B)
- Diagnosis CAN (CAN D)
- User interface CAN (CAN HMI)
- User interface CAN 2 (CAN HMI2)
- Periphery CAN (CAN PER)
- Suspension FlexRay (Flex E)
- Serial bus (Serial bus)
Reading in of signals
The input parameters are read in via the following connections:
- Interior CAN (CAN B)
- Diagnosis CAN (CAN D)
- User interface CAN (CAN HMI)
- User interface CAN 2 (CAN HMI2)
- Periphery CAN (CAN PER)
- Suspension FlexRay (Flex E)
- Serial bus (Serial bus)
Direct line
The following signals are read in via a direct line:
- Terminal 30
- Circuit 30b (emergency battery supply)
- Circuit 31
- Door lock rotary tumbler signal (left front door control unit (N69/3), right front door control unit (N69/4))
- Park pawl signal (power electronics control unit (A79/3), fully integrated transmission control (VGS) electric controller unit (N15/15))
- Relay actuation, plus (pre-fuse box (F1))
- Actuation of illumination (engine start/stop button (S2/2))
CAN connections
The signals are read in by the electronic ignition lock control unit (EIS) (N73/8) via CAN. The input parameters that have been read in are evaluated by the integrated microprocessor, and the relevant components are then actuated. Signals are output via the corresponding lines and CAN connections.
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the interior CAN (CAN B):
| Input and output parameters via interior CAN (CAN B) | Supplemental information |
|---|---|
| Signal acquisition and actuation module (SAM) control unit (N10/1) | - |
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the diagnosis CAN (CAN D):
| Input and output parameters via the diagnosis CAN (CAN D) | Supplemental information |
|---|---|
| HERMES control unit (N112/9) | - |
| Diagnostics connection (X11) | - |
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the user interface CAN (CAN HMI):
| Input and output parameters via the user interface CAN (CAN HMI) | Supplemental information |
|---|---|
| Instrument cluster (A76) | With code JP1 (PRE-SAFE) |
| Head unit (A76/1) | With code JP1 (PRE-SAFE) |
| Parameterizable special module (PSM) control unit (N2/5) | - |
| Instrument cluster control unit (N88/1) | With code RY2 (Tire pressure loss warning system on front axle and rear axle, wireless) |
| (N168/1) | With code JK8 (Driver camera) |
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the user interface CAN 2 (CAN HMI2):
| Input and output parameters via the user interface CAN 2 (CAN HMI2) | Supplemental information |
|---|---|
| Instrument cluster (A1) | Model 447.6/7 |
| Head unit (A26/17) | With code E7M (MBUX multimedia system) |
| Parameterizable special module (PSM) control unit (N26/16) | With code ED5 (Parameterizable special module) With code JO3 (OLU Connect Unit) With code ZK0 (electrohydraulic pop-up roof) With code ZK7 (MARCO POLO equipment line) |
| Instrument cluster control unit (N133/1) | With code JH0 (Display package) |
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the periphery CAN (CAN PER):
| Input and output parameters via periphery CAN (CAN PER) | Supplemental information |
|---|---|
| Multifunction camera (MFK) control unit (B161/4) | With code JA7 (Blind Spot Assist) |
| Active Brake Assist controller unit (E1/1) | With code L45 (Multibeam LED with Highbeam Assist Plus) |
| Active Distance Assist DISTRONIC electric controller unit (E2/1) | With code L45 (Multibeam LED with Highbeam Assist Plus) |
| AIRMATIC control unit (N127) | - |
Input and output parameters for the following control units are sent or received by the electronic ignition lock control unit (EIS) (N73/8) via the suspension FlexRay (Flex E):
| Input and output parameters via suspension FlexRay (Flex E) | Supplemental information |
|---|---|
| Multifunction camera (MFK) control unit (B84/8) | - |
| Active Brake Assist controller unit (B92) | With code BA3 (Active Brake Assist) |
| Active Distance Assist DISTRONIC electric controller unit (B92/1) | With code ET4 (Active Distance Assist DISTRONIC) |
| AIRmatic control unit (N51/3) | With code CA4 (AIRMATIC) |
| Parking system control unit (N62/3) | With code EZ5 (Active Parking Assist with reversing camera With code EZ6 (Parking Package with 360° camera) With code JB6 (Parking Package with 360° camera) With code JB7 (Parking Package with reversing camera) |
| Electric power steering (ES) control unit (N68) | - |
| Steering column tube module control unit (N80) | - |
Serial bus
The electronic ignition lock control unit (EIS) (N73/8) is connected to the electric steering lock control unit (N26/5) via the serial bus.
Power supply of transmitter key and data exchange with transmitter key
When the transmitter key is inserted into the electronic ignition lock control unit (EIS) (N73/8), it switches on the inductive power transmission to supply power to the transmitter key. Encrypted data is exchanged via infrared signals between the transmitter key and the electronic ignition lock control unit (EIS) (N73/8) for identification of the transmitter key.
