PSM Arithmetic, Example Of PSM Function - GF54.21-D-3055-01TSI
Model 447, 448
with code ED5 (Parameterisable special module)
with code XM7 (MOPF II)
Speed signal, differentiate, integrate
Model 907, 910
with code ED5 (Parameterisable special module)
with code XJ4 (Modification year G4-I)
Speed signal, differentiate, integrate
Vehicle speed signal function blocks
The vehicle speed signal (interior CAN (CAN B): "VehSpd_Disp") can be output at one of the pulse-width-modulation-compatible outputs.
Formula: Pulse [1/s] = (Speed [km/h] * 4 [Pulse/m])/3.6
| Value range for vehicle speed | 4 to 409.4 km/h |
| Value range of pulse-width-modulated signal | 0 to 100% |
| Pulse length | 200 Hz |
4 pulses/m are output. The pulse width is 4 ms.
At 112.5 km/h, the pulse duration is the same as the pulse pause. This 1:1 ratio is maintained up to higher speeds.
In other words, at higher speeds, the pulse length and pause length shorten at the same rate.

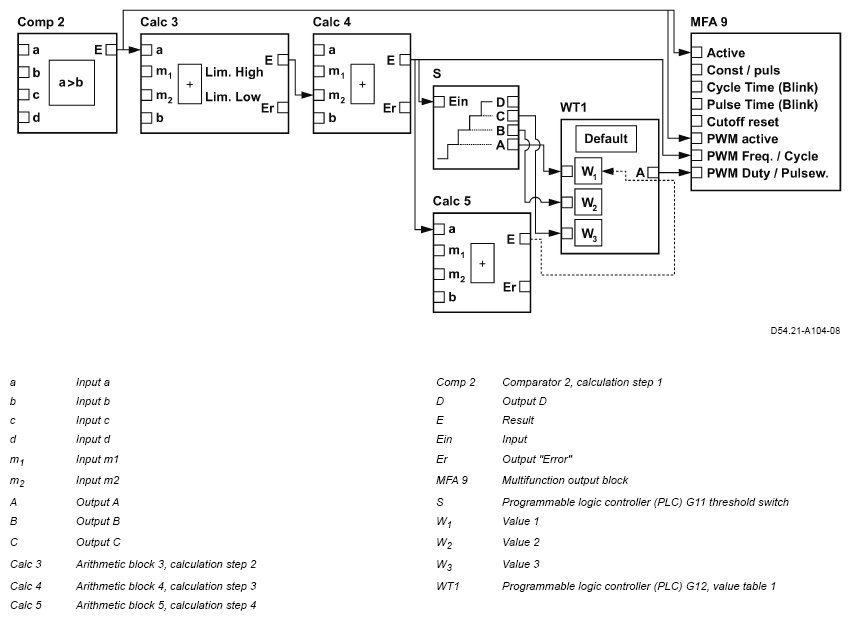

The speed signal is implemented via the blocks of the programmable logic controller (PLC), arithmetic unit and multifunction output blocks. The picture shows the simplified function block operation.
The configuration is available in the tables.
Function description of implementation
Comparator 2, calculation step 1 (Comp 2):
- Limit valid value range of input signal from 0 to 4094 (0 to 409.4 km/h). Values over 409.4 will be set to 0.
Arithmetic block 3, calculation step 2 (Calc 3):
- Multiply input signal by number of pulses/m.
Arithmetic block 4, calculation step 3 (Calc 4):
- Conversion of number of pulses to cycle duration
Arithmetic block 5, calculation step 4 (Calc 5):
- Calculate pulse duration from cycle duration.
PLC G11 threshold switch (s):
- Define ranges of cycle duration.
- 0 to 800: A = 1
- 801 to 22 727: B = 1
- > 22 727: C = 1
PLCG12 value table 1 (WT1):
- Depending on result of threshold switch
- A = 1 → Duty cycle = 50% of cycle duration (result, arithmetic block 5, calculation step 4)
- B = 1 → Duty cycle = constant (4 ms)
- C = 1 → Duty cycle = 0; pulse width modulation (PWM) is switched off.
Multifunction output block (MFA 9):
The cycle duration and pulse duration are output depending on the input signal.
Signal identification number = Signal ID.
The signal IDs are notated in hexadecimal form.
| Input | Signal name | Signal ID | Comparison assignment |
|---|---|---|---|
| Compare_2_a | AU_Const_3 | 0xF03A | Input a (a) > Input b (b) |
| Compare_2_b | VehSpd_Disp | 0x3053 | |
| Compare_2_c | VehSpd_Disp | 0x3053 | |
| Compare_2_d | Const_Bit_0 | 0x1000 |
| Input | Signal name | Signal ID | Upper limit value | Lower limit value |
|---|---|---|---|---|
| Calc_3_a | AU_Compare_2 | 0xF029 | 16, 376 | 0 |
| Calc 3 m1 | AU Const 4 | 0xF03B | ||
| Calc_3_m2 | Const_Bit_1 | 0x1001 | ||
| Calc_3_b | Const_Bit_0 | 0x1000 |
| Input | Signal name | Signal ID | Upper limit value | Lower limit value |
|---|---|---|---|---|
| Calc_4_a | AU_Const_5 | 0xF03C | 3, 600, 000 | 0 |
| Calc_4_m1 | Const_Bit_1 | 0x1001 | ||
| Calc_4_m2 | AU_Calc_3 | 0xF002 | ||
| Calc_4_b | Const_Bit_0 | 0x1000 |
| Input | F1 | F2 | F3 | F4 | F5 | F6 | F7 | F8 | F9 | F1 0 | F1 1 | F1 2 | F1 3 | F1 4 | F1 5 | F1 6 | Signal name | Signal ID | Mode | Sequential point (1) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS1_1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | AU_Calc_4 | 0xF003 | Threshold A | 0 |
| Threshold B | 800 | |||||||||||||||||||
| Threshold C | 22 727 | |||||||||||||||||||
| Threshold D | 65 535 |
| Input | Signal name | Signal ID | Upper limit value | Lower limit value |
|---|---|---|---|---|
| Calc_5_a | AU_Calc_4 | 0xF003 | 400 | 0 |
| Calc_5_m1 | Const_Bit_1 | 0x1001 | ||
| Calc_5_m2 | AU_Const_6 | 0xF03D | ||
| Calc_5_b | Const_Bit_0 | 0x1000 |
| Input | F 1 | F 3 | F 4 | F 5 | F 6 | F 7 | F 8 | F 9 | F 10 | F 11 | F 12 | F 13 | F 14 | F 15 | F 16 | Signal name | Signal ID | Value table 1 | Default value (Signal name) | Const_Bit_0 | 0x1000 | |
| WT1_1 (Value 1) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | SPS_G11_SS1_A | 0x91EA | - | Value 1 (Signal name) | AU_Calc_5 | 0xF004 |
| WT1_2 (Value 2) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | SPS_G11_SS1_B | 0x91EB | - | Value 2 (Signal name) | SPS_G12_K1 | 0xB092 |
| WT1_3 (Value 3) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | SPS_G11_SS1_C | 0x91EC | - | Value 3 (Signal name) | Const_Bit_0 | 0x1000 |
| WT1_4 (Value 4) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | Const_Bit_0 | 0x1000 | - | Value 4 (Signal name) | Const_Bit_0 | 0x1000 |
| Constants block (KB_1) | Arithmetic unit | Meaning |
|---|---|---|
| Konstante 3 | 4, 094 | Maximum reception value |
| Konstante 4 | 4 | Number of pulses per meter |
| Konstante 5 | 3, 600, 000 | Vehicle speed factor in cycle duration |
| Konstante 6 | 2 | Pulse duration factor |
| Konstantenblock 1 Constants block 1 (KB1) | Group 12 | Meaning |
|---|---|---|
| Konstante 1 | 400 | Pulse duration |
| 1 A high side, PWM | F 1 | F 2 | F 3 | F 4 | F 5 | F 6 | F 7 | F 8 | F 9 | F 1 0 | F 1 1 | F 1 2 | F 1 3 | F 1 4 | F 1 5 | F 1 6 | Signal name | Signal ID | Multifunction output block | - | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Eingang1 Input1 (Active) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | AU_Compare_2 | 0xF029 | - | Type | Output (1) |
| Eingang2 Input2 (Const/pulse) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Const_Bit_0 | 0x1000 | Reactivation attempts | 1 | |
| Eingang3 Input3 (Cutoff reset) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Term15_Actv | 0x1106 | PWM type | Time (1) | |
| Eingang4 Input4 (Cycle time) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Const_Bit_0 | 0x1000 | - | ||
| Eingang5 Input5 (Pulse time) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Const_Bit_1 | 0x1001 | |||
| Eingang6 Input6 (PWM active) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | AU_Compare_2 | 0xF029 | |||
| Eingang7 Input7 (PWM period) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | AU_Calc_4 | 0xF003 | |||
| Eingang8 Input8 (PWM duty) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | SPS_G12_WT1 | 0xB09A | |||
