Electrical Function Schematic For Navigation System Function - PE82.61-S-2056-97TRA
Model 447.7
with code E1N (Becker® MAP PILOT)
with code EN7 (Audio 15)
except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 8E |
| 1 | Multifunction steering wheel button group, signal | 12D |
| 1 | Multifunction steering wheel button group, signal | 13B |
| 1 | Multifunction steering wheel button group, signal | 19B |
| 1 | Multifunction steering wheel button group, signal | 23B |
| 2 | GPS, signal | 4J |
| 3 | Traffic data, signal | 8J |
| 3 | Traffic data, signal | 11J |
| 3 | Traffic data, signal | 15J |
| 4 | Display, message | 5G |
| 5 | Operation, signal | 6J |
| 5 | Operation, signal | 10E |
| 6 | Voice output, signal | 6G |
| 7 | Voice input, signal | 4F |
| A1/1 | Instrument cluster (KI) control unit | 12E |
| A2/18 | FM/AM antenna amplifier | 13J |
| A2/48 | GPS antenna | 1J |
| A2/52 | FM antenna | 18L |
| A28/13 | TMC antenna splitter | 10J |
| B25/4 | Hands-free system microphone | 1E |
| CAN A | Telematics CAN | 6H |
| CAN B | Interior CAN | 9F |
| CAN B | Interior CAN | 12D |
| CAN E | Chassis CAN | 14B |

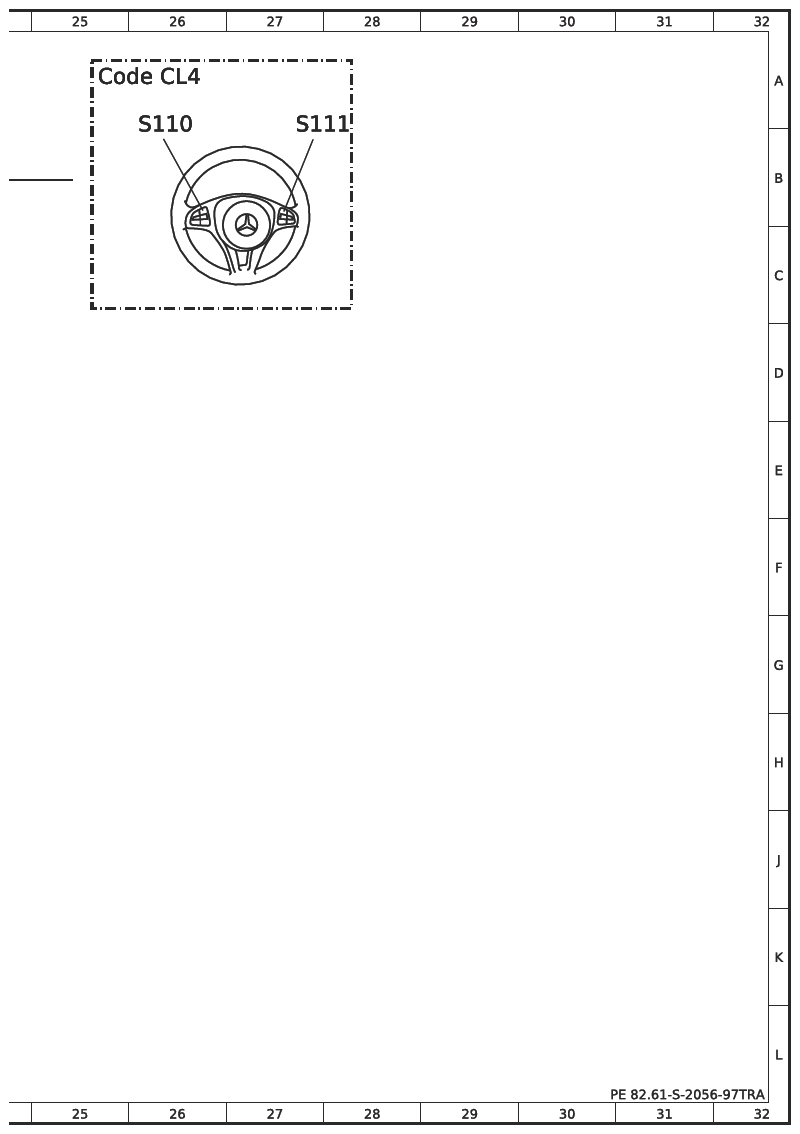

| Code CL4 | Multifunction steering wheel with trip computer | 25A |

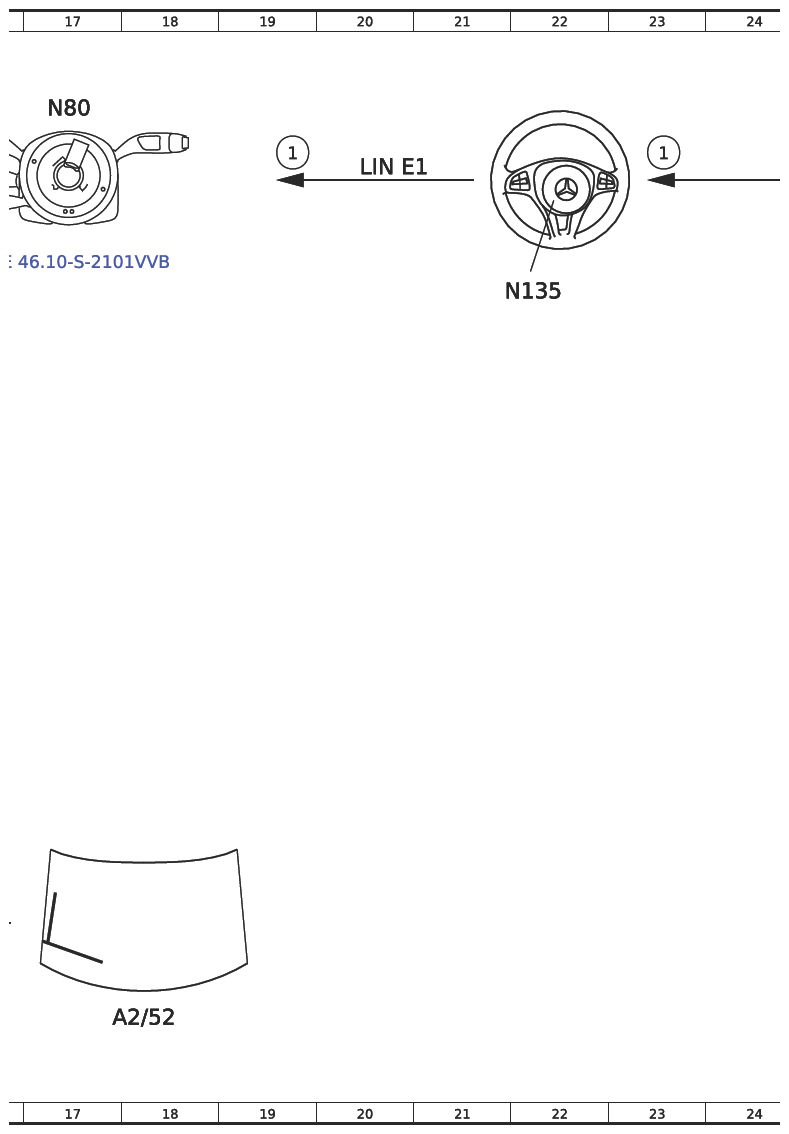

| LIN E1 | Steering LIN | 20B |
| LVDS | Low voltage differential signal | 5H |
| N135 | Steering wheel electronics | 21C |

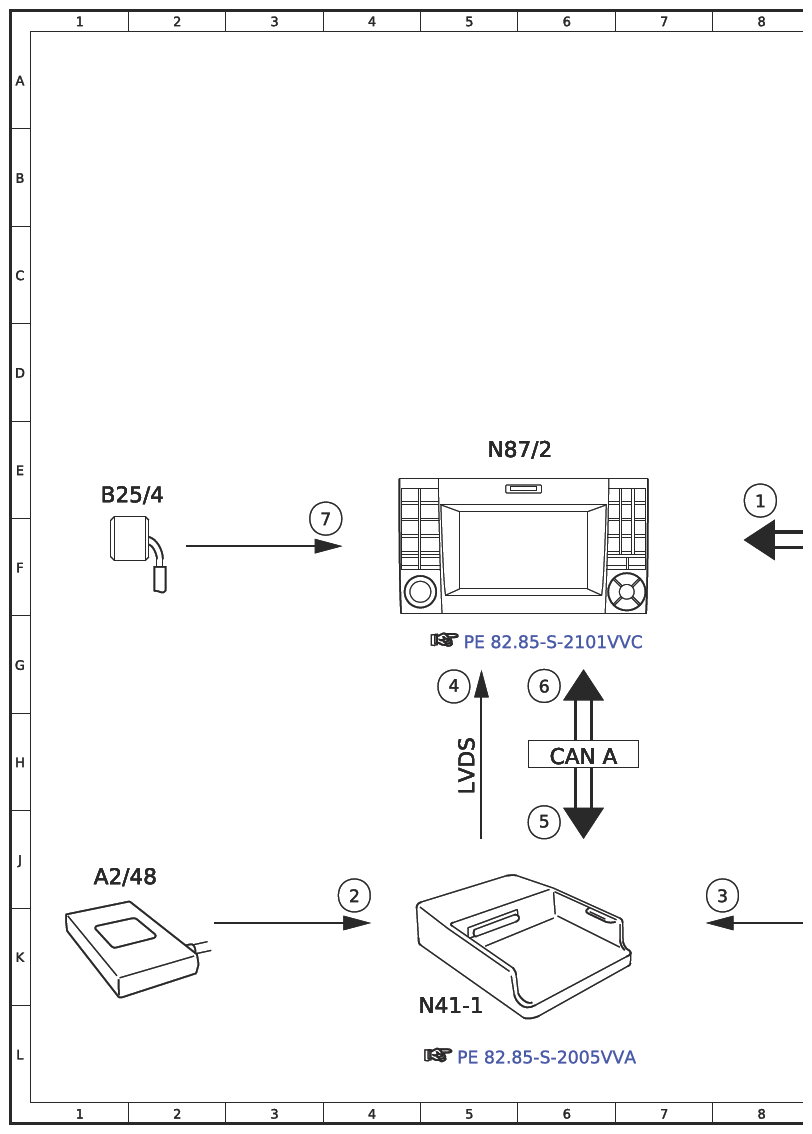

| N41-1 | Becker® MAP PILOT control unit mount | 5L |

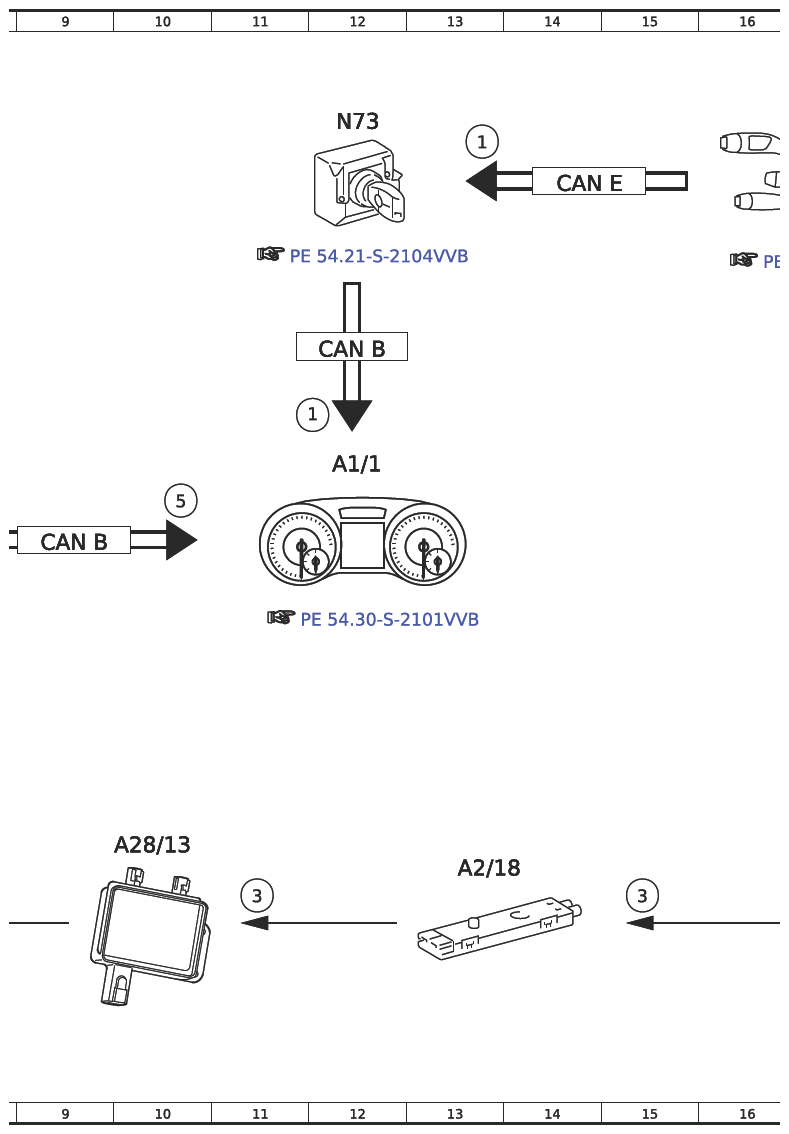

| N73 | Electronic ignition lock (EZS) control unit | 12B |
| N80 | Steering column tube module (MRM) control unit | 17A |
| N87/2 | Radio (Audio) | 5E |
| S110 | Left multifunction steering wheel button group | 26B |
| S111 | Right multifunction steering wheel button group | 27B |
