Parameterizable Special Module (PSM) Control Unit Connector Assignment - GF54.21-D-0002-04TSE
Model 447, 448
With Code ED5 (Parameterisable special module)
With Code XM7 (MOPF II) Model 907, 910
With Code ED5 (Parameterisable special module)
With Code XJ4 (Modification year G4-I)

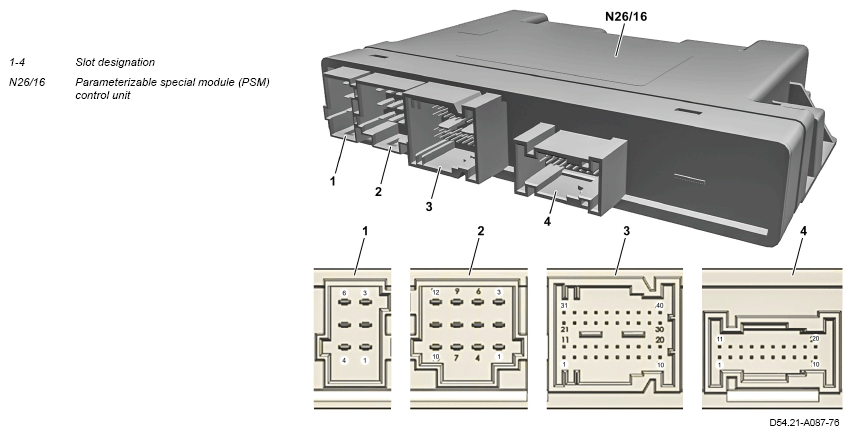

The numbers on the pins indicate the pin numbering of the slots.
Pin assignment, general
Plug 1
| Pin number | Signal name | Permanent current [A] | Function and code control |
|---|---|---|---|
| 1 | Circuit 31 | 24 | Ground connection (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
| 2 | Circuit 30_2 | 20 | Power supply (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
| 3 | Circuit 30_1 | 20 | Power supply (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
| 4 | Circuit 31 | 24 | Power supply (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
| 5 | Circuit 30_2 | 20 | Power supply (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
| 6 | Circuit 30_1 | 20 | Power supply (Code ED5 - Parameterizable special module/ED8 - Electrics pre-installation, parameterizable special module) |
Plug 2
| Pin number | Signal name | Permanent current [A] | Function and code control |
|---|---|---|---|
| 1 | MFA_7 | 5 | Code E5M - Extension of PSM standard contact Code N05 - Countershaft power take-off (2c) without flange / (Code N07 - MB countershaft power take-off, 2b + Code M53 - Constant-rpm control/Code MT4 - Variable electronic rpm governor)/Code PZ0 - Delivery package for package delivery veh. DHL integral box body (standstill to CL [ZV] PZF) |
| 2 | MFA_5 | 5 | n.c. |
| 3 | MFA_6 | 5 | n.c. |
| 4 | MFA_8 | 5 | Code E5M - Extension of PSM standard contact Code PZ0 - Delivery package for package delivery veh. DHL integral box body (CL [ZV] partition signal (preserved) PZF) |
| 5 | MFA_4 | 10 | Code E5M - Extension of PSM standard contact Code PZ0 - Delivery package for package delivery veh. DHL integral box body ("PSM5" switch output 10 A for eLST) |
| 6 | MFA_1 | 5 | Code E5M - Extension of PSM standard contact Code PZ0 - Delivery package for package delivery veh. DHL integral box body (interior lamps actuation relay (HS) FHS PZF) |
| 7 | MFA_3 | 5 | Code E5M - Extension of PSM standard contact Code PZ0 - Delivery package for package delivery veh. DHL integral box body (unlocking status CL [ZV]) |
| 8 | MFA_20 | 5 | Code E5M - Extension of PSM standard contact Code PZ0 - Delivery package for package delivery veh. DHL integral box body (locking intermediate door PZF) |
| 9 | MFA_19 | 5 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door / Code PZ0 - Delivery package for package delivery veh. DHL integral box body (unlocking intermediate door PZF) |
| 10 | MFA_22 | 5 | Code E5M - Extension of PSM standard contact Code C2A - V-signal (speed signal) for LFA |
| 11 | MFA_21 | 5 | Code E5M - Extension of PSM standard contact |
| 12 | MFA_2 | 10 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door / Code PZ0 - Delivery package for package delivery veh. DHL integral box body (PSM6 switch output 10 A for eLST) |
MFA = Multifunction output
MFE = Multifunction input
Plug 3
| Pin number | Signal name | Permanent current [A] | Function and code control |
|---|---|---|---|
| 1 | MFA_15 | 0.5 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door |
| 2 | MFA_16 | 0.5 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door Code PZ0 - Delivery package for package delivery veh. DHL integral box body ((PSM2) immediate locking after opening load compartment sliding door (preserved) PZF) |
| 3 | MFA_13 | 1 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door |
| 4 | MFA_23_REL1.NO | 1 | |
| 5 | MFA_23_REL1.COM | 1 | |
| 6 | MFA_23_REL1.NC | 1 | |
| 7 | MFE_17 | 0.01 | Code E5M - Extension of PSM standard contact |
| 8 | MFE_19 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door |
| 9 | MFE_21 | 0.01 | |
| 10 | MFE_23 | 0.01 | |
| 11 | MFA_17 | 0.5 | Code E5M - Extension of PSM standard contact |
| 12 | MFA_18 | 0.5 | Code E5M - Extension of PSM standard contact - MFA_12 MFA_18 (0.5 A)/ Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door / (Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door)/ Code PZ0 - Delivery package for package delivery veh. DHL integral box body ((PSM1) immediate locking after opening load compartment sliding door (preserved) PZF) |
| 13 | MFA_14 | 1 | Code E5M - Extension of PSM standard contact Code CB2 - Air suspension comfort suspension (hand brake signal (low side) for LFA) |
| 14 | MFA_24_REL2.NO | 1 | |
| 15 | MFA_24_REL2.COM | 1 | |
| 16 | MFA_24_REL2.NC | 1 | |
| 17 | MFE_18 | 0.01 | Code E5M - Extension of PSM standard contact Code JO2 - OLU pre-installation (WakeUp)/ Code JO3 - OLU Connect Unit (WakeUp)/ Code JA3 - Intelligent body control (ACU WakeUp) |
| 18 | MFE_20 | 0.01 | Only model 907/910, working speed sensor ON/OFF switch input - High Side (Code M53 - Constant-rpm control/Code MT4 - Variable electronic rpm governor) |
| 19 | MFE_22 | 0.01 | |
| 20 | MFE_24 | 0.01 | |
| 21 | MFA_11 | 0.5 | Code E5M - Extension of PSM standard contact Code ZH4 - Offroad mode (DSR switch function display)/ Code PZ0 - Delivery package for package delivery veh. DHL integral box body (Circuit 15 CL [ZV] supply PZF) |
| 22 | MFA_12 | 0.5 | Code E5M - Extension of PSM standard contact |
| 23 | MFE_9 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door / Code PZ0 - Delivery package for package delivery veh. DHL integral box body ((PSM8) Reed contact partition PZF) |
| 24 | MFE_11 | 0.01 | Code MW1 - Engine run-on control (MWS) |
| 25 | MFE_13 | 0.01 | ZH4 - Offroad operation (DSR switch signal) |
| 26 | MFE_15 | 0.01 | |
| 27 | MFE_1 | 0.01 | Code E5M - Extension of PSM standard contact Code MT4 - Variable electronic rpm governor / Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door |
| 28 | MFE_3 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door / Code PZ0 - Delivery package for package delivery veh. DHL integral box body (unlocking intermediate door PZF) |
| 29 | MFE_5 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door |
| 30 | MFE_7 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door / Code T58 - Electric step for left load compartment sliding door |
| 31 | MFA_9 | 0.5 | Code E5M - Extension of PSM standard contact Code M53 - Constant-rpm control/Code MT4 - Variable electronic rpm governor (Working speed regulator switch ON/OFF function lighting - High Side / Code PZ0 - Delivery package for package delivery veh. DHL integral box body (backup signal PZF) |
| 32 | MFA_10 | 0.5 | Code E5M - Extension of PSM standard contact Code MW1 - Engine run-on control (EROC [MWS]) (function lighting of engine run-on switch - High Side) |
| 33 | MFE_10 | 0.01 | |
| 34 | MFE_12 | 0.01 | |
| 35 | MFE_14 | 0.01 | |
| 36 | MFE_16 | 0.01 | |
| 37 | MFE_2 | 0.01 | |
| 38 | MFE_4 | 0.01 | reserved for code O02 - Rail veh./Veh. retrofitted with interaxle differential lock |
| 39 | MFE_6 | 0.01 | Code E5M - Extension of PSM standard contact (Code N05 - Countershaft power take-off (2c) without flange / Code N07 - MB countershaft power take-off, 2b + Code M53 - Constant-rpm control / Code MT4 - Variable electronic rpm governor)/ (Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door)/ Code PZ0 - Delivery package for package delivery veh. DHL integral box body ((PSM4) Reed contact rear-end door PZF) |
| 40 | MFE_8 | 0.01 | Code E5M - Extension of PSM standard contact Code T57 - Electric step for right load compartment sliding door + Code T58 - Electric step for left load compartment sliding door |
EMFA = Multifunction output
MFE = Multifunction input
Plug 4
| Pin number | Signal name | Permanent current [A] | Function and code control |
|---|---|---|---|
| 1 | SPV_CAN_H | Code JO2 - OLU pre-installation/Code JO3 - OLU Connect Unit Code JA3 - Intelligent body control CAN K (Multifunction CAN (model 907, 910) or CAN for multifunctions (model 447, 448)) |
|
| 2 | SPV_CAN_L | Code JO2 - OLU pre-installation/Code JO3 - OLU Connect Unit Code JA3 - Intelligent body control CAN K (Multifunction CAN (model 907, 910) or CAN for multifunctions (model 447, 448)) |
|
| 3 | HMI2_CAN_H | CAN HMI2 (CAN 2 for user interface (model 907, 910) or user interface CAN 2 (model 447, 448)) | |
| 4 | HMI2_CAN_L | CAN HMI2 (CAN 2 for user interface (model 907, 910) or user interface CAN 2 (model 447, 448)) | |
| 5 | GND_EMV | ||
| 6 | GND_EMV | ||
| 7 | LIN_D | ||
| 8 | LIN3 | ||
| 9 | BR_P | ||
| 10 | BR_N | ||
| 11 | Body-CAN_H | Code ED5 - Parameterizable special module / Code ED8 - Electrics pre-installation, parameterizable special module CAN B (Interior CAN) |
|
| 12 | Body-CAN_L | Code ED5 - Parameterizable special module / Code ED8 - Electrics pre-installation, parameterizable special module CAN B (Interior CAN) |
|
| 13 | 3. CAN_H | Code BR9 - Pre-installation for eddy current brake Code E5M - Extension of PSM standard contact CAN ABH (Body manufacturer CAN) |
|
| 14 | 3. CAN_L | Code BR9 - Pre-installation for eddy current brake Code E5M - Extension of PSM standard contact CAN ABH (Body manufacturer CAN) |
|
| 15 | MFA_25 | 0.5 | |
| 16 | MFE_25 | 0.01 | Code E5M - Extension of PSM standard contact Pulldown: Pulldown and digital input not with Power supply option Power supply option: Same measurement of pin for active ECU |
| 17 | LIN_E | ||
| 18 | Circuit 15 | 0.01 | |
| 19 | ETH+ | ||
| 20 | ETH- |
MFA = Multifunction output
MFE = Multifunction input
