Overview Of System Components For Parameterizable Special Module (PSM) - GF54.21-S-9998TRA

Model 447

With Code ED5 (Parameterisable special module)

Except Code XM7 (MOPF II)

Model 448

With Code ED5 (Parameterisable special module)

Except Code XM7 (MOPF II)

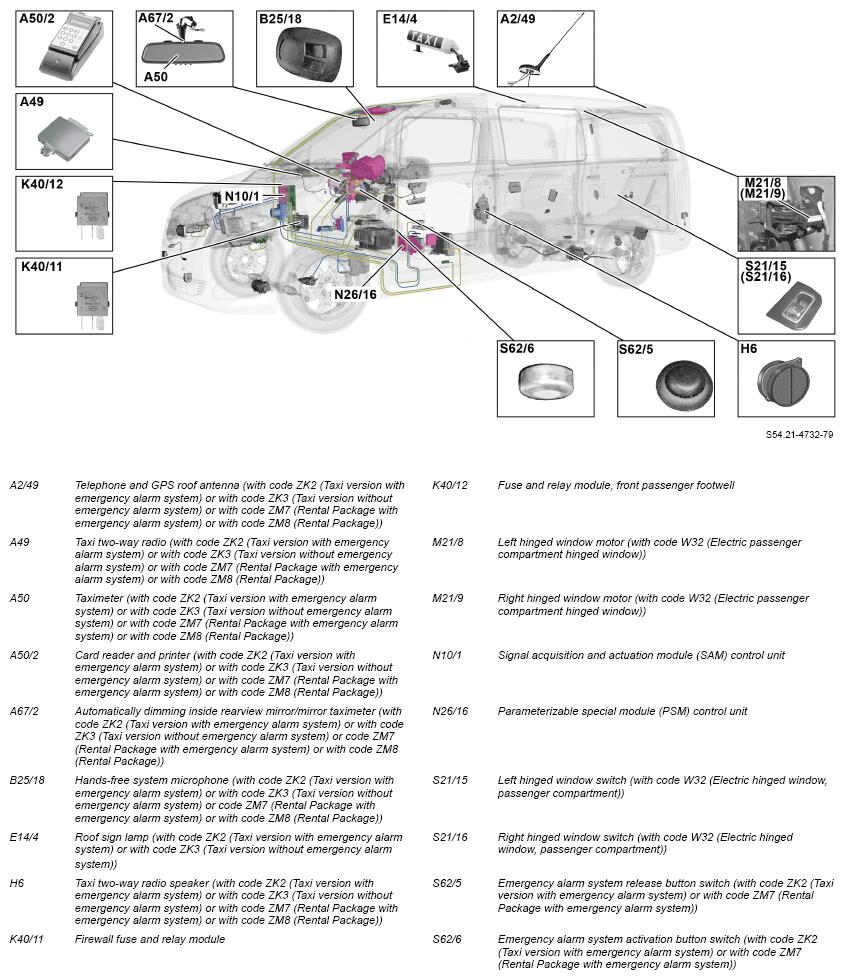

G16501336

Courtesy of MERCEDES-BENZ USA

Vehicle view from front left on model 447

	SAM control unit, component description	Model 447 with code ED5 (Parameterisable special module) except code XM7 (MOPF II) Model 448 with code ED5 (Parameterisable special module) except code XM7 (MOPF II)	GF54.21-S-4157TRA
	Parameterizable special module (PSM) control unit component description	Model 447 with code ED5 (Parameterisable special module) except code XM7 (MOPF II) Model 448 with code ED5 (Parameterisable special module) except code XM7 (MOPF II)	GF54.21-S-5005TRA
	Table of contents for function description of parameterizable special module (PSM)	Model 447 with code ED5 (Parameterisable special module) except code XM7 (MOPF II) Model 448 with code ED5 (Parameterisable special module) except code XM7 (MOPF II)	GF54.21-S-0999TRA
