Remove/Install Camera Cover Control Unit - AR54.21-S-0023E
Model 447.7/8
With Code FR8 (Rear view camera)
With Code W65 (Tailgate)
Except Code XM0 (Facelift)
Model 447.7/8
With Code FR8 (Rear view camera)
With Code W68 (EASY-PACK-tailgate)
Except Code XM0 (Facelift)
Model 447.8, 448.8
With Code JS1 (360° camera (SURROUND VIEW))
Except Code XM0 (Facelift)
Model 448.8
With Code FR8 (Rear view camera)
Except Code XM0 (Facelift)

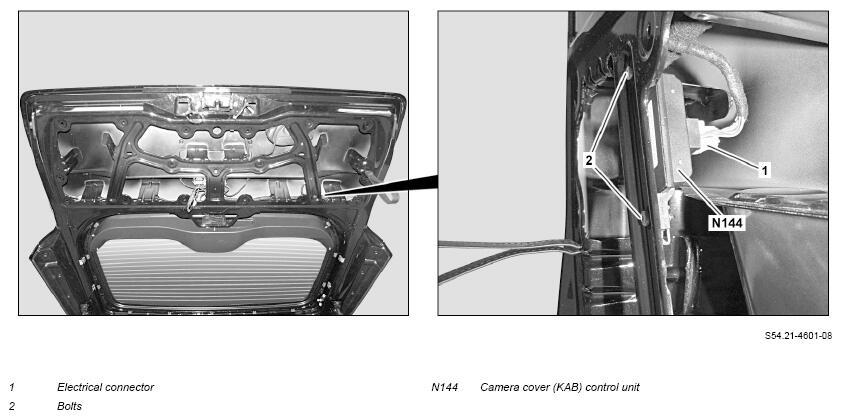

Shown on vehicle With Code W68 (Electrically actuated liftgate)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Read out data from camera cover (KAB) control unit (N144) with diagnostic system | If camera cover (KAB) control unit (N144) is replaced. | |
| AD00.00-S-2000-04E | |||
| 2 | Switch off ignition and remove transmitter key | ||
| 3 | Remove liftgate paneling | AR72.20-S-6445E | |
| 4 | Detach foil on liftgate until camera cover (KAB) control unit (N144) is accessible | AR72.20-S-4100E | |
| 5 | Disconnect electrical connection (1) | ||
| 6 | Remove screws/bolts (2) and remove camera cover (KAB) control unit (N144) | ||
| 7 | Install in the reverse order | ||
| 8 | Transfer data read out from the camera cover (KAB) control unit (N144) with diagnostic system | If camera cover (KAB) control unit (N144) was replaced. | |
| AD00.00-S-2000-04E | |||
| Check | |||
| 9 | Perform function check on reversing camera or 360° camera |
