Remove/Install Camera Cover Control Unit - AR54.21-S-0023EA
Model 447.7/8
With Code FR8 (Rear view camera)
With Code W65 (Tailgate)
With Code XM0 (Facelift)
Model 447.7/8
With Code FR8 (Rear view camera)
With Code W68 (EASY-PACK-tailgate)
With Code XM0 (Facelift)
Model 447.8, 448.8
With Code JS1 (360° camera (SURROUND VIEW))
With Code XM0 (Facelift)
Model 448.8
With Code FR8 (Rear view camera)
With Code XM0 (Facelift)

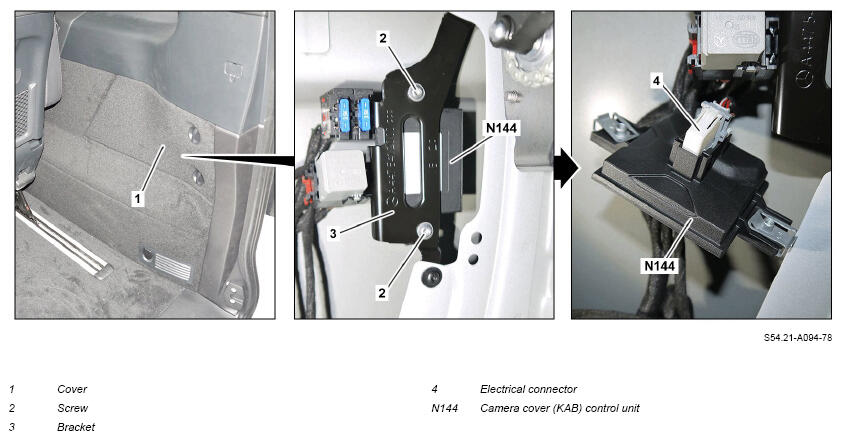

Shown on model 447.8 With Code JS1 (360° CAMERA)
| Notice | Notes on carrying out repair work in the vehicle interior | AH68.00-D-0001-01KOS | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Commission camera cover (KAB) control unit (N144). | If camera cover (KAB) control unit (N144) is replaced. | |
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove cover (1). | ||
| 4 | Remove vehicle tool kit mount. | Only on vehicles with vehicle tool kit mount. | AR68.30-S-5020E |
| 5 | Remove bolts (2). | ||
| 6 | Remove camera cover (KAB) control unit (N144) from holder (3) until electrical connector (4) is accessible. | ||
| 7 | Release and disconnect electrical connector (4) then remove camera cover (KAB) control unit (N144). | ||
| 8 | Install in the reverse order. | ||
| Check | |||
| 9 | Perform function check on reversing camera or 360° camera. |
