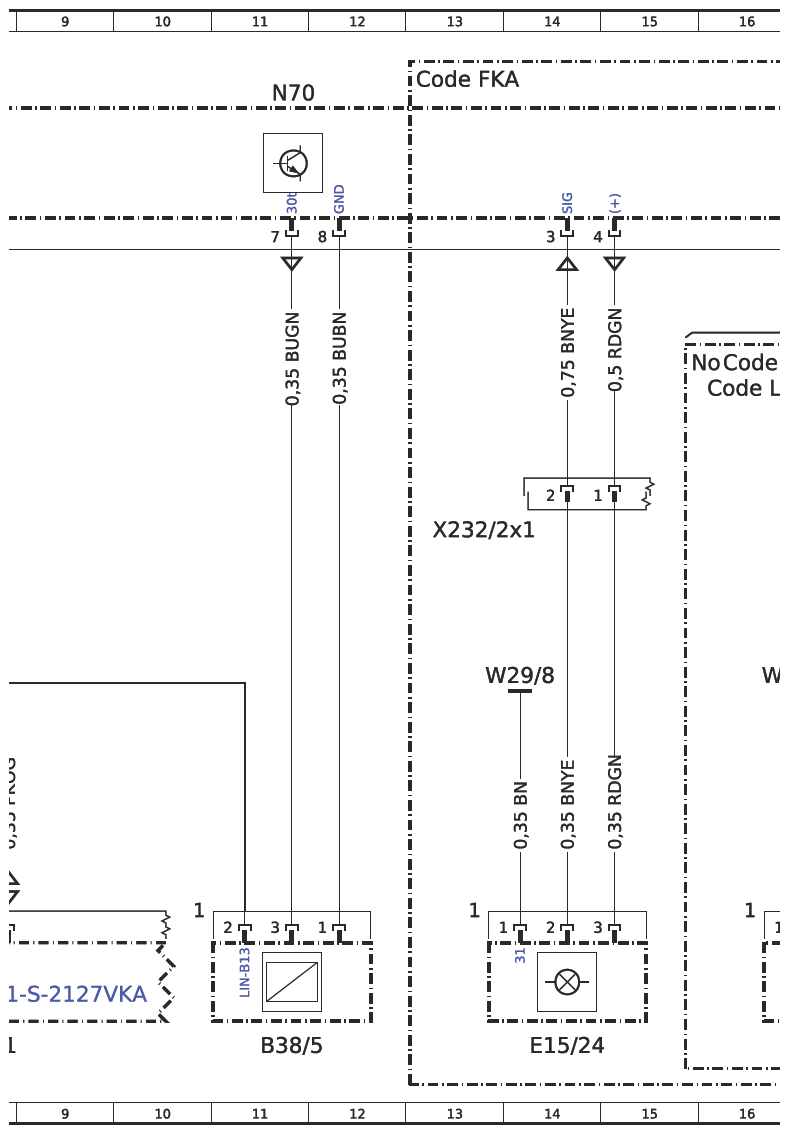

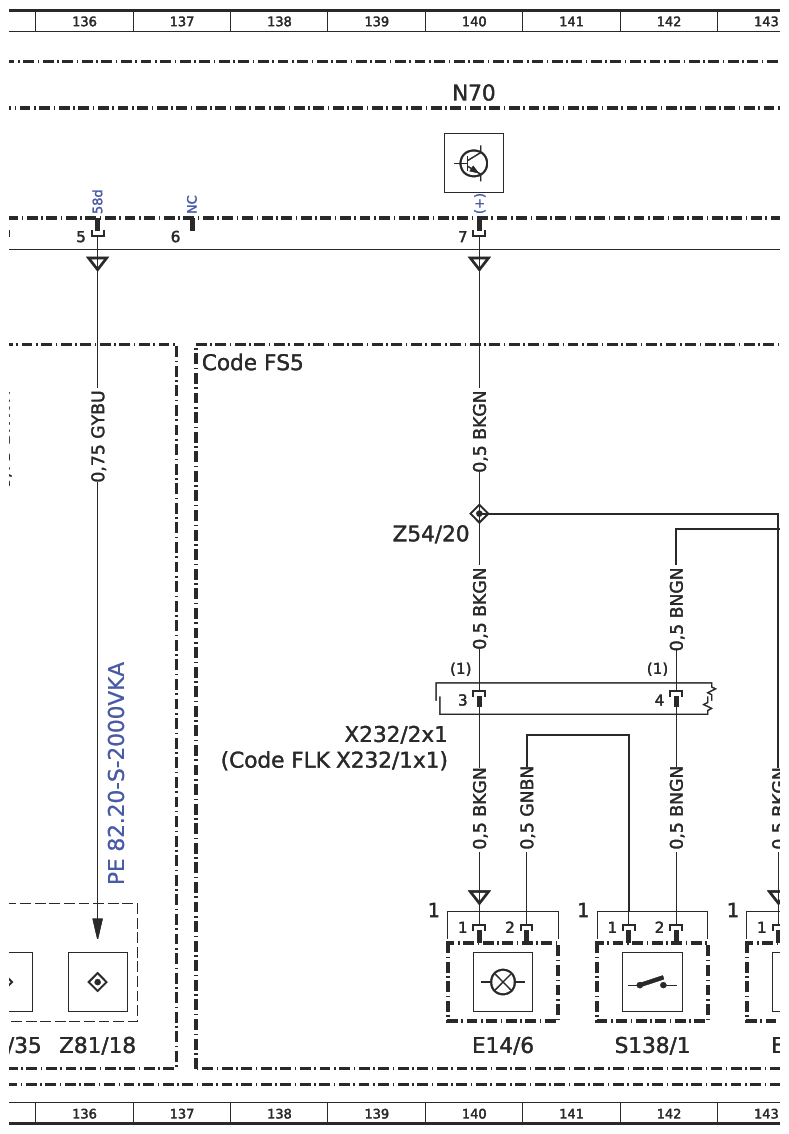

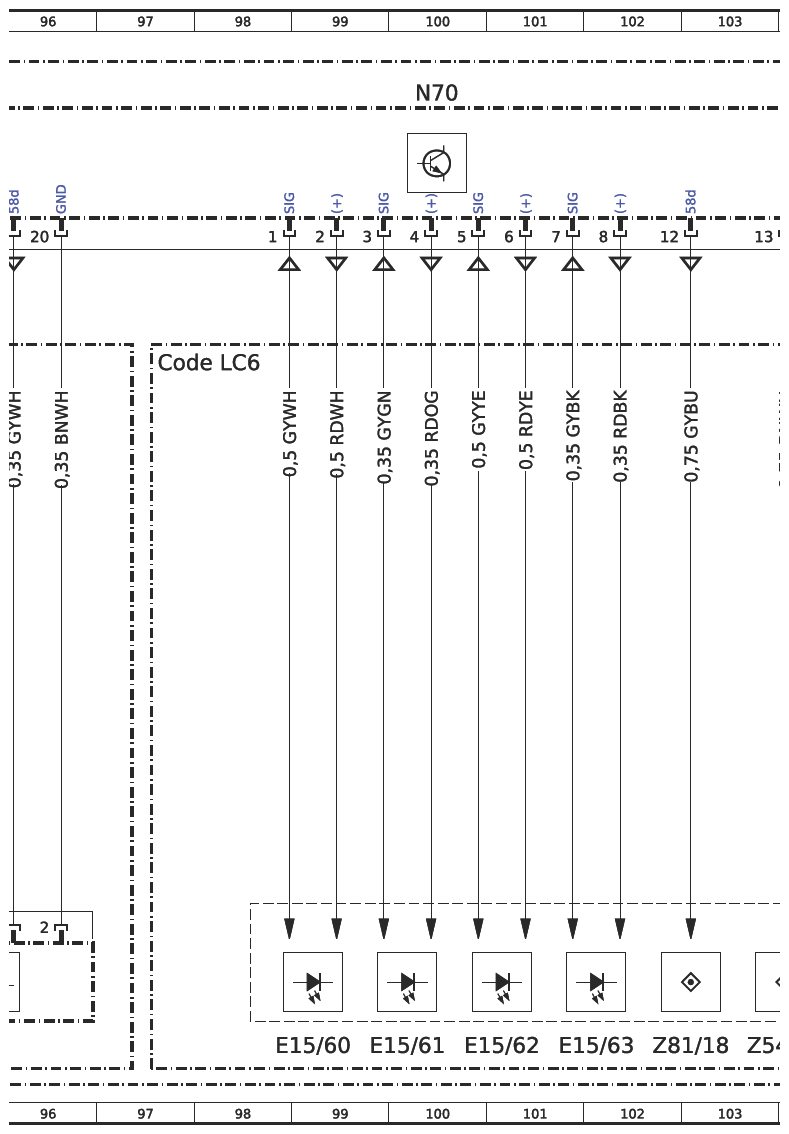

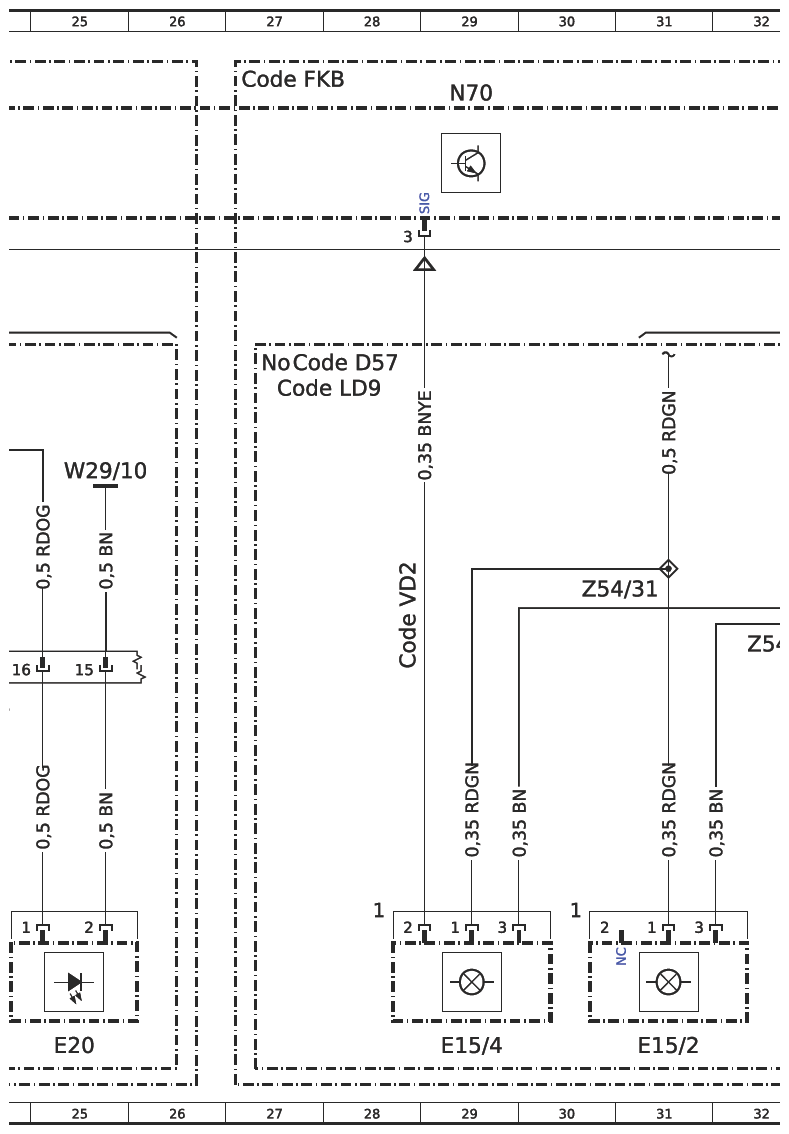

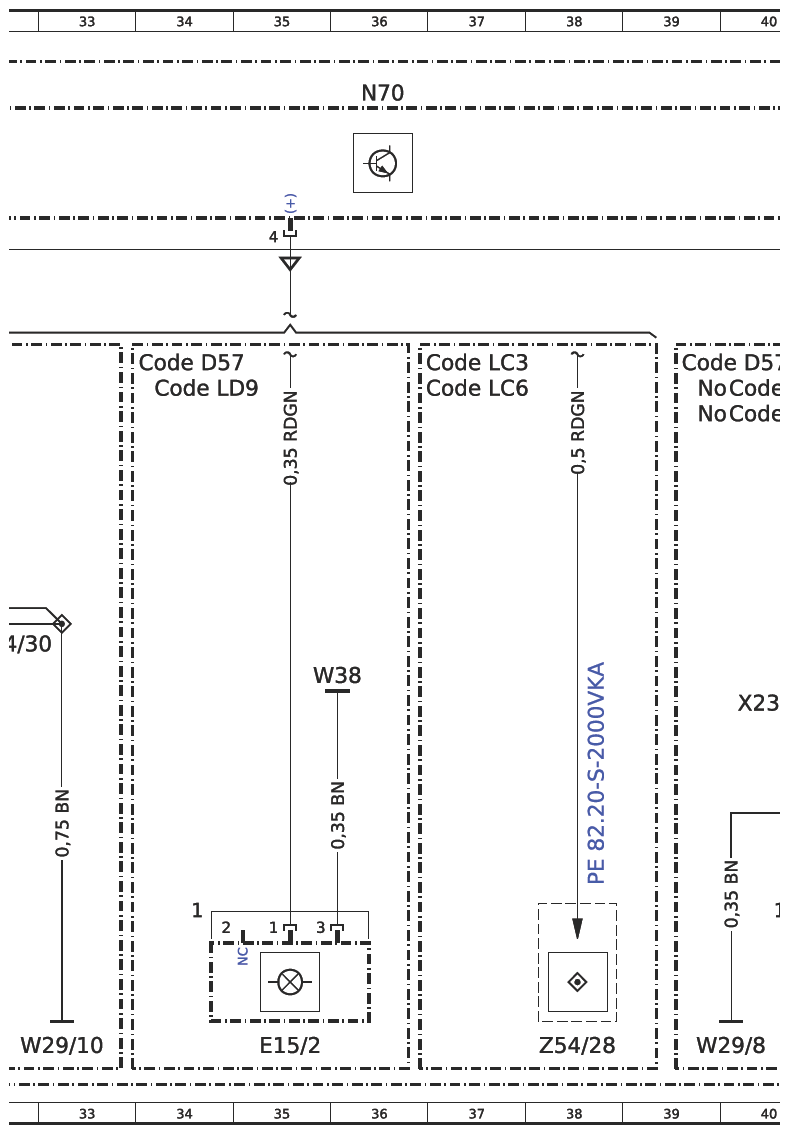

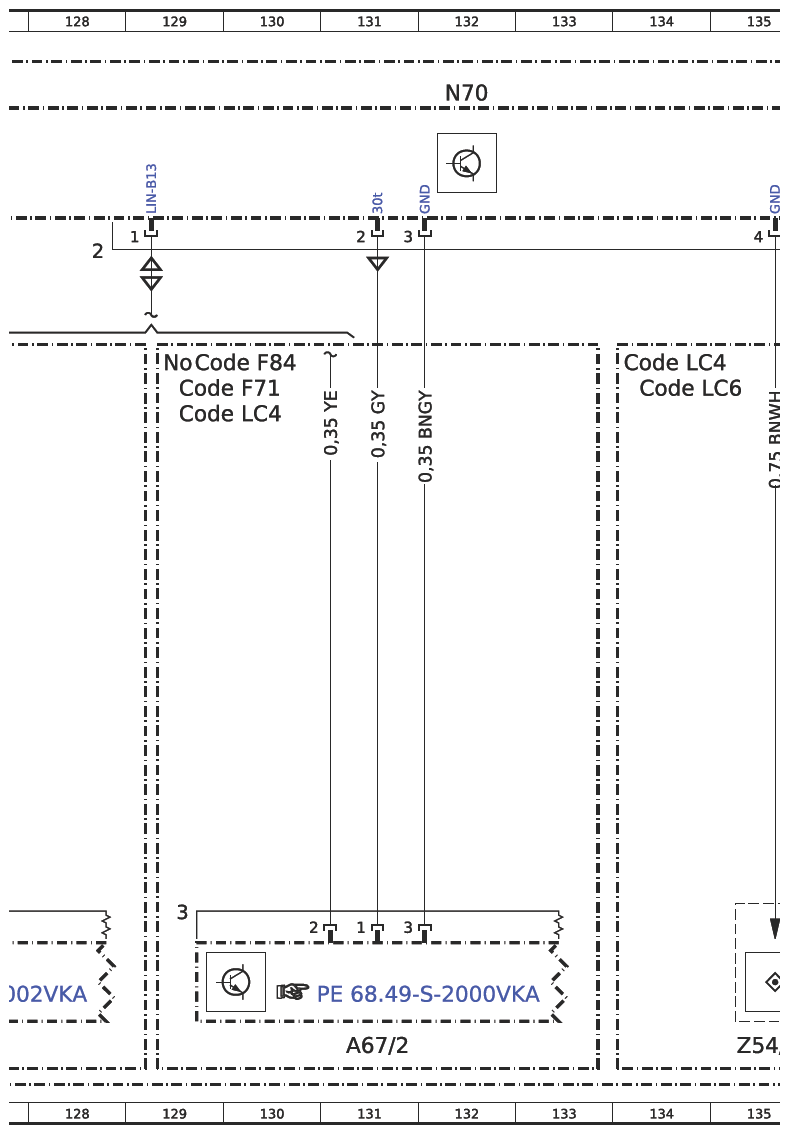

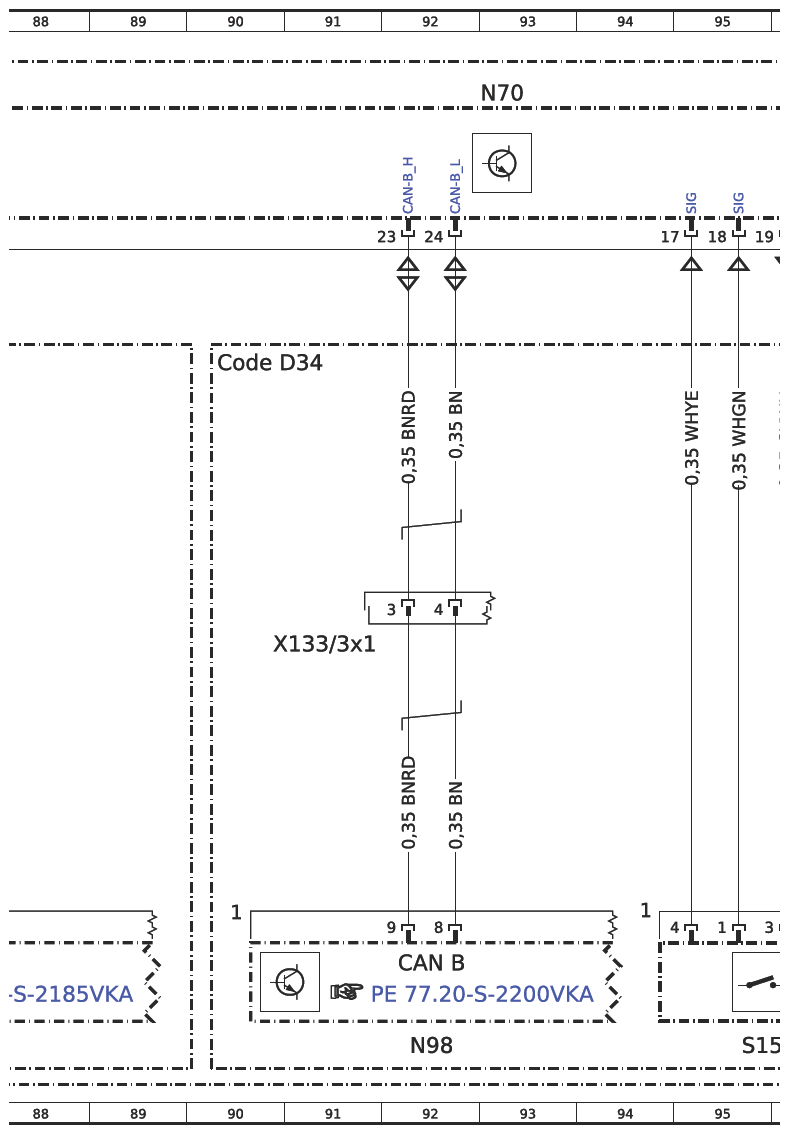

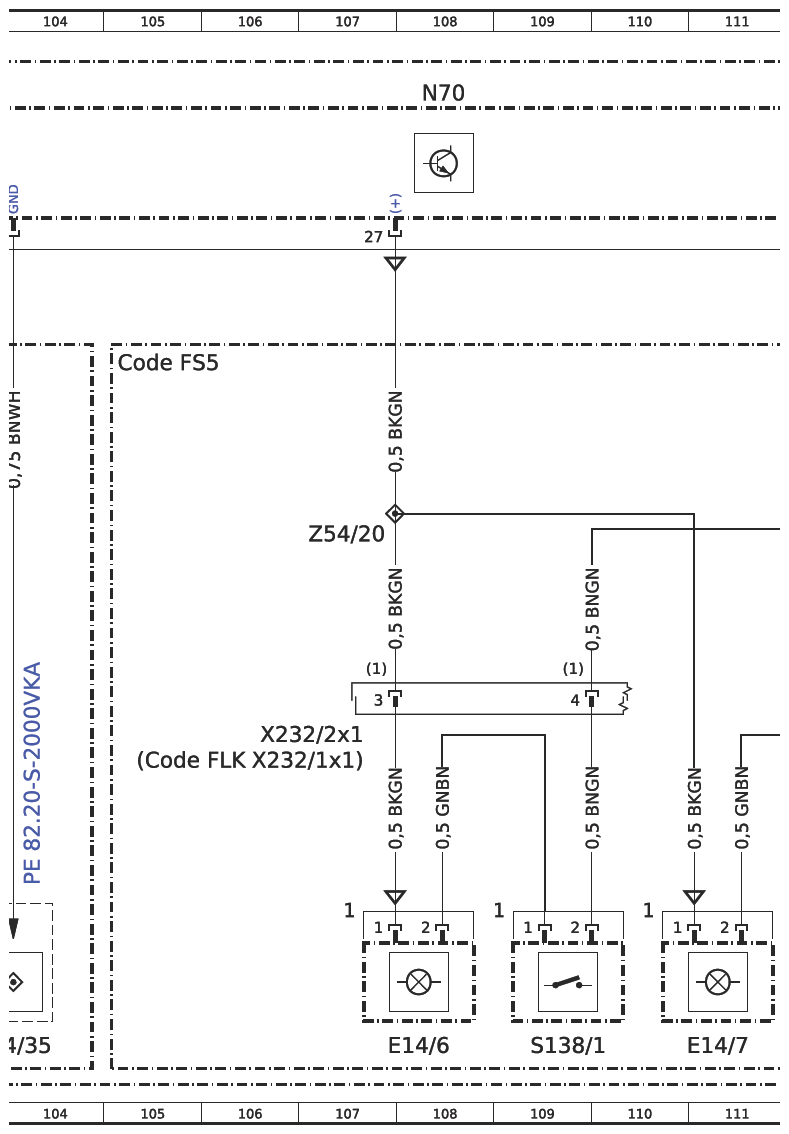

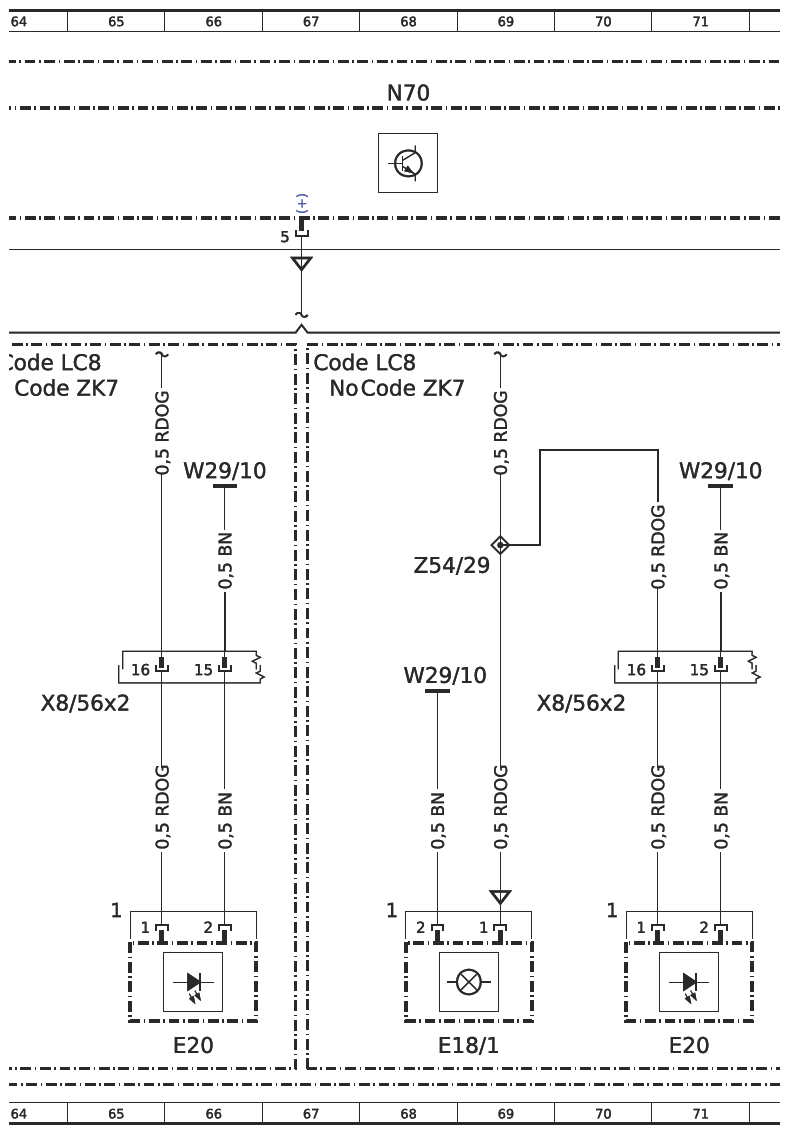

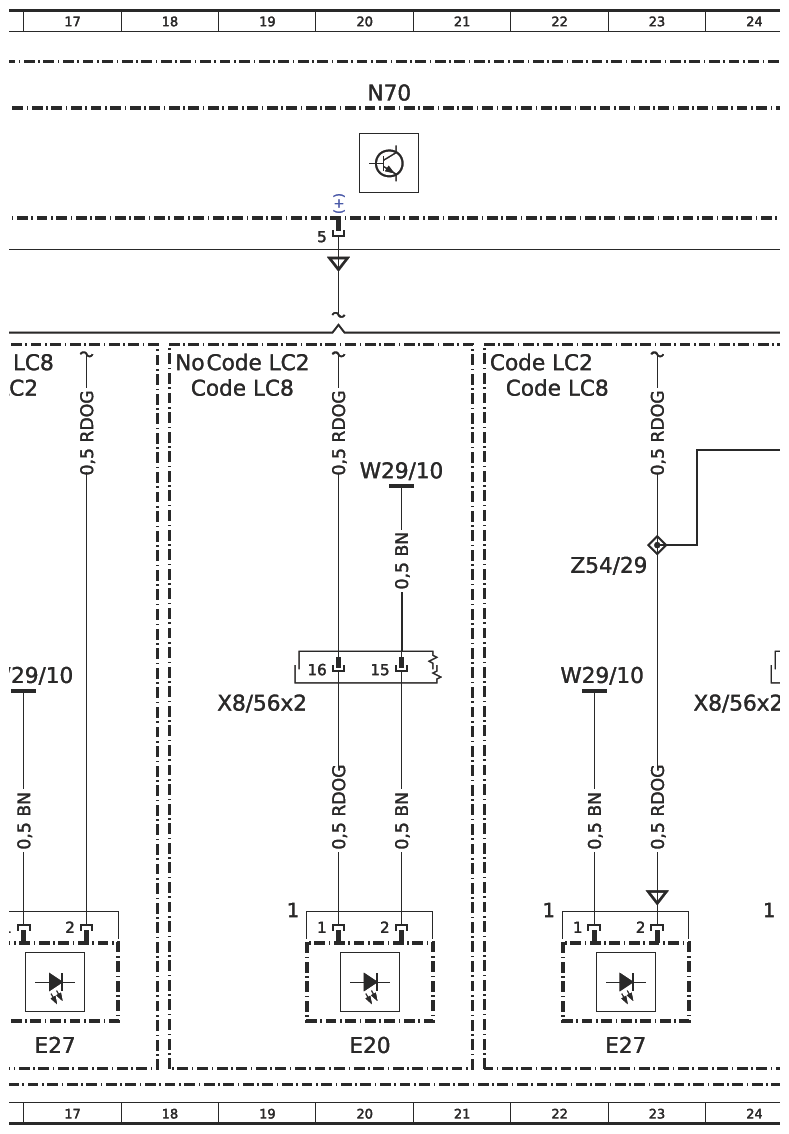

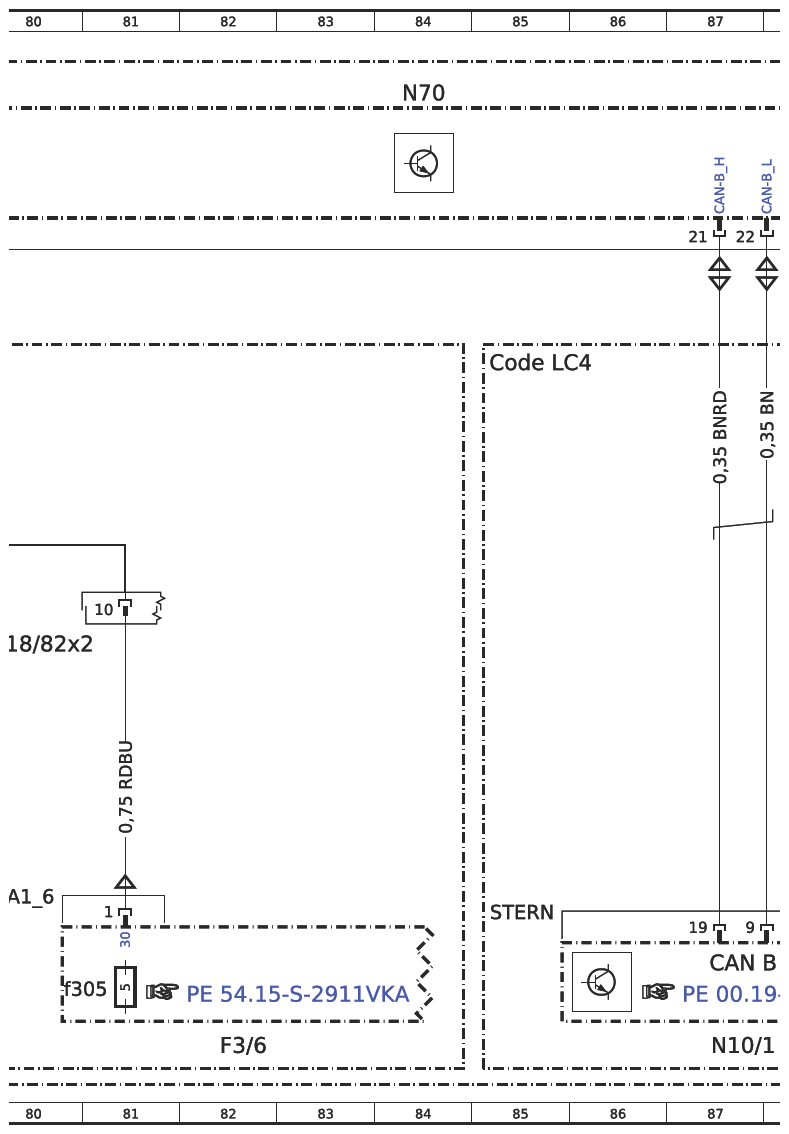

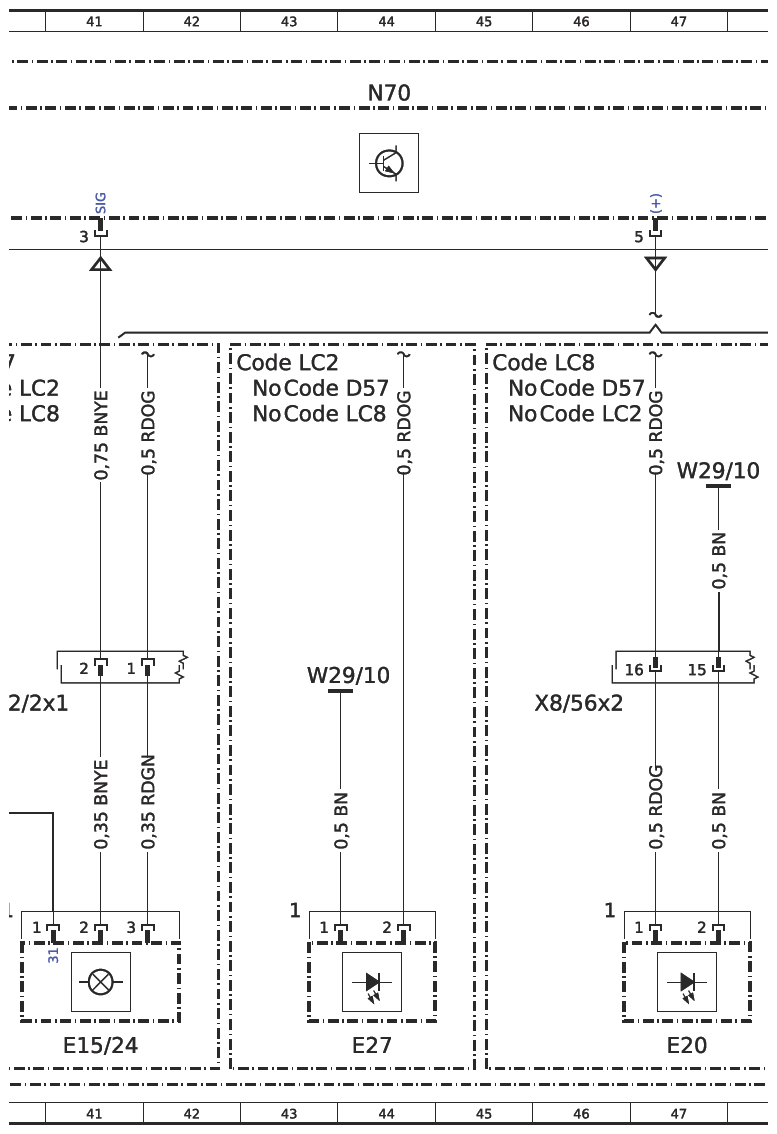

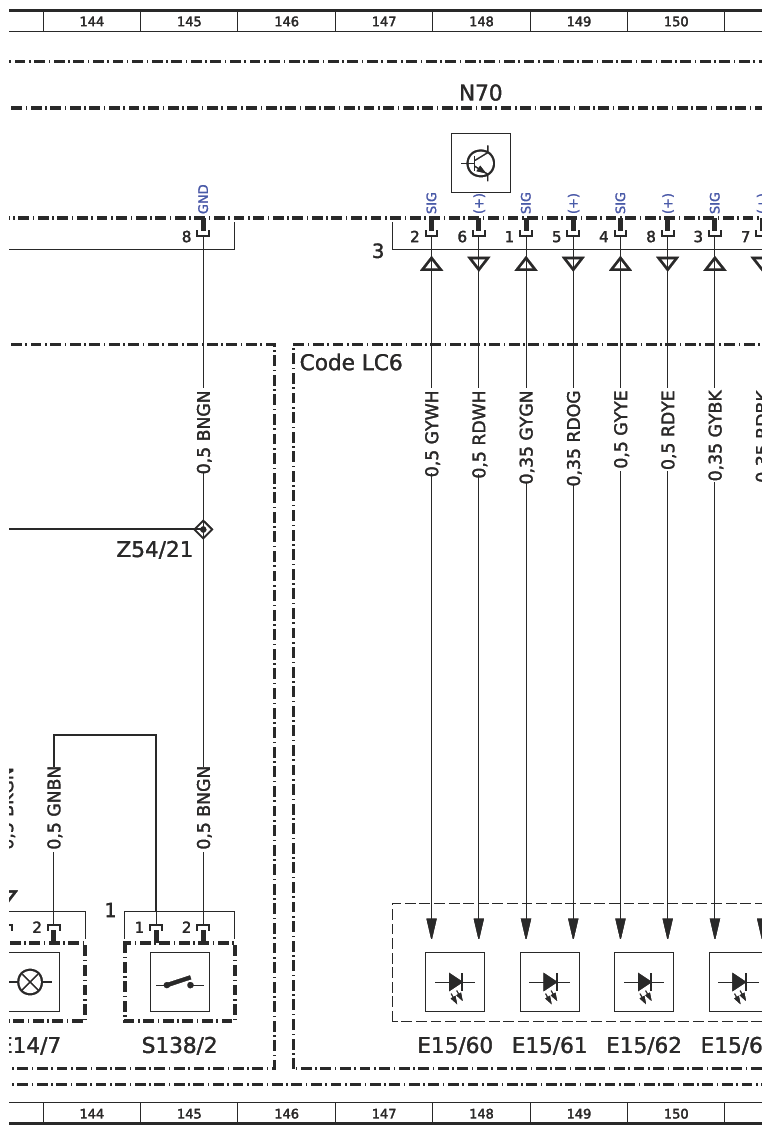

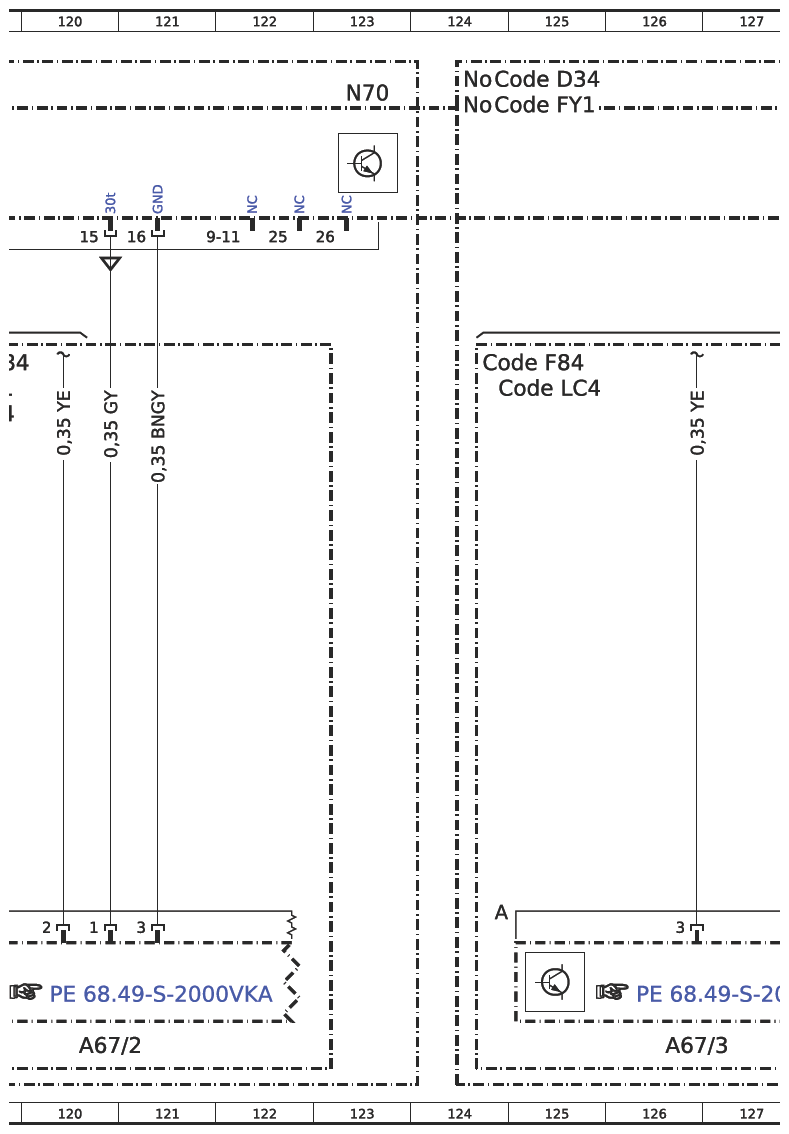

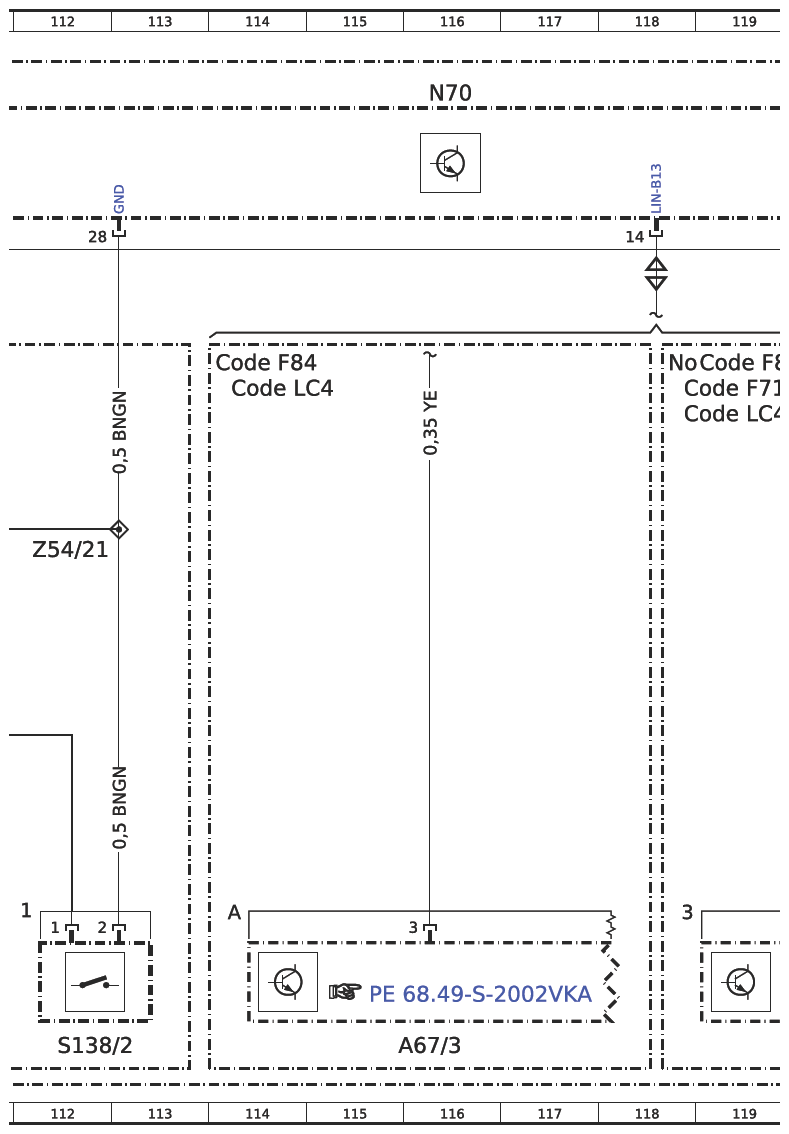

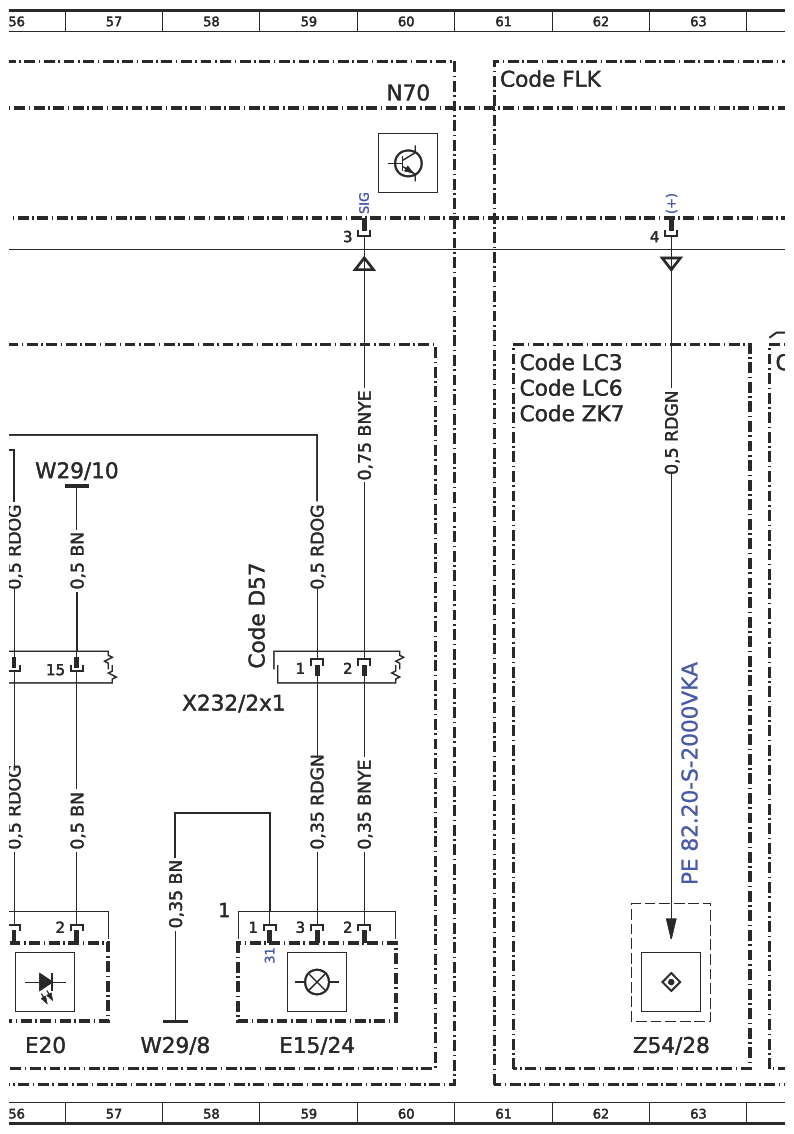

Wiring Diagram For Overhead Control Panel (OCP) Control Unit - PE54.21-S-2107-97VKA
Model 447 with Code XM7 (MOPF II) N70
| Code : | Designation: | Position: |
|---|---|---|
| AO | Color Code key | 160L |

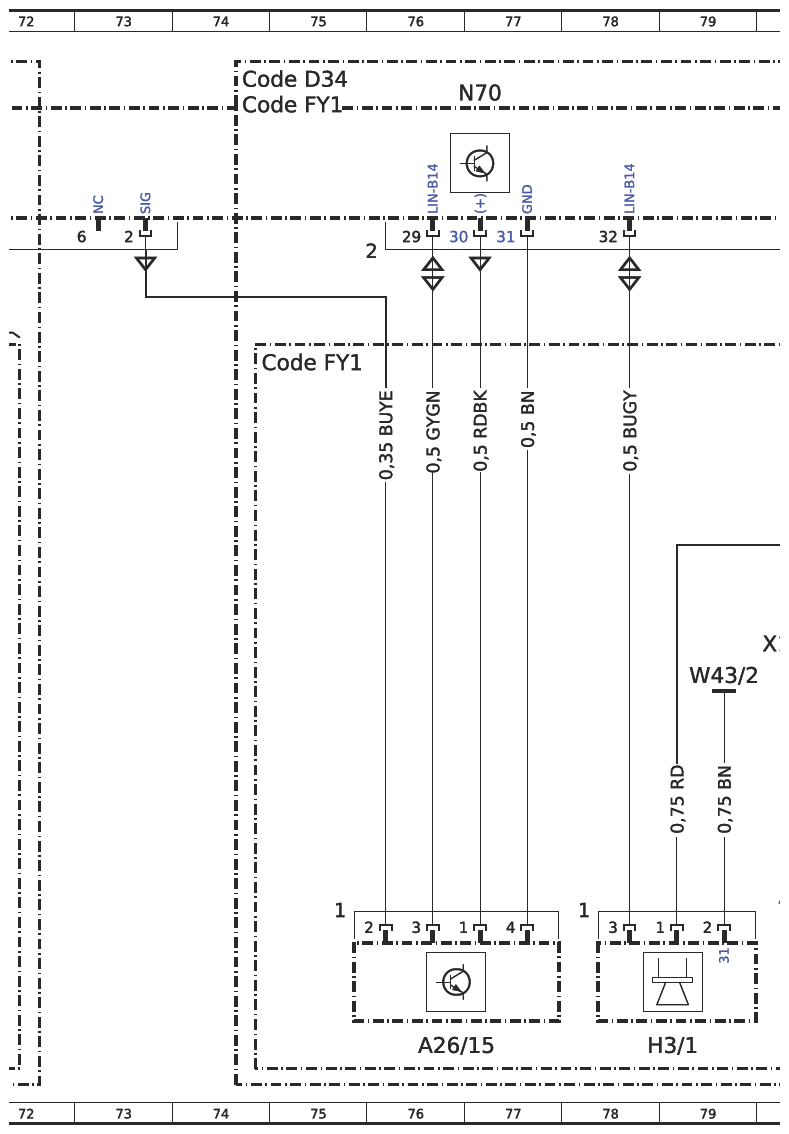

| A26/15 | Interior protection sensor (slave) | 76L |
| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 120L |
| A67/2 | Automatically dimming inside rearview mirror/mirror taximeter | 131L |
| A67/3 | Digital inside rearview mirror | 116L |
| A67/3 | Digital inside rearview mirror | 126L |
| B38/5 | Rain/light sensor with additional functions | 11L |
| CAN B | Interior CAN | 87K |
| CAN B | Interior CAN | 92K |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 124A |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 74A |
| Code D34 | Electr. tilting/sliding roof, fixed panoramic roof | 90D |
| Code D57 | Full-width partition wall at C-pillar with window | 34D |
| Code D57 | Full-width partition wall at C-pillar with window | 43D |
| Code D57 | Full-width partition wall at C-pillar with window | 46D |
| Code D57 | Full-width partition wall at C-pillar with window | 52G |
| Code D57 | Full-width partition wall at C-pillar with window | 59G |
| Code D57 | Full-width partition wall at C-pillar with window | 39D |
| Code D57 | Full-width partition wall at C-pillar with window | 49D |
| Code D57 | Full-width partition wall at C-pillar with window | 27D |
| Code F71 | Automatically dimming inside rearview mirror | 118D |
| Code F71 | Automatically dimming inside rearview mirror | 129D |
| Code F84 | Digital inside rearview mirror | 114D |
| Code F84 | Digital inside rearview mirror | 119D |
| Code F84 | Digital inside rearview mirror | 124D |
| Code F84 | Digital inside rearview mirror | 129D |
| Code FKA | Panel van | 13A |
| Code FKB | Vito Mixto and Tourer | 27A |
| Code FLK | Luxury MPV | 61A |
| Code FLK | Luxury MPV | 105H |
| Code FLK | Luxury MPV | 138H |
| Code FS5 | Illuminated mirrors for sun visors | 105D |
| Code FS5 | Illuminated mirrors for sun visors | 137D |
| Code FY1 | Theft protection package | 124A |
| Code FY1 | Theft protection package | 74A |
| Code FY1 | Theft protection package | 74D |
| Code FY1 | Theft protection package | 152A |
| Code LC2 | LED light strip in load compartment | 16D |
| Code LC2 | LED light strip in load compartment | 18D |
| Code LC2 | LED light strip in load compartment | 21D |
| Code LC2 | LED light strip in load compartment | 42D |
| Code LC2 | LED light strip in load compartment | 51D |
| Code LC2 | LED light strip in load compartment | 46E |
| Code LC2 | LED light strip in load compartment | 40D |
| Code LC3 | Illumination in rear grab handle | 36D |
| Code LC3 | Illumination in rear grab handle | 61D |
| Code LC4 | Comfort overhead control panel | 85D |
| Code LC4 | Comfort overhead control panel | 118E |
| Code LC4 | Comfort overhead control panel | 114D |
| Code LC4 | Comfort overhead control panel | 129E |
| Code LC4 | Comfort overhead control panel | 124D |
| Code LC4 | Comfort overhead control panel | 134D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 36D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 61D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 97D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 134D |
| Code LC6 | Illumination in rear grab handle with reading spotlight | 146D |
| Code LC8 | Liftgate ambient illumination | 16D |
| Code LC8 | Liftgate ambient illumination | 18D |
| Code LC8 | Liftgate ambient illumination | 21D |
| Code LC8 | Liftgate ambient illumination | 51D |
| Code LC8 | Liftgate ambient illumination | 43E |
| Code LC8 | Liftgate ambient illumination | 45D |
| Code LC8 | Liftgate ambient illumination | 40E |
| Code LC8 | Liftgate ambient illumination | 49E |
| Code LC8 | Liftgate ambient illumination | 67D |
| Code LC8 | Liftgate ambient illumination | 64D |
| Code LD9 | Interior lights in rear passenger compartment | 34D |
| Code LD9 | Interior lights in rear passenger compartment | 27D |
| Code V36 | Headliner | 52H |
| Code V36 | Headliner | 48D |
| Code VD2 | Standard headliner, B-D pillar | 28G |
| Code ZK7 | Marco Polo | 64D |
| Code ZK7 | Marco Polo | 61E |
| Code ZK7 | Marco Polo | 68D |
| E14/6 | Left front vanity mirror illumination | 108L |
| E14/6 | Left front vanity mirror illumination | 140L |
| E14/7 | Right front vanity mirror illumination | 111L |
| E14/7 | Right front vanity mirror illumination | 143L |
| E15/2 | Dome lamp, front of rear | 35L |
| E15/2 | Dome lamp, front of rear | 31L |
| E15/24 | Left rear load compartment lamp | 14L |
| E15/24 | Left rear load compartment lamp | 59L |
| E15/24 | Left rear load compartment lamp | 41L |
| E15/4 | Dome lamp, rear of rear | 29L |
| E15/60 | Left front grab handle ambiance illumination | 148L |
| E15/60 | Left front grab handle ambiance illumination | 99L |
| E15/61 | Right front grab handle ambiance illumination | 149L |
| E15/61 | Right front grab handle ambiance illumination | 100L |
| E15/62 | Left rear grab handle ambiance illumination | 149L |
| E15/62 | Left rear grab handle ambiance illumination | 100L |
| E15/63 | Right rear grab handle ambiance illumination | 150L |
| E15/63 | Right rear grab handle ambiance illumination | 101L |

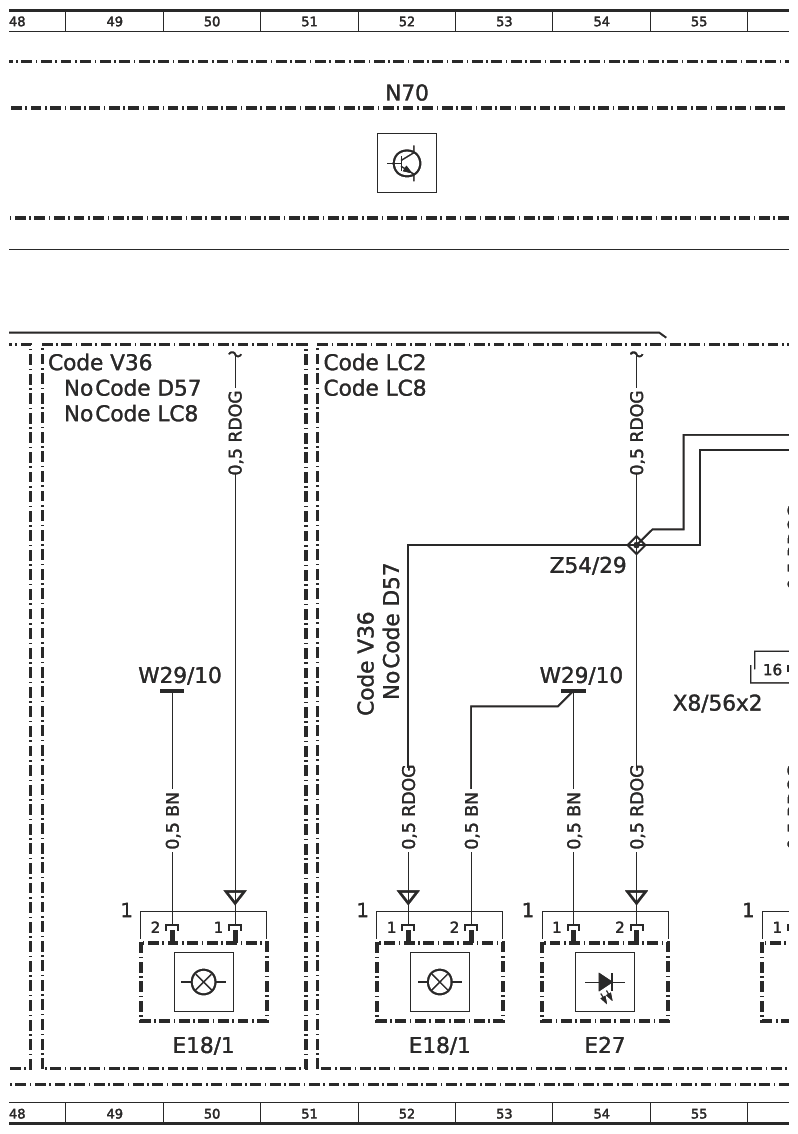

| E18/1 | Center trunk lamp | 52L |
| E18/1 | Center trunk lamp | 50L |
| E18/1 | Center trunk lamp | 68L |
| E20 | Liftgate ambient illumination | 20L |
| E20 | Liftgate ambient illumination | 25L |
| E20 | Liftgate ambient illumination | 47L |
| E20 | Liftgate ambient illumination | 56L |
| E20 | Liftgate ambient illumination | 66L |
| E20 | Liftgate ambient illumination | 71L |
| E27 | Load compartment work lamp LED light strip | 17L |
| E27 | Load compartment work lamp LED light strip | 23L |
| E27 | Load compartment work lamp LED light strip | 44L |
| E27 | Load compartment work lamp LED light strip | 54L |
| F3/6 | Cockpit circuit 30/30t fuse box | 82L |
| F3/6f305 | Fuse 305 | 81K |
| H3/1 | Alarm siren with additional battery | 79L |

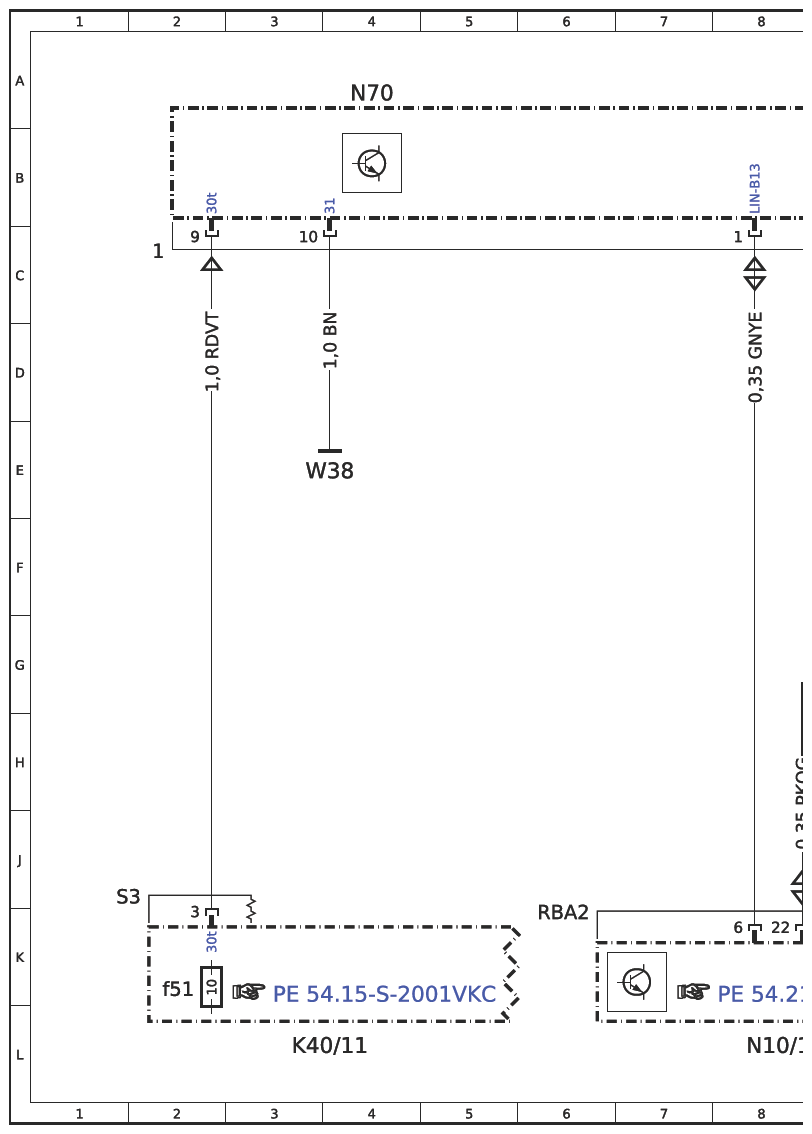

| K40/11 | Firewall fuse and relay module | 3L |
| K40/11f51 | Fuse 51 | 2K |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 8L |
| N10/1 | Signal acquisition and actuation module (SAM) control unit | 87L |

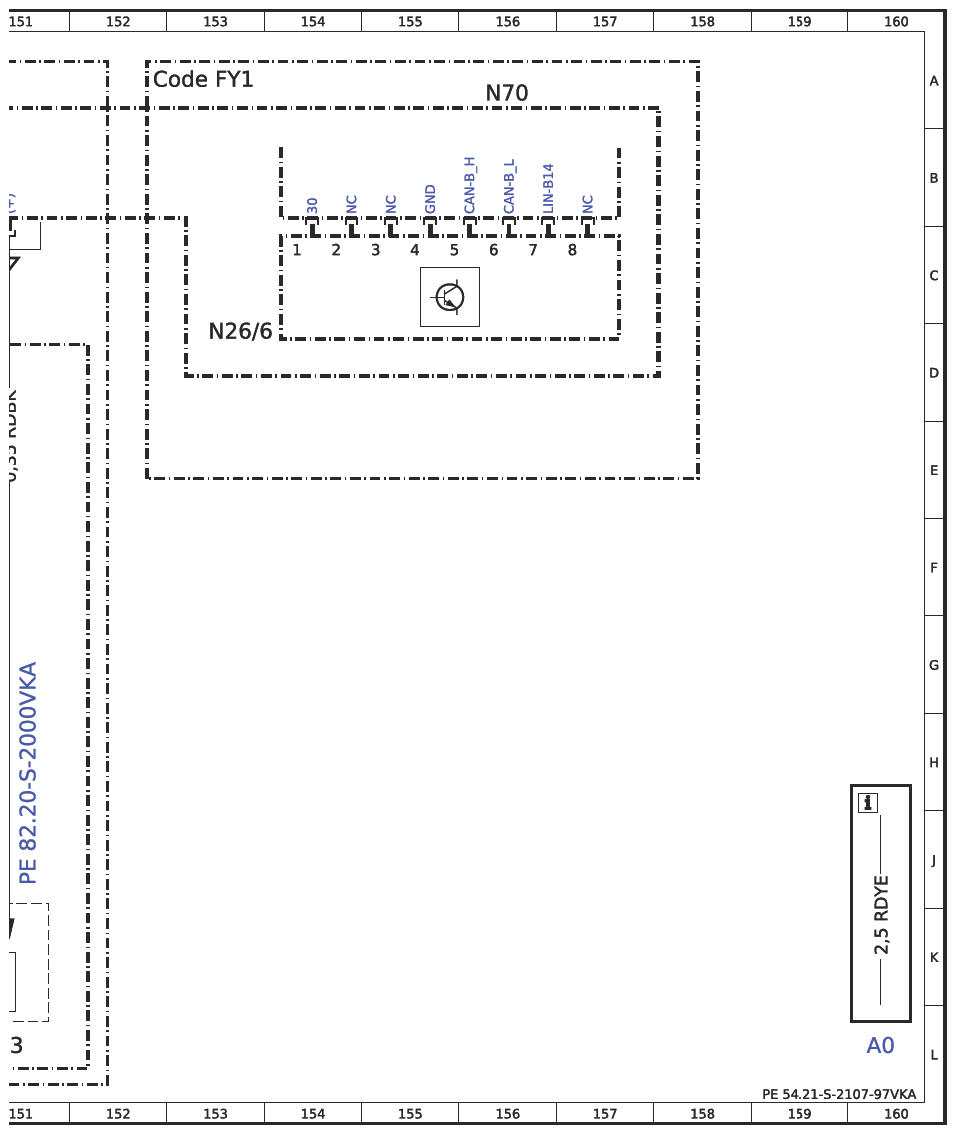

| N26/6 | Anti-theft alarm system (ATA [EDW]) control unit | 153D |
| N70 | Designation: Overhead control panel (OCP [DBE]) control unit | 4A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 11A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 20A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 29A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 36A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 44A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 52A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 60A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 68A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 77A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 84A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 93A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 100A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 108A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 116A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 123A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 132A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 140A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 148A |
| N70 | Overhead control panel (OCP [DBE]) control unit | 156A |
| N98 | Panoramic sliding sunroof (PSD) control unit | 92L |
| S138/1 | Left sun visor illumination switch | 109L |
| S138/1 | Left sun visor illumination switch | 142L |
| S138/2 | Right sun visor illumination switch | 112L |
| S138/2 | Right sun visor illumination switch | 145L |
| S15 | Panoramic sliding sunroof roller sun blind switch | 95L |
| W29/10 | Right D-pillar ground point | 20E |
| W29/10 | Right D-pillar ground point | 16G |
| W29/10 | Right D-pillar ground point | 25E |
| W29/10 | Right D-pillar ground point | 22G |
| W29/10 | Right D-pillar ground point | 33L |
| W29/10 | Right D-pillar ground point | 47E |
| W29/10 | Right D-pillar ground point | 43G |
| W29/10 | Right D-pillar ground point | 56E |
| W29/10 | Right D-pillar ground point | 54G |
| W29/10 | Right D-pillar ground point | 50G |
| W29/10 | Right D-pillar ground point | 66E |
| W29/10 | Right D-pillar ground point | 71E |
| W29/10 | Right D-pillar ground point | 68G |
| W29/8 | Left D-pillar ground point | 14G |
| W29/8 | Left D-pillar ground point | 57L |
| W29/8 | Left D-pillar ground point | 39L |
| W38 | Roof frame ground point 1 | 3E |
| W38 | Roof frame ground point 1 | 35G |
| W43/2 | Right vehicle interior firewall ground point | 79G |
| X133/3x1 | Panoramic sliding roof electrical connector | 91G |
| X18/82x2 | Right cockpit/main wiring harness electrical connector 2 | 80G |
| X232/1 x1 | Main wiring harness/roof main wiring harness electrical connector | 107H |
| X232/1x1 | Main wiring harness/roof main wiring harness electrical connector | 139H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 13F |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 58G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 40G |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 107H |
| X232/2x1 | Main wiring harness/roof main wiring harness electrical connector | 139H |
| X8/56x2 | Right liftgate electrical connector 2 | 19G |
| X8/56x2 | Right liftgate electrical connector 2 | 24G |
| X8/56x2 | Right liftgate electrical connector 2 | 46G |
| X8/56x2 | Right liftgate electrical connector 2 | 55G |
| X8/56x2 | Right liftgate electrical connector 2 | 65G |
| X8/56x2 | Right liftgate electrical connector 2 | 70G |
| Z54/20 | Vanity mirror supply connector sleeve | 107F |
| Z54/20 | Vanity mirror supply connector sleeve | 140F |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 112F |
| Z54/21 | Vanity mirror tml. 31 connector sleeve | 145F |
| Z54/28 | Right grab handle lamps supply connector sleeve | 38L |
| Z54/28 | Right grab handle lamps supply connector sleeve | 63L |
| Z54/29 | - | 23F |
| Z54/29 | - | 54F |
| Z54/29 | - | 69F |
| Z54/30 | Roof interior lighting circuit 31 end sleeve | 32G |
| Z54/31 | Roof interior lighting power supply end sleeve | 31F |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 103L |
| Z54/35 | Switch and controls illumination right grab handle lamps ground connection end sleeve | 135L |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 102L |
| Z81/18 | Right grab handle lamps tml. 58 d connector sleeve | 136L |
