Electrical Function Schematic For Instrument Cluster (IC) Control Unit, Comfort Functions Display - PE54.30-S-2072-97TRB
Model 447.6/7 except code XM0 (Facelift)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, status | 12D |
| 2 | Outside temperature sensor, signal | 21H |
| 3 | Outside temperature, signal | 12D |
| 3 | Outside temperature, signal | 17F |
| 4 | Wheel speed, signal | 11D |
| 5 | Coolant temperature, signal | 10D |
| 6 | Engine running, signal | 10D |
| 7 | Drivetrain operational, signal | 10D |
| 8 | Time synchronization, signal | 16B |
| 8 | Time synchronization, signal | 12B |

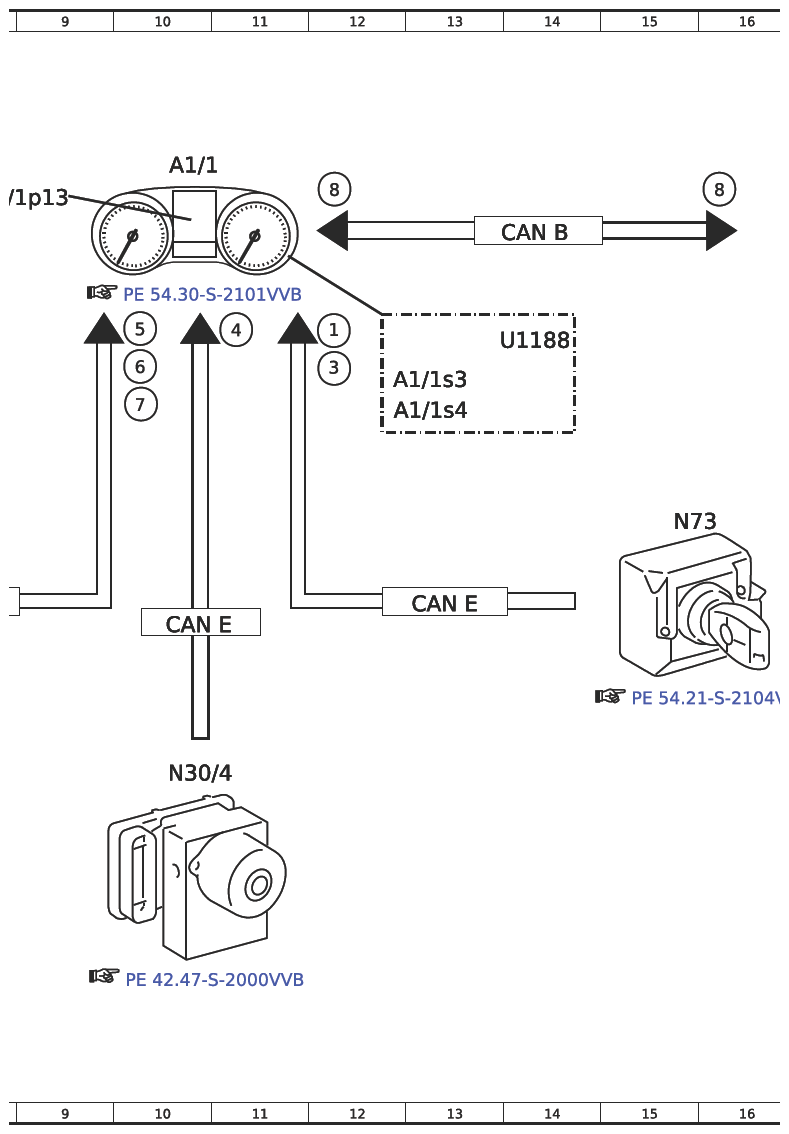

| A1/1 | Instrument cluster (KI) control unit | 10B |
| A1/1 p13 | Multifunction display | 8B |
| A1/1s3 | - | 13D |
| A1/1S4 | - | 13D |
| B14 | Outside temperature sensor | 20K |
| CAN B | Interior CAN | 18F |
| CAN B | Interior CAN | 14C |
| CAN E | Chassis CAN | 10G |
| CAN E | Chassis CAN | 13F |
| CAN E | Chassis CAN | 8F |

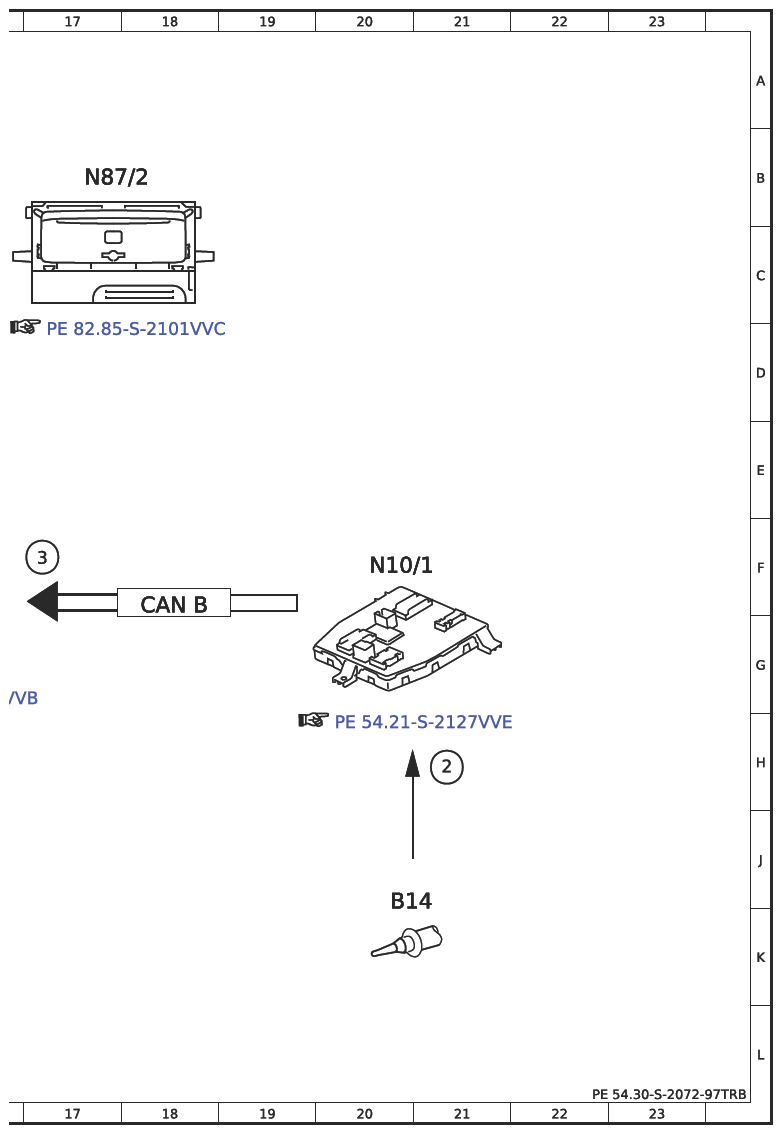

| N10/1 | Signal acquisition and actuation module (SAM) control unit | 20F |

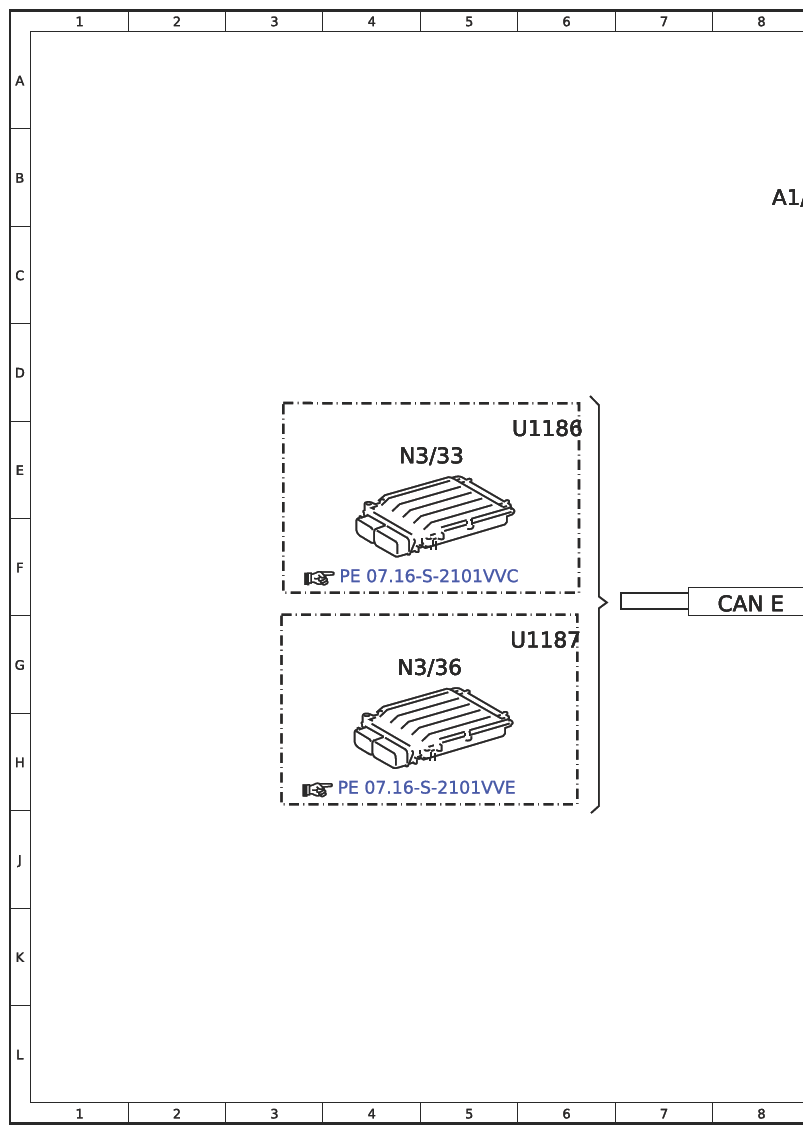

| N3/33 | CDI control unit | 4E |
| N3/36 | CDI control unit | 4G |
| N30/4 | Electronic Stability Program (ESP) control unit | 10H |
| N73 | Electronic ignition lock (EZS) control unit | 15F |
| N87/2 | Radio (Audio) | 17B |
| U1186 | - | 5E |
| U1187 | - | 5G |
| U1188 | - | 14D |
