Remove/Install Fuel Injection System Control Unit - AR07.08-S-7008EG
Model 447, 448 with engine 274
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on programming control units | AH54.21-P-0001-03Z | ||
| Remove | |||
| 1 | Connect vehicle with diagnostic system and begin commissioning of the ME-SFI [ME] control unit (N3/34) | Only when replacing ME-SFI [ME] control unit (N3/34). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-S-2000-04E | ||

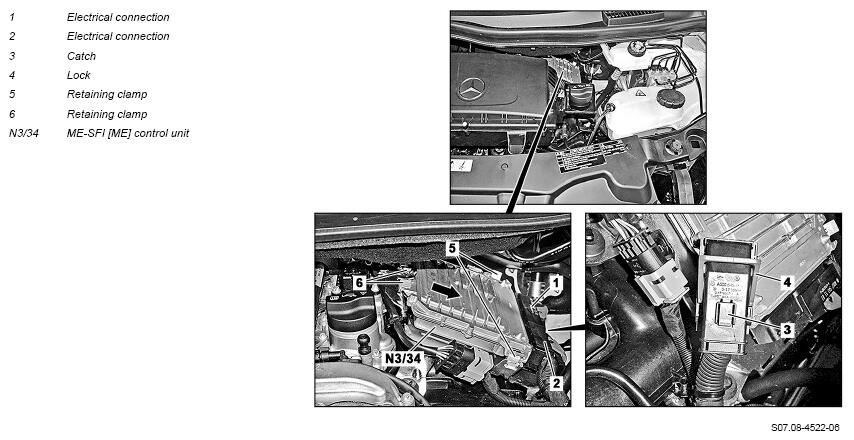

| 2 | Disconnect electrical connections (1, 2) | ||
| 3 | Remove ME-SFI [ME] control unit (N3/34) | ||
| Install | |||
| 4 | Install ME-SFI [ME] control unit (N3/34) | ||
| 5 | Connect electrical connections (1, 2) | ||
| 6 | Complete commissioning of the ME-SFI [ME] control unit (N3/34) with diagnostic system | Only when replacing ME-SFI [ME] control unit (N3/34). | |
| 7 | Disconnect vehicle from diagnostic system | Only when replacing ME-SFI [ME] control unit (N3/34). | |
| Connect STAR DIAGNOSIS and read out fault memory | AD00.00-S-2000-04E | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 8 | Carry out an engine test run |
