Weight Sensing System Control Unit, Basic Function - GF91.60-S-9891A
Model All (Light transporter)
Overview
This document contains the following information:
- General
- Function

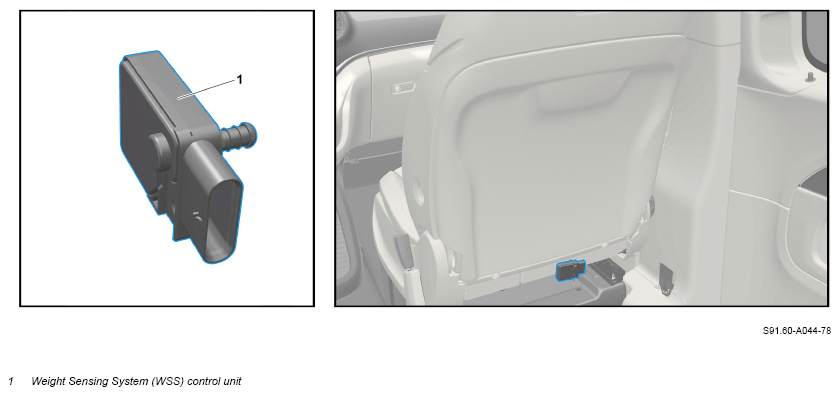

Example illustration of weight sensing system control unit
General
The weight sensing system (WSS) control unit (1) is located at the bottom of the seat frame base of the front passenger seat.
Function
The weight sensing system (WSS) control unit (1) determines the weight applied to the front passenger seat by means of pressure measurement in a seat mat filled with silicone.
The weight sensing system (WSS) control unit (1) sends information on the weight classification to the Supplemental Restraint System (SRS) control unit.
| Component descriptions | |||
| Component description for Weight Sensing System (WSS) control unit | Model 447 with code SK5 (Automatic deactivation of front passenger airbag) with code XM7 (MOPF II) |
GF91.60-S-4046A |
