Remove/Install Side Supplemental Restraint System (SRS) Pressure Sensor - AR91.60-S-0760E

Model 447, 448

with code SH8 (Window Airbags for driver, front passenger and rear)

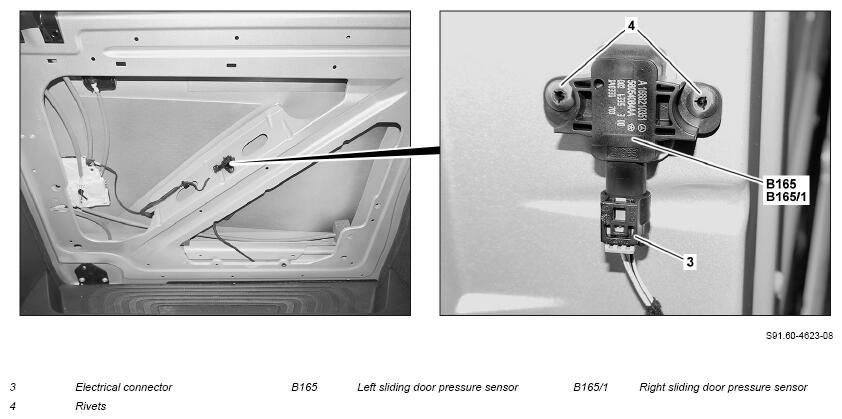

Fig 1: Side Supplemental Restraint System (SRS) Pressure Sensor Components Location - Model 447 With Code SH8

Courtesy of MERCEDES-BENZ USA

Shown on right side of vehicle with door trim removed on sliding door

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove door trim of respective sliding door.		AR72.16-S-6610E
3	Detach door foil until left sliding door pressure sensor (B165) or right sliding door pressure sensor (B165/1) is accessible.
4	Release and disconnect electrical connection (3).
5	Drill out rivets (4).	Rivet milling cutter	Fig 2
	General information on riveting		AH60.00-P-0003-01N
6	Remove left sliding door pressure sensor (B165) or right sliding door pressure sensor (B165/1).
7	Completely remove rivet residue and chips from sliding door.	Completely remove rivet residues. The rivet residue can otherwise cause corrosion damage to the sliding door.
8	Install in the reverse order.
	Check
9	Check Supplemental Restraint System (SRS) using vehicle diagnosis system.	When replacing the left sliding door pressure sensor (B165) or right sliding door pressure sensor (B165/1).
			AD00.00-S-2000-04E
		Then remove diagnostic system.

Fig 2: Identifying Rivet Milling Cutter (171 589 00 39 00)

Courtesy of MERCEDES-BENZ USA
