Remove/Install Electrohydraulic Controller Unit (Transmission Installed) - AR27.19-S-0200E

Model 447 with engine 651 with transmission 722.9

Model 447, 448 with engine 274 with transmission 722.9

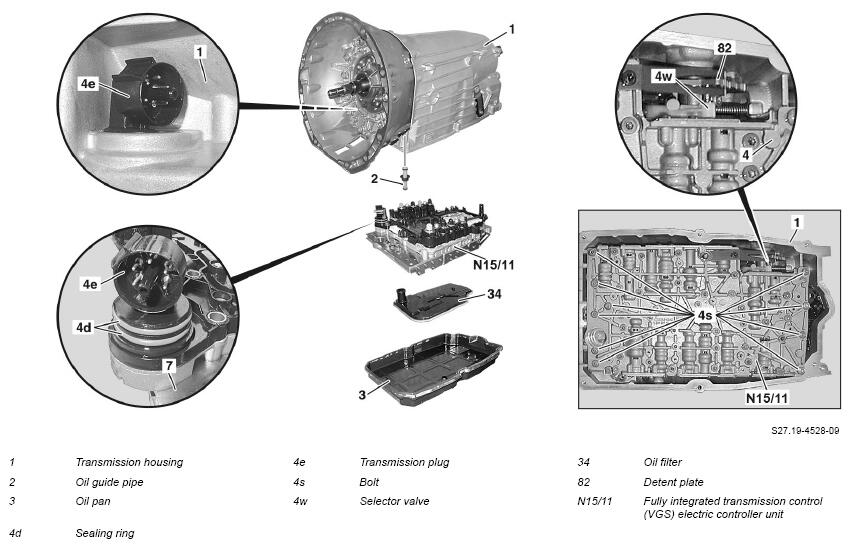

Fig 1: Electrohydraulic Controller Unit Components Location - Model 447 With Engine 274 With Transmission 722.9

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Switch off ignition
2	Remove heat shield above the transmission connector (4e)		AR27.10-S-0500-01E
3	Remove oil pan (3)	Cleanliness is essential when working on the transmission. Otherwise, even the smallest foreign particle in the hydraulic components of the transmission can lead to malfunctions or a total failure of the transmission. Do not use lint-free cleaning cloth for cleaning. Chamois leathers are the most suitable.	AR27.10-S-7030E
4	Remove oil filter (34)	Replace oil filter (34).
5	Detach 5-pin plug coupling from transmission connector (4e)	Clean transmission connector (4e) and 5-pin plug connection.	AR27.10-S-0500-01E
6	Remove fully integrated transmission control (VGS) electric controller unit (N15/11)	Carefully pry off a seized fully integrated transmission control (VGS) electric controller unit (N15/11) and with uncovered sealing surfaces using a suitable tool from the transmission housing (1). The sealing surfaces on the transmission housing (1) may otherwise be damaged. To do so, remove bolts (4s). Replace bolts (4s) and oil guide pipe (2). Insert oil guide pipe (2) before installation of fully integrated transmission control (VGS) electric controller unit (N15/11) into transmission housing (1).
		Bolt, electrohydraulic controller unit to transmission housing	*BA27.19-Z-1001-01KOD
		When inserting the fully integrated transmission control (VGS) electric controller unit (N15/11) ↓ Insert selector valve (4w) into driver of detent plate (82)
		Insert selector valve into driver of detent plate	AR27.19-S-0200-01E
7	Install in the reverse order
	Check
8	Check transmission oil level; correct if necessary		AR27.00-S-0270E
9	Read out fault memory with diagnostic system
		Clear existing errors.	AD00.00-S-2000-04E
10	Perform transmission adaptation using diagnostic system
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
11	Test run engine and check transmission for leaktightness and proper operation	Shift through the gears of the transmission a few times before putting into service in order to flush any air pockets out of the fully integrated transmission control (VGS) electric controller unit (N15/11).
