Power Window Assembly And Outside Mirror Adjustment Switch Group, Driver'S Side, Basic Function - GF67.39-S-2007A
Model All (Light transporter)

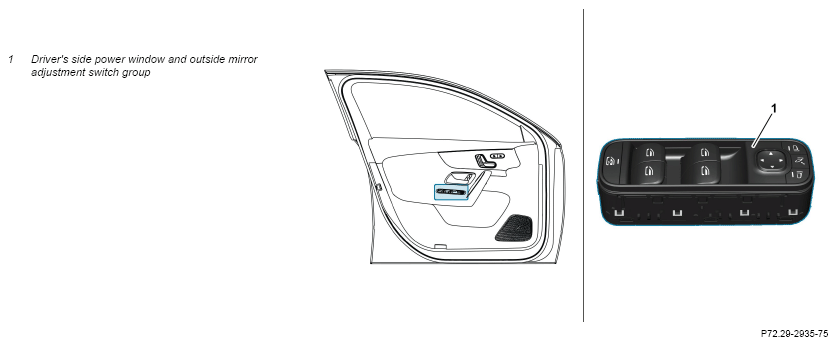

Example illustration of driver's side power window and outside mirror adjustment switch group
Example illustration of the driver's side power window and outside mirror adjustment switch group control elements
| Item | Function | Designation | Equipment |
|---|---|---|---|
| 1.1 | Fold out/in outside mirror | Outside mirror fold-in/fold-out switch | Vehicles with electric folding outside mirror |
| 1.2 | Select left outside mirror | Left outside mirror adjustment switch | - |
| 1.3 | Select right outside mirror | Right outside mirror adjustment switch | - |
| 1.4 | Change mirror glass adjustment | Outside mirror adjustment switch | - |
| 1.5 | Lower/raise left front side window | Left front power window switch | - |
| 1.6 | Lower/raise right front side window | Right front power window switch | - |
| 1.7 | Lower/raise left rear side window | Left rear power window switch | - |
| Extend/retract left rear side window roller sunblind | - | Vehicles with roller sunblinds in rear doors | |
| 1.8 | Lower/raise right rear side window | Right rear power window switch | - |
| Extend/retract right rear side window roller sunblind | - | Vehicles with roller sunblinds in rear doors | |
| 1.9 | Disable operation for side windows in rear | Rear side window child safety lock switch | - |
Overview
This document contains information on:
- General
- Function
General
The driver's side power window and outside mirror adjustment switch group (1) accommodates, depending on the equipment, different switches that allow the driver to adjust the power windows and outside mirrors.
Function
The following functions can be operated via the driver's side power window and outside mirror adjustment switch group (1):
- Power windows
- Electric outside mirrors
- Electric child safety lock
- Electric rear side window roller sunblinds (vehicles with roller sunblinds in rear doors)
The driver's side power window and outside mirror adjustment switch group (1) is connected with the driver's door control unit via a LIN connection.
| Component descriptions | |||
| Power window assembly button group, rear, component description | Model 420 | GF67.39-S-0007VRA | |
| Button group for front passenger window lifter, component description | Model 420 | GF67.39-S-0008VRA | |
| Model 447 with code XM7 (MOPF II) |
GF67.39-S-0008A | ||
| Button group for driver's side window lifter, component description | Model 420 | GF67.39-S-0009VRA | |
| Model 447 with code XM7 (MOPF II) |
GF67.39-S-0009A |
