Trigger Convenience Feature Via Air-Recirculation Mode, Function Schematic - PE80.45-P-2501-97C
Model 223, 294, 295, 296, 297
except code 494 (US version)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Comfort closing/opening, request | 10D |
| 1 | Comfort closing/opening, request | 18D |
| 2 | Circuit 15, status | 18G |
| 3 | Convenience feature, status | 24F |
| 4 | Convenience feature direction, signal | 24E |
| 5 | Power window motor, actuation | 32C |
| 5 | Power window motor, actuation | 32E |
| 6 | Panoramic sliding sunroof roller sun blind motor, actuation | 32H |

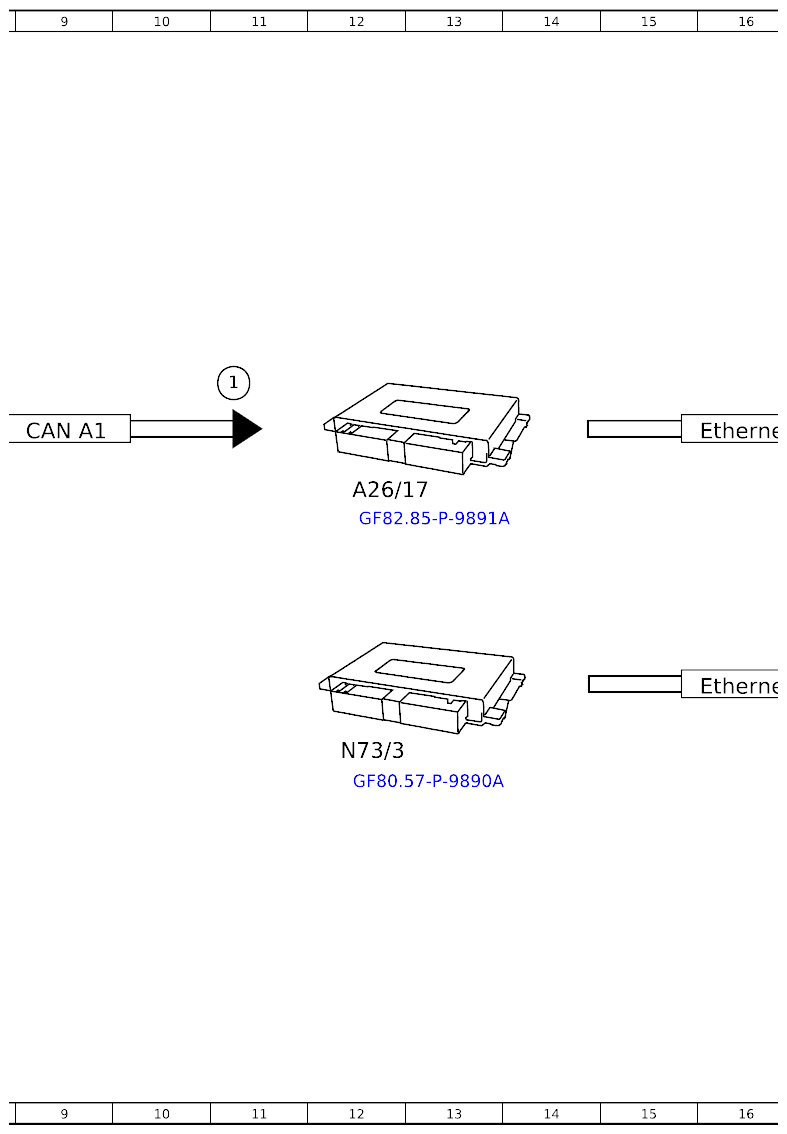

| A26/17 | Head unit | 12E |

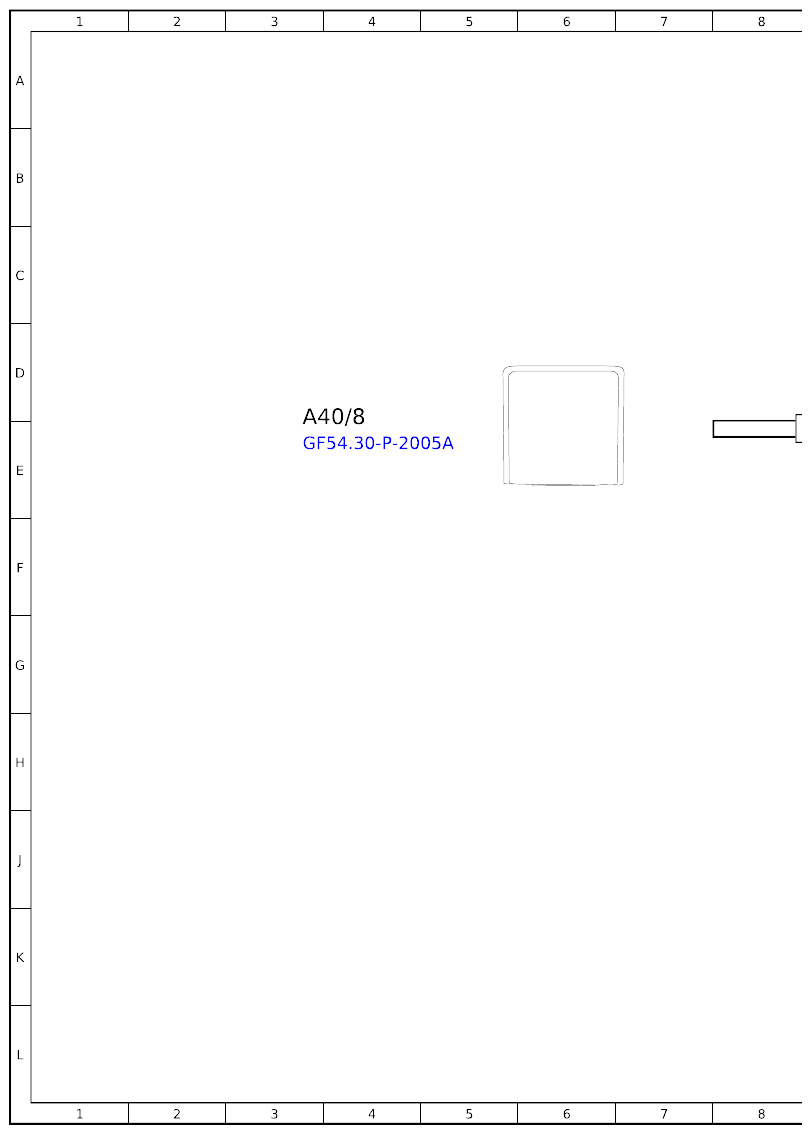

| A40/8 | Touchscreen | 3E |
| CAN A1 | CAN 1 for telematics | 9E |
| CAN B1 | CAN 1 for vehicle interior | 23F |
| Code 413 | Panoramic sliding sunroof/glass roof | 26G |
| Ethernet | Ethernet | 16G |
| Ethernet | Ethernet | 16E |

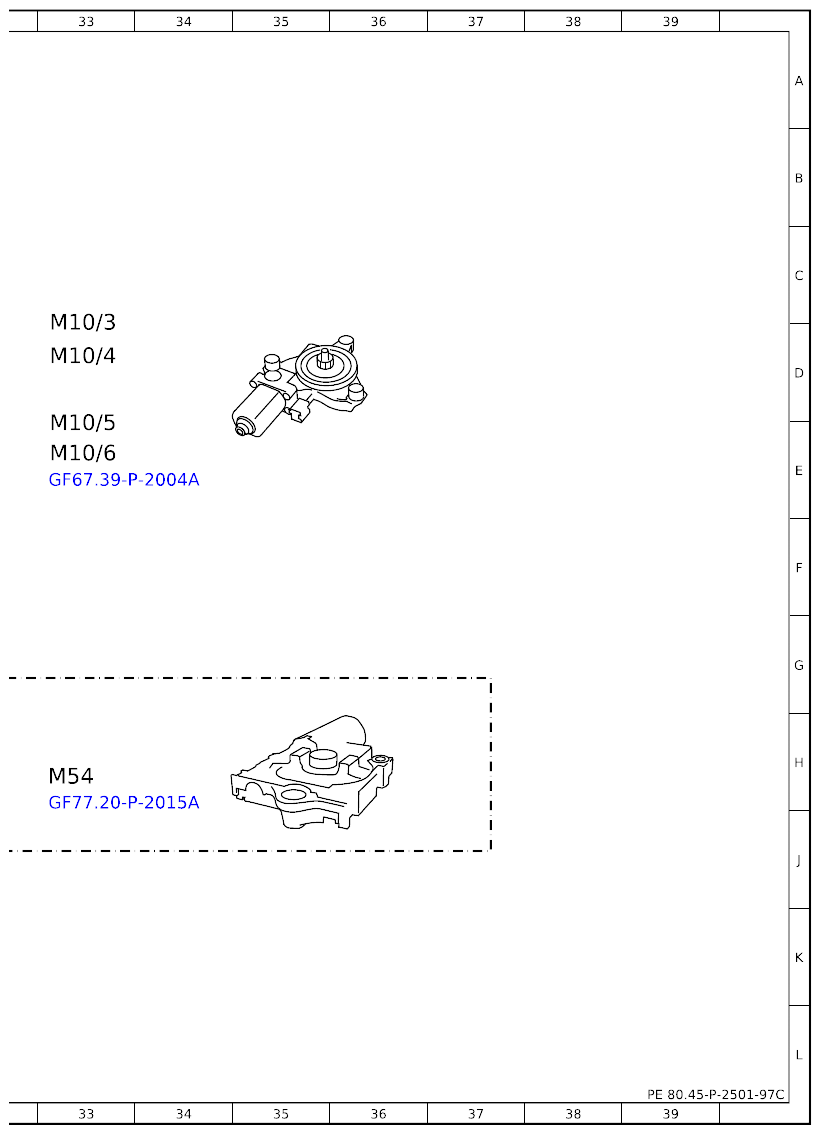

| M10/3 | Left front door power window motor | 33D |
| M10/4 | Right front door power window motor | 33D |
| M10/5 | Left rear door power window motor | 33E |
| M10/6 | Right rear door power window motor | 33E |
| M54 | Roller sun blind motor | 33H |

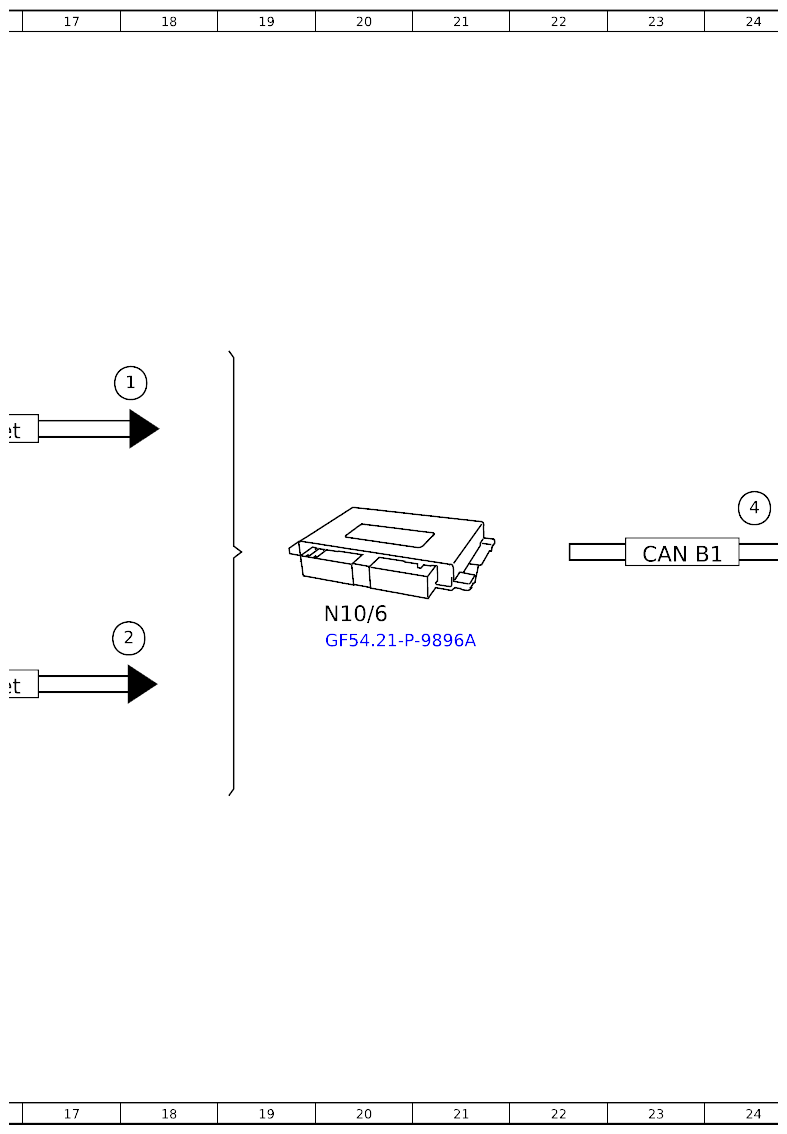

| N10/6 | Front signal acquisition and actuation module control unit | 20G |
| N69/1 | Left front door control unit | 29D |
| N69/2 | Right front door control unit | 29D |
| N69/3 | Left rear door control unit | 29E |
| N69/4 | Right rear door control unit | 29E |
| N70/1 | Panoramic sliding sunroof control unit | 28H |
| N73/3 | Electronic ignition switch control unit | 12H |
