Remove/Install Multimedia Connection Unit In Rear Passenger Compartment - AR82.60-P-1043SA
Model 223
with code 854 (Rear Seat Entertainment System Plus)
except code 224 (Individual rear seats)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove rear cover from center console. | AR68.20-P-2358S | |

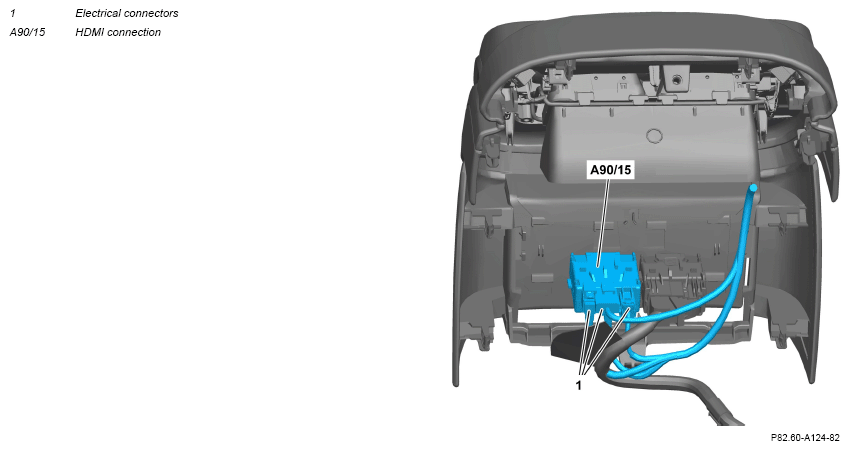

| 3 | Disconnect electrical connectors (1). | ||
| 4 | Remove HDMI connection (A90/15). | ||
| 5 | Install in the reverse order. |
