Remove/Install Spring Control Arm On Front Axle - AR33.15-P-0170S

Model 223

except code Z07 (B7 armoring on special protection version)

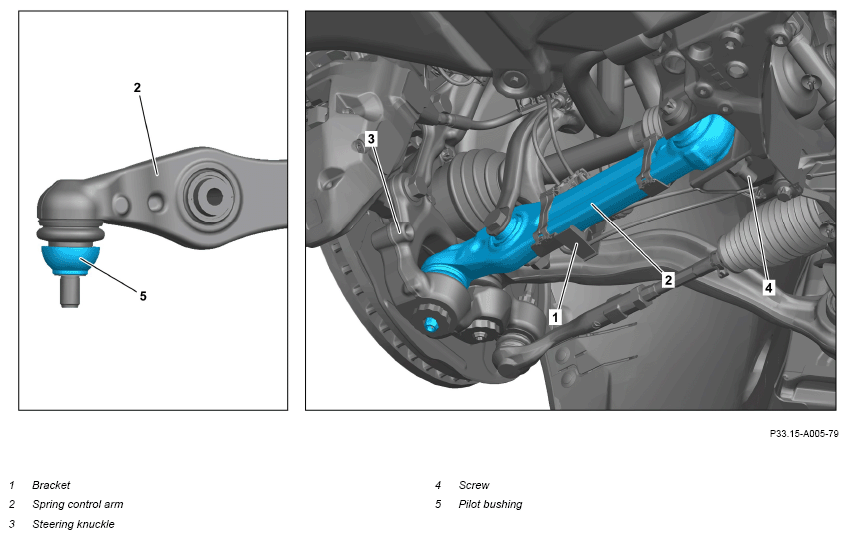

Fig 1: Front Axle Spring Control Arm Components Location - Model 223 Except Code Z07 (Shown With Code M005)

Courtesy of MERCEDES-BENZ USA

Shown with code M005 (Vehicles with 4MATIC/all-wheel drive) except code ME10 (Hybrid vehicle (plug-in, PHEV))

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Evaluation of elastomer bearings		AH00.10-P-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove center engine compartment lining.		AR61.20-P-1105S
2	remove corresponding front wheel.		AR40.10-P-1102A
3	Release stabilizer bar from front axle carrier.	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)	AR32.35-P-2200S
4	Unclip holder (1) and remove with electric lines from spring link (2).	Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code Z07 (B7 armoring on special protection version)
5	Remove suspension strut from spring link (2).	Model 223 except code 490 (Electrohydraulic suspension) except code Z07 (B7 armoring on special protection version)	AR32.25-P-1017S
6	Remove spring link (2) from steering knuckle (3).	The ball head must be counterheld and an impact wrench/driver must not be used. Otherwise the ball head or steering knuckle (3) may be damaged. Nut, spring control arm to steering knuckle	*BA33.20-P-1001-01T
		Socket wrench	Fig 3
7	Remove nut from screw (4) and pull out screw (4).	Bolt, spring control arm to front axle carrier	*BA33.20-P-1002-01T
8	Remove spring link (2) from front axle carrier.
9	Remove pilot bushing (5) from steering knuckle (3).	: The pilot bushing (5) must be replaced. : The pilot bushing (5) must be positioned onto the spring link (2). Impact extractor	Fig 5
		Extraction tool	Fig 4
	Check
10	Check elastomer bearing in spring link (2) for condition, damage and variant.	The elastomer bearing variants are shown in the reference document. If there is a problem on the elastomer bearing without camber correction, ↓ replace spring link (2). If there are problems on the elastomer bearing with camber correction, ↓ replace elastomer bearing of spring link (2).	AR33.15-P-0001-01S
11	Check seal bellows and ball head of spring link (2) for damage.	If there is a problem, ↓ replace spring link (2). If an elastomer bearing with camber correction was installed, ↓ install an elastomer bearing for camber correction in the new spring link (2).	AR33.15-P-0001-01S
		Extraction and insertion tool	Fig 2
12	Check suspension strut linkage on spring link (2) for damage.	If there is a problem, ↓ replace spring link (2). If an elastomer bearing with camber correction was installed, ↓ install an elastomer bearing for camber correction in the new spring link (2).	AR33.15-P-0001-01S
		Extraction and insertion tool	Fig 2
13	Check supporting joint in spring link (2) for damage.	If there is a problem, ↓ replace spring link (2).
		If an elastomer bearing with camber correction was installed, ↓ install an elastomer bearing for camber correction in the new spring link (2).	AR33.15-P-0001-01S
		Extraction and insertion tool	Fig 2
14	Install in the reverse order.
	Measure
15	Perform chassis alignment.		AR40.20-P-0200S

Fig 2: Identifying Extraction And Insertion Tool (223 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench (167 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction Tool (223 589 00 34 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Impact Extractor (602 589 00 33 00)

Courtesy of MERCEDES-BENZ USA
