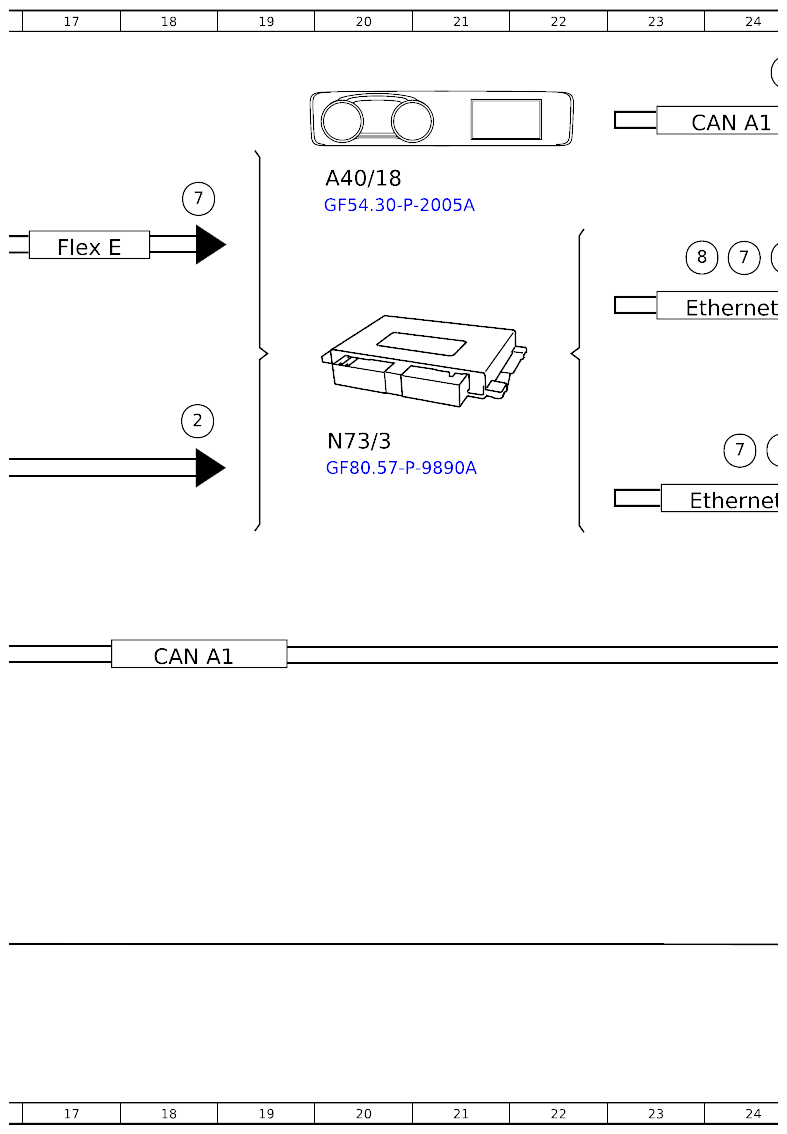

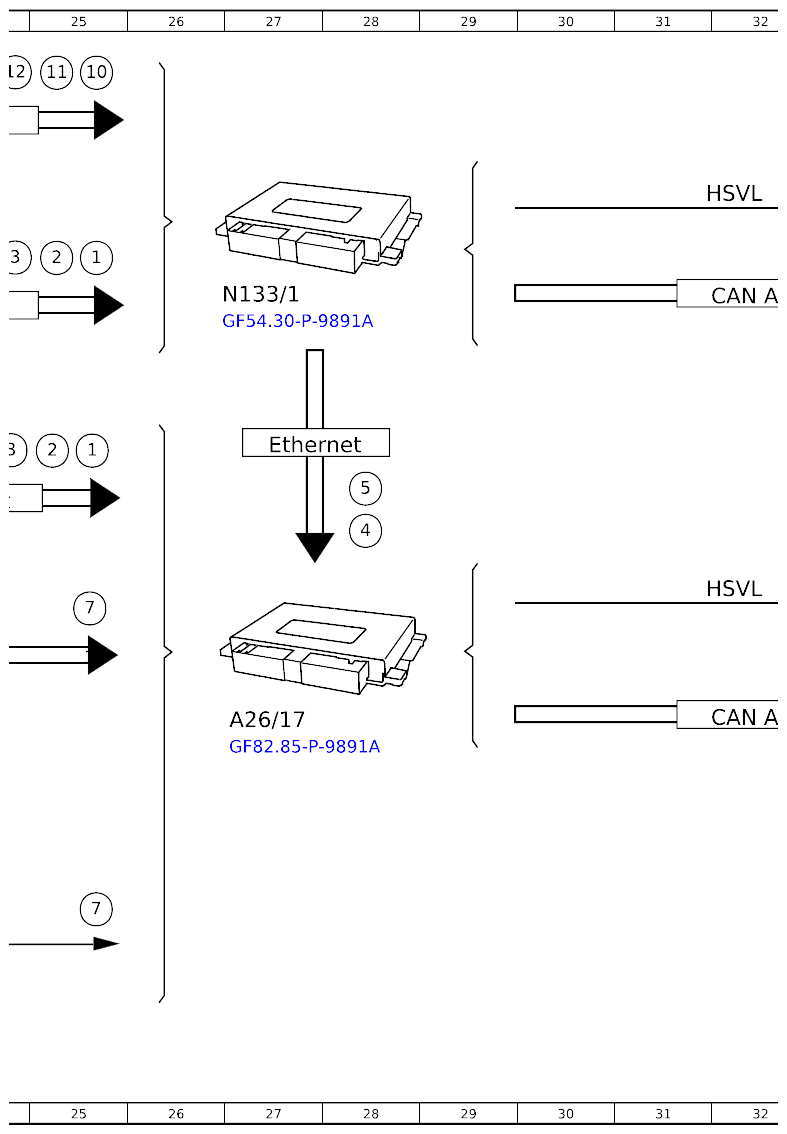

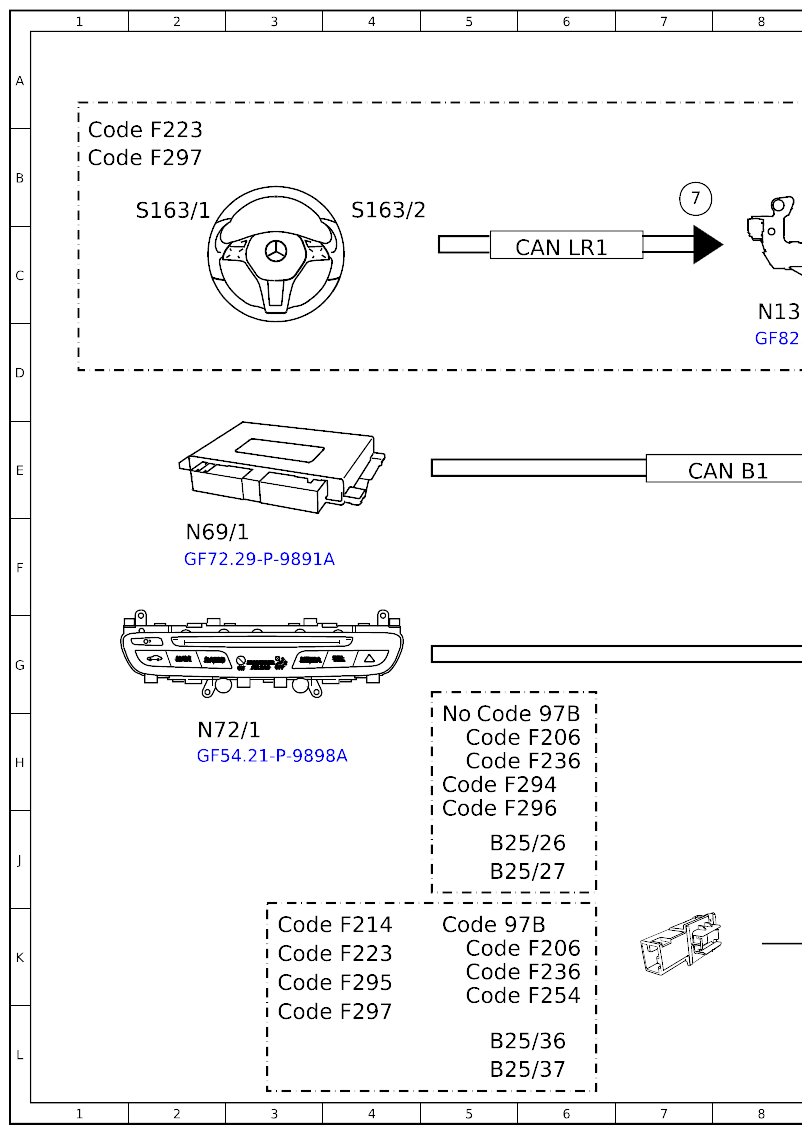

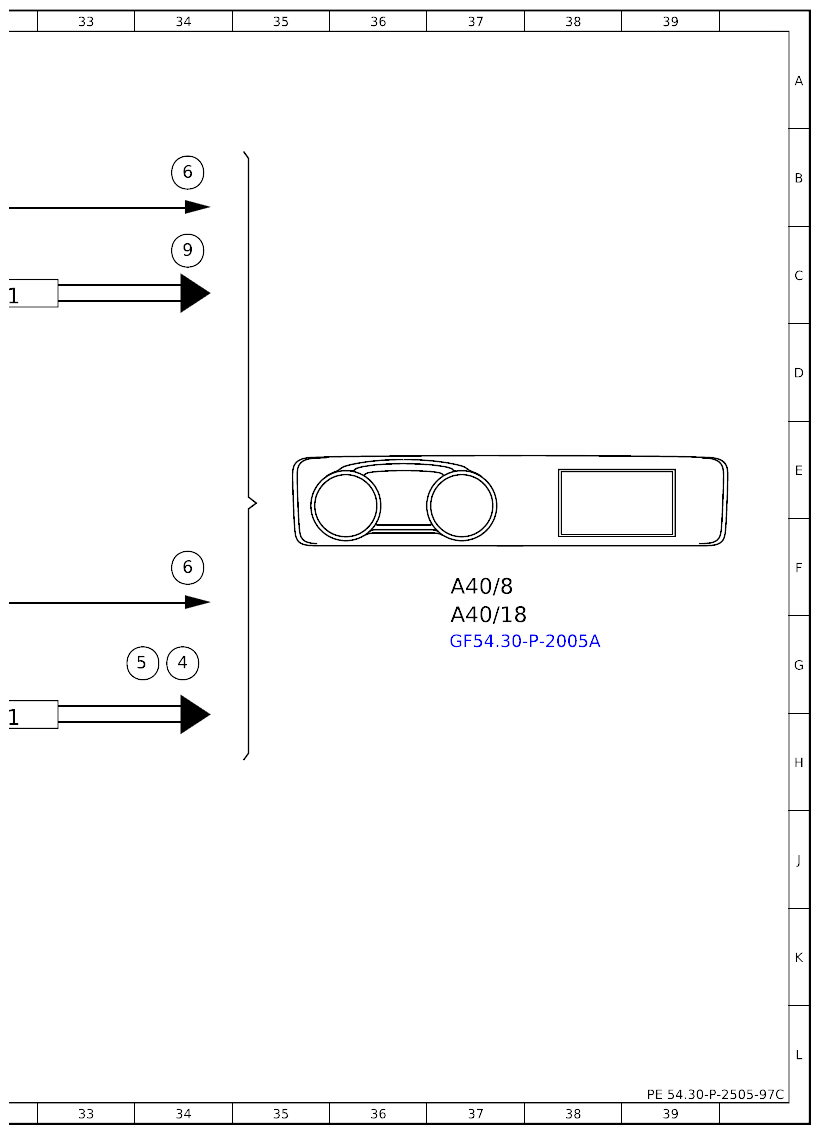

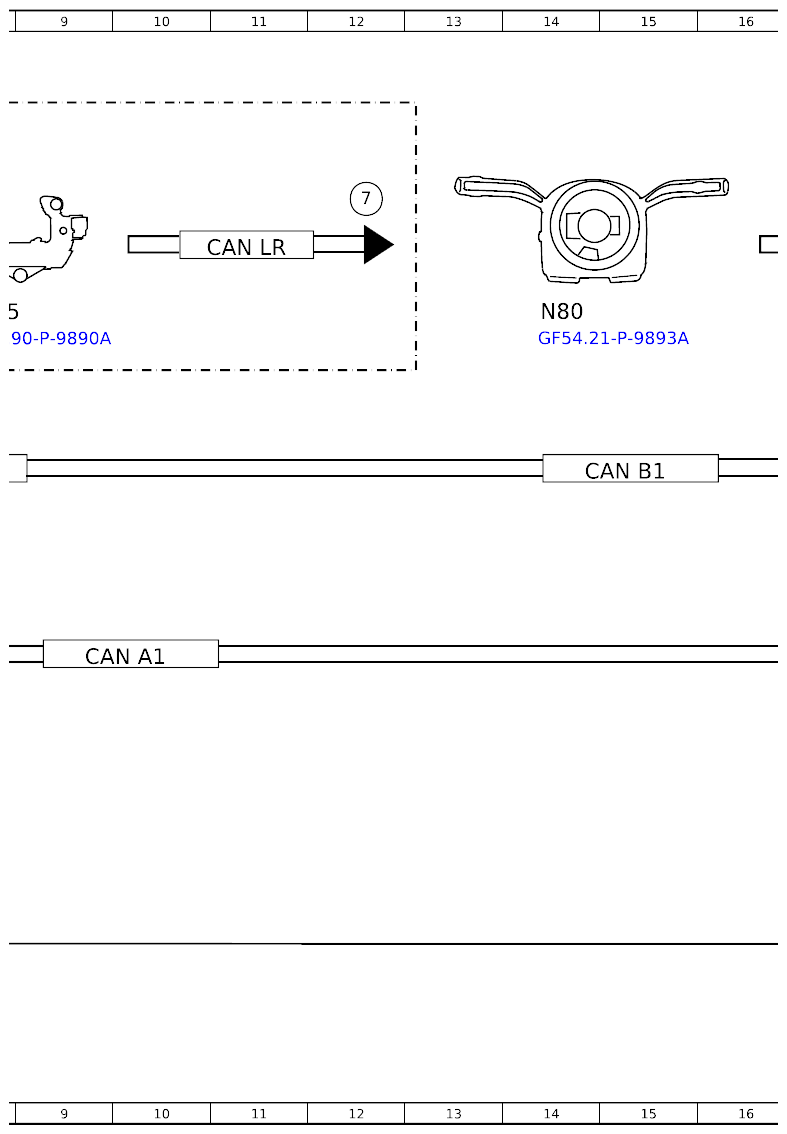

Function Schematic For User Interface - PE54.30-P-2505-97C
Model 206, 214, 236, 254, 294, 295, 296, 297
Model 223
except code 803 (YoM 22/1)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Central locking, status | 25E |
| 1 | Central locking, status | 25C |
| 10 | Driver camera, status | 25A |
| 11 | Driver camera eye distance, signal | 25A |
| 12 | Driver camera head position, signal | 24A |
| 2 | Door rotary tumbler switch, status | 25E |
| 2 | Door rotary tumbler switch, status | 18E |
| 2 | Door rotary tumbler switch, status | 25C |
| 3 | Circuit 15, status | 24E |
| 4 | Display ON/OFF, request | 34G |
| 4 | Display ON/OFF, request | 28F |
| 5 | Display settings, request | 34G |
| 5 | Display settings, request | 28E |
| 6 | Image data, signal | 34F |
| 6 | Image data, signal | 34B |
| 7 | Operation, signal | 24E |
| 7 | Operation, signal | 18B |
| 7 | Operation, signal | 12B |
| 7 | Operation, signal | 25K |
| 7 | Operation, signal | 25F |
| 7 | Operation, signal | 24C |
| 7 | Operation, signal | 7B |
| 8 | Instrument cluster message, request | 23C |
| 9 | Driver camera calibration, request | 34C |
| A26/17 | Head unit | 27H |
| A40/18 | Instrument cluster display | 37G |
| A40/18 | Instrument cluster display | 20B |
| A40/8 | Audio/COMAND display | 37F |
| B25/26 | Left hands-free system microphone | 5J |
| B25/27 | Microphone | 5J |
| B25/36 | Microphone | 5L |
| B25/37 | Microphone | 5L |
| CAN A1 | CAN 1 for telematics | 9G |
| CAN A1 | CAN 1 for telematics | 18G |
| CAN A1 | CAN 1 for telematics | 24B |
| CAN A1 | CAN 1 for telematics | 32C |
| CAN A1 | CAN 1 for telematics | 32H |
| CAN B1 | CAN 1 for vehicle interior | 8E |
| CAN B1 | CAN 1 for vehicle interior | 15E |
| CAN LR | CAN for steering wheel | 11C |
| CAN LR1 | CAN for steering wheel gearshift buttons | 6C |
| Code 97B | Engine noise reduction via speaker | 5H |
| Code 97B | Engine noise reduction via speaker | 5K |
| Code F206 | Model series 206 | 5H |
| Code F206 | Model series 206 | 5K |
| Code F214 | Model series 214 | 3K |
| Code F223 | Model series 223 | 1B |
| Code F223 | Model series 223 | 3K |
| Code F236 | - | 5H |
| Code F236 | - | 5K |
| Code F254 | Model series 254 | 5K |
| Code F294 | Model series 294 | 5H |
| Code F295 | Model series 295 | 3K |
| Code F296 | Model series 296 | 5J |
| Code F297 | Model series 297 | 1B |
| Code F297 | Model series 297 | 3L |
| Ethernet | Ethernet | 24E |
| Ethernet | Ethernet | 24C |
| Ethernet | Ethernet | 27E |
| Flex E | Chassis FlexRay | 17C |
| HSVL | High-speed video link | 32F |
| HSVL | High-speed video link | 32B |
| N133/1 | Instrument cluster control unit | 26C |
| N135 | Steering wheel electronics | 8C |
| N69/1 | Driver door control unit | 2F |
| N72/1 | Upper control panel control unit | 2H |
| N73/3 | Electronic ignition switch control unit | 20E |
| N80 | Steering column module control unit | 14C |
| S163/1 | Instrument cluster multifunction steering wheel button group | 2B |
| S163/2 | Head unit multifunction steering wheel button group | 4B |
