Remove/Install Fuel Pump Control Unit - AR47.20-P-5717SG
Engine 279 in model 223
with code Z07 (B7 armoring on special protection version)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Connect vehicle diagnosis system and read out variant coding from fuel system control unit (N118/3). | When replacing fuel system control unit (N118/3). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove battery of 12 V on-board electrical system. | Engine 279 in model 223 with code Z07 (B7 armoring on special protection version) except code ME10 (Hybrid vehicle (plug-in, PHEV)) |
AR54.10-P-1134S |

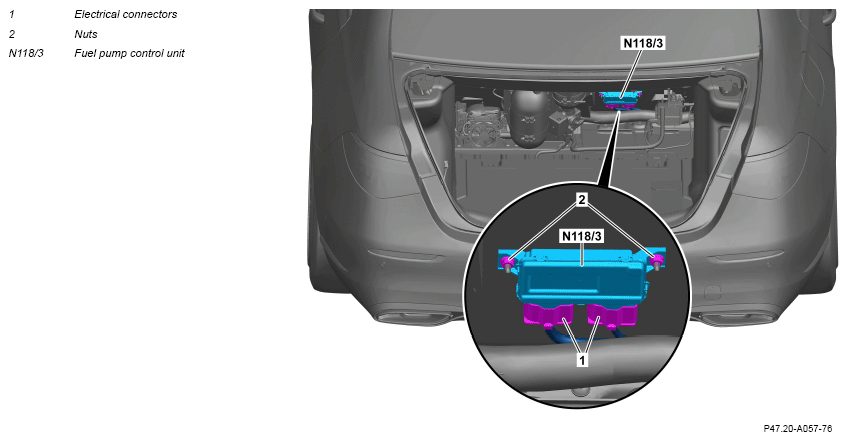

| 3 | Release and disconnect electrical connectors (1). | ||
| 4 | Unscrew nuts (2) and remove fuel system control unit (N118/3). | ||
| 5 | Install in the reverse order. | ||
| 6 | Activate fuel system control unit (N118/3) with vehicle diagnosis system. | When replacing fuel system control unit (N118/3). | |
| AD00.00-P-2000-06FR | |||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR |
