Remove/Install Fuel Pump Control Unit - AR47.20-P-5717SVZ
Engine 279 in model 223
except code Z07 (B7 armoring on special protection version)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Connect vehicle diagnosis system and read out variant coding from fuel system control unit (N118/3). | When replacing fuel system control unit (N118/3). | |
| AD00.00-P-2000-06FR | |||
| 2 | Remove side trim in trunk. | AR68.30-P-4800S | |

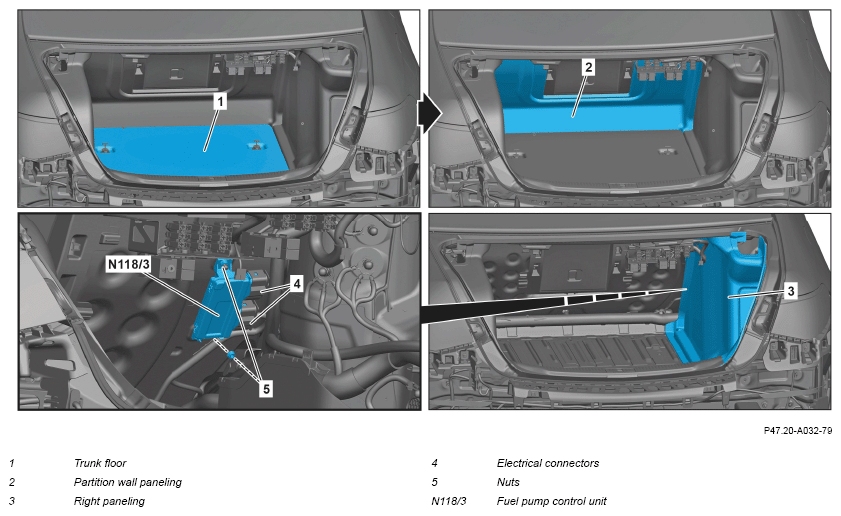

| 3 | Release and disconnect the electrical connections (4). | ||
| 4 | Remove nuts (5) and remove fuel system control unit (N118/3). | ||
| 5 | Install in the reverse order. | ||
| 6 | Connect vehicle diagnosis system and activate fuel system control unit (N118/3). | When replacing fuel system control unit (N118/3). | |
| AD00.00-P-2000-06FR | |||
| 7 | Read out and delete fault memory. | ||
| AD00.00-P-2000-06FR |
