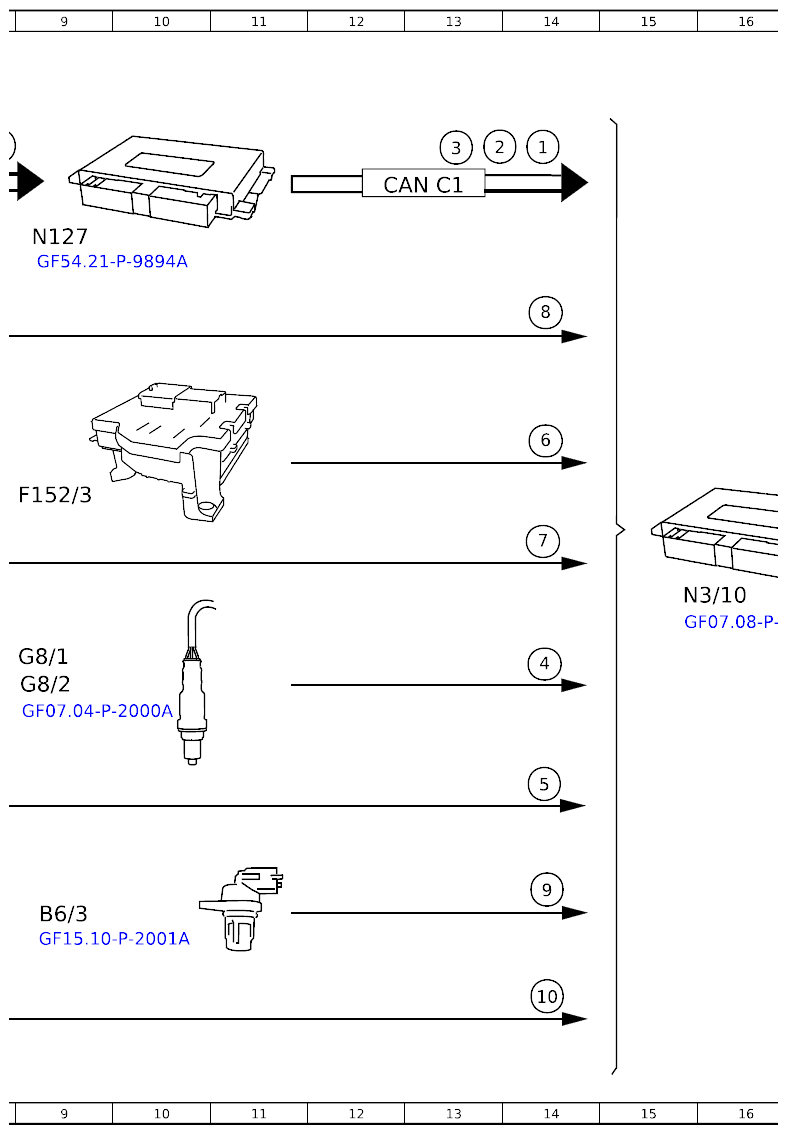

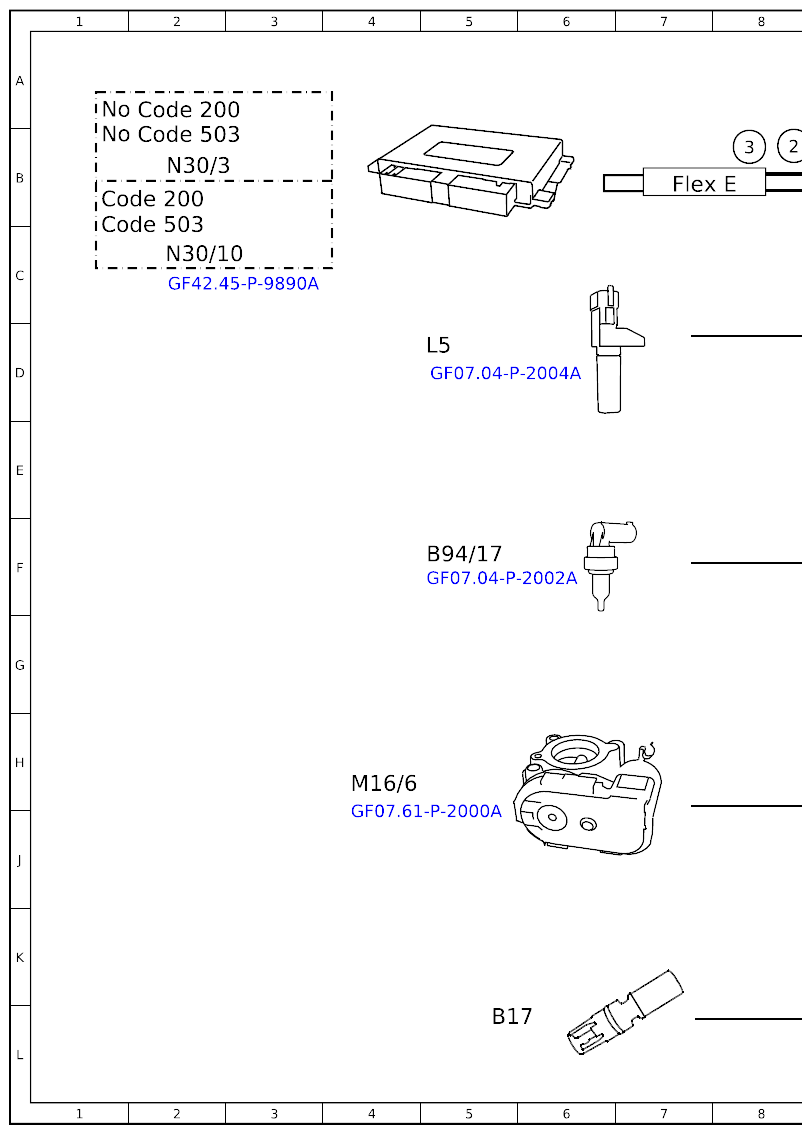

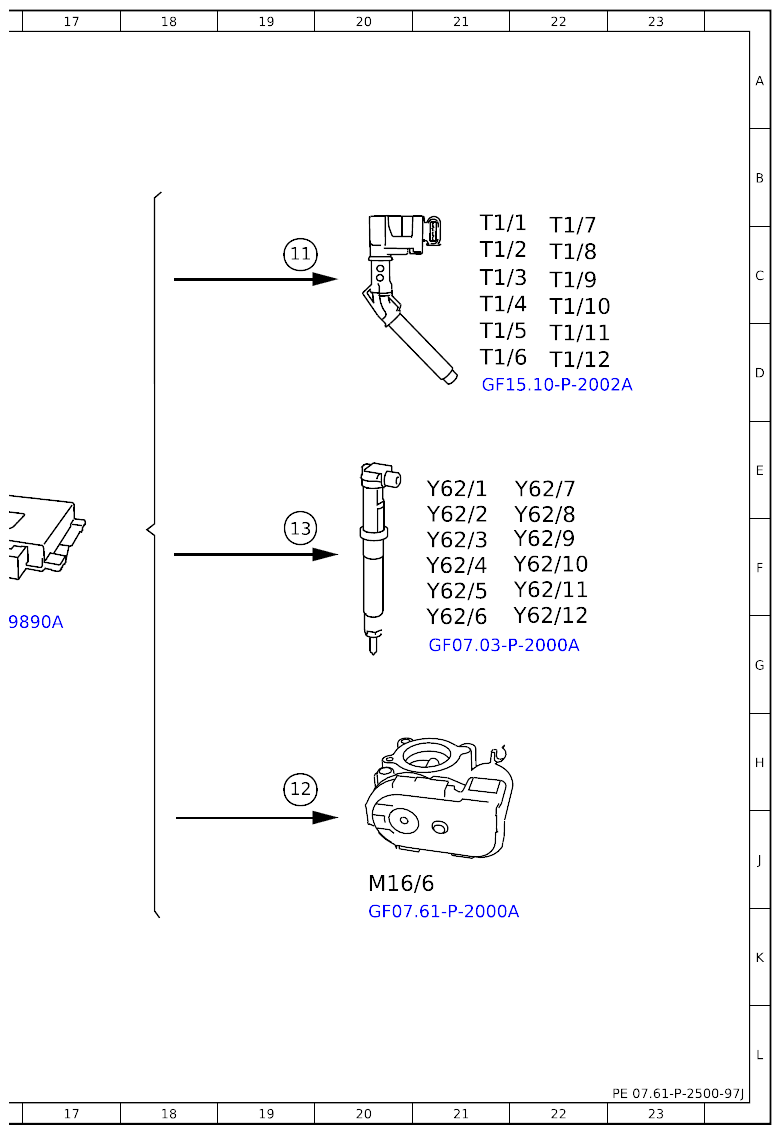

Function Schematic For Injection Control - PE07.61-P-2500-97J
Engine 279 in model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Accelerator pedal sensor, signal | 14B |
| 10 | Intake manifold intake air temperature sensor, signal | 14K |
| 11 | Ignition coils, actuation | 19C |
| 12 | Actuator motor, throttle valve actuator, actuation | 14J |
| 13 | Fuel injectors, actuation | 19F |
| 2 | Engine torque, increase request | 8B |
| 2 | Engine torque, increase request | 13B |
| 3 | Engine torque, reduce request | 8B |
| 3 | Engine torque, reduce request | 13B |
| 4 | Oxygen sensor, signal | 14G |
| 5 | Throttle valve position, signal | 14H |
| 6 | Circuit 87, status | 14E |
| 7 | Coolant temperature sensor, signal | 14F |
| 8 | Engine speed, signal | 14C |
| 9 | Camshaft Hall sensor, signal | 14J |
| B17 | Intake air temperature sensor | 5L |
| B6/3 | Camshaft Hall sensor | 9K |
| B94/17 | Coolant temperature sensor | 5F |
| CAN C1 | CAN 1 for drive | 13B |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 2A |
| Code 503 | Remote-controlled parking | 2B |
| Code 503 | Remote-controlled parking | 1C |
| F152/3 | Fuse and relay module | 9E |
| Flex E | Chassis FlexRay | 7B |
| G8/1 | Oxygen sensor | 9G |
| G8/2 | Oxygen sensor | 9G |
| L5 | Crankshaft Hall sensor | 5D |
| M16/6 | Throttle valve actuator | 4H |
| M16/6 | Throttle valve actuator | 20J |
| N127 | Drivetrain control unit | 9C |
| N3/10 | Engine management control unit | 16F |
| N30/10 | Electronic Stability Program control unit | 2C |
| N30/3 | Electronic Stability Program control unit | 2B |
| T1/1 | Ignition coil | 21C |
| T1/10 | Ignition coil | 22C |
| T1/11 | Ignition coil | 22D |
| T1/12 | Ignition coil | 22D |
| T1/2 | Ignition coil | 21C |
| T1/3 | Ignition coil | 21C |
| T1/4 | Ignition coil | 21C |
| T1/5 | Ignition coil | 21D |
| T1/6 | Ignition coil | 21D |
| T1/7 | Ignition coil | 22C |
| T1/8 | Ignition coil | 22C |
| T1/9 | Ignition coil | 22C |
| Y62/1 | Injector | 21E |
| Y62/10 | Injector | 22F |
| Y62/11 | Injector | 22F |
| Y62/12 | Injector | 22G |
| Y62/2 | Injector | 21F |
| Y62/3 | Injector | 21F |
| Y62/4 | Injector | 21F |
| Y62/5 | Injector | 21F |
| Y62/6 | Injector | 21G |
| Y62/7 | Injector | 22E |
| Y62/8 | Injector | 22F |
| Y62/9 | Injector | 22F |
