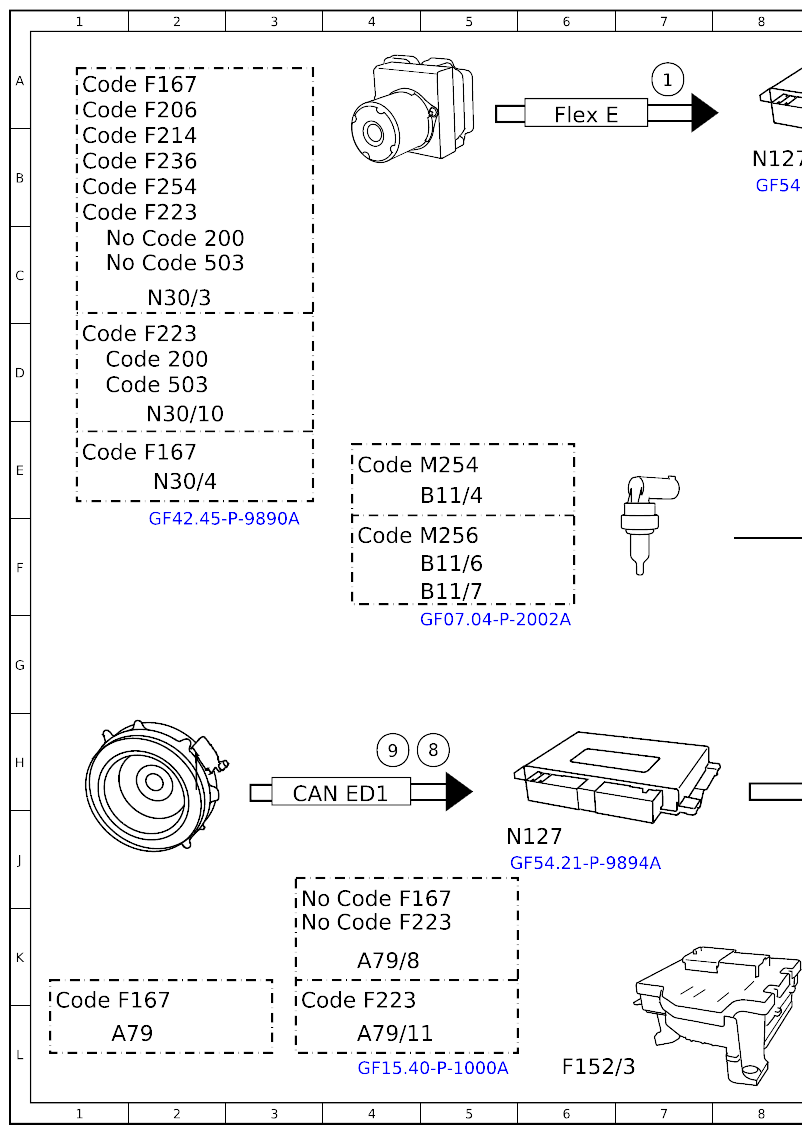

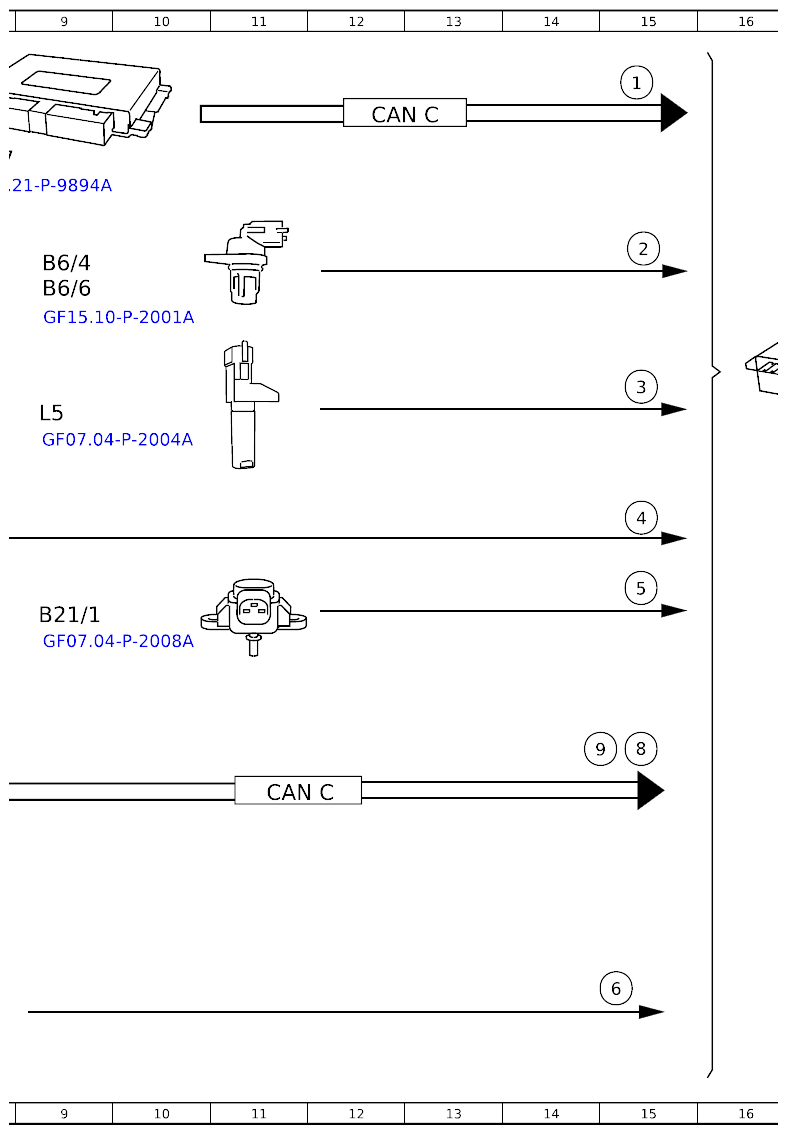

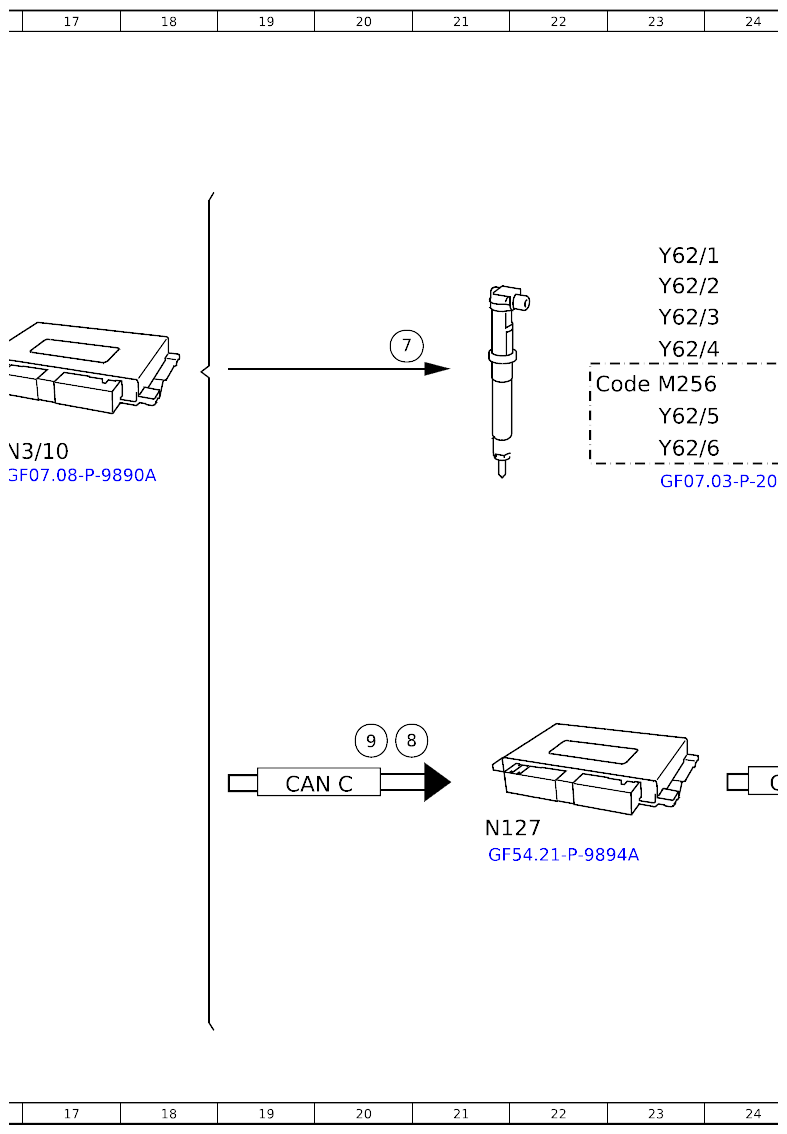

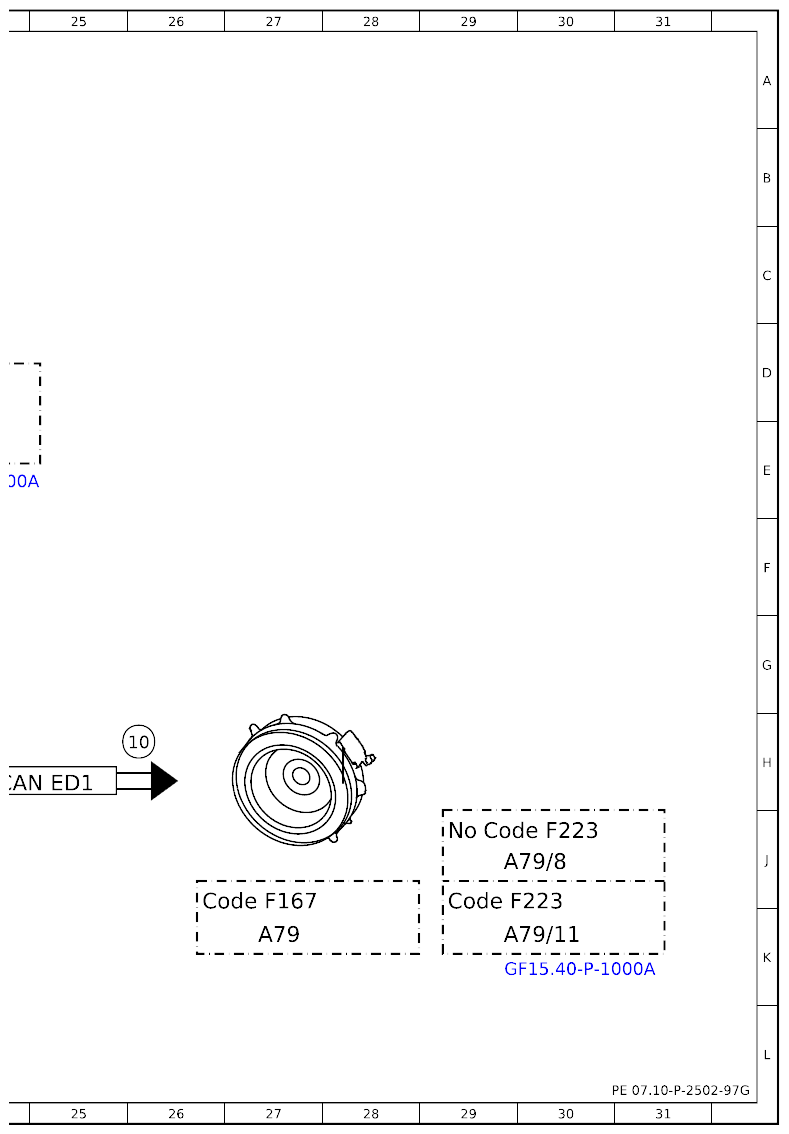

Function Schematic For Smooth Running Control - PE07.10-P-2502-97G
Engine 254 in model 167
as of model year 2023
Engine 254 in model 206, 214, 236, 254
Engine 256 in model 214, 223, 236
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wheel speed, signal | 7A |
| 1 | Wheel speed, signal | 15A |
| 10 | Electric machine motor torque, request | 26H |
| 2 | Camshaft Hall sensor, signal | 15C |
| 3 | Crankshaft Hall sensor, signal | 15D |
| 4 | Coolant temperature sensor, signal | 15F |
| 5 | Boost pressure sensor, signal | 15F |
| 6 | Circuit 87, status | 15K |
| 7 | Fuel injectors, actuation | 20D |
| 8 | Electric machine generative torque, signal | 20H |
| 8 | Electric machine generative torque, signal | 5H |
| 8 | Electric machine generative torque, signal | 15H |
| 9 | Electric machine motor torque, signal | 20H |
| 9 | Electric machine motor torque, signal | 4H |
| 9 | Electric machine motor torque, signal | 14H |
| A79 | Integrated starter generator | 1L |
| A79 | Integrated starter generator | 27K |
| A79/11 | Integrated starter alternator power electronics | 29K |
| A79/11 | Integrated starter alternator power electronics | 4L |
| A79/8 | Integrated starter alternator power electronics | 29J |
| A79/8 | Integrated starter alternator power electronics | 4K |
| B11/4 | Coolant temperature sensor | 4E |
| B11/6 | Coolant temperature sensor | 4F |
| B11/7 | Coolant temperature sensor | 4F |
| B21/1 | Intake air pressure sensor | 9G |
| B6/4 | Camshaft Hall sensor | 9C |
| B6/6 | Camshaft Hall sensor | 9C |
| CAN C | CAN for engine | 12A |
| CAN C | CAN for engine | 19H |
| CAN C | CAN for engine | 11H |
| CAN ED1 | Electric drive CAN | 3H |
| CAN ED1 | Electric drive CAN | 24H |
| Code 200 | Conditionally automated driving | 1D |
| Code 200 | Conditionally automated driving | 2C |
| Code 503 | Pre-installation for Remote Parking Pilot | 2C |
| Code 503 | Pre-installation for Remote Parking Pilot | 1D |
| Code F167 | Model series 167 | 1L |
| Code F167 | Model series 167 | 1A |
| Code F167 | Model series 167 | 4J |
| Code F167 | Model series 167 | 26K |
| Code F167 | Model series 167 | 1E |
| Code F206 | Model series 206 | 1A |
| Code F214 | Model series 214 | 1B |
| Code F223 | Model series 223 | 29K |
| Code F223 | Model series 223 | 1D |
| Code F223 | Model series 223 | 1B |
| Code F223 | Model series 223 | 29J |
| Code F223 | Model series 223 | 3L |
| Code F223 | Model series 223 | 4K |
| Code F236 | - | 1B |
| Code F254 | Model series 254 | 1B |
| Code M254 | INLINE 4-CYLINDER SPARK-IGNITION ENGINE M254 | 4E |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 22D |
| Code M256 | 6-CYLINDER INLINE SPARK-IGNITION ENGINE M256 | 4F |
| F152/3 | Engine compartment fuse and relay module | 6L |
| Flex E | Chassis FlexRay | 6A |
| L5 | Crankshaft Hall sensor | 9D |
| N127 | Drivetrain control unit | 8B |
| N127 | Drivetrain control unit | 21J |
| N127 | Drivetrain control unit | 6J |
| N3/10 | Engine management control unit | 17E |
| N30/10 | Electronic Stability Program control unit | 2E |
| N30/3 | Electronic Stability Program control unit | 2C |
| N30/4 | Electronic Stability Program (ESP®) control unit | 2E |
| Y62/1 | Cylinder 1 fuel injection valve | 23C |
| Y62/2 | Cylinder 2 injection valve | 23C |
| Y62/3 | Cylinder 3 injection valve | 23D |
| Y62/4 | Cylinder 4 injection valve | 23D |
| Y62/5 | Cylinder 5 injection valve | 23E |
| Y62/6 | Cylinder 6 injection valve | 23E |
