Trigger Preventive Occupant Protection System For Side Impact, Function Schematic - PE91.40-P-2501-97B
Model 223
with code 292 (PRE-SAFE® Impulse Side)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Differential speed to the opposing object, signal | 7E |
| 1 | Differential speed to the opposing object, signal | 14E |
| 2 | Time until collision side, signal | 7E |
| 2 | Time until collision side, signal | 13E |
| 3 | Terminal 15, status | 13E |

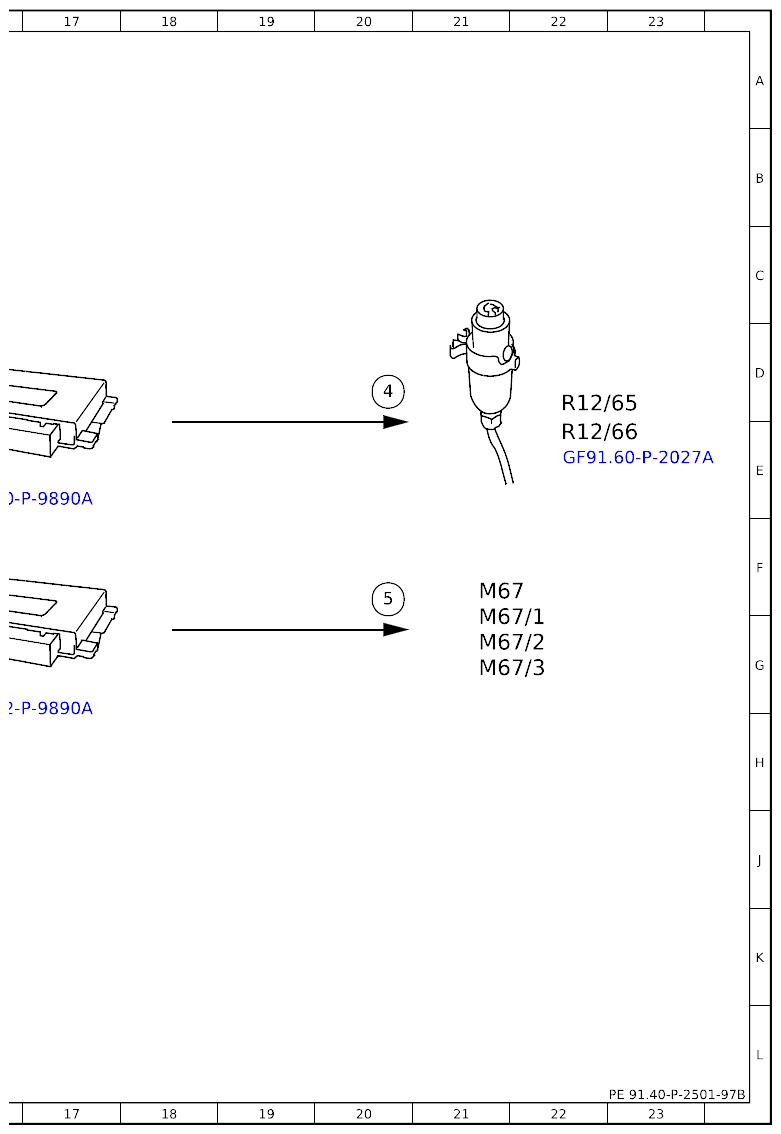

| 4 | Ignition pill, control | 20D |
| 5 | Steam valve units, control | 20F |
| B29/11 | Radar sensor close range front left | 2F |
| B29/12 | Radar sensor close range front right | 2G |

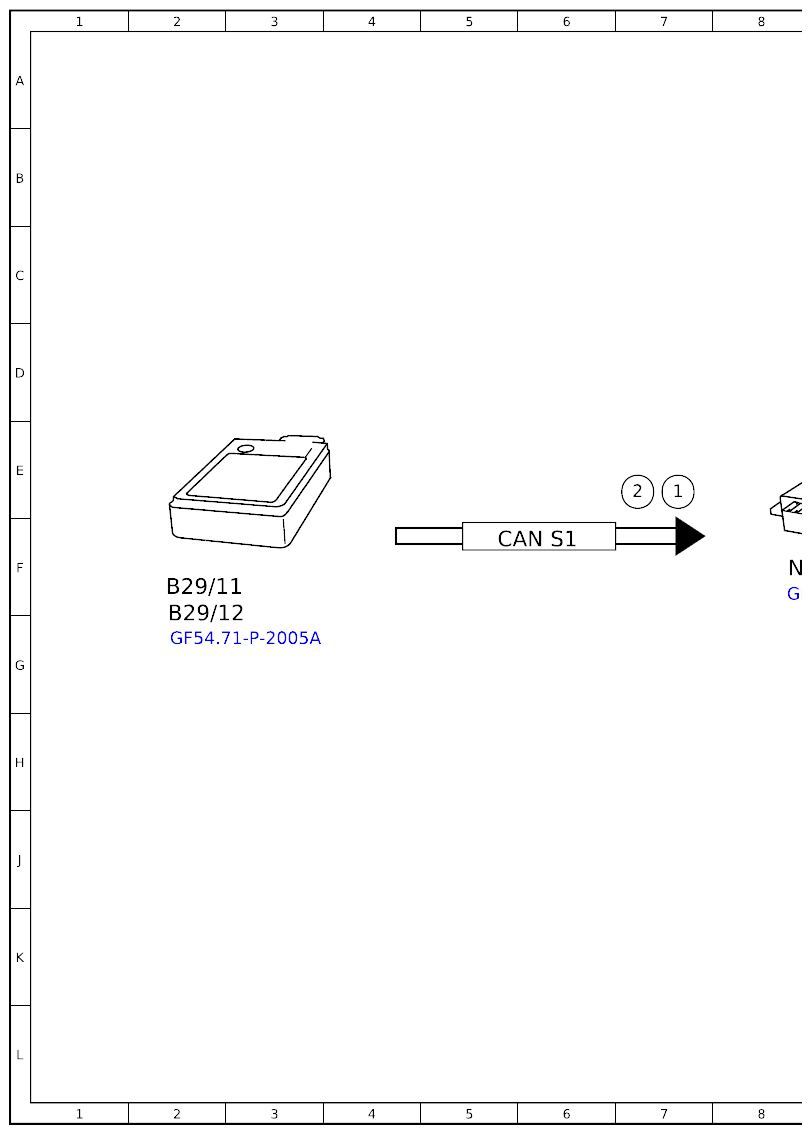

| CAN S1 | CAN for front radar | 6F |

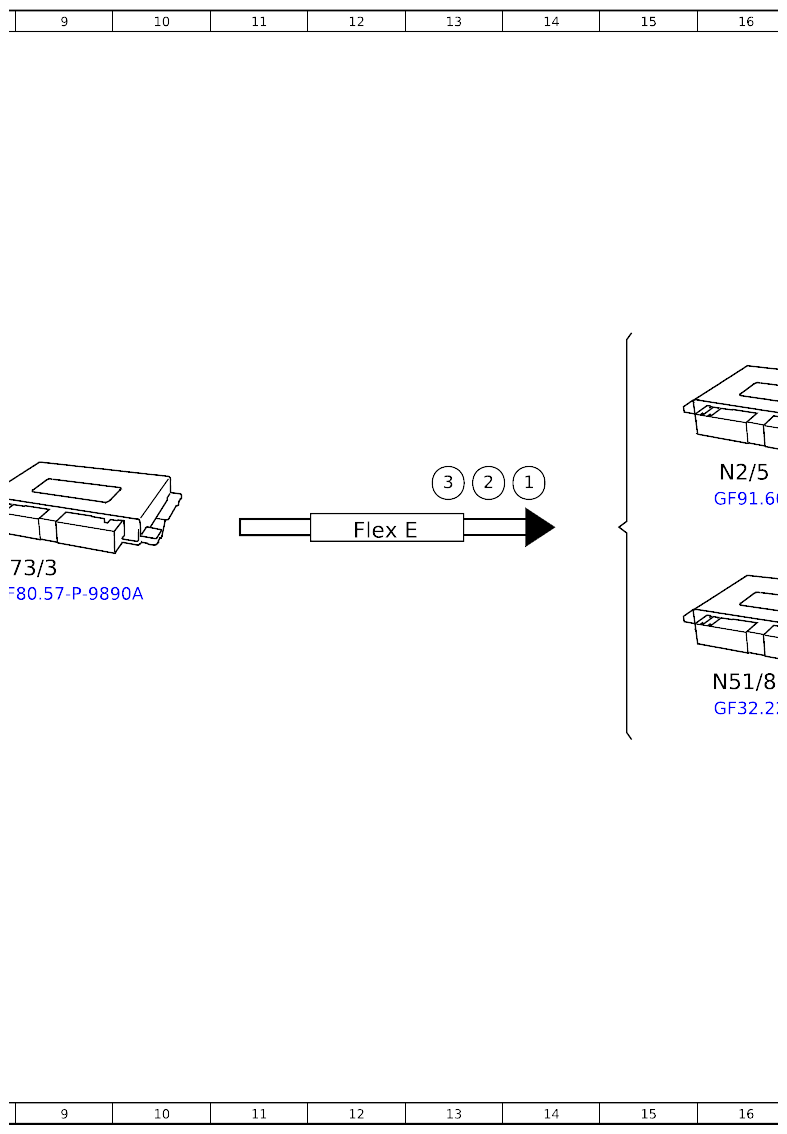

| Flex E | Chassis-FlexRay | 12F |
| M67 | Electro-hydraulic control unit front left | 21F |
| M67/1 | Electro-hydraulic control unit front right | 21G |
| M67/2 | Electro-hydraulic control unit rear left | 21G |
| M67/3 | Electro-hydraulic control unit rear right | 21G |
| N2/5 | Control Unit Supplemental Restraint System | 16E |
| N51/8 | Suspension and damping system control unit | 16G |
| N73/3 | Electronic ignition lock control unit | 8F |
| R12/65 | Squib seat bolster | 22D |
| R12/66 | Squib seat bolster | 22E |
