Electric Power Steering Control Unit, Component Description - GF46.35-P-7012A

Model 223

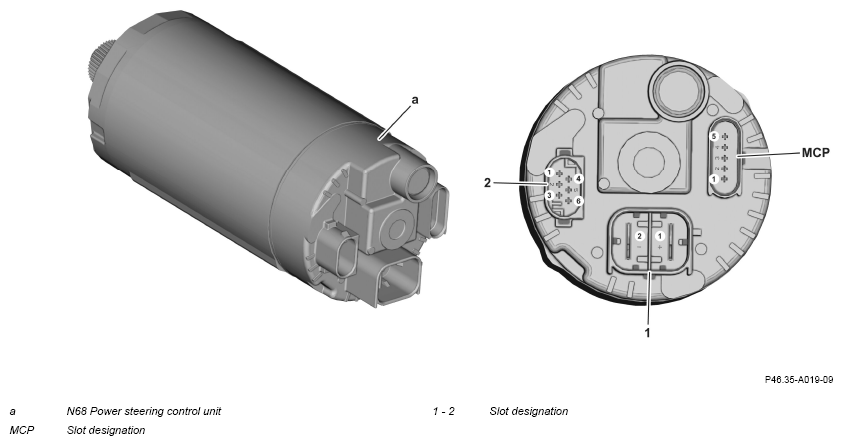

G16231618Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

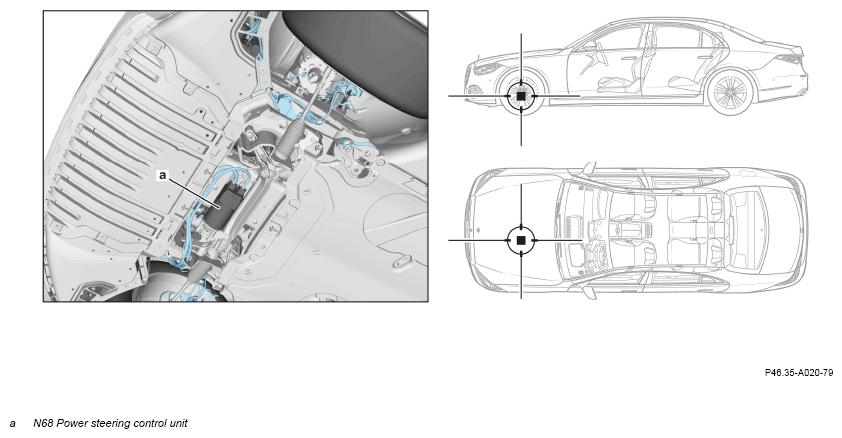

Fig 1: Electric Power Steering Control Unit Components Location - Model 223
G16231619Courtesy of MERCEDES-BENZ USA

Location
