Remove/Install Engine Oil Fill Level Sensor - AR18.40-P-5116SVZ
Engine 279 in model 223
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove center engine compartment lining. | AR61.20-P-1105S | |
| 2 | Drain engine oil. | ||
| AP18.00-P-0101MB | |||
| 3 | Unclip electric line (1) at oil pan bottom section (4). | ||
| 4 | Release and disconnect the electrical connector (2). | ||
| 5 | Unscrew screws (3) and remove engine oil fill level sensor (B40). | Only use seal (5) once. Leaks can occur otherwise. |

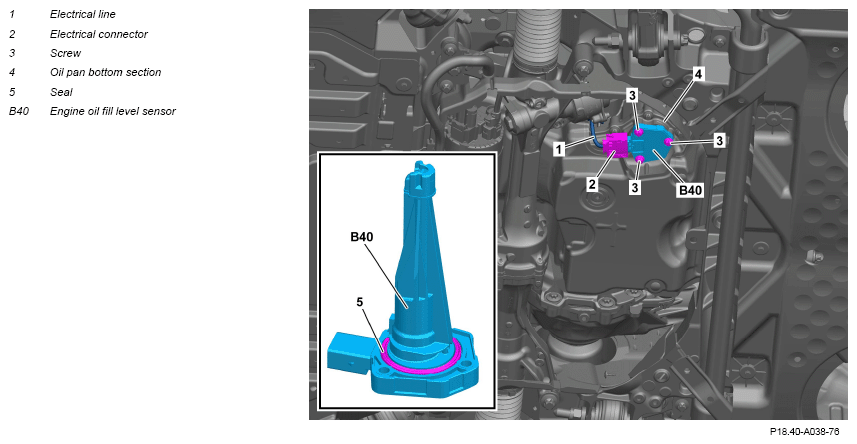

*BA18.40-P-1004-02C |
| Fig 1 | |||
| 6 | Install in the reverse order. | ||
| Check | |||
| 7 | Check and correct engine oil level using instrument cluster. | ||
| AP18.00-P-1812A | |||
| 8 | Read out and delete fault memory using diagnostic system. | ||
| AD00.00-P-2000-06FR | |||
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. | AS49.00-Z-0001-01A | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run and check engine for proper operation and leak tightness |
OIL SENSOR
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA18.40-P-1004-02C | Screw/bolt, fill level sensor to oil pan bottom section | Nm | 9 |
