Remove/Install Spring Bracket Of Rear Axle Spring - Ar61.25-D-6155TS
Model 907.1/2

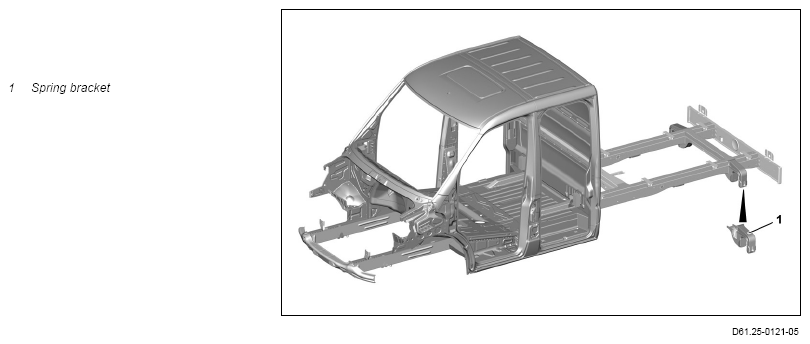

Shown on model 907.233 on the left side of the vehicle
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove all detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining in vehicle with welding protection blankets | ||
| 3 | Remove spring bracket (1) | AR61.25-D-6155-01TS | |
| 4 | Prepare spring bracket (1) for installation | AR61.25-D-6155-02TS | |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 5 | Install spring bracket (1) | AR61.25-D-6155-03TS | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| 000 588 01 84 00 Welder | WS60.00-P-0021K | ||
| 000 588 02 84 00 Welder | WS60.00-P-0022K | ||
| 6 | Clean weld joint and sheet metal flanges with round wire brush | ||
| 7 | Remove welding protection blankets | ||
| 8 | Clean repair area | ||
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 9 | Prime repair area with primer filler Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 10 | Seal seam following repairs | AR97.10-D-4000TS | |
| Risk of explosion caused by paint vapors igniting. Risk of poisoning caused by inhaling paint vapors. | No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. | AS98.00-Z-0002-01A | |
| 11 | Paint repair area adjacent surfaces Notes on paintwork repairs | AH98.00-P-9408-02A | |
| 12 | Add cavity preserving agent | AR97.20-D-1500TS | |
| 13 | Install detachable parts in area to be repaired |
