Rpm Control, Function - GF07.10-D-1008TSA

Engine 651 in model 907

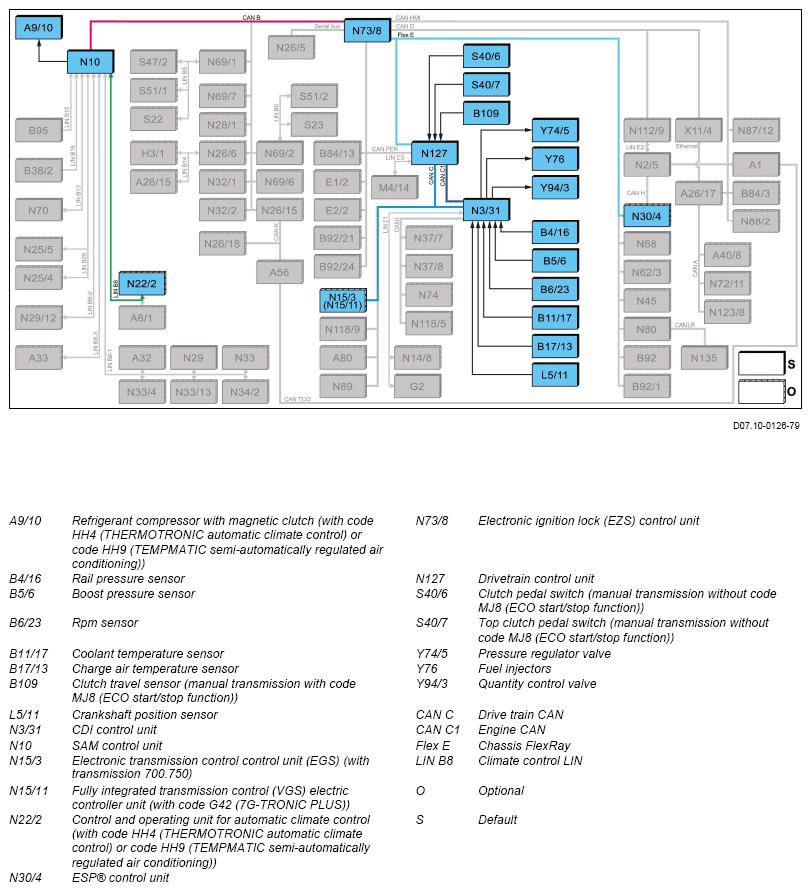

Block diagram

Function requirements for RPM control, general points

• Circuit 87 (Engine management ON)
• Engine running.

Rpm control, general

Rpm control stabilizes the idle speed and limits the engine speed to protect the engine and the drivetrain. The CDI control unit detects the engine speed via the crankshaft position sensor signal.

For RPM limitation the CDI control unit reads in the following signals:

• Rpm sensor, engine speed
• Rail pressure sensor
• Fully integrated transmission control electric controller unit (VGS) (with code G42 (7G-TRONIC PLUS)), drive range
• ESP® control unit vehicle speed

The engine speed is regulated by the CDI control unit by the following measures:

• Actuation of the pressure regulator valve (fuel pressure control)
• No actuation of the fuel injectors (for RPM limitation)
• Adaptation of the injection period of the fuel injectors (with idle speed control)
• Actuation of the quantity control valve (fuel pressure control)

Function sequence for RPM control

Regulation of the engine speed is described in the following steps:

• Function sequence for torque converter protection
• Function sequence for RPM limitation
• Function sequence for idle speed control

Torque converter protection function sequence (for automatic transmission)

To protect the torque converter in selector lever positions "P" or "N" (no power flow) from excessive static internal pressure, the maximum engine speed is limited to approx. 3000 RPM. The CDI control unit receives information about the current selector lever position from the fully integrated transmission control (VGS) electric controller unit (with code G42 (7G-TRONIC PLUS)) via the drive CAN.

Function sequence for RPM limitation

In order to protect the engine from the consequences of an impermissibly high engine speed, at a speed of > 0 km/h the maximum engine speed is limited to approx. 4500 RPM.

The CDI control unit detects the operating status on the "vehicle speed" CAN signal, which is sent by the ESP® control unit via the suspension FlexRay.

Function sequence for idle speed control

The CDI control unit regulates and stabilizes the idle speed depending on operating conditions and engine loads if the accelerator pedal is not actuated.

For idle speed control the CDI control unit also reads in the following sensors and signals:

• Boost pressure sensor, engine load
• Coolant temperature sensor
• Charge air temperature sensor
• Outside temperature SAM control unit
• Clutch travel sensor (manual transmission with code MJ8 (ECO start/stop function))
• The clutch pedal switch (manual transmission without code MJ8 (ECO start/stop function))

• The top clutch pedal switch (manual transmission without code MJ8 (ECO start/stop function))
• Control and operating unit for automatic climate control (with code HH4 (THERMOTRONIC automatic climate control) or code HH9 (TEMPMATIC semi-automatically regulated air conditioning)), air conditioning status

The CDI control unit regulates the fuel pressure in the rails via the pressure regulating valve and regulates the injection period by actuating the fuel injectors.

The fuel pressure in the rails and the injection duration of the fuel injectors (Y76) determine the injection quantity. The idle speed can be raised for a limited time to approx 1,600 RPM depending on the atmospheric pressure and the ambient temperature.

The CDI control unit regulates the idle speed in the following operating conditions and engine load conditions:

• Engagement of the gear range "D" or "R" (for an automatic transmission)
• Actuation of the clutch pedal (for a manual transmission)
• Switching in the A/C compressor
• On-board electrical system battery undervoltage (G1)

The basic setting of the idle speed can be read out and influenced using the Xentry Diagnostics.

Engagement of the gear range "D" or "R" (for an automatic transmission)

When gear range "D" or "R" is selected, the idle speed is set to a lower value to reduce the tendency of the vehicle to creep forward. To do this, the CDI control unit evaluates the "engaged drive range" CAN signal of the fully integrated transmission control (VGS) electric controller unit (with code G42 (7G-TRONIC PLUS)).

For vehicles with automatic transmission, the idle speed is approx 750 RPM.

Actuation of the clutch pedal (for a manual transmission)

When actuating the clutch pedal the idle speed is stabilized. At the same time, the signals of both clutch pedal switches are detected by the powertrain control unit and sent to the CDI control unit via the CAN network.

Switching on the refrigerant compressor (for air conditioning)

When the engine is at idle, so that engine speed will not fall when the refrigerant compressor is engaged, the automatic air conditioning control and operating unit sends a status signal to the CDI control unit before the AAC is engaged. The CDI control unit adapts the idle speed appropriately.

Undervoltage of the on-board electrical system battery

The CDI control unit recognizes undervoltage of the on-board electrical system battery via "circuit 30" and increases the idle speed by about 100 RPM until the engine switches off.
