Remove/Install Oil Level Sensor - Ar18.40-S-5111EG
Model 907 with engine 274
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

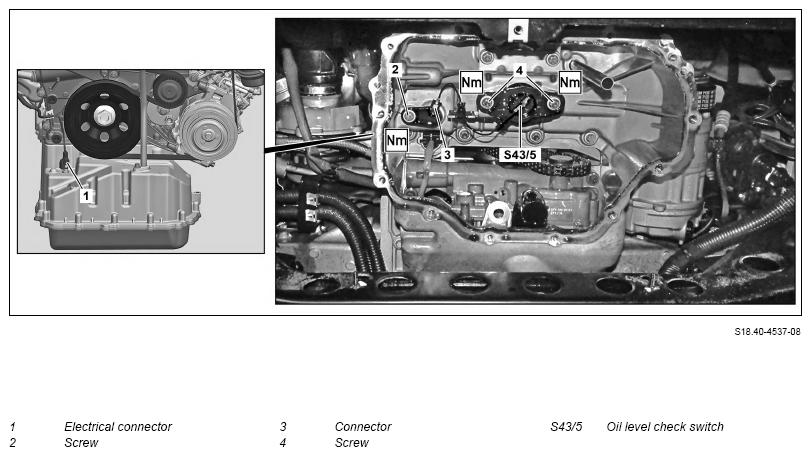

| 1 | Remove oil pan bottom section. | Model 907 with engine 274 | AR01.45-D-7555TSC |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Remove screw/bolt (2). | *BA18.40-N-1003-02B | |
| 4 | Remove plug (3) of the oil level check switch (S43/5) from the oil pan. | ||
| 5 | Unscrew screw/bolts (4). | *BA18.40-N-1001-02B | |
| 6 | Remove electric line from the oil pan and remove oil level check switch (S43/5). | ||
| 7 | Install in the reverse order |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA18.40-N-1001-02B | Screw/bolt, oil level check switch to bracket | Nm | 9 |
| Number | Designation | Engine 274 in model 907 | |
|---|---|---|---|
| BA18.40-N-1003-02B | Screw/bolt, oil level check switch connector to oil pan top section | Nm | 9 |
