Overview Of System Components For Gasoline Injection And Ignition System With Direct Injection - GF07.70-P-9998MND
Engine 276.8 In Model 213, 238
Up To Model Year 2021
Shown on model 213.0

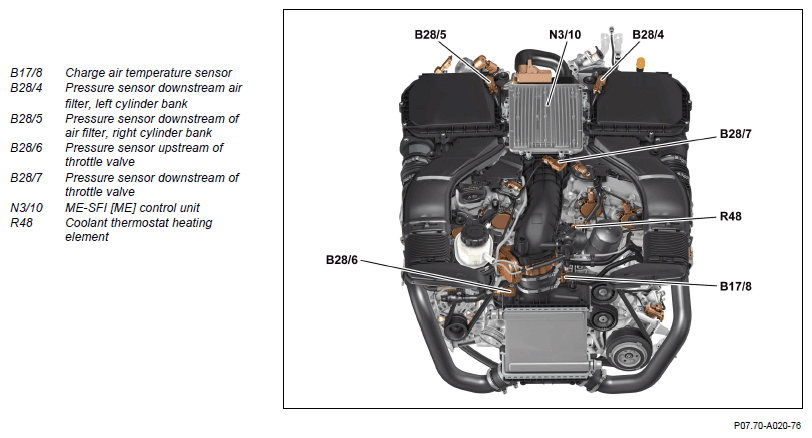

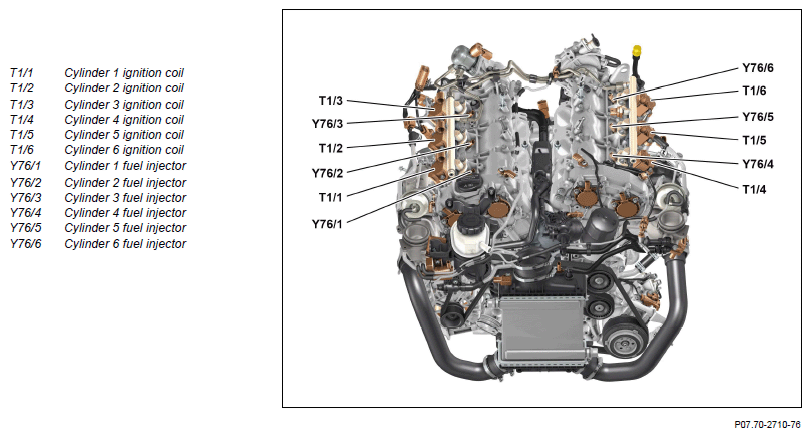

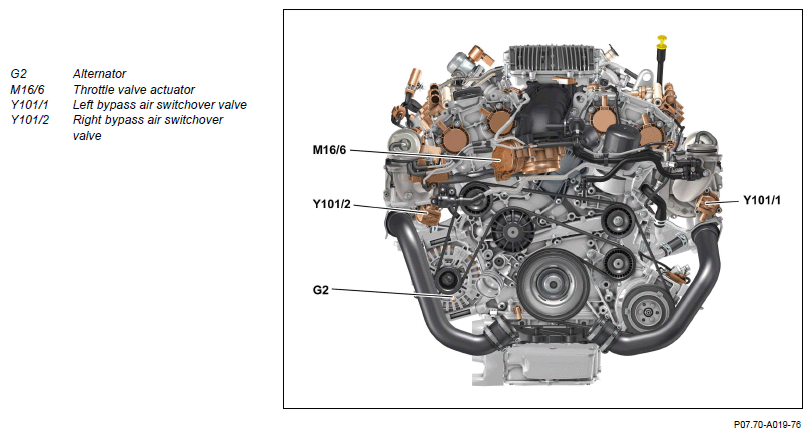

Shown: Engine from the top front
Shown: Engine from the top front
Shown: Engine from the top front
Shown: Engine from the front

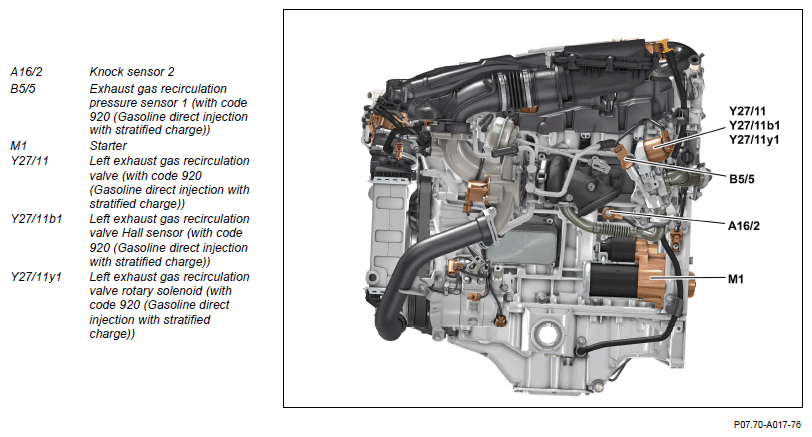

Shown: Engine from the left

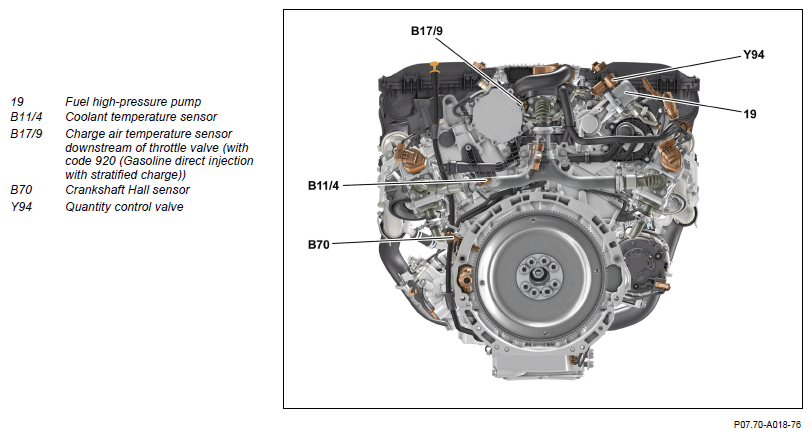

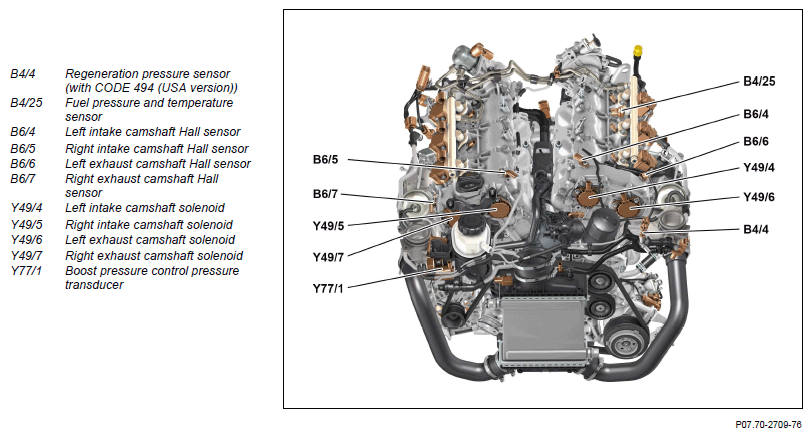

Shown on Engine from rear (with code 920 (Gasoline direct injection with stratified charge))

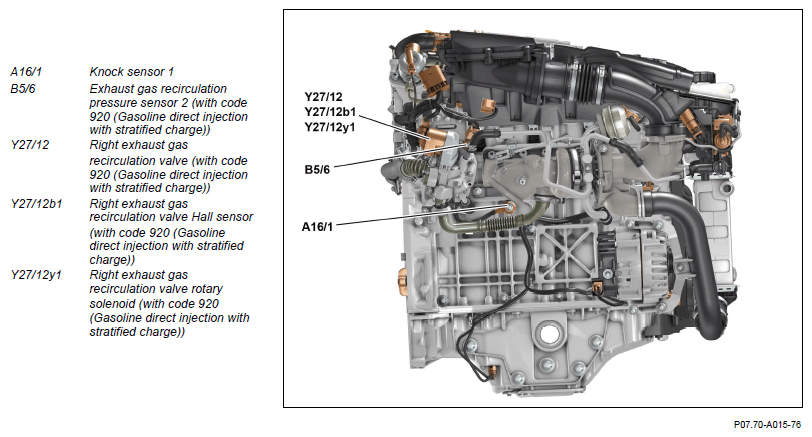

Shown: Engine from the right

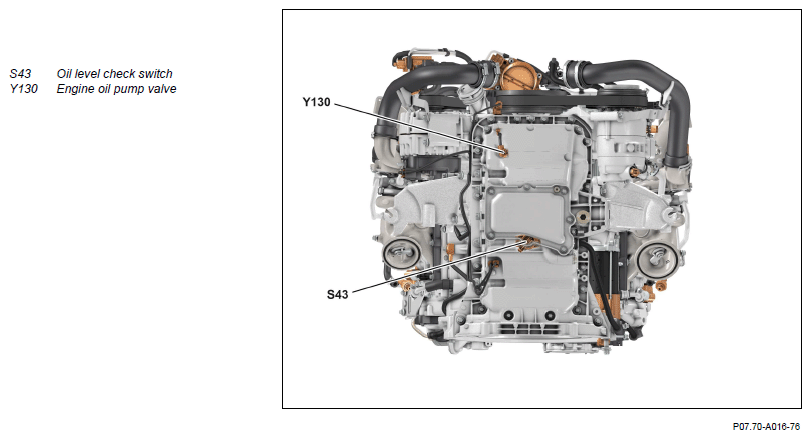

Shown: Engine from below

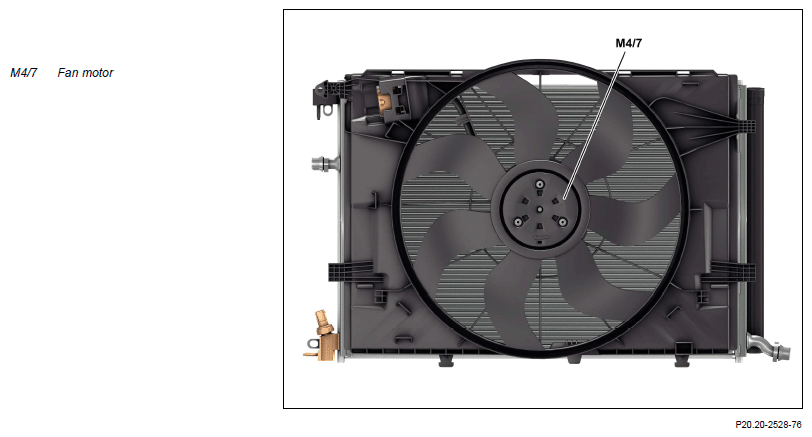

Shown on fan housing from rear

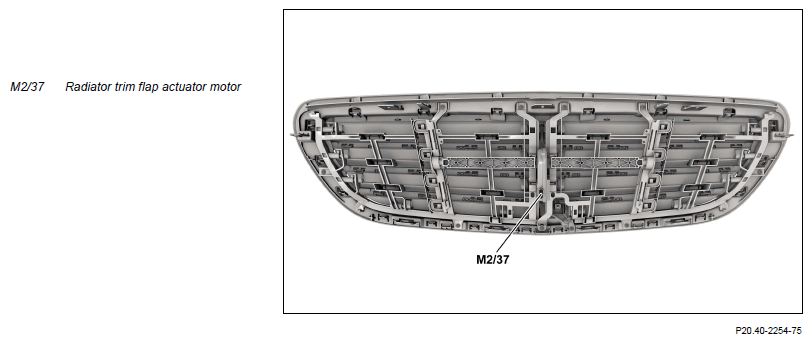

Shown on radiator grille from rear (with code 5U3 (AIRPANEL))

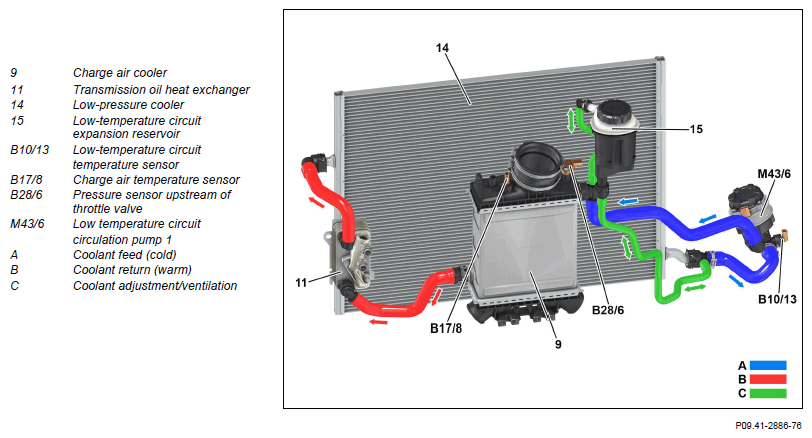

Shown on low-temperature cooler from rear

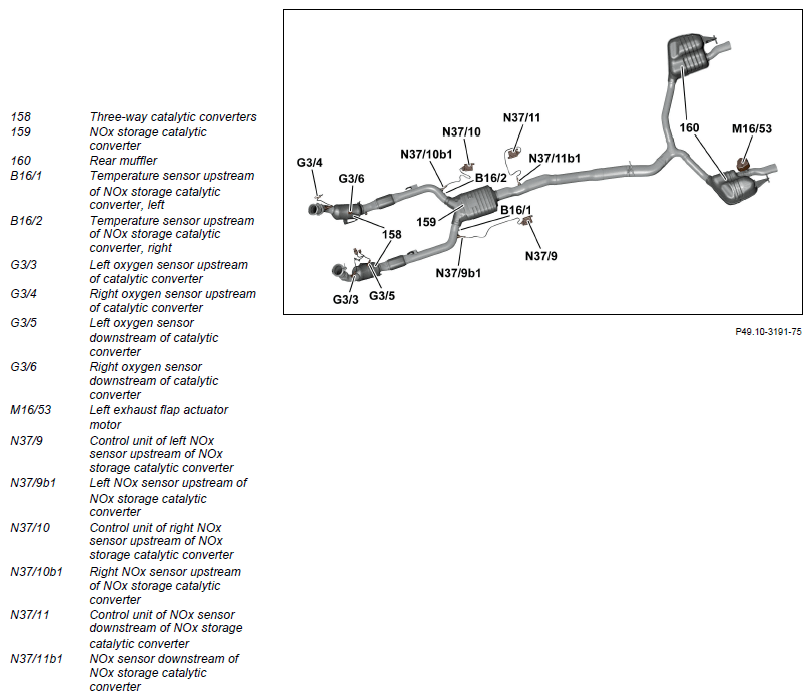

Shown on exhaust system (model 213 with code 920 (Gasoline direct injection with stratified charge) and with code U21 (AMG performance exhaust system))

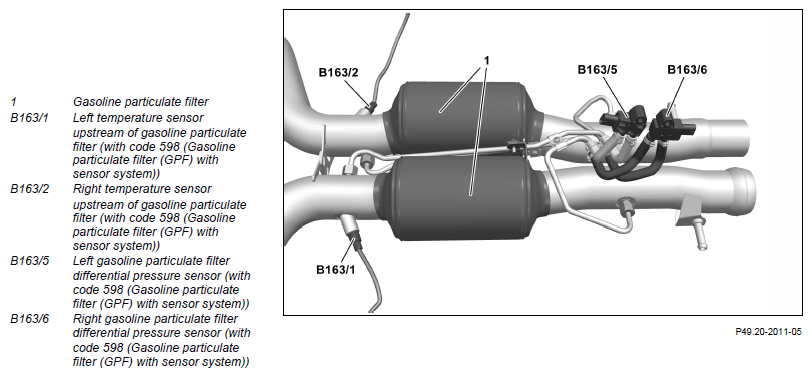

Shown: gasoline particulate filter (with code 598 (gasoline particulate filter (OPF) with sensor system))

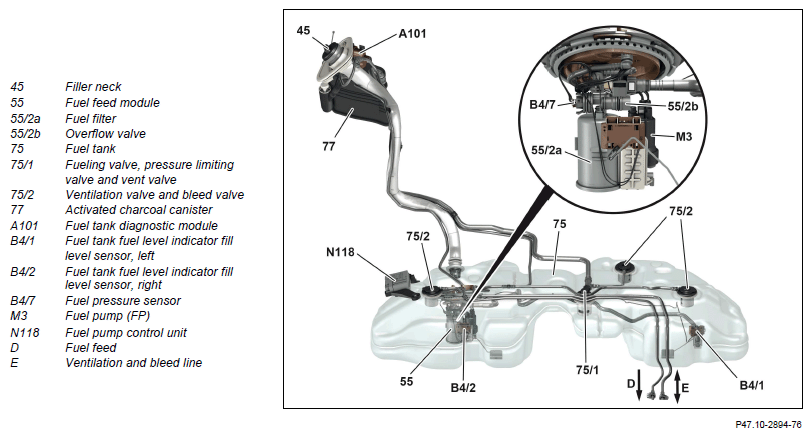

Phantom view of fuel tank (with CODE 494 (USA version))

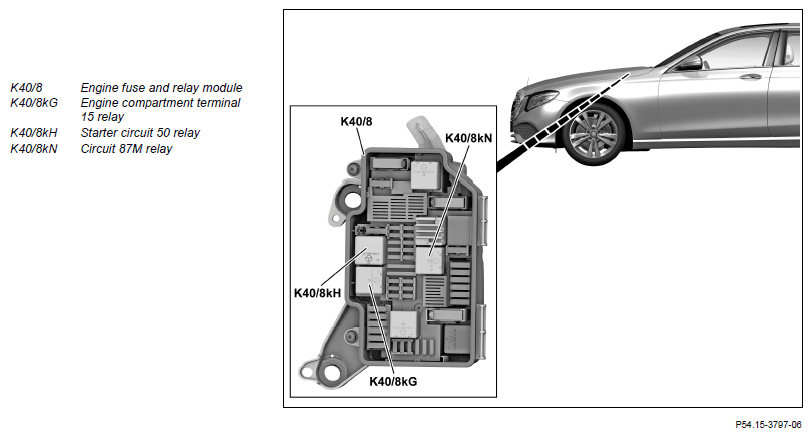

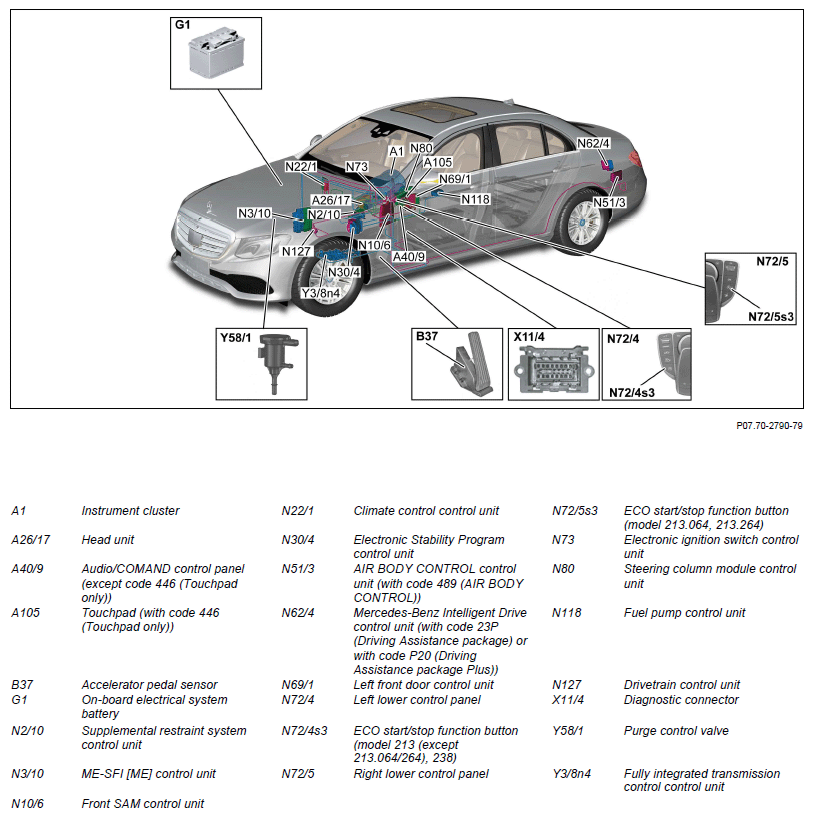

Shown on Engine fuse and relay module (K40/8)
| Component description for instrument cluster | Model 213 with engine 276.8 up to model year 2021 A1 | GF54.30-P-6000FG | |
| Engine 276.8 in model 238 up to model year 2021 A1 | GF54.30-P-6000FH | ||
| Head unit, component description | Engine 276.8 in model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 radio) | GF82.85-P-3140FG | |
| Engine 276.8 in model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 radio) | GF82.85-P-3140FGA | ||
| Engine 276.8 in model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Engine 276.8 in model 213 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FGB | ||
| Engine 276.8 in model 238 up to model year 2021 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FH | ||
| Engine 276.8 in model 238 up to model year 2021 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHA | ||
| Engine 276.8 in model 238 up to model year 2021 with code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHB | ||
| Engine 276.8 in model 238 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 | GF82.85-P-3140FHC | ||
| Component description for Audio/COMAND control panel | Model 213 with engine 276.8 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FG | |
| Engine 276.8 in model 238 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FH | ||
| Touchpad, component description | Engine 276.8 in model 213 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FG | |
| Engine 276.8 in model 238 up to model year 2021 with code 446 (Touchpad only) A105 | GF54.21-P-4511FH | ||
| Supplemental restraint system control unit, component description | Model 213 with engine 276.8 up to model year 2021 N2/10 | GF91.60-P-4080FG | |
| Engine 276.8 in model 238 up to model year 2021 N2/10 | GF91.60-P-4080FH | ||
| Component description for ME-SFI (ME) control unit | Model 213, 238 with engine 276.8 up to model year 2021 N3/10 | GF07.61-P-6000MND | |
| Component description for front SAM control unit | Model 213 with engine 276.8 up to model year 2021 N10/6 | GF54.21-P-7010FG | |
| Engine 276.8 in model 238 up to model year 2021 N10/6 | GF54.21-P-7010FH | ||
| Climate control control unit, component description | Model 213 with engine 276.8 up to model year 2021 N22/1 | GF83.40-P-2250FG | |
| Engine 276.8 in model 238 up to model year 2021 N22/1 | GF83.40-P-2250FH | ||
| Component description for Electronic Stability Program control unit | Model 213 (except 213.050) with engine 276.8 up to model year 2021 N30/4 | GF42.45-P-5119FG | |
| Engine 276.8 in model 238 up to model year 2021 N30/4 | GF42.45-P-5119FH | ||
| Component description for NOx sensor control unit | Engine 276.8 in model 213, 238 up to model year 2021 with code 920 (Direct fuel injection with stratified charging) N37/9, N37/10, N37/11 | GF14.40-P-3024MND | |
| AIR BODY CONTROL control unit, component description | Model 213 with engine 276.8 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FG | |
| Engine 276.8 in model 238 up to model year 2021 with code 489 (AIR BODY CONTROL) N51/3 | GF32.22-P-5111FH | ||
| Mercedes-Benz Intelligent Drive control unit, component description | Model 213 with engine 276.8 up to model year 2021 with code 23P (Drive package) Model 213 with engine 276.8 up to model year 2021 with code P20 (Driving assistant package Plus) N62/4 |
GF30.30-P-3312FG | |
| Engine 276.8 in model 238 up to model year 2021 with code 23P (Drive package) N62/4 | GF30.30-P-3312FH | ||
| Component description for left front door control unit | Model 213 with engine 276.8 up to model year 2021 N69/1 | GF72.29-P-6001FG | |
| Engine 276.8 in model 238 up to model year 2021 N69/1 | GF72.29-P-6001FH | ||
| Lower control panel, component description | Model 213 with engine 276.8 up to model year 2021 N72/4, N72/5 | GF54.25-P-4270FG | |
| Engine 276.8 in model 238 up to model year 2021 N72/4, N72/5 | GF54.25-P-4270FH | ||
| Component description for the electronic ignition lock control unit | Model 213 with engine 276.8 up to model year 2021 N73 | GF80.57-P-6001FG | |
| Engine 276.8 in model 238 up to model year 2021 N73 | GF80.57-P-6001FH | ||
| Component description for steering column tube module control unit | Engine 276.8 in model 213 up to model year 2019 N80 | GF54.21-P-6051FG | |
| Engine 276.8 in model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | ||
| Engine 276.8 in model 238 up to model year 2019 N80 | GF54.21-P-6051FH | ||
| Engine 276.8 in model 238 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FHG | ||
| Component description for fuel pump control unit | Engine 276.8 in model 213, 238 up to model year 2021 N118 | GF47.40-P-2001MRD | |
| Drivetrain control unit, component description | Model 213, 238 with engine 276.8 up to model year 2021 N127 | GF54.21-P-2141MRP | |
| Component description for fully integrated transmission control unit | Transmission 725.0 (except 725.007/017/096) in model 213 with engine 276.8 up to model year 2021 Y38n4 | GF27.60-P-5165ANL | |
| Engine 276.8 in model 238 with transmission 725 up to model year 2021 Y38n4 | GF27.60-P-5165FH | ||
| Table of contents for function description of gasoline injection and ignition system with direct injection | GF07.70-P-0998MND |
