Calibration Number Identification

To identify the calibration number of an engine, find the engine code label at front of rocker arm cover on 4 and 6 cylinder engines, or on front of right valve cover and side of left valve cover on V8 engines. Determine calibration number from label using example illustrated. Use engine size, model and calibration number to find proper diagram from this index.

NOTE: Some calibration numbers are carried over from 7979; these will have the number "9" as the first digit. All other codes should begin with "0", indicating 1980 models.

NOTE: See 1980 Emission Control Application tables for a list of abbreviations used on Ford Motor Co. vacuum diagrams.

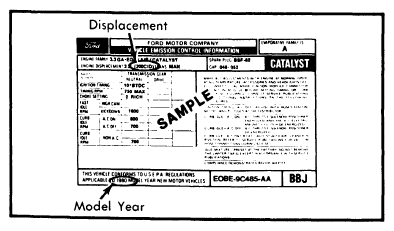

Fig 1: Exhaust Emission Decal

Courtesy of FORD MOTOR CO.

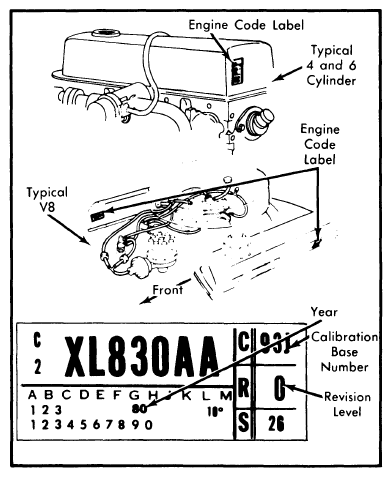

Fig 2: Engine Code Label

Courtesy of FORD MOTOR CO.

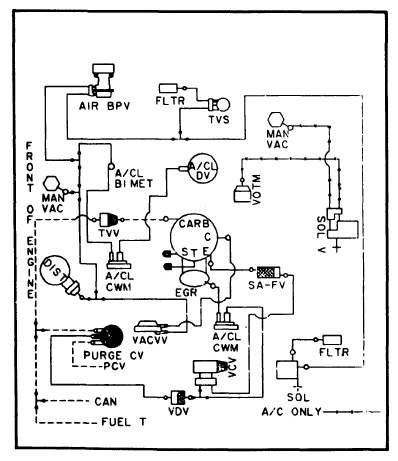

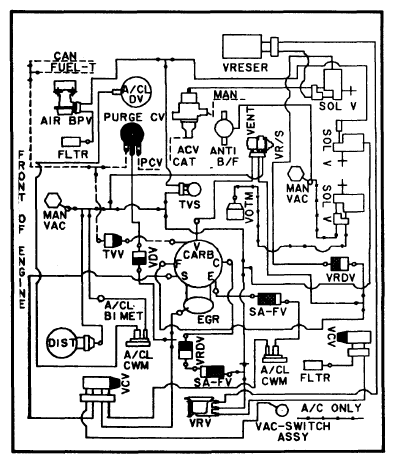

Fig 3: Calibration 9-21B-R10; 2.3L; Federal

Courtesy of FORD MOTOR CO.

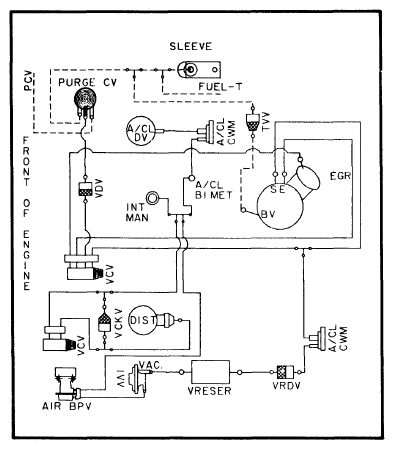

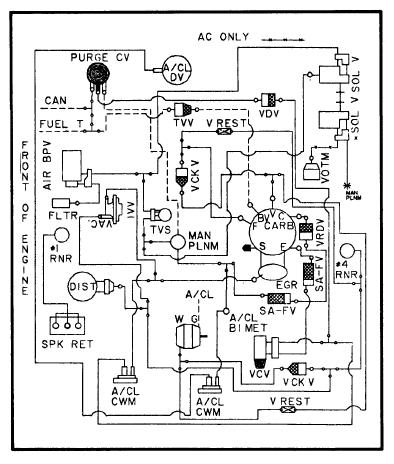

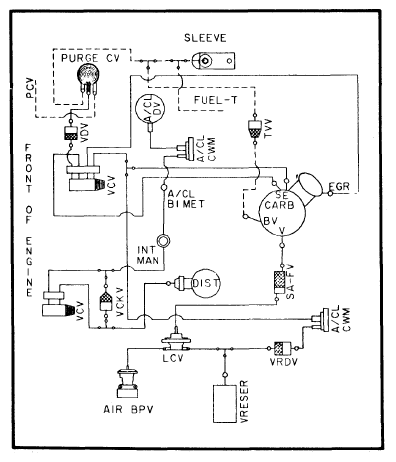

Fig 4: Calibration 0-1B-R0; 2.3L; Federal (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

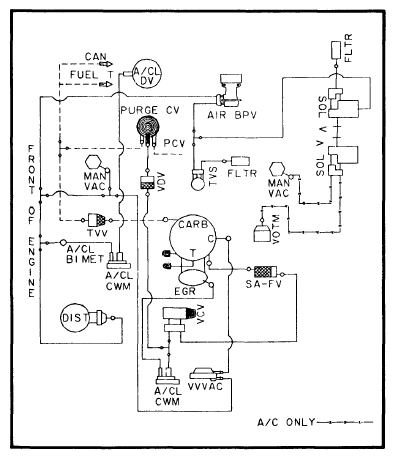

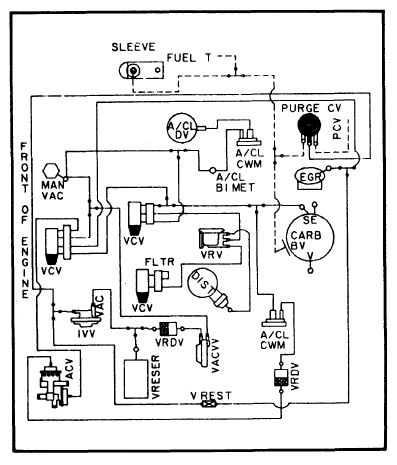

Fig 5: Calibration 0-1B-R0; 2.3L; Federal (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

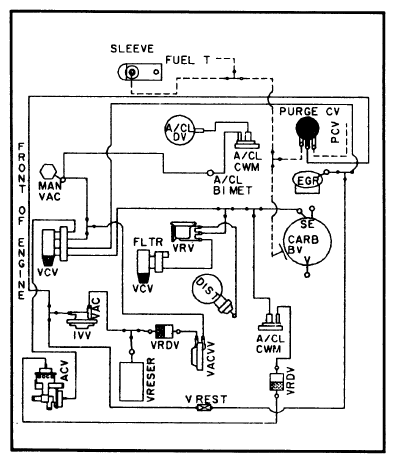

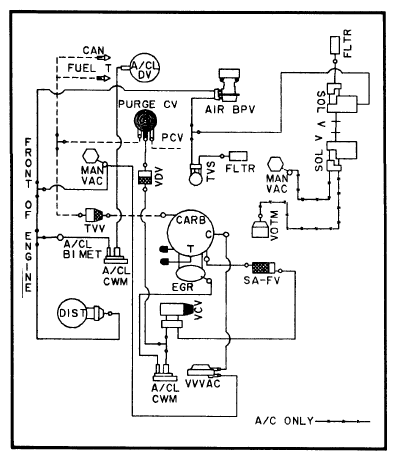

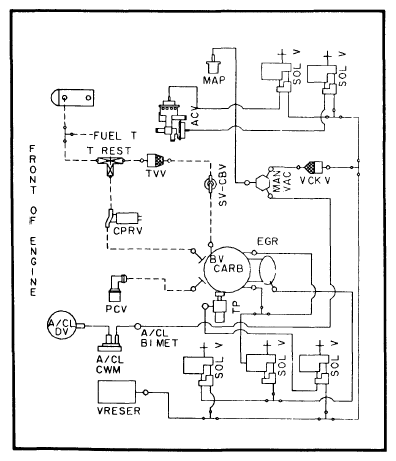

Fig 6: Calibration 0-1B-R0, 0-1B-R11, 0-1B-R12; Federal (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

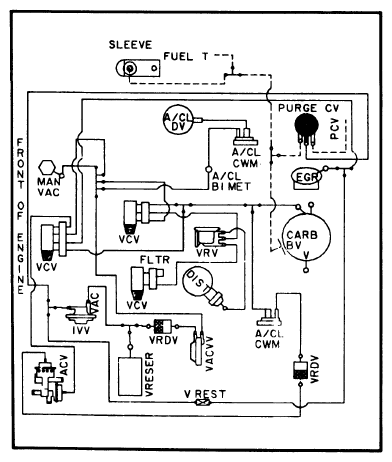

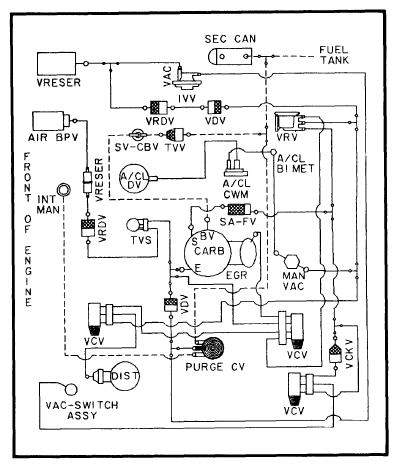

Fig 7: Calibration 0-1G-R0, 0-1G-R11, 0-1G-R12; 2.3L, Federal

Courtesy of FORD MOTOR CO.

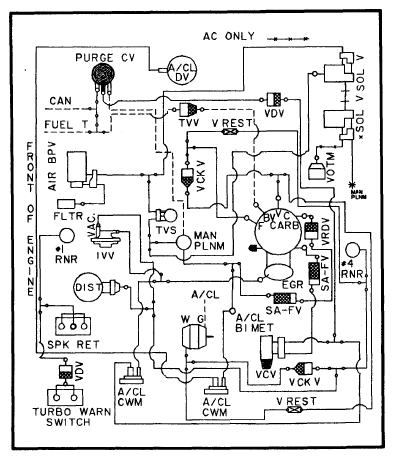

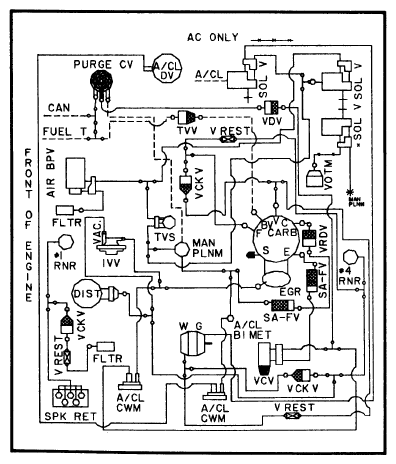

Fig 8: Calibration 0-1H-R10, 0-1H-R15; 2.3L; Federal

Courtesy of FORD MOTOR CO.

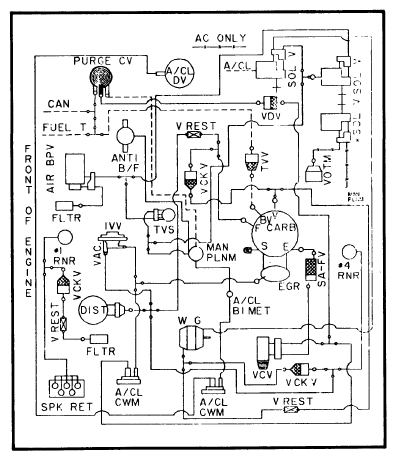

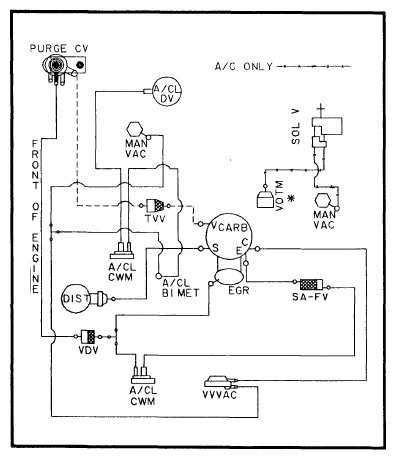

Fig 9: Calibration 0-1S-R11, 0-1H-R20; 2.3L; Federal

Courtesy of FORD MOTOR CO.

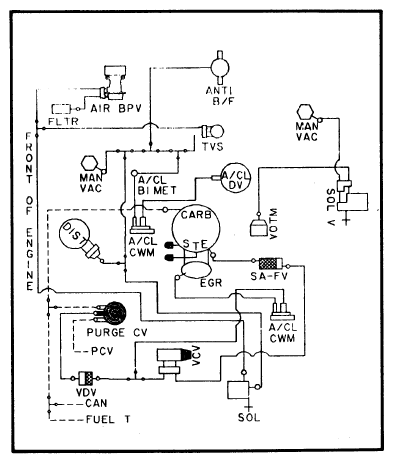

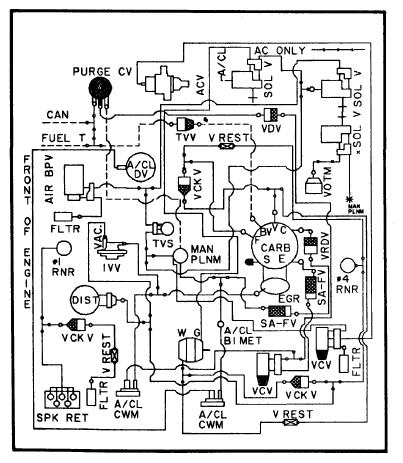

Fig 10: Calibration 0-1P-R0; 2.3L; Calif. (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

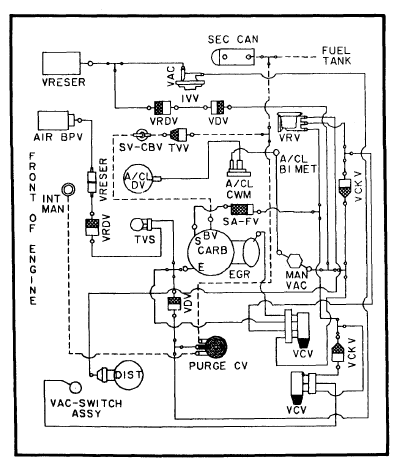

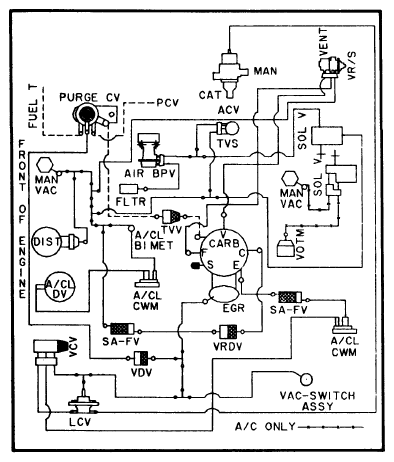

Fig 11: Calibration 0-1P-R0; 2.3L; Calif. (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 12: Calibration 0-1S-R0, 0-1S-R11; 2.3L; Calif.

Courtesy of FORD MOTOR CO.

Fig 13: Calibration 0-1S-R10; 2.3L; Calif.

Courtesy of FORD MOTOR CO.

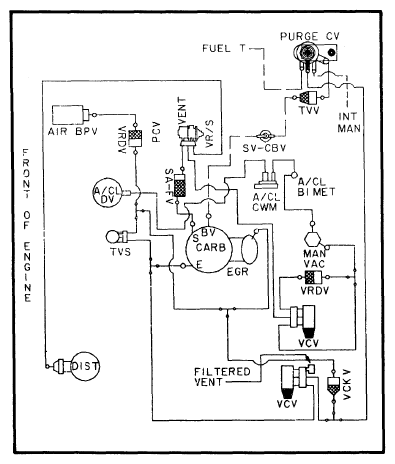

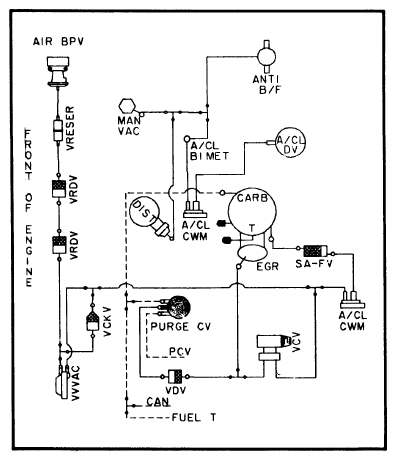

Fig 14: Calibration 0-2B-R0, 0-2C-R0; 2.3L; Federal (Pinto and Bobcat W/A/C)

Courtesy of FORD MOTOR CO.

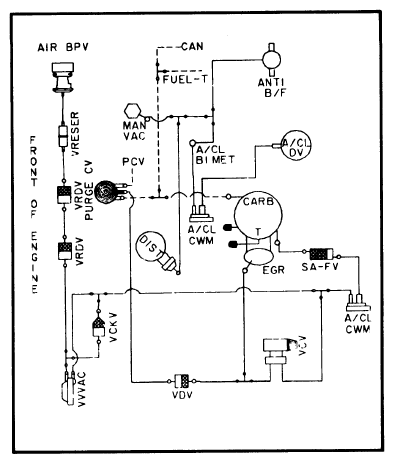

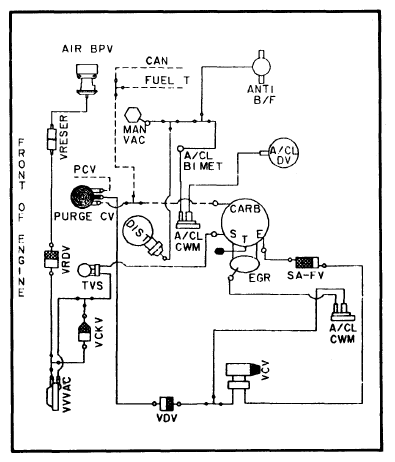

Fig 15: Calibration 0-2B-R0, 0-2C-R0; 2.3L; Federal (Pinto and Bobcat W/out A/C)

Courtesy of FORD MOTOR CO.

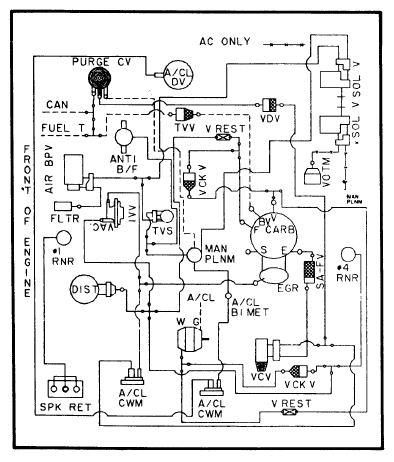

Fig 16: Calibration 0-2B-R0, 0-2C-R0; 2.3L; Federal (Fairmont and Zephyr W/out A/C)

Courtesy of FORD MOTOR CO.

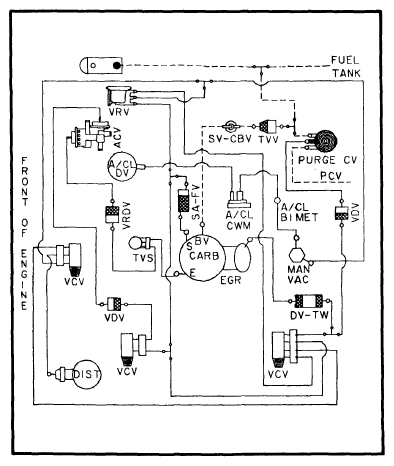

Fig 17: Calibration 0-2B-R0; 2.3L; Federal (Fairmont and Zephyr W/A/C)

Courtesy of FORD MOTOR CO.

Fig 18: Calibration 0-2C-R0; 2.3L; Federal (Mustang and Capri W/A/C)

Courtesy of FORD MOTOR CO.

Fig 19: Calibration 0-2C-R10; 2.3L; Federal (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 20: Calibration 0-2C-R10; 2.3L; Federal (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 21: Calibration 0-2E-R0; 2.3L; Federal

Courtesy of FORD MOTOR CO.

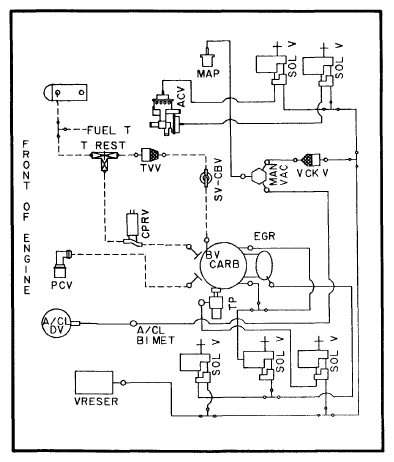

Fig 22: Calibration 0-2E-R10; 2.3L; Calif.

Courtesy of FORD MOTOR CO.

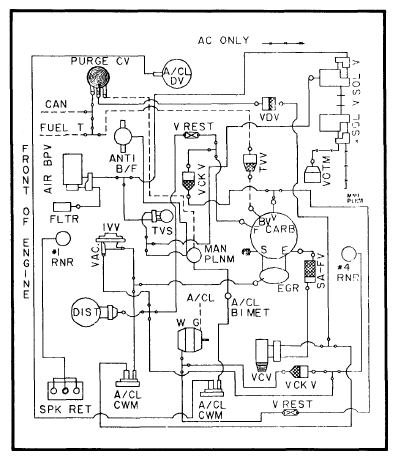

Fig 23: Calibration 0-2S-R0; 2.3L; Calif.

Courtesy of FORD MOTOR CO.

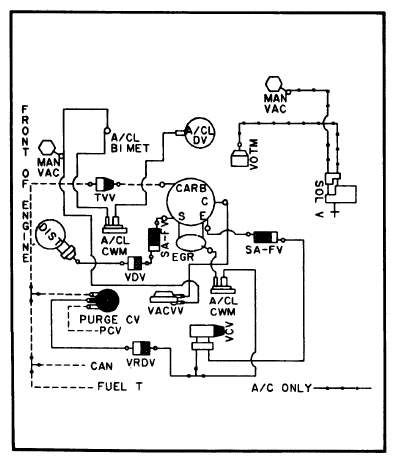

Fig 24: Calibration 0-2T-R0, 0-2T-R10; 2.3L Calif. (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 25: Calibration 0-2T-R0, 0-2T-R10; 2.3L; Calif. (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 26: Calibration 0-21A-R0, 0-21B-R0; 2.3L; Federal (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

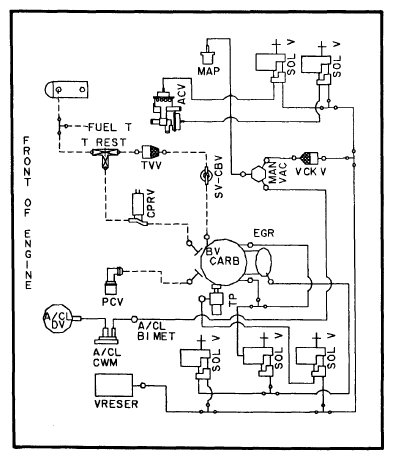

Fig 27: Calibration 0-21A-R0; 2.3L; Federal (Except Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 28: Calibration 9-21B-R0; 2.3L; Federal (Fairmont and Zephyr)

Courtesy of FORD MOTOR CO.

Fig 29: Calibration 0-21B-R0; 2.3L; Federal (Pinto and Bobcat)

Courtesy of FORD MOTOR CO.

Fig 30: Calibration 0-21B-R10; 2.3L; Federal

Courtesy of FORD MOTOR CO.

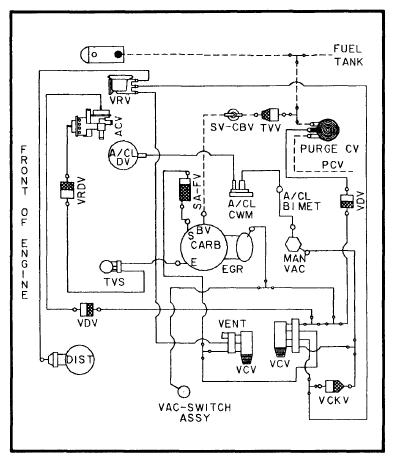

Fig 31: Calibration 0-6A-R0; 200"; Federal

Courtesy of FORD MOTOR CO.

Fig 32: Calibration 0-6A-R1; 200"; Federal

Courtesy of FORD MOTOR CO.

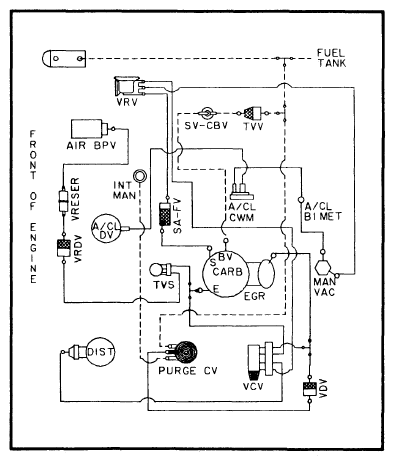

Fig 33: Calibration 0-7A-R0; 200"; Federal

Courtesy of FORD MOTOR CO.

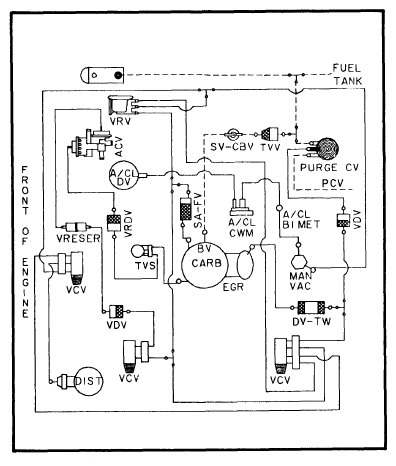

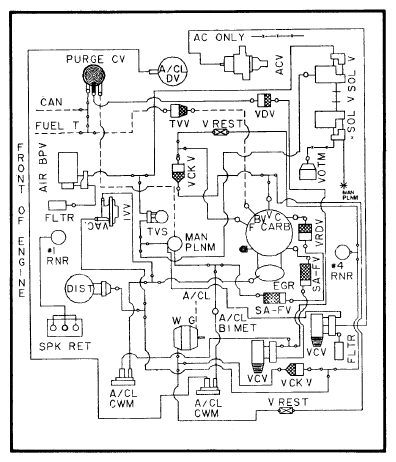

Fig 34: Calibration 0-7P-R10; 200"; Calif. (W/A/C)

Courtesy of FORD MOTOR CO.

Fig 35: Calibration 0-7P-R10; 200"; Calif. (W/out A/C)

Courtesy of FORD MOTOR CO.

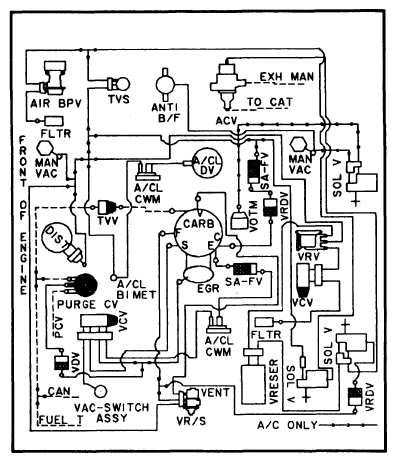

Fig 36: Calibration 0-7P-R11; 200"; Calif.

Courtesy of FORD MOTOR CO.

Fig 37: Calibration 0-7P-R11; 200"; Calif. (Alternate)

Courtesy of FORD MOTOR CO.

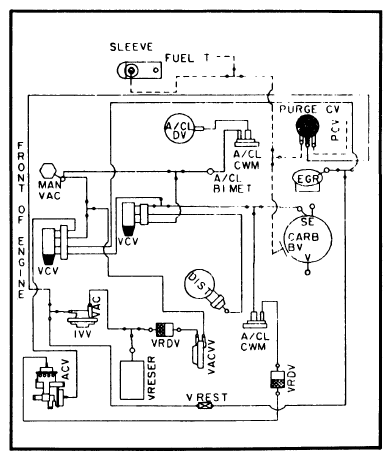

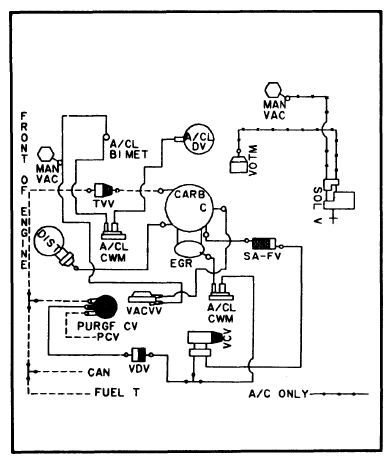

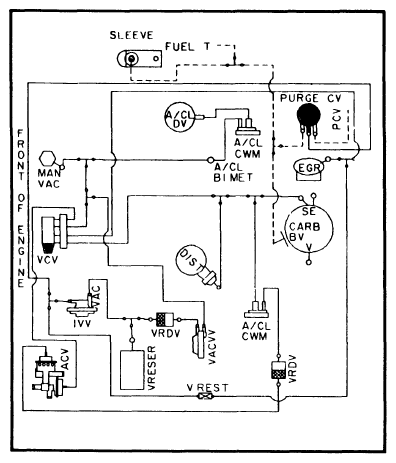

Fig 38: Calibration 0-7Q-R1; 200"; Calif. (W/A/C)

Courtesy of FORD MOTOR CO.

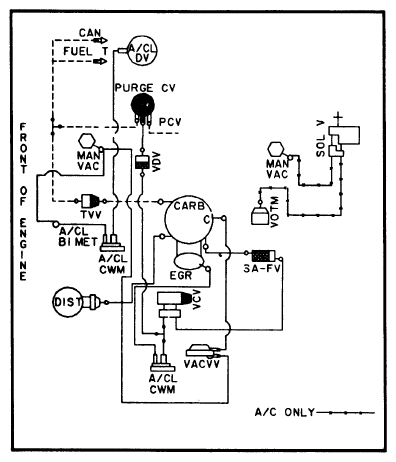

Fig 39: Calibration 0-7Q-R1; 200"; Calif. (W/out A/C)

Courtesy of FORD MOTOR CO.

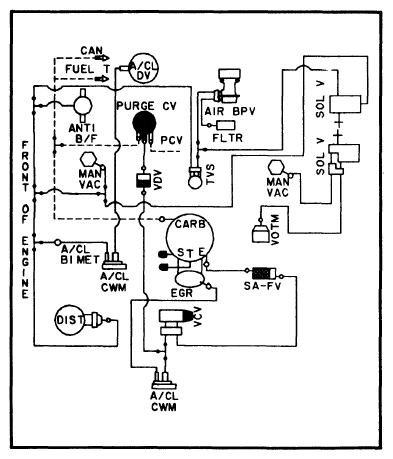

Fig 40: Calibration 0-27A-R3, 0-27A-R10; 200", Federal

Courtesy of FORD MOTOR CO.

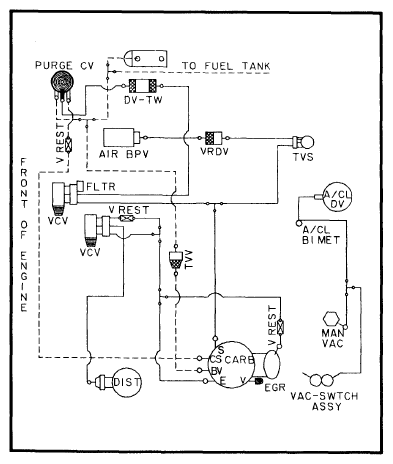

Fig 41: Calibration 0-8A-R0; 250"; Federal

Courtesy of FORD MOTOR CO.

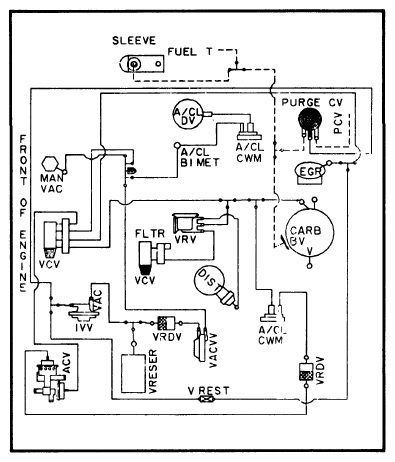

Fig 42: Calibration 0-9A-R0; 250"; Federal

Courtesy of FORD MOTOR CO.

Fig 43: Calibration 0-29A-R0; 250"; Federal

Courtesy of FORD MOTOR CO.

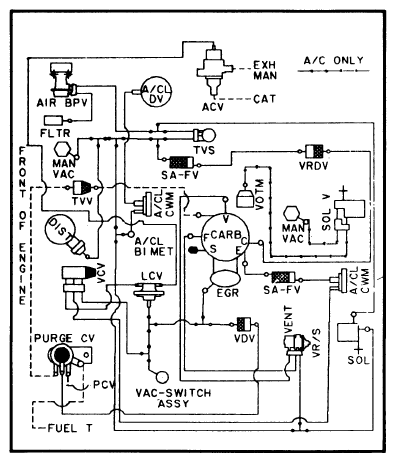

Fig 44: Calibration 0-16A-R0; 255"; Federal

Courtesy of FORD MOTOR CO.

Fig 45: Calibration 0-16A-R12; 255"; Federal

Courtesy of FORD MOTOR CO.

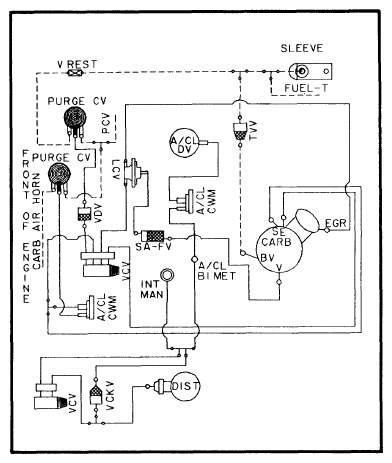

Fig 46: Calibration 0-16C-R0; 255"; Federal

Courtesy of FORD MOTOR CO.

Fig 47: Calibration 0-16C-R13, 0-16C-R15, 0-16C-R18, 0-16C-R19; 255"; All

Courtesy of FORD MOTOR CO.

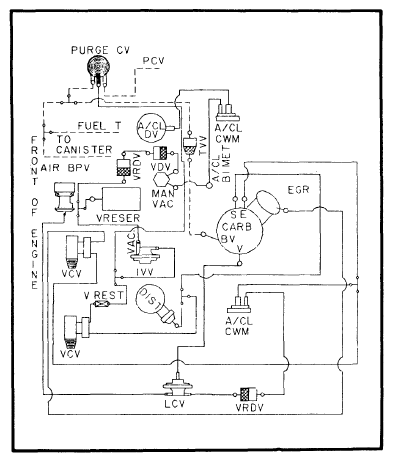

Fig 48: Calibration 0-16S-R14, 0-16S-R16; 255"; All

Courtesy of FORD MOTOR CO.

Fig 49: Calibration 0-16T-R13, 0-16T-R15, 0-16U-R13; 255"; Calif.

Courtesy of FORD MOTOR CO.

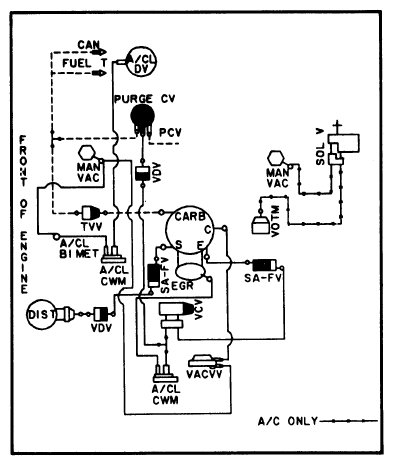

Fig 50: Calibration 0-16W-R0, 0-16X-R0; 255"; All

Courtesy of FORD MOTOR CO.

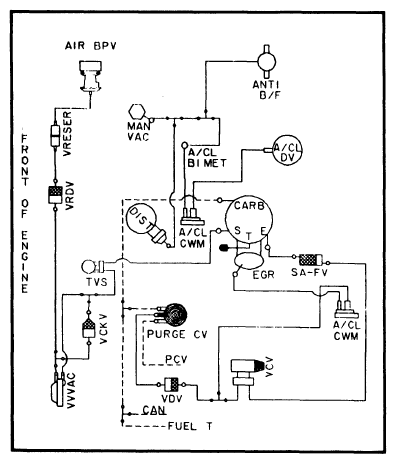

Fig 51: Calibration 9-11C-R1; 302"; Federal

Courtesy of FORD MOTOR CO.

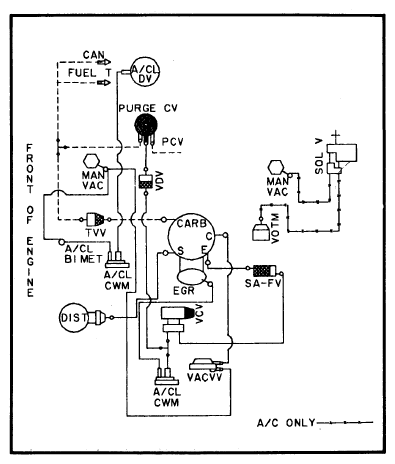

Fig 52: Calibration 0-11A-R0, 0-11A-R10, 0-11B-R0 0-11D-R0; 302"; All

Courtesy of FORD MOTOR CO.

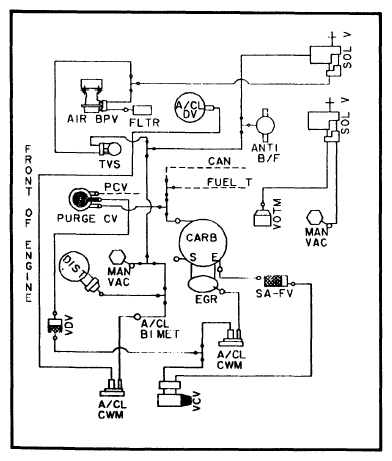

Fig 53: Calibration 0-11E-R0; 302"; All

Courtesy of FORD MOTOR CO.

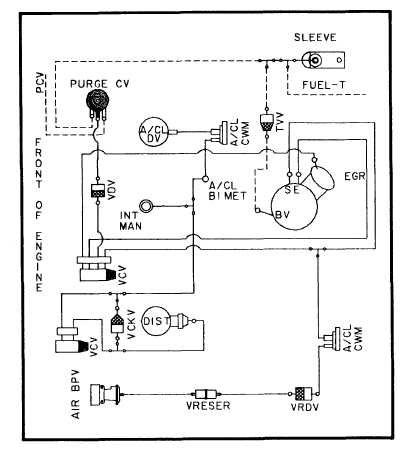

Fig 54: Calibration 0-11E-R13; 302"; All

Courtesy of FORD MOTOR CO.

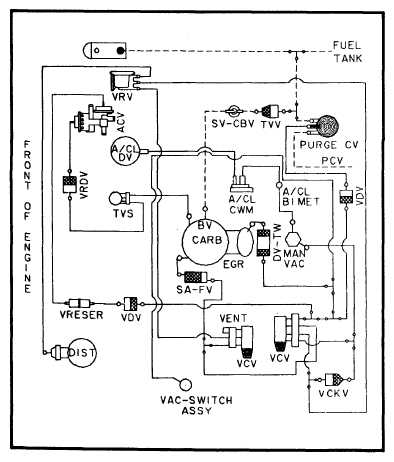

Fig 55: Calibration 0-11N-R0, 0-11N-R10, 0-11N-R11, 0-11N-R13; 302"; All

Courtesy of FORD MOTOR CO.

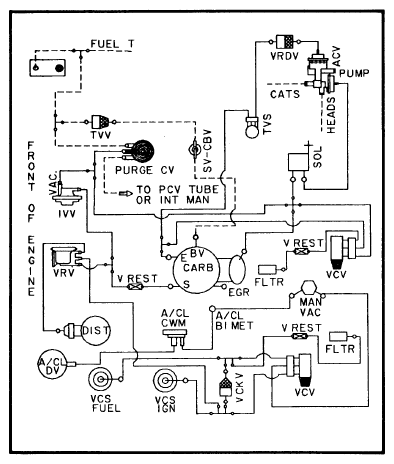

Fig 56: Calibration 0-11P-R12; 302"; Calif.

Courtesy of FORD MOTOR CO.

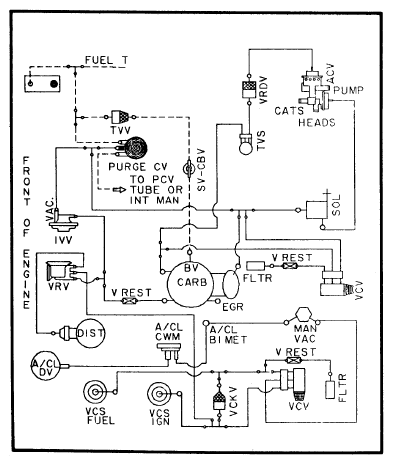

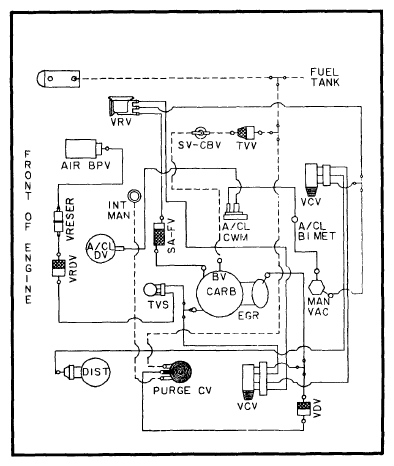

Fig 57: Calibration 0-11R-R0; 302"; Calif.

Courtesy of FORD MOTOR CO.

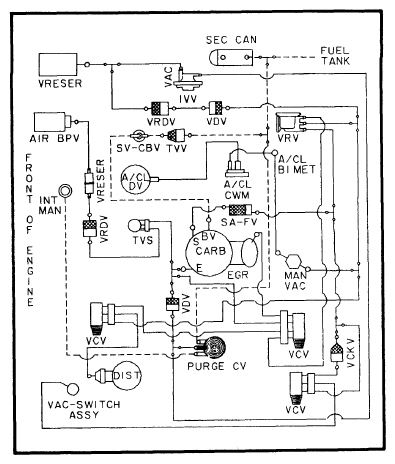

Fig 58: Calibration 0-11W-R0, 0-11W-R10; 302"; All

Courtesy of FORD MOTOR CO.

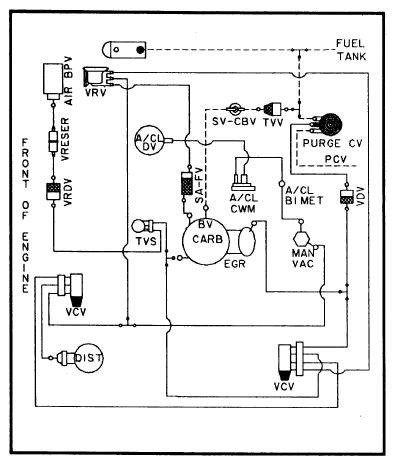

Fig 59: Calibration 0-11X-R0; 302"; All

Courtesy of FORD MOTOR CO.

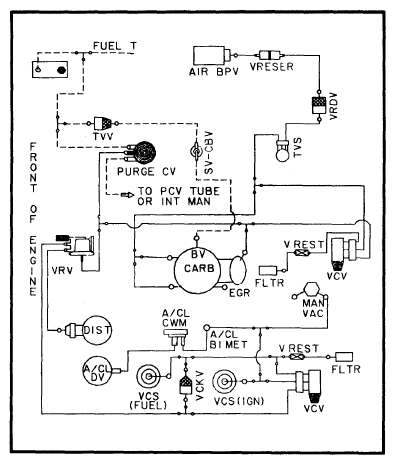

Fig 60: Calibration 0-13A-R0; 302"; Federal

Courtesy of FORD MOTOR CO.

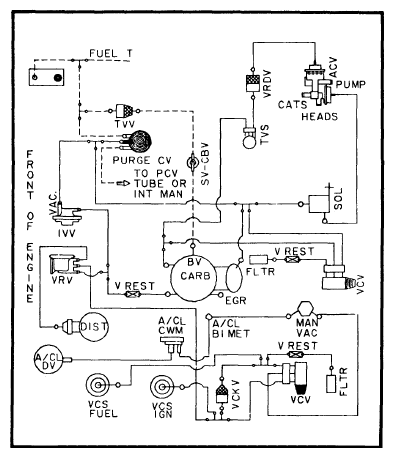

Fig 61: Calibration 0-13A-R10; 302"; Federal

Courtesy of FORD MOTOR CO.

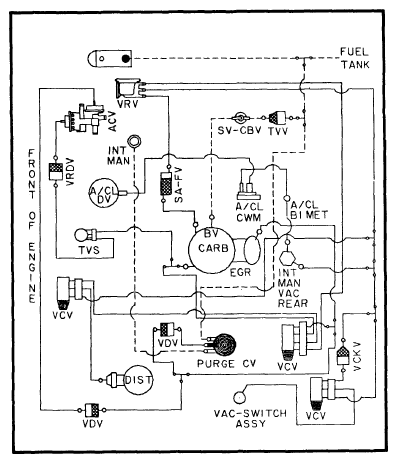

Fig 62: Calibration 0-13A-R11; 302"; Federal

Courtesy of FORD MOTOR CO.

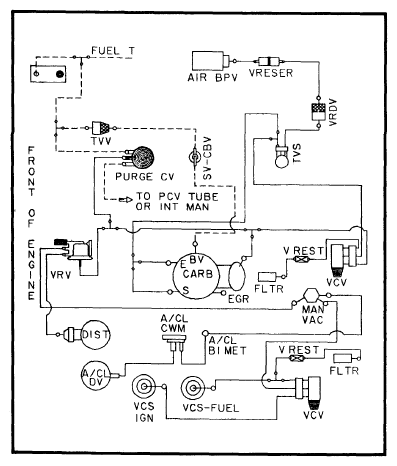

Fig 63: Calibration 0-13D-R0; 302"; Federal

Courtesy of FORD MOTOR CO.

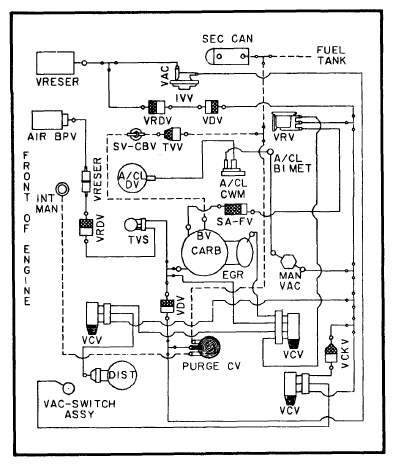

Fig 64: Calibration 0-13D-R10; 302"; Federal

Courtesy of FORD MOTOR CO.

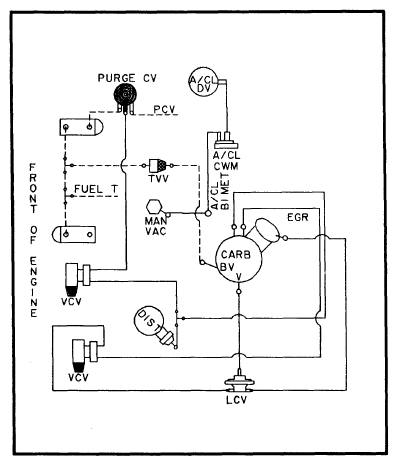

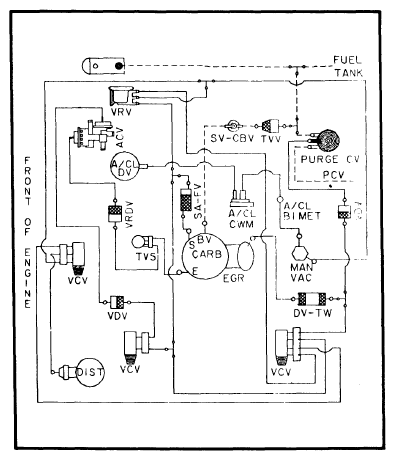

Fig 65: Calibration 0-13F-R0; 302"; Federal

Courtesy of FORD MOTOR CO.

Fig 66: Calibration 0-13F-R11; 302"; Federal

Courtesy of FORD MOTOR CO.

Fig 67: Calibration 0-13R-R0, 0-13R-R10, 0-13T-R0, 0-13T-R10; 302"; Calif.

Courtesy of FORD MOTOR CO.

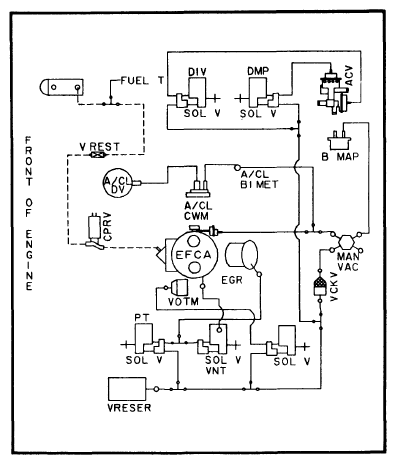

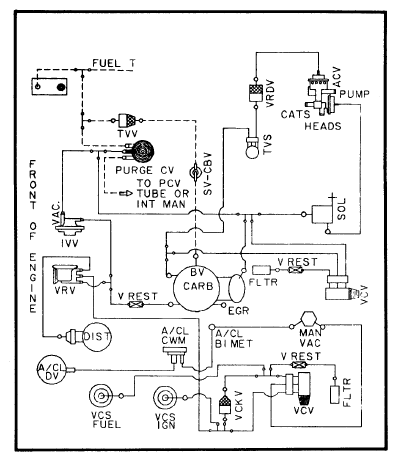

Fig 68: Calibration 0-14A-R0, 0-14A-R13, 0-14N-R0, 0-14N-R10; 302"; All

Courtesy of FORD MOTOR CO.

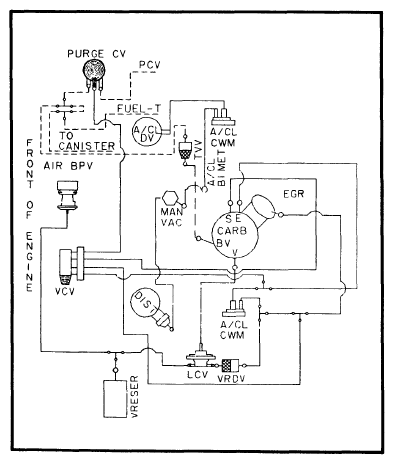

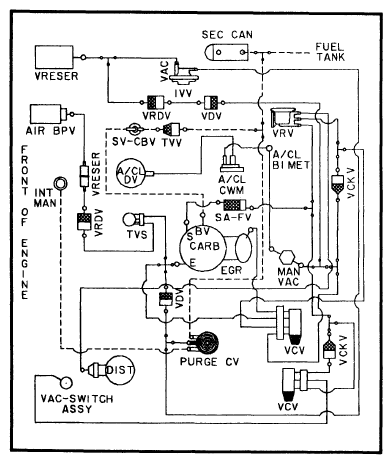

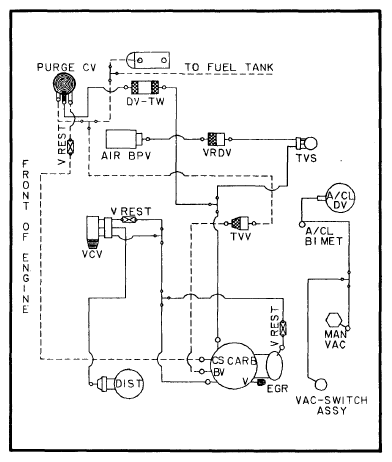

Fig 69: Calibration 0-12A-R0, 0-12A-R5, 0-12B-R0, 351"; Federal

Courtesy of FORD MOTOR CO.

Fig 70: Calibration 0-12C-R0, 0-12C-R5; 351"; Federal

Courtesy of FORD MOTOR CO.

Fig 71: Calibration 0-12H-R0; 351"; All

Courtesy of FORD MOTOR CO.

Fig 72: Calibration 0-12H-R10, 351", All

Courtesy of FORD MOTOR CO.

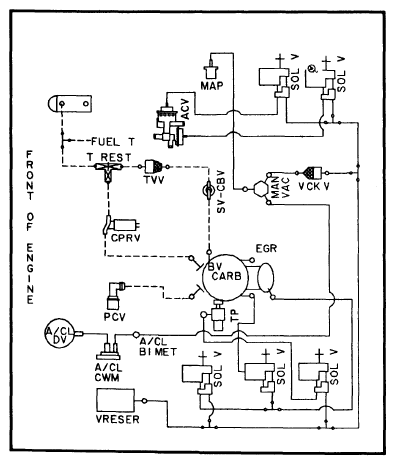

Fig 73: Calibration 0-12I-R10; 351"; All

Courtesy of FORD MOTOR CO.

Fig 74: Calibration 0-12J-R0; 351"; All

Courtesy of FORD MOTOR CO.

Fig 75: Calibration 0-12J-R10; 351"; All

Courtesy of FORD MOTOR CO.

Fig 76: Calibration 0-12N-R0; 351"; All

Courtesy of FORD MOTOR CO.

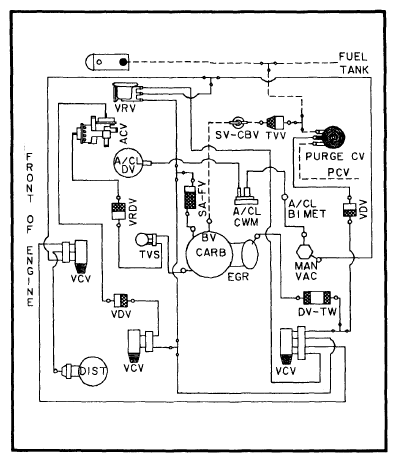

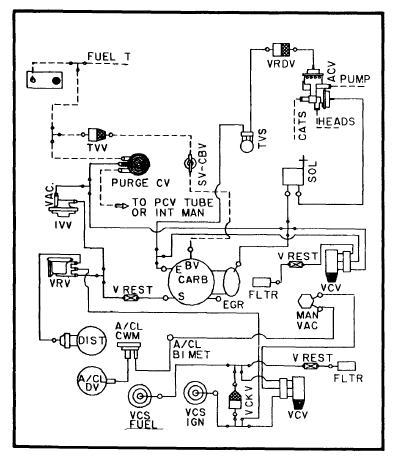

Fig 77: Calibration 0-12P-R0; 357"; All

Courtesy of FORD MOTOR CO.

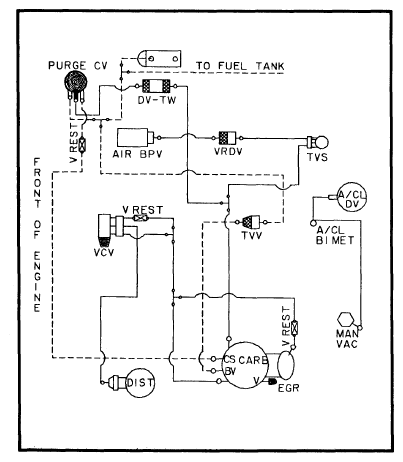

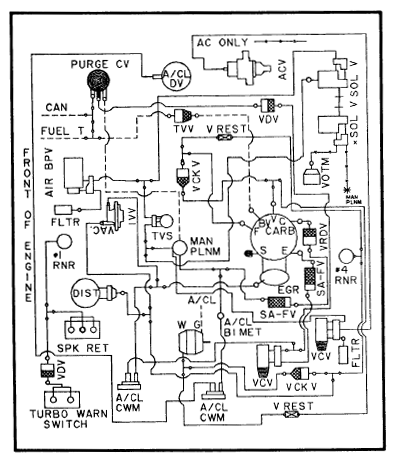

Fig 78: Calibration 0-1H-R19; 2.3L; Federal

Courtesy of FORD MOTOR CO.

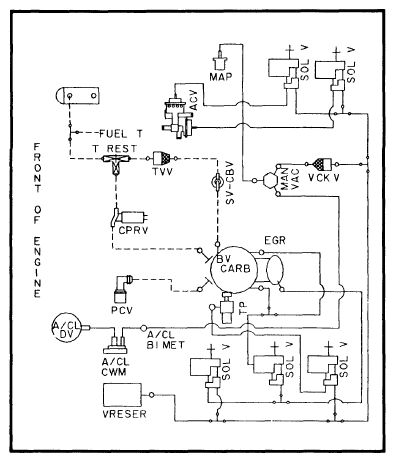

Fig 79: Calibration 0-1S-R15; 2.3L; Calif.

Courtesy of FORD MOTOR CO.

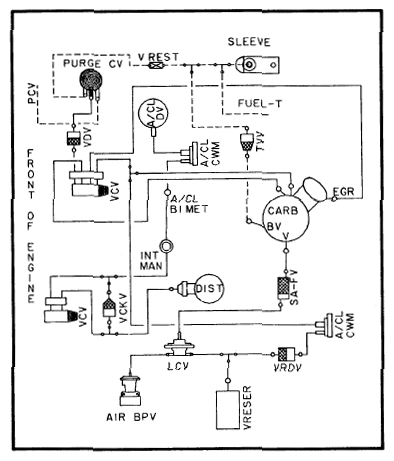

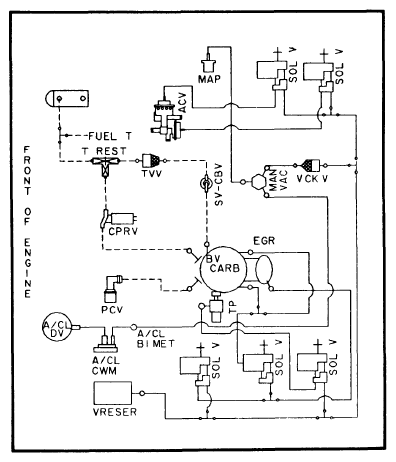

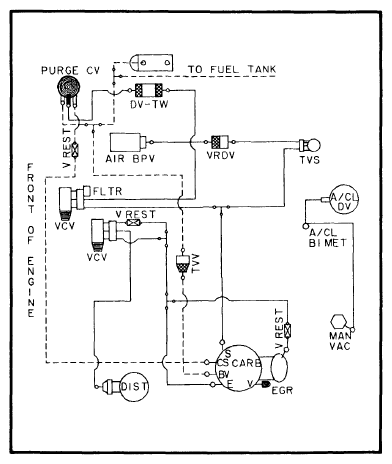

Fig 80: Calibration 0-7A-R11; 200"; Federal

Courtesy of FORD MOTOR CO.
