General Engine Specifications

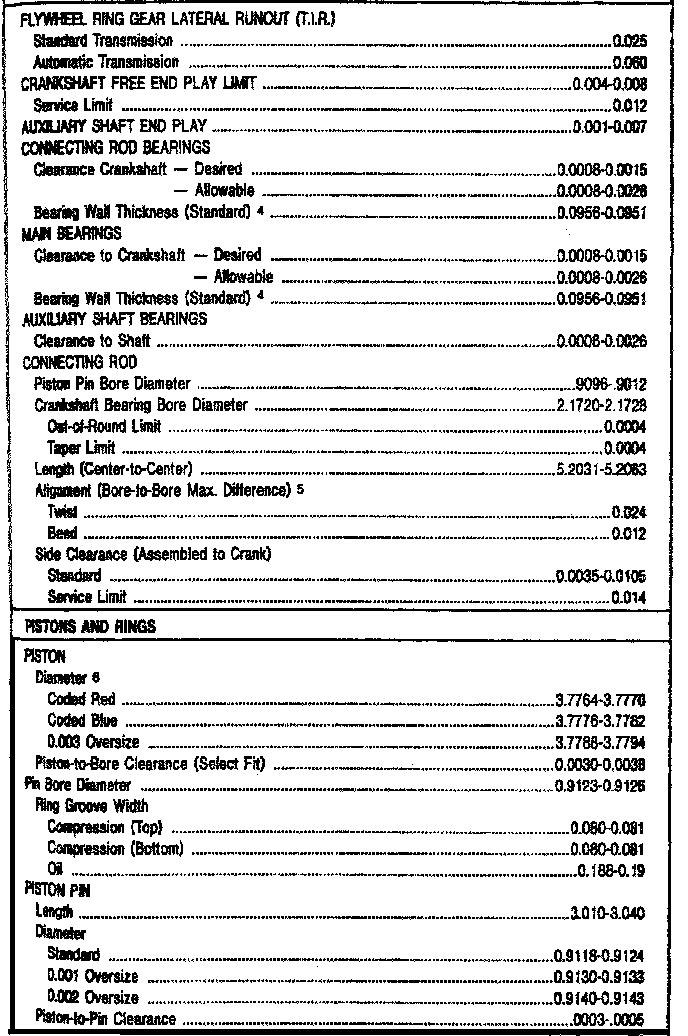

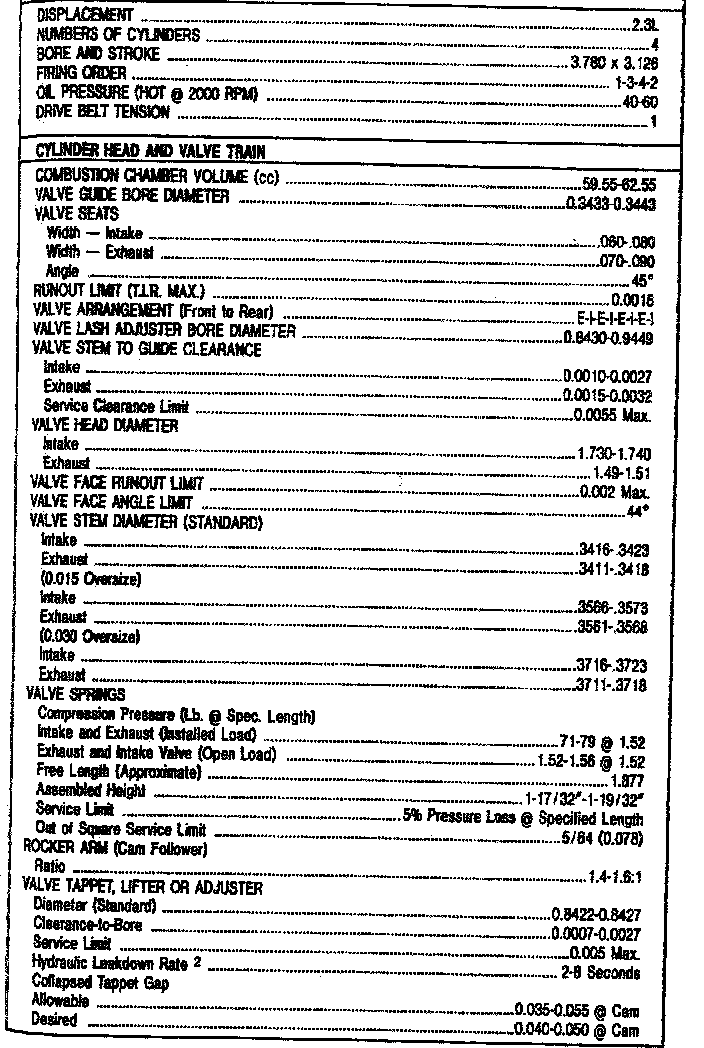

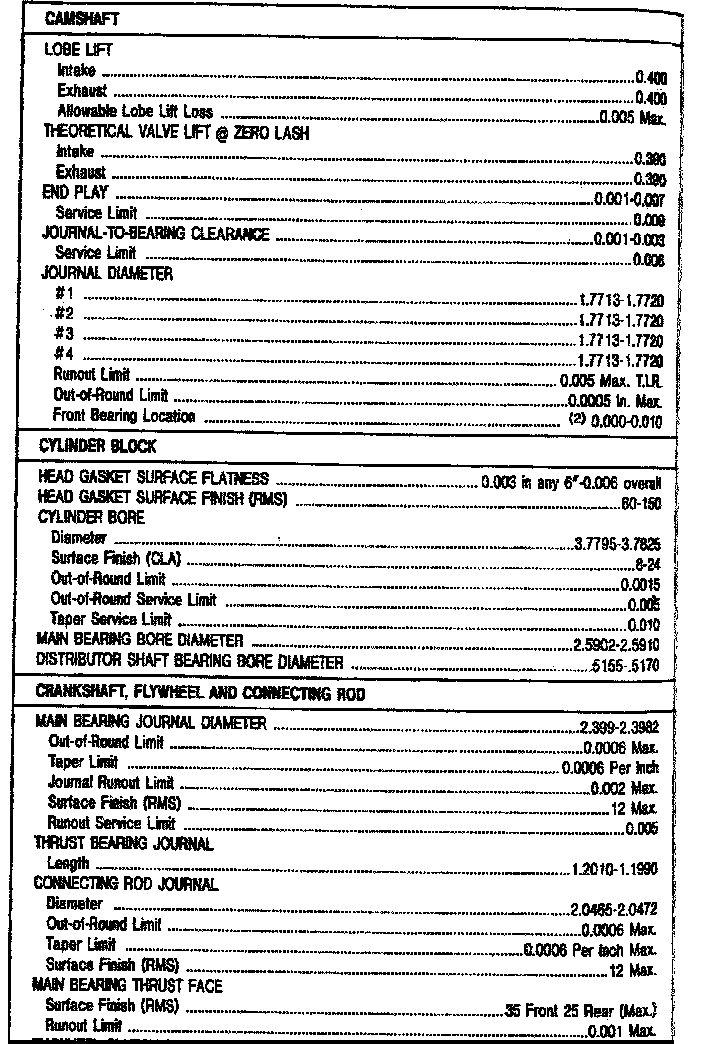

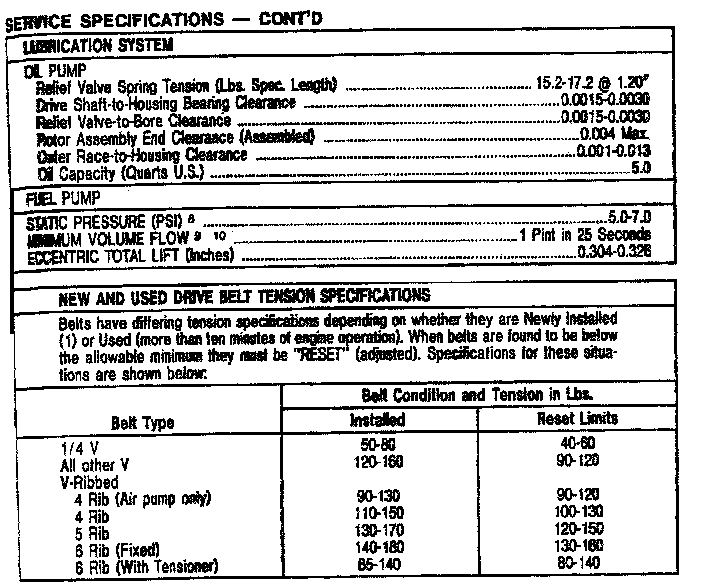

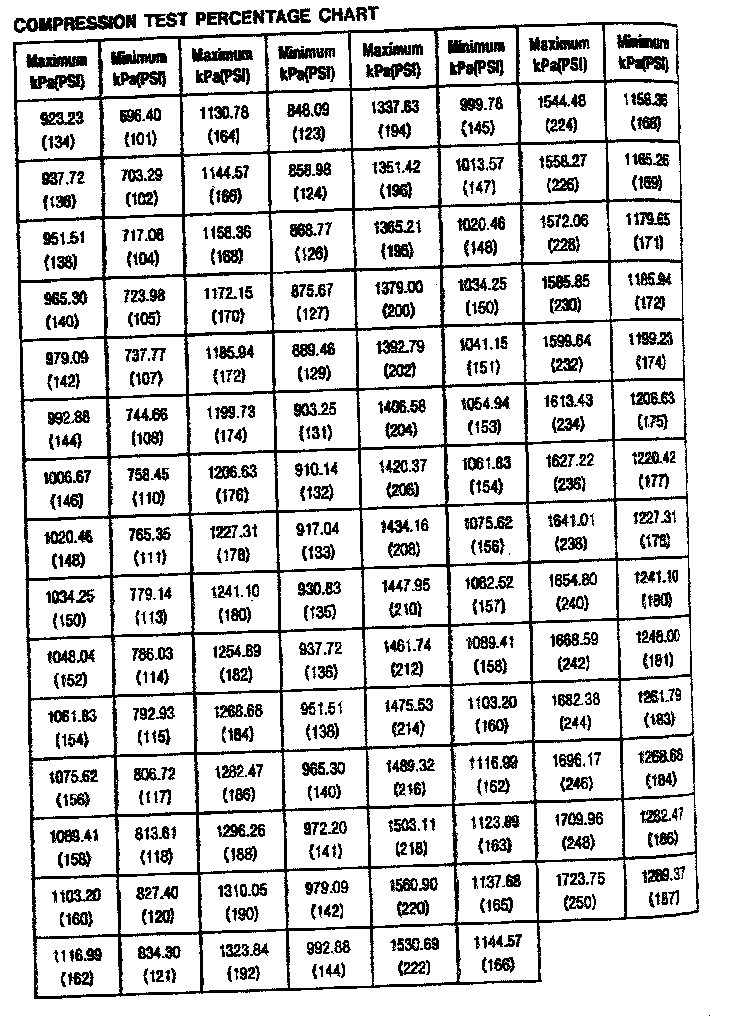

2.3L SOHC Engine Mechanical Data:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:





2.3L SOHC Engine Mechanical Cont.:
