Fig. 36 Calib. Code 2-05W-R0 High Alt.
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

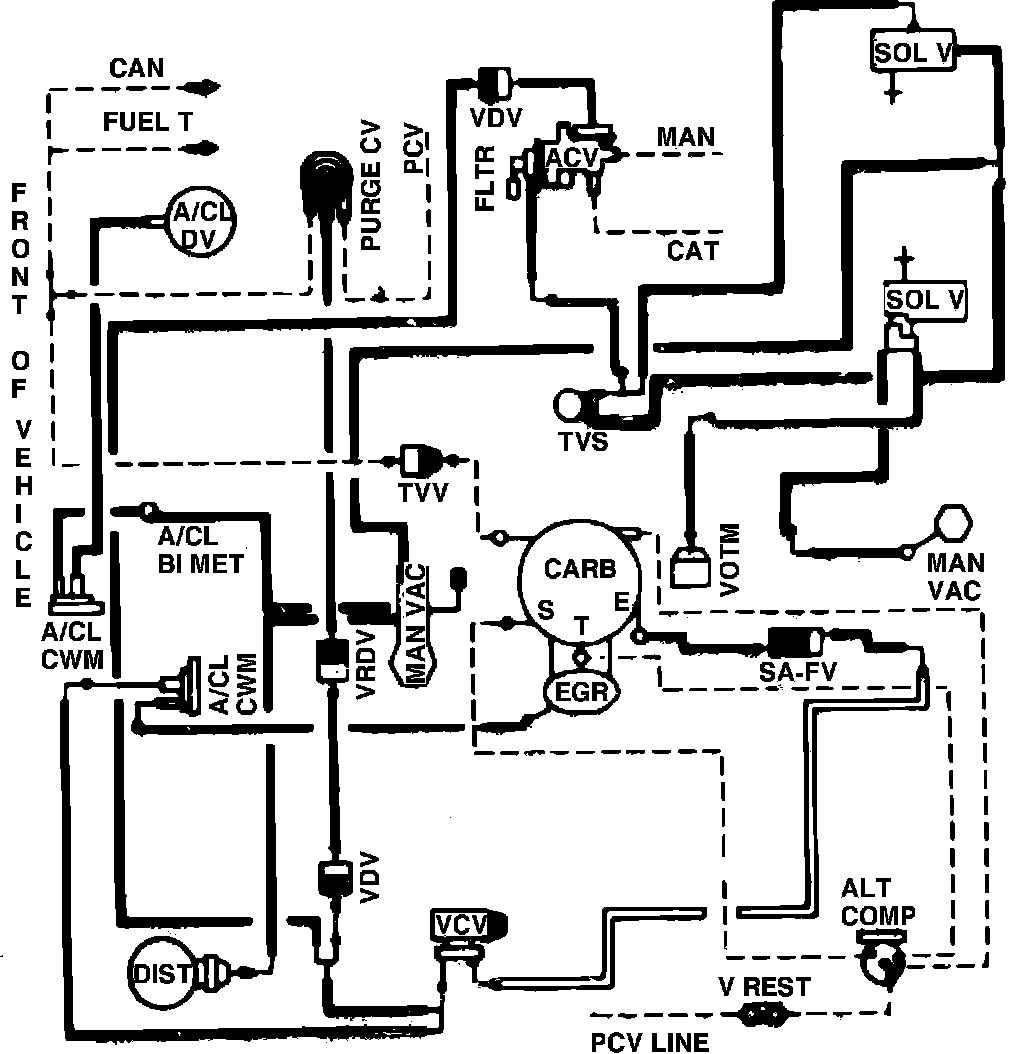

Fig. 36 Calib. Code 2-05W-R0 High Alt.
Vacuum hose routing:
