Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ATC Blower Motor Speed Controller | In evaporator case, ahead of evaporator core. | |
| ATC Control Unit | In center of instrument panel. | |
| Electronic Control Assembly (ECA) | Under right side of instrument panel. | |
| Heated Windshield Control Module | Under left side of dash, on steering column support bracket. | |
| Illuminated Entry Module | ||
| Sedan | On package tray behind rear seat. | |
| Station Wagon | Behind left rear quarter panel. | |

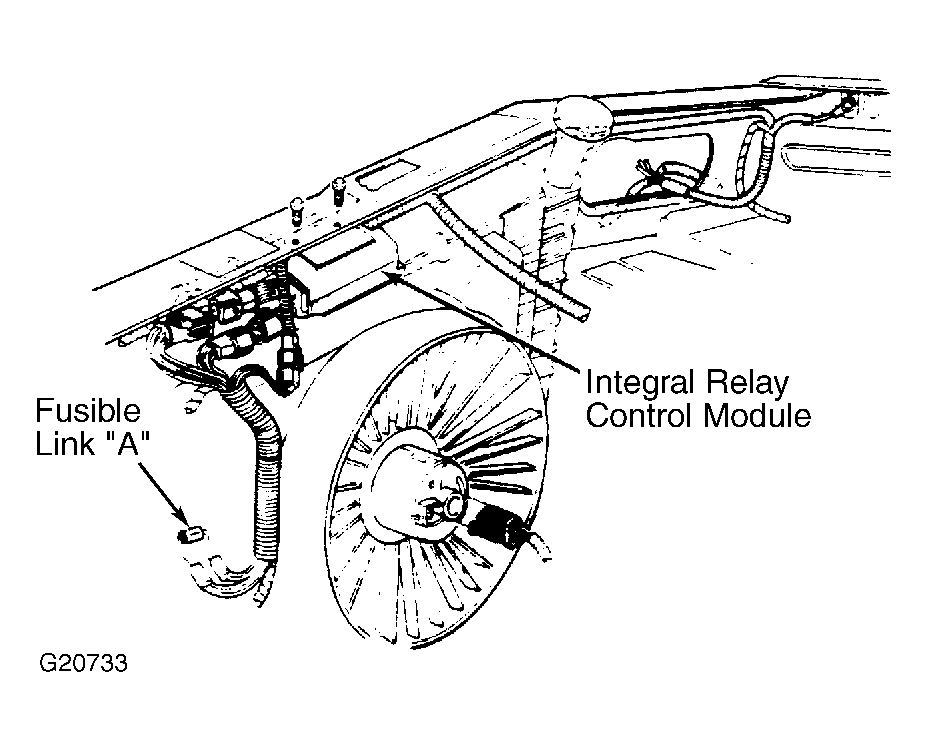

| Integral Controller | On bottom of upper radiator support. See Figure. | |
| Keyless Entry Module | ||
| Sedan | On package tray behind rear seat. | |
| Station Wagon | Behind left rear quarter panel. | |
| Light-Out Warning Module | Behind right side of instrument panel. | |
| Voice Alert Module | Under left side of instrument panel. | |
